NbNavigationMode Class Reference

Abstract base class for implementing a navigation submode. More...

#include <NutsnBolts/navigation/NbNavigationMode.h>

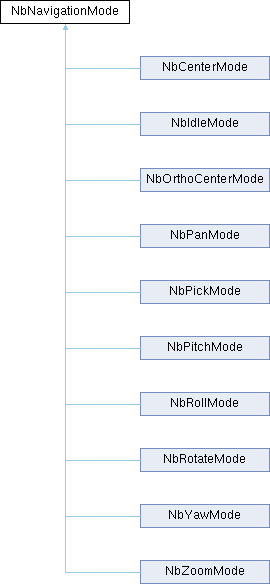

Inheritance diagram for NbNavigationMode:

Public Member Functions
	NbNavigationMode (SbName modename)
virtual	~NbNavigationMode (void)
virtual void	abort (const SoEvent *event, const NbNavigationControl *ctrl)
virtual NbNavigationMode *	clone (void) const =0
virtual void	finish (const SoEvent *event, const NbNavigationControl *ctrl)
NbNavigation1DInputValueFunc *	get1DValueFunc (void **closureptr=NULL) const
NbNavigation2DInputValueFunc *	get2DValueFunc (void **closureptr=NULL) const
NbNavigation3DInputValueFunc *	get3DValueFunc (void **closureptr=NULL) const
SbName	getModeName (void) const
virtual SoNode *	getSceneGraph (void)
virtual SoType	getTypeId (void) const
virtual SbBool	handleEvent (const SoEvent *event, const NbNavigationControl *ctrl)=0
virtual void	init (const SoEvent *event, const NbNavigationControl *ctrl)
SbBool	isAborted (void) const
SbBool	isFinished (void) const
SbBool	processEvent (const SoEvent *event, const NbNavigationControl *ctrl)
void	set1DValueFunc (NbNavigation1DInputValueFunc *func, void *closure)
void	set2DValueFunc (NbNavigation2DInputValueFunc *func, void *closure)
void	set3DValueFunc (NbNavigation3DInputValueFunc *func, void *closure)

Static Public Member Functions
static float	getAbsMouseCenterPixelDistance (void *closure, const NbNavigationMode *mode, const NbNavigationControl *ctrl)
static float	getAbsMouseMovePixelDistance (void *closure, const NbNavigationMode *mode, const NbNavigationControl *ctrl)
static SoType	getClassTypeId (void)
static float	getMouseCenterAngle (void *closure, const NbNavigationMode *mode, const NbNavigationControl *ctrl)
static float	getMouseCenterHorizontalPixelDistance (void *closure, const NbNavigationMode *mode, const NbNavigationControl *ctrl)
static float	getMouseCenterVerticalPixelDistance (void *closure, const NbNavigationMode *mode, const NbNavigationControl *ctrl)
static float	getMouseMoveAngle (void *closure, const NbNavigationMode *mode, const NbNavigationControl *ctrl)
static float	getMouseMoveCenterAngle (void *closure, const NbNavigationMode *mode, const NbNavigationControl *ctrl)
static float	getMouseMoveHorizontalNormalizedDistance (void *closure, const NbNavigationMode *mode, const NbNavigationControl *ctrl)
static float	getMouseMoveHorizontalPixelDistance (void *closure, const NbNavigationMode *mode, const NbNavigationControl *ctrl)
static float	getMouseMoveVerticalNormalizedDistance (void *closure, const NbNavigationMode *mode, const NbNavigationControl *ctrl)
static float	getMouseMoveVerticalPixelDistance (void *closure, const NbNavigationMode *mode, const NbNavigationControl *ctrl)
static void	initClass (void)

Static Public Attributes
static SoType	classTypeId = SoType::badType()

Protected Member Functions
void	abort (void)
void	finish (void)
float	get1DValue (const NbNavigationControl *ctrl) const
SbVec2f	get2DValue (const NbNavigationControl *ctrl) const
SbVec3f	get3DValue (const NbNavigationControl *ctrl) const
SbVec2f	getCurrentNormalizedPosition (const NbNavigationControl *ctrl) const
SbVec2s	getCurrentPosition (void) const
SbVec2f	getInitialNormalizedPosition (const NbNavigationControl *ctrl) const
SbVec2s	getInitialPosition (void) const
SbVec2f	getPreviousNormalizedPosition (const NbNavigationControl *ctrl) const
SbVec2s	getPreviousPosition (void) const

Detailed Description

Abstract base class for implementing a navigation submode.

This class is internal and should mostly be of interest for developers planning on implementing their own navigation systems with new navigation submodes.

It is abstract. The handleEvent method needs to be reimplemented by subclasses.

Constructor & Destructor Documentation

NbNavigationMode()

NbNavigationMode::NbNavigationMode

(

SbName

modename

)

Constructor. The modename argument is the name of the mode. It is often useful to create multiple instances of the same mode but with different names in a navigation system.

~NbNavigationMode()

NbNavigationMode::~NbNavigationMode ( void )

virtual

Destructor.

Member Function Documentation

abort()

void NbNavigationMode::abort ( const SoEvent * event, const NbNavigationControl * ctrl )

virtual

This method is invoked when the mode is aborted. The event passed to this method has already been handed to handleEvent as well.

See also

handleEvent, init(), finish()

finish()

void NbNavigationMode::finish ( const SoEvent * event, const NbNavigationControl * ctrl )

virtual

Invoked when a mode is completed. The event object passed to this method has already been handed to handleEvent as well.

See also

handleEvent, init(), abort()

get1DValueFunc()

NbNavigation1DInputValueFunc * NbNavigationMode::get1DValueFunc

(

void **

closureptr = NULL

)

const

See also

set1DValueFunc, get2DValueFunc, get3DValueFunc

getCurrentNormalizedPosition()

SbVec2f NbNavigationMode::getCurrentNormalizedPosition ( const NbNavigationControl * ctrl ) const

protected

Returns the current pointer position in normalized coordinates.

See also

getCurrentPosition, getInitialNormalizedPosition, getPreviousNormalizedPosition

getCurrentPosition()

SbVec2s NbNavigationMode::getCurrentPosition ( void ) const

protected

Returns the current pointer position in the viewport.

See also

getInitialPosition, getPreviousPosition, getCurrentNormalizedPosition

getInitialNormalizedPosition()

SbVec2f NbNavigationMode::getInitialNormalizedPosition ( const NbNavigationControl * ctrl ) const

protected

Returns the initial pointer position in normalized coordinates.

See also

getInitialPosition, getPreviousNormalizedPosition, getCurrentNormalizedPosition

getInitialPosition()

SbVec2s NbNavigationMode::getInitialPosition ( void ) const

protected

Returns the initial pointer position in the viewport, from when the navigation submode was started.

See also

getPreviousPosition, getCurrentPosition, getInitialNormalizedPosition

getModeName()

SbName NbNavigationMode::getModeName

(

void

)

const

Returns the name of the mode, given to the constructor.

getPreviousNormalizedPosition()

SbVec2f NbNavigationMode::getPreviousNormalizedPosition ( const NbNavigationControl * ctrl ) const

protected

Returns the previous pointer position in normalized coordinates.

See also

getPreviousPosition, getInitialNormalizedPosition, getCurrentNormalizedPosition

getPreviousPosition()

SbVec2s NbNavigationMode::getPreviousPosition ( void ) const

protected

Returns the previous points position in the viewport.

See also

getInitialPosition, getCurrentPosition, getPreviousNormalizedPosition

getSceneGraph()

SoNode * NbNavigationMode::getSceneGraph ( void )

virtual

Not implemented yet.

This function should return a visualization scene graph in case the navigation submode also includes visualization hints for the 3D display.

handleEvent()

SbBool NbNavigationMode::handleEvent ( const SoEvent * event, const NbNavigationControl * ctrl )

pure virtual

Virtual abstract method that should be overridden to implement the navigation submode.

All events passed through the system while this mode is active are passed to this method, including the events that cause init(), abort(), and finish() event transitions.

Implemented in NbCenterMode, NbIdleMode, NbOrthoCenterMode, NbPanMode, NbPickMode, NbPitchMode, NbRollMode, NbRotateMode, NbYawMode, and NbZoomMode.

init()

void NbNavigationMode::init ( const SoEvent * event, const NbNavigationControl * ctrl )

virtual

Invoked when a mode is started/initialized. It is passed the event that triggered the mode change, or NULL in the case of being the default mode.

This method is called just before handleEvent is called with the exact same event object.

If overriding this event, control should still be passed down to this method.

See also

handleEvent, abort(), finish()

initClass()

void NbNavigationMode::initClass ( void )

static

Static class initializer.

processEvent()

SbBool NbNavigationMode::processEvent	(	const SoEvent *	event,
		const NbNavigationControl *	ctrl )

This is the entry point for events coming from the NbNavigationSystem. Some initial information is gathered before the event is passed on to the virtual, abstract handleEvent method.

See also

handleEvent

set1DValueFunc()

void NbNavigationMode::set1DValueFunc	(	NbNavigation1DInputValueFunc *	func,
		void *	closure )

See also

get1DValueFunc, set2DValueFunc, set3DValueFunc

---

The documentation for this class was generated from the following files:

• NbNavigationMode.h
• NbNavigationMode.cpp
