The SoWxGLWidget class manages OpenGL contexts. More...

#include <Inventor/Wx/SoWxGLWidget.h>

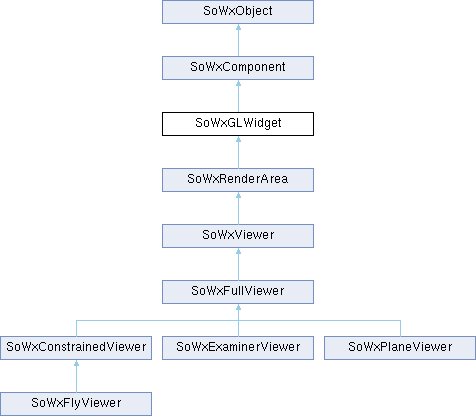

Inheritance diagram for SoWxGLWidget:

Public Member Functions
SbBool	getAccumulationBuffer (void) const

SbBool	getAlphaChannel (void) const

wxWindow *	getGLWidget (void) const

void	getLineWidthLimits (SbVec2f &range, float &granularity)

wxWindow *	getNormalWidget (void) const

unsigned long	getOverlayTransparentPixel (void)

wxWindow *	getOverlayWidget (void) const

void	getPointSizeLimits (SbVec2f &range, float &granularity)

int	getSampleBuffers (void) const

SbBool	getStencilBuffer (void) const

SbBool	hasNormalGLArea (void) const

SbBool	hasOverlayGLArea (void) const

SbBool	isBorder (void) const

SbBool	isDoubleBuffer (void) const

SbBool	isDrawToFrontBufferEnable (void) const

SbBool	isOverlayRender (void) const

SbBool	isQuadBufferStereo (void) const

SbBool	isStealFocus (void) const

void	setAccumulationBuffer (const SbBool enable)

void	setAlphaChannel (const SbBool enable)

void	setBorder (const SbBool enable)

virtual void	setDoubleBuffer (const SbBool enable)

void	setDrawToFrontBufferEnable (const SbBool enable)

void	setOverlayRender (const SbBool onoff)

void	setQuadBufferStereo (const SbBool enable)

void	setSampleBuffers (const int numsamples)

void	setStealFocus (SbBool enable)

void	setStencilBuffer (const SbBool enable)

Public Member Functions inherited from SoWxComponent
virtual	~SoWxComponent ()

wxWindow *	getBaseWidget (void) const

const char *	getClassName (void) const

const char *	getIconTitle (void) const

wxWindow *	getParentWidget (void) const

wxWindow *	getShellWidget (void) const

SbVec2s	getSize (void) const

const char *	getTitle (void) const

wxWindow *	getWidget (void) const

const char *	getWidgetName (void) const

virtual void	hide (void)

SbBool	isFullScreen (void) const

SbBool	isTopLevelShell (void) const

SbBool	isVisible (void)

virtual void	setComponentCursor (const SoWxCursor &cursor)

SbBool	setFullScreen (const SbBool onoff)

void	setIconTitle (const char *const title)

void	setSize (const SbVec2s size)

void	setTitle (const char *const title)

void	setWindowCloseCallback (SoWxComponentCB const func, void const user=NULL)

virtual void	show (void)

Public Member Functions inherited from SoWxObject
virtual SoType	getTypeId (void) const =0

SbBool	isOfType (SoType type) const

Protected Member Functions
	SoWxGLWidget (wxWindow const parent=NULL, const char const name=NULL, const SbBool embed=TRUE, const int glmodes=SO_GL_RGB, const SbBool build=TRUE)

	~SoWxGLWidget ()

wxWindow *	buildWidget (wxWindow *parent)

float	getGLAspectRatio (void) const

SbVec2s	getGLSize (void) const

float	getGlxAspectRatio (void) const

SbVec2s	getGlxSize (void) const

void	glFlushBuffer (void)

void	glLockNormal (void)

void	glLockOverlay (void)

virtual SbBool	glScheduleRedraw (void)

void	glSwapBuffers (void)

void	glUnlockNormal (void)

void	glUnlockOverlay (void)

virtual void	initGraphic (void)

virtual void	initOverlayGraphic (void)

SbBool	isRGBMode (void)

SbBool	isStereoBuffer (void) const

virtual void	processEvent (wxEvent &event)

virtual void	redraw (void)=0

virtual void	redrawOverlay (void)

void	setGLSize (const SbVec2s size)

void	setGlxSize (const SbVec2s size)

void	setStereoBuffer (SbBool flag)

virtual void	sizeChanged (const SbVec2s &size)

virtual void	widgetChanged (wxWindow *w)

Protected Member Functions inherited from SoWxComponent
	SoWxComponent (wxWindow const parent=NULL, const char const name=NULL, const SbBool embed=TRUE)

void	addVisibilityChangeCallback (SoWxComponentVisibilityCB const func, void const user=NULL)

virtual void	afterRealizeHook (void)

virtual const char *	getDefaultIconTitle (void) const

virtual const char *	getDefaultTitle (void) const

virtual const char *	getDefaultWidgetName (void) const

void	registerWidget (wxWindow *widget)

void	removeVisibilityChangeCallback (SoWxComponentVisibilityCB const func, void const user=NULL)

void	setBaseWidget (wxWindow *widget)

void	setClassName (const char *const name)

void	unregisterWidget (wxWindow *widget)

Protected Attributes
SbBool	drawToFrontBuffer

SbBool	waitForExpose

Protected Attributes inherited from SoWxComponent
SbBool	firstRealize

Additional Inherited Members
Static Public Member Functions inherited from SoWxComponent
static SoWxComponent *	getComponent (wxWindow *widget)

static void	initClasses (void)

static void	setWidgetCursor (wxWindow *w, const SoWxCursor &cursor)

Static Public Member Functions inherited from SoWxObject
static SoType	getClassTypeId (void)

static void	init (void)

static void	initClass (void)

Detailed Description

The SoWxGLWidget class manages OpenGL contexts.

This is the basic, abstract component class which sets up an OpenGL canvas for its subclasses.

Application programmers will normally not use this class directly, but rather through the interface of either its direct descendent, SoWxRenderArea, or through one of the "rapid application development"-style viewer subclasses.

Constructor & Destructor Documentation

◆ SoWxGLWidget()

SoWxGLWidget::SoWxGLWidget	(	wxWindow *const	parent = NULL,
		const char *const	name = NULL,
		const SbBool	embed = TRUE,
		const int	glmodes = SO_GL_RGB,
		const SbBool	build = TRUE )

protected

The constructor is protected, as this is an abstract class to only be used by its subclasses.

◆ ~SoWxGLWidget()

SoWxGLWidget::~SoWxGLWidget ( )

protected

Clean up all use of internal resources.

The destructor is protected, as this is an abstract class to only be used by its subclasses.

Member Function Documentation

◆ buildWidget()

wxWindow * SoWxGLWidget::buildWidget ( wxWindow * parent )

protected

This method builds the component contents in the given parent widget. For subclasses adding new user interface items, this method is typically overridden in the following manner:

wxWindow* MyOwnViewer::buildWidget(wxWindow* parent)
{
   wxWindow* superw = <superclass>::buildWidget(parent);
   // [then move superw within MyOwnViewer framework and add own
   // user interface components]
}

◆ getAccumulationBuffer()

SbBool SoWxGLWidget::getAccumulationBuffer ( void ) const

Returns whether the OpenGL accumulation buffer is enabled.

The returned flag will indicate whether or not accumulation buffers are actually present, and not just parrot the input value to SoWxGLWidget::setAccumulationBuffer(). See documentation of that function for more information.

◆ getAlphaChannel()

SbBool SoWxGLWidget::getAlphaChannel ( void ) const

Returns whether the alpha channel is enabled for the OpenGL context.

◆ getGLAspectRatio()

float SoWxGLWidget::getGLAspectRatio ( void ) const

protected

Return the aspect ratio of the OpenGL canvas.

◆ getGLSize()

SbVec2s SoWxGLWidget::getGLSize ( void ) const

protected

Return the dimensions of the OpenGL canvas.

◆ getGLWidget()

wxWindow * SoWxGLWidget::getGLWidget ( void ) const

Returns a pointer to the toolkit-native GL widget.

◆ getGlxAspectRatio()

float SoWxGLWidget::getGlxAspectRatio ( void ) const

inlineprotected

This function has been renamed to the more appropriate getGLAspectRatio.

See also: getGLAspectRatio

◆ getGlxSize()

SbVec2s SoWxGLWidget::getGlxSize ( void ) const

inlineprotected

This function has been renamed to the more appropriate getGLSize.

See also: getGLSize

◆ getLineWidthLimits()

void SoWxGLWidget::getLineWidthLimits	(	SbVec2f &	range,
		float &	granularity )

This function is provided as a convenience for the application programmer to help with acquiring the OpenGL implementation limits for rendering lines.

For robust application code, one needs to consider the range limits when setting the SoDrawStyle::lineWidth field.

◆ getNormalWidget()

wxWindow * SoWxGLWidget::getNormalWidget ( void ) const

◆ getOverlayTransparentPixel()

unsigned long SoWxGLWidget::getOverlayTransparentPixel ( void )

Returns the overlay transparent pixel.

◆ getOverlayWidget()

wxWindow * SoWxGLWidget::getOverlayWidget ( void ) const

Returns widget associated with overlay planes, or NULL if no overlay planes are available.

◆ getPointSizeLimits()

void SoWxGLWidget::getPointSizeLimits	(	SbVec2f &	range,
		float &	granularity )

This function is provided as a convenience for the application programmer to help with acquiring the OpenGL implementation limits for rendering points.

For robust application code, one needs to consider the range limits when setting the SoDrawStyle::pointSize field.

◆ getSampleBuffers()

int SoWxGLWidget::getSampleBuffers ( void ) const

Returns the number of samples used for multisampling. Returns 1 if multisampling is disabled.

◆ getStencilBuffer()

SbBool SoWxGLWidget::getStencilBuffer ( void ) const

Returns whether the OpenGL stencil buffer is enabled.

The returned flag will indicate whether or not stencil buffers are actually present, in the same manner as for SoWxGLWidget::getAccumulationBuffer(). See documentation of SoWxGLWidget::setStencilBuffer().

◆ glFlushBuffer()

void SoWxGLWidget::glFlushBuffer ( void )

protected

Flush the current GL buffer. Simply calls glFlush().

◆ glLockNormal()

void SoWxGLWidget::glLockNormal ( void )

protected

This method calls make-current on the correct context and increases the lock level.

◆ glLockOverlay()

void SoWxGLWidget::glLockOverlay ( void )

protected

This method calls make-current on the correct context and increases the lock level.

◆ glScheduleRedraw()

SbBool SoWxGLWidget::glScheduleRedraw ( void )

protectedvirtual

Will be called whenever scene graph needs to be redrawn. If this method return FALSE, redraw() will be called immediately.

Default method simply returns FALSE. Override this method to schedule a redraw and return TRUE if you're trying to do The Right Thing.

Reimplemented in SoWxRenderArea.

◆ glSwapBuffers()

void SoWxGLWidget::glSwapBuffers ( void )

protected

Swap back buffer to front and vice versa.

◆ glUnlockNormal()

void SoWxGLWidget::glUnlockNormal ( void )

protected

This method decreases the lock level.

◆ glUnlockOverlay()

void SoWxGLWidget::glUnlockOverlay ( void )

protected

This method decreases the lock level.

◆ hasNormalGLArea()

SbBool SoWxGLWidget::hasNormalGLArea ( void ) const

Will return TRUE if a normal GL drawing area exists.

◆ hasOverlayGLArea()

SbBool SoWxGLWidget::hasOverlayGLArea ( void ) const

Will return TRUE if an overlay GL drawing area exists.

◆ initGraphic()

void SoWxGLWidget::initGraphic ( void )

protectedvirtual

Will be called when GL widget should initialize graphic, after the widget has been created. Default method enabled GL_DEPTH_TEST.

Reimplemented in SoWxRenderArea.

◆ initOverlayGraphic()

void SoWxGLWidget::initOverlayGraphic ( void )

protectedvirtual

Will be called after the overlay widget has been created, and subclasses should override this to initialize overlay stuff.

Default method does nothing.

Reimplemented in SoWxRenderArea.

◆ isBorder()

SbBool SoWxGLWidget::isBorder ( void ) const

Returns whether or not there's a border framing the OpenGL canvas.

See also: setBorder()

◆ isDoubleBuffer()

SbBool SoWxGLWidget::isDoubleBuffer ( void ) const

Returns the status of the buffer mode.

See also: setDoubleBuffer()

◆ isDrawToFrontBufferEnable()

SbBool SoWxGLWidget::isDrawToFrontBufferEnable ( void ) const

See also: setDrawToFrontBufferEnable()

◆ isOverlayRender()

SbBool SoWxGLWidget::isOverlayRender ( void ) const

Returns a flag indicating whether or not overplay planes are currently used.

See also: setOverlayRender()

◆ isQuadBufferStereo()

SbBool SoWxGLWidget::isQuadBufferStereo ( void ) const

Returns TRUE if quad buffer stereo is enabled for this widget.

◆ isRGBMode()

SbBool SoWxGLWidget::isRGBMode ( void )

protected

Returns TRUE if the normal GL context is in RGBA mode. Return FALSE if color index mode is used.

◆ isStealFocus()

SbBool SoWxGLWidget::isStealFocus ( void ) const

Returns whether focus stealing policy is on (TRUE) or off (FALSE).

Default is TRUE.

See also: setStealFocus

Since: SoWx 1.3.0

◆ isStereoBuffer()

SbBool SoWxGLWidget::isStereoBuffer ( void ) const

protected

Returns whether OpenGL stereo buffers are being used.

◆ processEvent()

void SoWxGLWidget::processEvent ( wxEvent & anyevent )

protectedvirtual

Any events from the native window system that goes to the OpenGL canvas gets piped through this method.

It is overridden in the subclasses to catch user interaction with the render canvas in the viewers, as well as forwarding relevant events to the scene graph.

Reimplemented in SoWxRenderArea.

◆ redraw()

void SoWxGLWidget::redraw ( void )

protectedpure virtual

This method is invoked when the GL buffer needs to be redrawn.

Implemented in SoWxRenderArea.

◆ redrawOverlay()

void SoWxGLWidget::redrawOverlay ( void )

protectedvirtual

Renders the overlay scene graph. Default method is empty. Subclasses should override this method.

Reimplemented in SoWxRenderArea.

◆ setAccumulationBuffer()

void SoWxGLWidget::setAccumulationBuffer ( const SbBool enable )

Enables/disables the OpenGL accumulation buffer.

For general information about accumulation buffers, confer with your OpenGL reference documentation.

By default, the accumulation buffer will be attempted disabled. Whether or not it will actually be disabled depends on what OpenGL contexts are available on the system. It is perfectly possible that the only usable contexts with regard to the other settings (like double buffering and RGBA mode versus color index mode) causes the context selection to choose an OpenGL format that contains an accumulation buffer, even though it was not requested.

Vice versa, one is not guaranteed to get accumulation buffers even when requested through this function, either because they are not available, or because they are only available in combination with other OpenGL context settings that are not wanted (like single buffers, non-accelerated rendering, etc).

If you try to enable accumulation buffers by using this function, you should therefore in succession use the SoWxGLWidget::getAccumulationBuffer() to query whether or not an accumulation buffer could actually be set up.

See also: SoWxRenderArea::setAntiAliasing()

◆ setAlphaChannel()

void SoWxGLWidget::setAlphaChannel ( const SbBool enable )

Enables/disables the alpha channel for the OpenGL context.

◆ setBorder()

void SoWxGLWidget::setBorder ( const SbBool enable )

Specify whether or not there should be a border framing the OpenGL canvas. The border will be 2 pixels wide.

The default is to display the OpenGL canvas with no border.

See also: isBorder()

◆ setDoubleBuffer()

void SoWxGLWidget::setDoubleBuffer ( const SbBool enable )

virtual

Switch between single and double buffer mode for the OpenGL canvas. The default is to use a single buffer canvas.

See also: isDoubleBuffer()

Reimplemented in SoWxViewer.

◆ setDrawToFrontBufferEnable()

void SoWxGLWidget::setDrawToFrontBufferEnable ( const SbBool enable )

If this is set to TRUE, rendering will happen in the front buffer even if the current rendering mode is double buffered.

◆ setGLSize()

void SoWxGLWidget::setGLSize ( const SbVec2s size )

protected

Sets the size of the GL canvas.

◆ setGlxSize()

void SoWxGLWidget::setGlxSize ( const SbVec2s size )

inlineprotected

This function has been renamed to the more appropriate setGLSize.

See also: setGLSize

◆ setOverlayRender()

void SoWxGLWidget::setOverlayRender ( const SbBool onoff )

Turn on or off the use of overlay planes.

See also: isOverlayRender()

◆ setQuadBufferStereo()

void SoWxGLWidget::setQuadBufferStereo ( const SbBool enable )

Enables or disables OpenGL quad buffer stereo.

◆ setSampleBuffers()

void SoWxGLWidget::setSampleBuffers ( const int numsamples )

Set the number of samples use when enabling multisample buffer contexts. Multisampling will be enabled when numsamples > 1.

◆ setStealFocus()

void SoWxGLWidget::setStealFocus ( SbBool enable )

Sets whether the GL widget should steal keyboard focus when the mouse is over the GL view.

Default is TRUE.

See also: isStealFocus

Since: SoWx 1.3.0

◆ setStencilBuffer()

void SoWxGLWidget::setStencilBuffer ( const SbBool enable )

Enables/disables the OpenGL stencil buffer.

For general information about stencil buffers, confer with your OpenGL reference documentation.

By default, the stencil buffer will be attempted disabled, but the same notes apply for stencil buffers as for accumulation buffers. For an explanation on the issue of stencil and accumulation buffer availability, see the function documentation of SoWxGLWidget::setAccumulationBuffer().

◆ setStereoBuffer()

void SoWxGLWidget::setStereoBuffer ( SbBool flag )

protected

Sets whether OpenGL stereo buffers (quad buffer stereo) should be used.

◆ sizeChanged()

void SoWxGLWidget::sizeChanged ( const SbVec2s & size )

protectedvirtual

Called internally from within the SoWx library when the widget embedded in a component changes its size, which is usually triggered by end-user interaction.

This method is then invoked to notify the component that the size has changed. It is called from the top and all the way down to the bottom, the size being adjusted to take into account extra decorations having been added at each level in the component class hierarchy.

Reimplemented from SoWxComponent.

Reimplemented in SoWxRenderArea, SoWxFullViewer, and SoWxViewer.

◆ widgetChanged()

void SoWxGLWidget::widgetChanged ( wxWindow * w )

protectedvirtual

This is the method which gets called whenever we change which OpenGL widget is used.

Should be overridden in subclasses which directly or indirectly store the return value from the SoWxGLWidget::getGLWidget() method.

See also: sizeChanged()

Reimplemented in SoWxRenderArea.

Member Data Documentation

◆ drawToFrontBuffer

SbBool SoWxGLWidget::drawToFrontBuffer

protected

If this is TRUE, rendering will happen in the front buffer even if the current rendering mode is double buffered.

◆ waitForExpose

SbBool SoWxGLWidget::waitForExpose

protected

If this is TRUE, rendering should not be done yet. Upon the first expose event of a newly created OpenGL widget, this variable will be set to FALSE.

The documentation for this class was generated from the following files:

SoWxGLWidget.h
SoWxGLWidgetCommon.cpp
SoWxGLWidget.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SoWxGLWidget()

◆ ~SoWxGLWidget()

Member Function Documentation

◆ buildWidget()

◆ getAccumulationBuffer()

◆ getAlphaChannel()

◆ getGLAspectRatio()

◆ getGLSize()

◆ getGLWidget()

◆ getGlxAspectRatio()

◆ getGlxSize()

◆ getLineWidthLimits()

◆ getNormalWidget()

◆ getOverlayTransparentPixel()

◆ getOverlayWidget()

◆ getPointSizeLimits()

◆ getSampleBuffers()

◆ getStencilBuffer()

◆ glFlushBuffer()

◆ glLockNormal()

◆ glLockOverlay()

◆ glScheduleRedraw()

◆ glSwapBuffers()

◆ glUnlockNormal()

◆ glUnlockOverlay()

◆ hasNormalGLArea()

◆ hasOverlayGLArea()

◆ initGraphic()

◆ initOverlayGraphic()

◆ isBorder()

◆ isDoubleBuffer()

◆ isDrawToFrontBufferEnable()

◆ isOverlayRender()

◆ isQuadBufferStereo()

◆ isRGBMode()

◆ isStealFocus()

◆ isStereoBuffer()

◆ processEvent()

◆ redraw()

◆ redrawOverlay()

◆ setAccumulationBuffer()

◆ setAlphaChannel()

◆ setBorder()

◆ setDoubleBuffer()

◆ setDrawToFrontBufferEnable()

◆ setGLSize()

◆ setGlxSize()

◆ setOverlayRender()

◆ setQuadBufferStereo()

◆ setSampleBuffers()

◆ setStealFocus()

◆ setStencilBuffer()

◆ setStereoBuffer()

◆ sizeChanged()

◆ widgetChanged()

Member Data Documentation

◆ drawToFrontBuffer

◆ waitForExpose
