SoXt Class Reference

The SoXt class takes care of Xt initialization and event dispatching. More...

#include <Inventor/Xt/SoXt.h>

Public Types

enum  ABIType { DLL , LIB , UNKNOWN }

typedef void FatalErrorCB(const SbString errmsg, SoXt::FatalErrors errcode, void *userdata)

enum  FatalErrors { UNSPECIFIED_ERROR = 0 , NO_OPENGL_CANVAS , INTERNAL_ASSERT }


Static Public Member Functions

static void addColormapToShell (Widget widget, Widget shell)

static void addExtensionEventHandler (Widget widget, int eventType, XtEventHandler proc, XtPointer clientData)

static void createSimpleErrorDialog (Widget widget, const char *title, const char *string1, const char *string2=NULL)

static char * decodeString (XmString xstring)

static Boolean dispatchEvent (XEvent *event)

static void done (void)

static XmString encodeString (const char *const str)

static void exitMainLoop (void)

static ABIType getABIType (void)

static XtAppContext getAppContext (void)

static Display * getDisplay (void)

static void getPopupArgs (Display *display, int screen, ArgList args, int *n)

static Widget getShellWidget (const Widget w)

static Widget getTopLevelWidget (void)

static void getVersionInfo (int *major=NULL, int *minor=NULL, int *micro=NULL)

static const char * getVersionString (void)

static const char * getVersionToolkitString (void)

static SbVec2s getWidgetSize (const Widget widget)

static void hide (Widget const widget)

static Widget init (const char *appname, const char *classname="SoXt")

static Widget init (int &argc, char **argv, const char *appname, const char *classname="SoXt")

static void init (Widget toplevelwidget)

static SbBool isCompatible (unsigned int major, unsigned int minor)

static SbBool isDebugLibrary (void)

static void lockGL (void)

static void mainLoop (void)

static void nextEvent (XtAppContext, XEvent *)

static void registerColormapLoad (Widget widget, Widget shell)

static void removeColormapFromShell (Widget widget, Widget shell)

static void removeExtensionEventHandler (Widget widget, int eventType, XtEventHandler proc, XtPointer clientData)

static FatalErrorCBsetFatalErrorHandler (SoXt::FatalErrorCB *cb, void *userdata)

static void setWidgetSize (Widget const widget, const SbVec2s size)

static void show (Widget const widget)

static void unlockGL (void)


Static Protected Member Functions

static void getExtensionEventHandler (XEvent *event, Widget &widget, XtEventHandler &proc, XtPointer &clientData)


Detailed Description

The SoXt class takes care of Xt initialization and event dispatching.

This is the "application-wide" class with solely static methods handling initialization and event processing tasks. You must use this class in any application built on top of the SoXt library.

Typical usage is as follows (complete application code):

#include <Inventor/Xt/SoXt.h>
#include <Inventor/Xt/viewers/SoXtExaminerViewer.h>
#include <Inventor/nodes/SoBaseColor.h>
#include <Inventor/nodes/SoCone.h>
#include <Inventor/nodes/SoSeparator.h>
int
main(int argc, char ** argv)
{
// Initialize SoXt and Inventor API libraries. This returns a main
// window to use.
Widget mainwin = SoXt::init(argc, argv, argv[0]);
// Make a dead simple scene graph, only containing a single
// yellow cone under the scene graph root.
SoSeparator * root = new SoSeparator;
root->ref();
SoBaseColor * col = new SoBaseColor;
col->rgb = SbColor(1, 1, 0);
root->addChild(col);
root->addChild(new SoCone);
// Use one of the convenient viewer classes.
SoXtExaminerViewer * eviewer = new SoXtExaminerViewer(mainwin);
eviewer->setSceneGraph(root);
eviewer->show();
// Pop up the main window.
SoXt::show(mainwin);
// Loop until exit.
// Clean up resources.
delete eviewer;
root->unref();
return 0;
}
virtual void show(void)
Definition SoXtComponent.cpp:293
The SoXtExaminerViewer class is a 3D-model examination viewer.
Definition SoXtExaminerViewer.h:50
virtual void setSceneGraph(SoNode *root)
Definition SoXtViewer.cpp:2841
static void show(Widget const widget)
Definition SoXt.cpp:503
static void done(void)
Definition SoXt.cpp:414
static Widget init(const char *appname, const char *classname="SoXt")
Definition SoXtCommon.cpp:173
static void mainLoop(void)
Definition SoXt.cpp:389

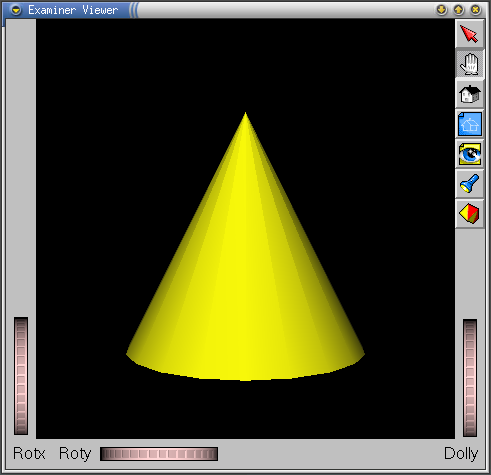

And voila:

See also
SoXtComponent

Member Typedef Documentation

◆ FatalErrorCB

void SoXt::FatalErrorCB

An application function callback for handling fatal errors should be of this type.

The first argument is an error message in English describing the details of the error. The second argument is an error code used so the application can identify specific conditions. The third argument is the userdata pointer passed in to SoXt::setFatalErrorHandler().

Member Enumeration Documentation

◆ ABIType

Numerical identifiers to identify how the library was built.

Enumerator
DLL

The SoXt library was built as a dynamic link library (aka "shared library").

LIB

The SoXt library was built as a static library.

UNKNOWN

The SoXt introspection mechanisms cannot decide how the library was built.

◆ FatalErrors

Numerical identifiers for classifying the different kinds of possible fatal errors.

Enumerator
UNSPECIFIED_ERROR

Signifies that we were not able to specify in any greater detail the error condition that came up.

NO_OPENGL_CANVAS

Could not construct any valid OpenGL canvas. Something is very wrong on the client system.

INTERNAL_ASSERT

An internal error condition that should never happen was detected. The most likely cause of this are programming errors within the SoXt library itself.

Member Function Documentation

◆ addColormapToShell()

void SoXt::addColormapToShell ( Widget widget,
Widget shell )
static

This function is not implemented.

◆ addExtensionEventHandler()

void SoXt::addExtensionEventHandler ( Widget widget,
int type,
XtEventHandler proc,
XtPointer data )
static

This function adds an extension event handler to the application, which will be considered in the SoXt::mainLoop event dispatching loop.

See also
SoXt::removeExtensionEventHandler(), SoXt::getExtensionEventHandler()

◆ createSimpleErrorDialog()

void SoXt::createSimpleErrorDialog ( Widget widget,
const char * title,
const char * string1,
const char * string2 = NULL )
static

This is a convenient way for the application programmer to throw up an obtrusive application-global error dialog.

If widget is NULL, the dialog will be modal for the whole application (all windows will be blocked for input). If not, only the window for the given widget will be blocked.

title is the title of the dialog box. string1 and string2 contains the text which will be shown in the dialog box.

There will only be a single "OK" button for the user to press and continue with the application.

◆ decodeString()

char * SoXt::decodeString ( XmString xstring)
static

Decode a left-to-right localized string into a simple character array, and return its memory pointer.

The caller is responsible for freeing the returned character string with XtFree() to avoid memory leaks.

◆ dispatchEvent()

Boolean SoXt::dispatchEvent ( XEvent * event)
static

This method dispatches the event by calling XtDispatchEvent(). Special handling of extension input devices will be done in this method in the future.

◆ done()

void SoXt::done ( void )
static

Cleans up all static data allocated by the SoXt library on initialization.

This functions calls SoDB::finish() which means that no Coin classes should be used after it has been called.

It should never be invoked more than once, and that is just before application exit, as it deallocates static data allocated as "one-off" operations in SoXt::init().

NOTE: done() is not present in the original API for SGI's InventorXt library.

◆ encodeString()

XmString SoXt::encodeString ( const char *const str)
static

Create and return a localized string from str.

The caller is responsible for freeing the returned XmString by using XmStringFree() or just plain XtFree((char *) str).

◆ exitMainLoop()

void SoXt::exitMainLoop ( void )
static

This function will make the main event loop finish looping.

NOTE: exitMainLoop() is not present in the original API for SGI's InventorXt library.

This method makes the event loop stop processing events and exit so the program can finish.

This is an SoXt extension not found in InventorXt.

See also
SoXt::mainLoop

◆ getABIType()

SoXt::ABIType SoXt::getABIType ( void )
static

Returns an indication on how the library was compiled: as a dynamic library, or as a static library.

This method was not part of the original SGI InventorXt library, but is an extension specific to the Coin project.

◆ getAppContext()

XtAppContext SoXt::getAppContext ( void )
static

This function returns the Xt Application Context for the application.

◆ getDisplay()

Display * SoXt::getDisplay ( void )
static

This function returns the X Display of the application.

◆ getExtensionEventHandler()

void SoXt::getExtensionEventHandler ( XEvent * event,
Widget & widget,
XtEventHandler & proc,
XtPointer & data )
staticprotected

This method returns the extension event handler for the given event.

See also
SoXt::addExtensionEventHandler
SoXt::removeExtensionEventHandler

◆ getPopupArgs()

void SoXt::getPopupArgs ( Display * display,
int screen,
ArgList args,
int * n )
static

This function should add the necessary arguments to the args argument list so the pop-up shell gets the same visual and colormap as the rest of the application.

This function is not implemented.

◆ getShellWidget()

Widget SoXt::getShellWidget ( const Widget widget)
static

This function returns the shell of the given widget.

◆ getTopLevelWidget()

Widget SoXt::getTopLevelWidget ( void )
static

Returns the Widget which is the main widget for the application. When this widget gets closed, SoXt::mainLoop() will return (unless the close event is caught by the user).

See also
getShellWidget()

This function returns the top level shell for the application.

◆ getVersionInfo()

void SoXt::getVersionInfo ( int * major = NULL,
int * minor = NULL,
int * micro = NULL )
static

This method will fill in the integers pointed to by the arguments with the corresponding part of the version release number of the SoXt library.

A NULL pointer will make that part of the version number be ignored.

This method is not part of the original InventorXt API from SGI.

◆ getVersionString()

const char * SoXt::getVersionString ( void )
static

This method returns a string containing the version id of the library.

This method is not part of the original InventorXt API from SGI.

◆ getVersionToolkitString()

const char * SoXt::getVersionToolkitString ( void )
static

This method returns a string containing the version id of the Xt toolkit the SoXt library is linked against.

This method is not part of the original InventorXt API from SGI.

◆ getWidgetSize()

SbVec2s SoXt::getWidgetSize ( const Widget widget)
static

This function returns the size of the given widget.

◆ hide()

void SoXt::hide ( Widget const widget)
static

This function hides the given widget.

◆ init() [1/3]

Widget SoXt::init ( const char * appname,
const char * classname = "SoXt" )
static

This function initializes the SoXt library, as well as the Inventor API. The latter is done by calling SoDB::init(), SoNodeKit::init() and SoInteraction::init().

The returned Widget is a top level shell widget for the application, which can be used as a shell for the main component.

This method is provided for easier porting / compatibility with the original SGI Inventor InventorXt library. It just adds dummy argc and argv arguments and calls the SoXt::init() method below.

◆ init() [2/3]

Widget SoXt::init ( int & argc,
char ** argv,
const char * appname,
const char * classname = "SoXt" )
static

This function initializes the SoXt library, as well as the Inventor API. The latter is done by calling SoDB::init(), SoNodeKit::init() and SoInteraction::init().

Creates an application framework and constructs and returns a main widget for you.

The returned Widget is a top level shell widget for the application, which can be used as a shell for the main component.

◆ init() [3/3]

void SoXt::init ( Widget toplevelwidget)
static

This function initializes the SoXt library, as well as the Inventor API. The latter is done by calling SoDB::init(), SoNodeKit::init() and SoInteraction::init().

Assumes you are creating your own application framework and main widget. toplevelwidget should be your application's main widget.

◆ isCompatible()

SbBool SoXt::isCompatible ( unsigned int major,
unsigned int minor )
static

Returns TRUE if this version of the SoXt library has an Application Binary Interface compatible with the given version.

This method was not part of the original SGI InventorXt library, but is an extension specific to the Coin project.

◆ isDebugLibrary()

SbBool SoXt::isDebugLibrary ( void )
static

Returns TRUE if this binary version of the SoXt library was compiled with debug settings on.

This method was not part of the original SGI InventorXt library, but is an extension specific to the Coin project.

◆ lockGL()

void SoXt::lockGL ( void )
static

This method locks other threads out from a code section until the caller thread invokes SoXt::unlockGL().

It is meant to protect several threads invoking OpenGL calls in parallel, in case the underlying OpenGL implementation is not multi-thread safe.

For convenience, the function can be invoked through the SOXT_ENTER_GL_SECTION().

This method is not part of the original InventorXt API from SGI.

◆ mainLoop()

void SoXt::mainLoop ( void )
static

This is the event dispatch loop.

It doesn't return until application exit is somehow forced, either programmatically from the relevant API-call of the native toolkit, or when the user closes the application's main widget.

After the main loop has finished execution, call SoXt::done() to clean up static data.

This function should be used instead of XtAppMainLoop(). The current implementation is not different from the standard event loop, but in the future it will add support for input device extensions.

If you need your own event dispatching loop, base your code on this one, and use SoXt::dispatchEvent() when appropriate.

◆ nextEvent()

void SoXt::nextEvent ( XtAppContext context,
XEvent * event )
static

This function calls XtAppNextEvent() to fill in the event structure with the next event for the given context.

◆ registerColormapLoad()

void SoXt::registerColormapLoad ( Widget widget,
Widget shell )
static

This function is not implemented.

◆ removeColormapFromShell()

void SoXt::removeColormapFromShell ( Widget widget,
Widget shell )
static

This function is not implemented.

◆ removeExtensionEventHandler()

void SoXt::removeExtensionEventHandler ( Widget widget,
int type,
XtEventHandler proc,
XtPointer data )
static

This method removes an extension event handler.

See also
SoXt::addExtensionEventHandler(), SoXt::getExtensionEventHandler()

◆ setFatalErrorHandler()

SoXt::FatalErrorCB * SoXt::setFatalErrorHandler ( SoXt::FatalErrorCB * cb,
void * userdata )
static

Set up a callback to be invoked in the case of unexpected fatal error conditions within the SoXt library.

Almost any error condition within the library is handled in a robust way through return values indicating errors for the offending calls, but there are a few cases that are impossible to handle without seriously crippling the functionality.

(One example is if we fail to find any way of making a valid OpenGL canvas. This is an indication that something is seriously wrong on the end-user's system, and the SoXt library will not work properly.)

In the case of a fatal error, it is expected that the given application callback function communicates the problem to the end-user and then either exits the application or at least refrains from using any part of the SoXt library.

If no callback is explicitly set up by the application, the SoXt library will display an error message to the end-user and then exit the application.

When setting a callback, this method returns a pointer to the previous callback function, or NULL if none.

(This is an extension versus the original SGI InventorXt library API.)

On a related note, be aware that the end-user will still be notified about non-fatal errors and warning messages through a dialog box. If you want to handle these yourself, or if you don't want your end-user to see any of these non-critical messages, you will also need to install an error handler callback function on the Coin library itself:

SoDebugError::setHandlerCallback(myErrorHandlerCB, myCBUserData);

(Please also see the documentation of SoDebugError::setHandlerCallback().)

◆ setWidgetSize()

void SoXt::setWidgetSize ( Widget const widget,
const SbVec2s size )
static

This function resizes the widget to the given size.

◆ show()

void SoXt::show ( Widget const widget)
static

This function realizes the given widget.

◆ unlockGL()

void SoXt::unlockGL ( void )
static

See documentation for SoXt::lockGL().

For convenience, the function can be invoked through the SOXT_LEAVE_GL_SECTION().

This method is not part of the original InventorXt API from SGI.


The documentation for this class was generated from the following files:
