ScXMLDataObj Class Referenceabstract
State Chart XML Classes

base class for evaluator data objects in the SCXML data module More...

#include <Inventor/scxml/ScXMLEvaluator.h>

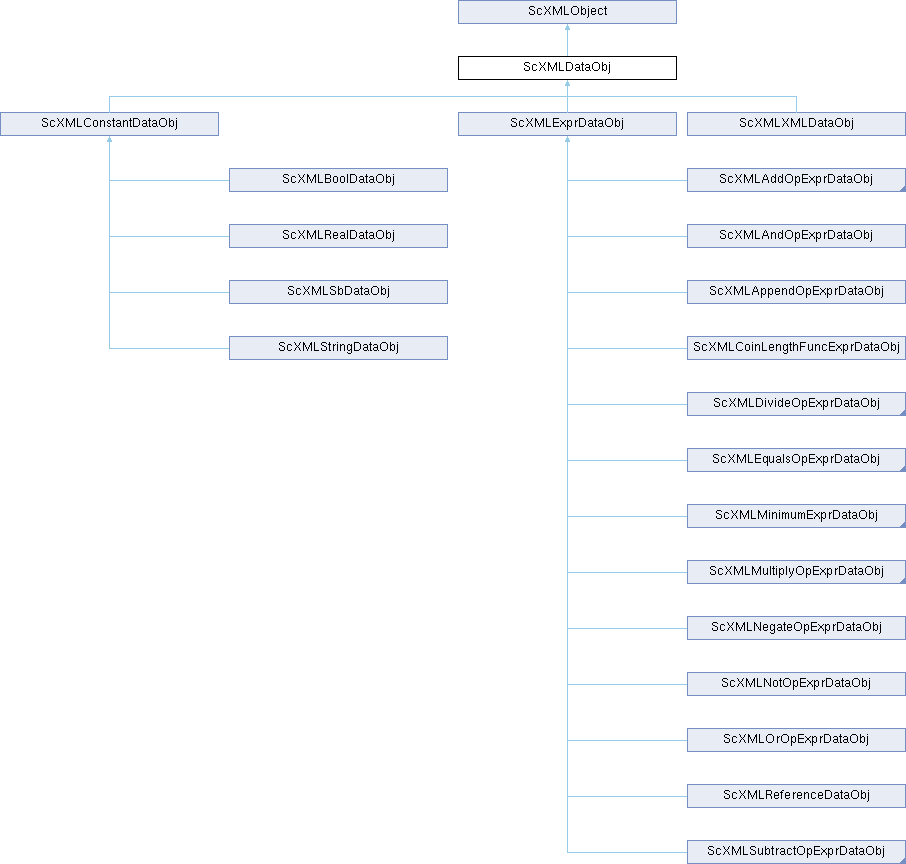

Inheritance diagram for ScXMLDataObj:
ScXMLObject ScXMLConstantDataObj ScXMLExprDataObj ScXMLXMLDataObj ScXMLBoolDataObj ScXMLRealDataObj ScXMLSbDataObj ScXMLStringDataObj ScXMLAddOpExprDataObj ScXMLAndOpExprDataObj ScXMLAppendOpExprDataObj ScXMLCoinLengthFuncExprDataObj ScXMLDivideOpExprDataObj ScXMLEqualsOpExprDataObj ScXMLMinimumExprDataObj ScXMLMultiplyOpExprDataObj ScXMLNegateOpExprDataObj ScXMLNotOpExprDataObj ScXMLOrOpExprDataObj ScXMLReferenceDataObj ScXMLSubtractOpExprDataObj

Public Member Functions

ScXMLObject * getContainer (void) const

virtual SoType getTypeId (void) const =0
 Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

void setContainer (ScXMLObject *container)

- Public Member Functions inherited from ScXMLObject
SbBool isOfType (SoType type) const
 Returns TRUE if the type of this object is either of the same type or inherited from type.


Static Public Member Functions

static void cleanClass (void)

static SoType getClassTypeId (void)

static void initClass (void)

- Static Public Member Functions inherited from ScXMLObject
static void cleanClass (void)
 Does the opposite of initClass, deallocates any class specific resources and resets the class to an uninitialized state with respect to the Coin type system.

static SoType getClassTypeId (void)
 This static method returns the SoType object associated with objects of this class.

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.


Additional Inherited Members

- Static Protected Member Functions inherited from ScXMLObject
static void registerClassType (const char *xmlns, const char *classname, SoType type)

static void registerInvokeClassType (const char *xmlns, const char *targettype, const char *source, SoType type)


Detailed Description

base class for evaluator data objects in the SCXML data module

Since
Coin 3.1

Member Function Documentation

◆ getTypeId()

virtual SoType ScXMLDataObj::getTypeId ( void ) const
pure virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

See also
SoBase::getTypeId() const

Implements ScXMLObject.

Implemented in ScXMLCoinEqualsOpExprDataObj, ScXMLCoinAddOpExprDataObj, ScXMLCoinSubtractOpExprDataObj, ScXMLCoinMultiplyOpExprDataObj, ScXMLCoinDivideOpExprDataObj, ScXMLCoinLengthFuncExprDataObj, ScXMLStringDataObj, ScXMLRealDataObj, ScXMLBoolDataObj, ScXMLSbDataObj, ScXMLXMLDataObj, ScXMLReferenceDataObj, ScXMLAndOpExprDataObj, ScXMLOrOpExprDataObj, ScXMLNotOpExprDataObj, ScXMLEqualsOpExprDataObj, ScXMLAddOpExprDataObj, ScXMLSubtractOpExprDataObj, ScXMLMultiplyOpExprDataObj, ScXMLDivideOpExprDataObj, ScXMLNegateOpExprDataObj, ScXMLInExprDataObj, ScXMLAppendOpExprDataObj, ScXMLConstantDataObj, ScXMLExprDataObj, and ScXMLMinimumExprDataObj.

The documentation for this class was generated from the following files:
