ScXMLElt Class Reference

base class for all SCXML elements. More...

#include <Inventor/scxml/ScXMLElt.h>

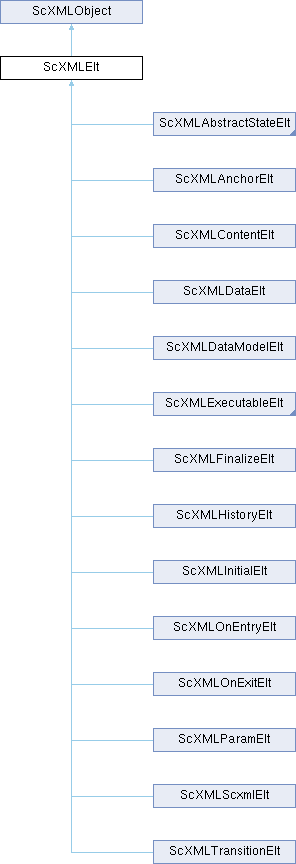

Inheritance diagram for ScXMLElt:

Public Member Functions
ScXMLElt *	clone (void) const
virtual void	copyContents (const ScXMLElt *rhs)
ScXMLElt *	getContainer (void) const
virtual SoType	getTypeId (void) const =0
	Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.
const char *	getXMLAttribute (const char *attribute) const
virtual SbBool	handleXMLAttributes (void)
SbBool	isContainedIn (const ScXMLElt *object) const
virtual const ScXMLElt *	search (const char *attrname, const char *attrvalue) const
virtual void	setContainer (ScXMLElt *container)
void	setXMLAttribute (const char *attribute, const char *value)
Public Member Functions inherited from ScXMLObject
SbBool	isOfType (SoType type) const
	Returns TRUE if the type of this object is either of the same type or inherited from type.

Static Public Member Functions
static void	cleanClass (void)
static SoType	getClassTypeId (void)
static void	initClass (void)
Static Public Member Functions inherited from ScXMLObject
static void	cleanClass (void)
	Does the opposite of initClass, deallocates any class specific resources and resets the class to an uninitialized state with respect to the Coin type system.
static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Static Protected Member Functions
static void	registerClassType (const char *xmlns, const char *classname, SoType type)
static void	registerInvokeClassType (const char *xmlns, const char *targettype, const char *source, SoType type)
Static Protected Member Functions inherited from ScXMLObject
static void	registerClassType (const char *xmlns, const char *classname, SoType type)
static void	registerInvokeClassType (const char *xmlns, const char *targettype, const char *source, SoType type)

Detailed Description

base class for all SCXML elements.

This is a common base class for all SCXML document element classes. It manages XML attributes at the generic level, has utilities for checking document containment, and provides some infrastructure hooks.

Since

Coin 3.1

Member Function Documentation

clone()

ScXMLElt * ScXMLElt::clone

(

void

)

const

Returns a deep copy of the given SCXML element.

getTypeId()

virtual SoType ScXMLElt::getTypeId ( void ) const

pure virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

See also

SoBase::getTypeId() const

Implements ScXMLObject.

Implemented in ScXMLAnchorElt, ScXMLAssignElt, ScXMLContentElt, ScXMLDataElt, ScXMLDataModelElt, ScXMLElseElt, ScXMLElseIfElt, ScXMLEventElt, ScXMLFinalElt, ScXMLFinalizeElt, ScXMLHistoryElt, ScXMLIfElt, ScXMLInitialElt, ScXMLInvokeElt, ScXMLLogElt, ScXMLOnEntryElt, ScXMLOnExitElt, ScXMLParallelElt, ScXMLParamElt, ScXMLScriptElt, ScXMLScxmlElt, ScXMLSendElt, ScXMLStateElt, ScXMLTransitionElt, ScXMLValidateElt, ScXMLAbstractStateElt, and ScXMLExecutableElt.

getXMLAttribute()

const char * ScXMLElt::getXMLAttribute

(

const char *

attribute

)

const

This method returns the string value set for an attribute, or NULL if not set.

handleXMLAttributes()

SbBool ScXMLElt::handleXMLAttributes ( void )

virtual

This method is called when the file reader has set all the XML attributes on the object, and wants the object to handle them and report if the values were OK or if a read error should be produced.

Returns

TRUE if the attributes are OK, and FALSE on error.

This base class implementation does nothing and just returns TRUE.

Reimplemented in ScXMLAbstractStateElt, ScXMLAnchorElt, ScXMLAssignElt, ScXMLDataElt, ScXMLDataModelElt, ScXMLElseIfElt, ScXMLEventElt, ScXMLHistoryElt, ScXMLIfElt, ScXMLInvokeElt, ScXMLLogElt, ScXMLParallelElt, ScXMLParamElt, ScXMLScxmlElt, ScXMLSendElt, ScXMLStateElt, ScXMLTransitionElt, and ScXMLValidateElt.

isContainedIn()

SbBool ScXMLElt::isContainedIn

(

const ScXMLElt *

element

)

const

This method returns TRUE if the object is contained within the given object argument. Also if they are the same, TRUE will be returned. Otherwise, FALSE is returned.

search()

const ScXMLElt * ScXMLElt::search ( const char * attrname, const char * attrvalue ) const

virtual

This method searches the SCXML structure for an element with the given attribute value for the given attribute.

Returns NULL if nothing was found.

This function needs to be reimplemented to traverse child elements.

Reimplemented in ScXMLAbstractStateElt, ScXMLAnchorElt, ScXMLAssignElt, ScXMLDataElt, ScXMLDataModelElt, ScXMLElseIfElt, ScXMLEventElt, ScXMLFinalElt, ScXMLHistoryElt, ScXMLIfElt, ScXMLInitialElt, ScXMLInvokeElt, ScXMLLogElt, ScXMLOnEntryElt, ScXMLOnExitElt, ScXMLParallelElt, ScXMLParamElt, ScXMLScxmlElt, ScXMLSendElt, ScXMLStateElt, ScXMLTransitionElt, and ScXMLValidateElt.

setContainer()

void ScXMLElt::setContainer ( ScXMLElt * container )

virtual

Set the pointer to the parent ScXML object.

setXMLAttribute()

void ScXMLElt::setXMLAttribute	(	const char *	attribute,
		const char *	value )

This method associates a value with an attribute name. This is used for parameter passing while reading by the SCXML reader, but can be used as a general-purpose attribute dictionary outside of that.

If NULL is passed as the value, the attribute is removed.

---

The documentation for this class was generated from the following files:

• ScXMLElt.h
• ScXMLElt.cpp
