SoDelayQueueSensor Class Reference

The SoDelayQueueSensor class is the abstract base class for priority scheduled sensors. More...

#include <Inventor/sensors/SoDelayQueueSensor.h>

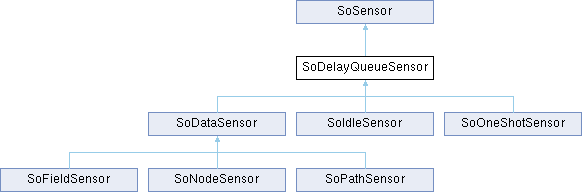

Inheritance diagram for SoDelayQueueSensor:
SoSensor SoDataSensor SoIdleSensor SoOneShotSensor SoFieldSensor SoNodeSensor SoPathSensor

Public Member Functions

 SoDelayQueueSensor (SoSensorCB *func, void *data)

 SoDelayQueueSensor (void)

virtual ~SoDelayQueueSensor (void)

uint32_t getPriority (void) const

virtual SbBool isIdleOnly (void) const

virtual SbBool isScheduled (void) const

virtual void schedule (void)

void setPriority (uint32_t pri)

virtual void trigger (void)

virtual void unschedule (void)

- Public Member Functions inherited from SoSensor
 SoSensor (SoSensorCB *func, void *data)

 SoSensor (void)

virtual ~SoSensor (void)

voidgetData (void) const

SoSensorCBPtr getFunction (void) const

SoSensorgetNextInQueue (void) const

void setData (void *callbackdata)

void setFunction (SoSensorCB *callbackfunction)

void setNextInQueue (SoSensor *next)


Static Public Member Functions

static uint32_t getDefaultPriority (void)

- Static Public Member Functions inherited from SoSensor
static void initClass (void)


Protected Attributes

SbBool scheduled

- Protected Attributes inherited from SoSensor
SoSensorCB * func

voidfuncData


Detailed Description

The SoDelayQueueSensor class is the abstract base class for priority scheduled sensors.

Delay queue sensors are invoked upon various events not related to time occurrences. See documentation of subclasses to see which types of events can be surveilled by the built-in sensor types.

The priority values can be used to queue events by their importance, so the sensors are triggered in the sequence you want.

The queue of delay sensors (i.e. instances of subclasses of SoDelayQueueSensor) will be processed as soon as either the runtime system is idle, or if it is continually busy they will be processed within a fixed amount of time.

This time interval is by default 1/12th of a second, but can be controlled with the SoSensorManager::setDelaySensorTimeout() interface.

Constructor & Destructor Documentation

◆ SoDelayQueueSensor() [1/2]

SoDelayQueueSensor::SoDelayQueueSensor ( void )

Default constructor.

◆ SoDelayQueueSensor() [2/2]

SoDelayQueueSensor::SoDelayQueueSensor ( SoSensorCB * func,
void * data )

Constructor taking as arguments the sensor callback function and the userdata which will be passed to the callback.

See also
setFunction(), setData()

◆ ~SoDelayQueueSensor()

SoDelayQueueSensor::~SoDelayQueueSensor ( void )
virtual

Destructor.

Member Function Documentation

◆ getDefaultPriority()

uint32_t SoDelayQueueSensor::getDefaultPriority ( void )
static

Returns the default scheduling priority value. The default sensor priority is 100.

See also
getPriority()

◆ getPriority()

uint32_t SoDelayQueueSensor::getPriority ( void ) const

Returns sensor scheduling priority.

See also
setPriority(), getDefaultPriority()

◆ isIdleOnly()

SbBool SoDelayQueueSensor::isIdleOnly ( void ) const
virtual

Returns a flag indicating whether or not the sensor should only be triggered if the application is truly idle, and not when the delay queue is processed because of the delay queue timeout.

See also
SoDB::setDelaySensorTimeout()

◆ isScheduled()

SbBool SoDelayQueueSensor::isScheduled ( void ) const
virtual

Check if this sensor is scheduled for triggering.

See also
schedule(), unschedule()

Implements SoSensor.

◆ schedule()

void SoDelayQueueSensor::schedule ( void )
virtual

Put the sensor in the global delay queue. This means it will be triggered either when the CPU is idle, or when the specified delay queue timeout is reached.

See also
SoDB::setDelaySensorTimeout(), unschedule(), isScheduled()

Implements SoSensor.

◆ setPriority()

void SoDelayQueueSensor::setPriority ( uint32_t pri)

Set this sensor's priority in the scheduling queue. When sensors are processed, high priority sensors will trigger before low priority sensors.

Please note that a low number means a high priority. A sensor with priority 5 will trigger before a sensor with priority 6.

Sensors with priority 0 have a special meaning in Coin/Inventor. They are called immediate sensors, and will trigger immediately after the current notification chain has finished. Priority 0 sensors should be used with care, since they might lead to bad performance if you do some processing in the sensor callback.

This setting does not affect SoDataSensor delete-callback invocations, which always are immediate.

See also
getPriority(), getDefaultPriority()

◆ trigger()

void SoDelayQueueSensor::trigger ( void )
virtual

Trigger the sensor's callback function.

Reimplemented from SoSensor.

Reimplemented in SoDataSensor, and SoFieldSensor.

◆ unschedule()

void SoDelayQueueSensor::unschedule ( void )
virtual

Remove sensor from the delay queue, without triggering it first.

See also
schedule(), isScheduled()

Implements SoSensor.

Member Data Documentation

◆ scheduled

SbBool SoDelayQueueSensor::scheduled
protected

TRUE if the sensor is currently scheduled.
