SoSensor Class Reference

The SoSensor class is the abstract base class for all sensors. More...

#include <Inventor/sensors/SoSensor.h>

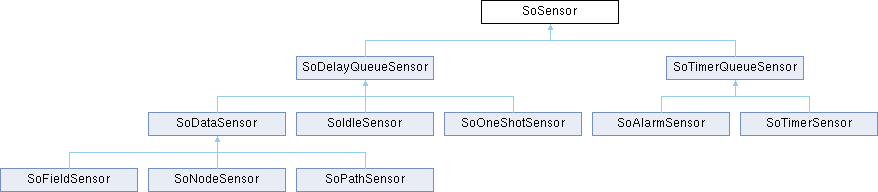

Inheritance diagram for SoSensor:

Public Member Functions
	SoSensor (SoSensorCB *func, void *data)
	SoSensor (void)
virtual	~SoSensor (void)
void *	getData (void) const
SoSensorCBPtr	getFunction (void) const
SoSensor *	getNextInQueue (void) const
virtual SbBool	isBefore (const SoSensor *s) const =0
virtual SbBool	isScheduled (void) const =0
virtual void	schedule (void)=0
void	setData (void *callbackdata)
void	setFunction (SoSensorCB *callbackfunction)
void	setNextInQueue (SoSensor *next)
virtual void	trigger (void)
virtual void	unschedule (void)=0

Static Public Member Functions
static void	initClass (void)

Protected Attributes
SoSensorCB *	func
void *	funcData

Detailed Description

The SoSensor class is the abstract base class for all sensors.

Sensors is a mechanism in Coin for scheduling jobs to be run upon specific events. The events in question could be particular points in time, or changes to entities in the scene graph.

See documentation of subclasses for insight into exactly for what types of events we can trigger sensor callbacks.

For most tasks where application programmers can use sensors, it is also possible to achieve the same results by using engines. There are a few important differences between sensors and engines, though:

Engines are considered part of the scene graph, and are written to file upon SoWriteAction export operations. Sensors, on the other hand, are not included in export operations.

Engines basically connects fields (and come with a lot of built-in functionality for combining and converting inputs and outputs), you just decide which engine you want, connect inputs and output and forget about it. Sensors are a lot more flexible in what you can do when they trigger, as control is transferred internally from Coin to your registered callback functions.

See also

SoSensorManager, SoEngine

Constructor & Destructor Documentation

SoSensor() [1/2]

SoSensor::SoSensor

(

void

)

Constructor.

SoSensor() [2/2]

SoSensor::SoSensor	(	SoSensorCB *	funcptr,
		void *	data )

Constructor taking as parameters the sensor callback function func and the user data pointer which will be passed to the callback.

See also

setFunction(), setData()

~SoSensor()

SoSensor::~SoSensor ( void )

virtual

Destructor.

Member Function Documentation

getData()

void * SoSensor::getData

(

void

)

const

Returns the user supplied callback function data pointer.

See also

setData()

getFunction()

SoSensorCB * SoSensor::getFunction

(

void

)

const

Returns the callback function pointer.

See also

setFunction()

getNextInQueue()

SoSensor * SoSensor::getNextInQueue

(

void

)

const

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Open Inventor function not implemented in Coin.

initClass()

void SoSensor::initClass ( void )

static

Sets up initialization for static data for the sensors. Called by SoDB::init().

isBefore()

SbBool SoSensor::isBefore ( const SoSensor * s ) const

pure virtual

Returns TRUE if this sensor should precede sensor s in its sensor queue.

isScheduled()

SbBool SoSensor::isScheduled ( void ) const

pure virtual

Check if this sensor is scheduled for triggering.

See also

schedule(), unschedule()

Implemented in SoDelayQueueSensor, and SoTimerQueueSensor.

schedule()

void SoSensor::schedule ( void )

pure virtual

Put the sensor in a queue to be triggered at a later time.

See also

unschedule(), isScheduled()

Implemented in SoAlarmSensor, SoDelayQueueSensor, SoTimerQueueSensor, and SoTimerSensor.

setData()

void SoSensor::setData

(

void *

callbackdata

)

Set the user supplied data pointer which will be used as the first argument to the sensor callback function.

See also

getData(), setFunction()

setFunction()

void SoSensor::setFunction

(

SoSensorCB *

callbackfunction

)

Set the callback function pointer which will be used when the sensor is triggered.

See also

getFunction(), setData()

setNextInQueue()

void SoSensor::setNextInQueue

(

SoSensor *

next

)

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Open Inventor function not implemented in Coin.

trigger()

void SoSensor::trigger ( void )

virtual

Trigger the sensor's callback function.

Reimplemented in SoDataSensor, SoDelayQueueSensor, SoFieldSensor, and SoTimerQueueSensor.

unschedule()

void SoSensor::unschedule ( void )

pure virtual

Remove sensor from queue. The sensor will not be triggered unless it is later rescheduled.

See also

schedule(), isScheduled()

Implemented in SoDelayQueueSensor, SoTimerQueueSensor, and SoTimerSensor.

Member Data Documentation

func

SoSensorCB * SoSensor::func

protected

Function to be called when a sensor triggers.

funcData

void * SoSensor::funcData

protected

Data passed to the callback function.

---

The documentation for this class was generated from the following files:

• SoSensor.h
• SoSensor.cpp
