SoEngine is the base class for Coin engines. More...

#include <Inventor/engines/SoEngine.h>

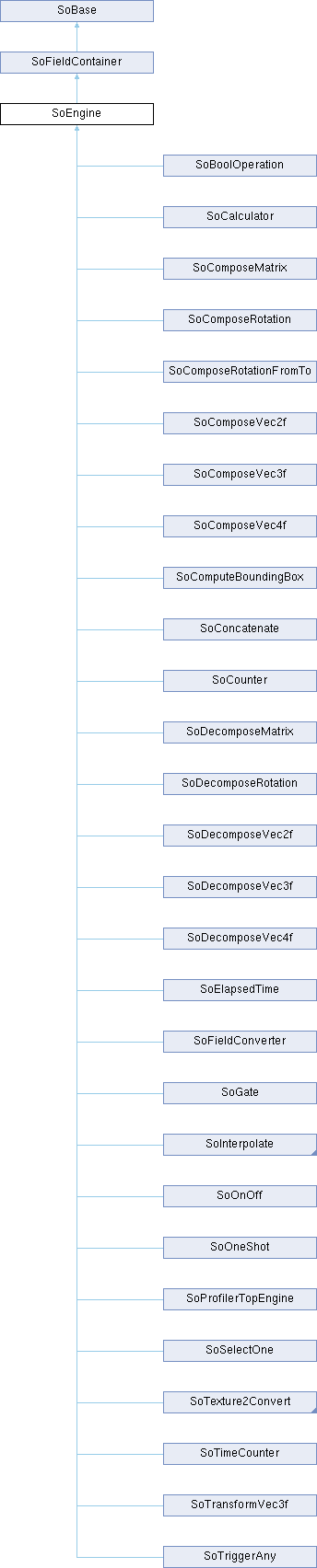

Inheritance diagram for SoEngine:

Public Member Functions
SoEngine *	copy (void) const

virtual SoFieldContainer *	copyThroughConnection (void) const

void	evaluateWrapper (void)

SoEngineOutput *	getOutput (const SbName &outputname) const

virtual const SoEngineOutputData *	getOutputData (void) const =0

SbBool	getOutputName (const SoEngineOutput *output, SbName &outputname) const

virtual int	getOutputs (SoEngineOutputList &l) const

SbBool	isNotifying (void) const

virtual void	notify (SoNotList *nl)

SbBool	shouldCopy (void) const

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoFieldContainer
virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

virtual void	copyContents (const SoFieldContainer *from, SbBool copyconnections)

void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

virtual const SoFieldData *	getFieldData (void) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

virtual SoType	getTypeId (void) const =0
	Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

virtual void	startNotify (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static SoEngine *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoEngineList &el)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Protected Member Functions
	SoEngine (void)

virtual	~SoEngine (void)

virtual void	evaluate (void)=0

virtual void	inputChanged (SoField *which)

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

void	writeOutputTypes (SoOutput *out)

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual SoNotRec	createNotRec (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getInputDataPtr (void)

static const SoEngineOutputData **	getOutputDataPtr (void)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Additional Inherited Members
Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Detailed Description

SoEngine is the base class for Coin engines.

Engines enable the application programmers to make complex connections between fields.

The most common cases where you use engines are: 1) to constrain the values of a field with regard to the contents of one or more other fields in the scene graph, 2) as a convenient way to animate parts of the scene graph.

The reference count of an engine will be increased by 1 for each connection made to one of its engine outputs, and decreased by one for a disconnect. See SoEngineOutput::addConnection() and SoEngineOutput::removeConnection(). When the reference count goes down to zero, the engine will automatically be destroyed, and subsequent attempts at using the engine will lead to a crash.

If you want complete control over when an engine gets destructed, use SoBase::ref() and SoBase::unref() for explicit referencing/dereferencing.

Constructor & Destructor Documentation

◆ SoEngine()

SoEngine::SoEngine ( void )

protected

Default constructor.

◆ ~SoEngine()

SoEngine::~SoEngine ( void )

protectedvirtual

Destructor.

Member Function Documentation

◆ copy()

SoEngine * SoEngine::copy ( void ) const

Make a duplicate of this engine and return a pointer to the duplicate.

Connections are shallow copied, i.e. the node or engine instance at the other end of the connection is not cloned. We just let the connection reference from the cloned engine refer to the same instance as the engine we've cloned ourselves from.

Note that this is not the function the application programmer should override if she needs some special behavior during a copy operation (like copying the value of internal data not exposed as fields). For that purpose, override the copyContents() method. Your overridden copyContents() method should then both copy internal data as well as calling the parent superclass' copyContents() method for automatically handling of fields and other common data.

◆ copyThroughConnection()

SoFieldContainer * SoEngine::copyThroughConnection ( void ) const

virtual

Return copy of this instance.

Note: default implementation just returns this pointer, SoNode and SoEngine overrides this method to return the pointer to the actual copy.

Reimplemented from SoFieldContainer.

◆ evaluate()

void SoEngine::evaluate ( void )

protectedpure virtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Implemented in SoProfilerTopEngine, and SoHeightMapToNormalMap.

◆ evaluateWrapper()

void SoEngine::evaluateWrapper ( void )

Triggers an engine evaluation.

◆ getByName() [1/2]

SoEngine * SoEngine::getByName ( const SbName & name )

static

Returns the engine named name, or NULL if no such engine exists. If several engines have been registered under the same name, returns the last one which was registered.

◆ getByName() [2/2]

int SoEngine::getByName	(	const SbName &	name,
		SoEngineList &	el )

static

Finds all engines named name. Returns the number of engines added to the el list.

◆ getInputDataPtr()

const SoFieldData ** SoEngine::getInputDataPtr ( void )

staticprotected

Returns the SoFieldData class which holds information about inputs in this engine.

◆ getOutput()

SoEngineOutput * SoEngine::getOutput ( const SbName & outputname ) const

Returns the output with name outputname, or NULL if no such output exists.

◆ getOutputData()

const SoEngineOutputData * SoEngine::getOutputData ( void ) const

pure virtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Implemented in SoProfilerTopEngine, SoBoolOperation, SoCalculator, SoComposeMatrix, SoComposeRotation, SoComposeRotationFromTo, SoComposeVec2f, SoComposeVec3f, SoComposeVec4f, SoComputeBoundingBox, SoConcatenate, SoCounter, SoDecomposeMatrix, SoDecomposeRotation, SoDecomposeVec2f, SoDecomposeVec3f, SoDecomposeVec4f, SoElapsedTime, SoFieldConverter, SoGate, SoHeightMapToNormalMap, SoInterpolate, SoInterpolateFloat, SoInterpolateRotation, SoInterpolateVec2f, SoInterpolateVec3f, SoInterpolateVec4f, SoOneShot, SoOnOff, SoSelectOne, SoTexture2Convert, SoTimeCounter, SoTransformVec3f, and SoTriggerAny.

◆ getOutputDataPtr()

const SoEngineOutputData ** SoEngine::getOutputDataPtr ( void )

staticprotected

Returns the SoEngineOutputData class which holds information about the outputs in this engine.

◆ getOutputName()

SbBool SoEngine::getOutputName	(	const SoEngineOutput *	output,
		SbName &	outputname ) const

Sets outputname to the name of output. Returns FALSE if no such output is contained within the engine instance.

◆ getOutputs()

int SoEngine::getOutputs ( SoEngineOutputList & l ) const

virtual

Adds all outputs to list. Returns the number of outputs added to the list.

◆ initClasses()

void SoEngine::initClasses ( void )

static

Initializes all engines. Automatically called from SoEngine::initClass() upon initialization of Coin.

◆ inputChanged()

void SoEngine::inputChanged ( SoField * which )

protectedvirtual

Called when an input is changed. The default method does nothing, but subclasses may override this method to do The Right Thing when a specific field is changed.

Reimplemented in SoCalculator, SoGate, SoHeightMapToNormalMap, and SoTimeCounter.

◆ isNotifying()

SbBool SoEngine::isNotifying ( void ) const

Returns whether we're in a notification process. This is needed to avoid double notification when an engine enables outputs during inputChanged().

◆ notify()

void SoEngine::notify ( SoNotList * l )

virtual

Notifies all auditors for this instance when changes are made.

Reimplemented from SoFieldContainer.

◆ readInstance()

SbBool SoEngine::readInstance	(	SoInput *	in,
		unsigned short	flags )

protectedvirtual

This method is mainly intended for internal use during file import operations.

It reads a definition of an instance from the input stream in. The input stream state points to the start of a serialized / persistent representation of an instance of this class type.

TRUE or FALSE is returned, depending on if the instantiation and configuration of the new object of this class type went OK or not. The import process should be robust and handle corrupted input streams by returning FALSE.

flags is used internally during binary import when reading user extension nodes, group nodes or engines.

Reimplemented from SoFieldContainer.

◆ shouldCopy()

SbBool SoEngine::shouldCopy ( void ) const

Returns whether this engine should be copied or simply referenced in a copy operation.

Engines which are not really part of the scene graph should not be copied.

◆ writeInstance()

void SoEngine::writeInstance ( SoOutput * out )

virtual

Writes all the fields contained in this instance to the output stream within out.

This method is solely called from the write methods of fields.

Either from SoField if the write is done because of a field-to-field connection, or from one of the fields which may actually write SoFieldContainer instances, i.e. SoSFNode, SoMFNode, SoSFEngine, SoMFEngine, SoSFPath and SoMFPath.

This method, in addition to the ordinary write() method of SoNode, needs to be present since the fields don't have a write action instance in their writeValue() method, and writeInstance() will create a new SoWriteAction and call continueToApply() on it.

Reimplemented from SoFieldContainer.

Reimplemented in SoElapsedTime, and SoTimeCounter.

◆ writeOutputTypes()

void SoEngine::writeOutputTypes ( SoOutput * out )

protected

Writes the types of engine outputs for extension engines (i.e. engines not built in to Coin).

The documentation for this class was generated from the following files:

SoEngine.h
SoEngine.cpp
