The SoNode class is the base class for nodes used in scene graphs. More...

#include <Inventor/nodes/SoNode.h>

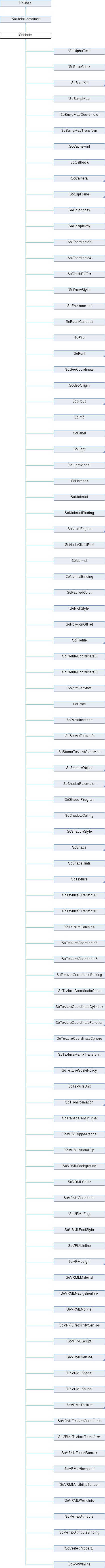

Inheritance diagram for SoNode:

Public Types
enum	NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }

Public Member Functions
virtual SoNode *	addToCopyDict (void) const

virtual SbBool	affectsState (void) const

virtual void	audioRender (SoAudioRenderAction *action)

virtual void	callback (SoCallbackAction *action)

virtual SoNode *	copy (SbBool copyconnections=FALSE) const

virtual void	copyContents (const SoFieldContainer *from, SbBool copyconnections)

virtual SoFieldContainer *	copyThroughConnection (void) const

virtual void	doAction (SoAction *action)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual SoChildList *	getChildren (void) const

virtual void	getMatrix (SoGetMatrixAction *action)

SbUniqueId	getNodeId (void) const

NodeType	getNodeType (void) const

virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual void	GLRender (SoGLRenderAction *action)

virtual void	GLRenderBelowPath (SoGLRenderAction *action)

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	grabEventsCleanup (void)

virtual void	grabEventsSetup (void)

virtual void	handleEvent (SoHandleEventAction *action)

SbBool	isOverride (void) const

virtual void	notify (SoNotList *l)

virtual void	pick (SoPickAction *action)

virtual void	rayPick (SoRayPickAction *action)

virtual void	search (SoSearchAction *action)

void	setNodeType (const NodeType type)

void	setOverride (const SbBool state)

virtual void	startNotify (void)

virtual void	write (SoWriteAction *action)

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoFieldContainer
virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

virtual const SoFieldData *	getFieldData (void) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

virtual SoType	getTypeId (void) const =0
	Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static void	audioRenderS (SoAction action, SoNode node)

static void	callbackS (SoAction action, SoNode node)

static int	getActionMethodIndex (const SoType type)

static void	getBoundingBoxS (SoAction action, SoNode node)

static SoNode *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoNodeList &l)

static SoType	getClassTypeId (void)

static uint32_t	getCompatibilityTypes (const SoType &nodetype)

static void	getMatrixS (SoAction action, SoNode node)

static SbUniqueId	getNextNodeId (void)

static void	getPrimitiveCountS (SoAction action, SoNode node)

static void	GLRenderS (SoAction action, SoNode node)

static void	handleEventS (SoAction action, SoNode node)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

static void	pickS (SoAction action, SoNode node)

static void	rayPickS (SoAction action, SoNode node)

static void	searchS (SoAction action, SoNode node)

static void	writeS (SoAction action, SoNode node)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Protected Member Functions
	SoNode (void)

virtual	~SoNode ()

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual SoNotRec	createNotRec (void)

virtual void	destroy (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr (void)

static int	getNextActionMethodIndex (void)

static void	incNextActionMethodIndex (void)

static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void	setNextActionMethodIndex (int index)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Protected Attributes
SbUniqueId	uniqueId

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Static Protected Attributes
static int	nextActionMethodIndex = 0

static SbUniqueId	nextUniqueId = 1

Additional Inherited Members
Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Detailed Description

The SoNode class is the base class for nodes used in scene graphs.

Coin is a retained mode 3D visualization library (built on top of the immediate mode OpenGL library). "Retained mode" means that instead of passing commands to draw graphics primitives directly to the renderer, you build up data structures which are rendered by the library on demand.

The node classes are the main "primitive" for building these data structures. In Coin, you build tree hierarchies made up of different node types: group nodes (for the tree structure layout of the other nodes), appearance nodes (for setting up materials, textures, etc), shape nodes (for the actual geometry), and nodes for lighting and camera positioning.

One common issue with newcomers to the API is that you should not and cannot use the C++ delete operator on nodes – the destructor is protected. This is because node instances are using a common technique for memory resource handling called "reference counting". Nodes are deleted (actually, they delete themselves) when their unref() method is called and the reference count goes to zero.

One important side-effect of this is that SoNode-derived classes should not be statically allocated, neither in static module memory nor on functions stack frames. SoNode-derived classes must always be allocated dynamically from the memory heap with the new operator (or else the scheme with self-destruction upon dereferencing to 0 would not work).

Usually application programmers won't manually ref() and unref() nodes a lot, because you pass the nodes directly to SoGroup::addChild() or So@Gui@Viewer::setSceneGraph() or something similar. These functions will ref() the nodes they are passed, and unref() them when they are finished with them.

Make sure you do ref() nodes that you keep pointers to so they aren't accidentally deleted prematurely due to an unref() call from within the library itself. If you haven't manually called ref() on a top level root node, it will then be deleted automatically. This code shows how to do it:

SoSeparator * root = new SoSeparator; // root's refcount starts out at zero
root->addChild(foo_node); // foo_node refcount is increased by 1
root->addChild(bar_node); // bar_node refcount +1

// increase refcount before passing it to setScenegraph(), to avoid
// premature destruction
root->ref();

myviewer->setSceneGraph(root); // root's refcount +1, is now 2

// [misc visualization and processing]

// myviewer will let go of its reference to the root node, thereby
// decreasing its reference count by 1
myviewer->setSceneGraph(NULL);

// root's refcount goes from +1 to 0, and it will self-destruct controllably
root->unref();
// avoid dangling pointer, in case "root" is attempted used again
// (not really necessary, but good for smoking out bugs early)
root = NULL;

For full information and tutorial-style introductions to all API issues, see the "Inventor Mentor: Programming Object-Oriented 3D Graphics with Open Inventor" (ISBN 0-201-62495-8). It has detailed explanations on all the basic principles involved.

See specifically the section "References and Deletion" in Chapter 3 to learn about the reference counting techniques.

Often when using the Coin library, one is interested in making extensions to it. Of particular interest is setting up extension nodes, which are then traversed, rendered and otherwise used by the rest of the library as any internal node.

The Coin header file Inventor/nodes/SoSubNode.h includes a set of convenience macros for quick and easy construction of extension nodes. Here's a complete snippet of code which shows how to set up a skeleton framework for an extension node class:

#include <Inventor/nodes/SoWWWInline.h>


class MyWWWInline : public SoWWWInline {
  SO_NODE_HEADER(MyWWWInline);

public:
  static void initClass(void);
  MyWWWInline(void);

protected:
  virtual ~MyWWWInline();
};


SO_NODE_SOURCE(MyWWWInline);

MyWWWInline::MyWWWInline(void)
{
  SO_NODE_CONSTRUCTOR(MyWWWInline);
}

MyWWWInline::~MyWWWInline()
{
}

void
MyWWWInline::initClass(void)
{
  SO_NODE_INIT_CLASS(MyWWWInline, SoWWWInline, "SoWWWInline");
}


int
main(int argc, char ** argv)
{
  SoDB::init();
  MyWWWInline::initClass();

  // [...]

  return 0;
}

You can then override for instance the GLRender() method to have your new class render OpenGL geometry different from its superclass.

For extending the Coin library with your own classes, we strongly recommend that you make yourself acquainted with the excellent «The Inventor Toolmaker» book (ISBN 0-201-62493-1), which describes the tasks involved in detail. This book was written by the original SGI Inventor designers and explains many of the underlying design ideas, as well as having lots of hands-on examples on how to extend the Coin toolkit in ways that are true to the fundamental design ideas. («The Inventor Toolmaker» is also available at SGI's online library, at no cost. See Download The Inventor Toolmaker.) Reading the source code of the built-in classes in Coin should also prove very helpful.
For information about dynamic loading of extension nodes, see the documentation of SoType::fromName().

Member Enumeration Documentation

◆ NodeType

enum SoNode::NodeType

Used to store node type.

Enumerator
INVENTOR	Specifies Inventor node type.
VRML1	Node is VRML V1.0 compatible.
VRML2	Node is from the VRML V2.0 specification.
INVENTOR_1	Node was part of SGI Inventor version 1.
INVENTOR_2_0	Node was part of SGI Inventor version 2.0.
INVENTOR_2_1	Node was introduced with SGI / TGS Inventor version 2.1.
INVENTOR_2_5	Node was introduced with TGS Inventor version 2.5.
INVENTOR_2_6	Node was introduced with TGS Inventor version 2.6.
COIN_1_0	Node was part of Coin version 1.0.
COIN_2_0	Node was introduced with Coin 2.0.
EXTENSION	Node is a client code extension.
COIN_2_2	Node was introduced with Coin 2.2.
COIN_2_3	Node was introduced with Coin 2.3.
COIN_2_4	Node was introduced with Coin 2.4.
INVENTOR_5_0	Node was introduced with TGS Inventor version 5.0.
COIN_2_5	Node was introduced with Coin 2.5.
COIN_3_0	Node was introduced with Coin 3.0.
INVENTOR_6_0	Node was introduced with TGS Inventor version 6.0.
COIN_4_0	Node was introduced with Coin 4.0.

Constructor & Destructor Documentation

◆ SoNode()

SoNode::SoNode ( void )

protected

Default constructor, initializes node instance.

◆ ~SoNode()

SoNode::~SoNode ( )

protectedvirtual

Destructor.

Member Function Documentation

◆ addToCopyDict()

SoNode * SoNode::addToCopyDict ( void ) const

virtual

Add a copy of this node and (recursively) all children to the copy dictionary of SoFieldContainer if this has not already been done.

Used internally during copy operations.

Reimplemented in SoBaseKit.

◆ affectsState()

SbBool SoNode::affectsState ( void ) const

virtual

Returns TRUE if the node could have any effect on the state during traversal.

If it returns FALSE, no data in the traversal state will change from the pre-traversal state to the post-traversal state. The SoSeparator node will for instance return FALSE, as it pushes and pops the state before and after traversal of its children. All SoShape nodes will also return FALSE, as just pushing out geometry data to the rendering engine won't affect the actual rendering state.

The default method returns TRUE, on a "better safe than sorry" philosophy.

Reimplemented in SoNodeKitListPart, SoSceneKit, SoArray, SoMultipleCopy, SoSeparator, SoShape, SoSwitch, SoVRMLLOD, SoVRMLParent, SoVRMLProximitySensor, SoVRMLShape, SoVRMLSwitch, and SoVRMLTouchSensor.

◆ audioRender()

void SoNode::audioRender ( SoAudioRenderAction * action )

virtual

Action method for SoAudioRenderAction.

Does common processing for SoAudioRenderAction action instances.

Reimplemented in SoListener, SoProfilerStats, SoArray, SoCamera, SoFile, SoGroup, SoLevelOfDetail, SoLOD, SoMultipleCopy, SoPathSwitch, SoSeparator, SoSwitch, SoTransformSeparator, SoWWWInline, SoVRMLGroup, SoVRMLLOD, SoVRMLSound, SoVRMLSwitch, and SoVRMLTransform.

◆ audioRenderS()

void SoNode::audioRenderS	(	SoAction *	action,
		SoNode *	node )

static

This is a static "helper" method registered with the action, and used for calling the SoNode::audioRender() virtual method which does the real work.

◆ callback()

void SoNode::callback ( SoCallbackAction * action )

virtual

Action method for SoCallbackAction.

Simply updates the state according to how the node behaves for the render action, so the application programmer can use the SoCallbackAction for extracting information about the scene graph.

◆ callbackS()

void SoNode::callbackS	(	SoAction *	action,
		SoNode *	node )

static

This is a static "helper" method registered with the action, and used for calling the SoNode::callback() virtual method which does the real work.

◆ copy()

SoNode * SoNode::copy ( SbBool copyconnections = FALSE ) const

virtual

Make a duplicate of this node and return a pointer to the duplicate.

If this node is a group node, children are also copied and we return a pointer to the root of a full copy of the subgraph rooted here.

If copyconnections is TRUE, we also copy the connections to fields within this node (and ditto for any children and children's children etc.).

Note that this function has been made virtual in Coin, which is not the case in the original Open Inventor API. We may change this method back into being non-virtual again for major Coin versions after this, as it was made virtual more or less by mistake. So please don't write application code that depends on SoNode::copy() being virtual.

The reason this method should not be virtual is because this is not the function the application programmer should override in extension nodes if she needs some special behavior during a copy operation (like copying the value of internal data not exposed as fields).

For that purpose, override the copyContents() method. Your overridden copyContents() method should then both copy internal data as well as calling the parent superclass' copyContents() method for automatically handling of fields and other common data.

◆ copyContents()

void SoNode::copyContents	(	const SoFieldContainer *	from,
		SbBool	copyconnections )

virtual

Makes a deep copy of all data of from into this instance, except external scene graph references if copyconnections is FALSE.

This is the method that should be overridden by extension node / engine / dragger / whatever subclasses which need to account for internal data that are not handled automatically.

For copying nodes from application code, you should not invoke this function directly, but rather call the SoNode::copy() function:

SoNode * mynewnode = templatenode->copy();

SbList::copy

void copy(const SbList< Type > &l)

Definition SbList.h:92

SoNode

The SoNode class is the base class for nodes used in scene graphs.

Definition SoNode.h:56

The same also goes for engines.

Make sure that when you override the copyContents() method in your extension class that you also make it call upwards to its parent superclass in the inheritance hierarchy, as copyContents() in for instance SoNode and SoFieldContainer does important work. It should go something like this:

void
MyCoinExtensionNode::copyContents(const SoFieldContainer * from,
                                  SbBool copyconnections)
{
  // let parent superclasses do their thing (copy fields, copy
  // instance name, etc.)
  SoNode::copyContents(from, copyconnections);

  // [..then copy internal data..]
}

Reimplemented from SoFieldContainer.

Reimplemented in SoVRMLAppearance, SoVRMLGeometry, SoVRMLLOD, SoVRMLParent, SoVRMLScript, SoVRMLShape, SoVRMLSwitch, SoCallback, SoFile, SoGroup, SoVertexAttribute, SoRotateCylindricalDragger, SoRotateSphericalDragger, SoClipPlaneManip, SoDirectionalLightManip, SoPointLightManip, SoSpotLightManip, SoTransformManip, SoBaseKit, SoInteractionKit, SoNodeKitListPart, and SoWWWInline.

◆ copyThroughConnection()

SoFieldContainer * SoNode::copyThroughConnection ( void ) const

virtual

Return copy of this instance.

Note: default implementation just returns this pointer, SoNode and SoEngine overrides this method to return the pointer to the actual copy.

Reimplemented from SoFieldContainer.

◆ doAction()

void SoNode::doAction ( SoAction * action )

virtual

This function performs the typical operation of a node for any action.

◆ getActionMethodIndex()

int SoNode::getActionMethodIndex ( const SoType type )

static

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ getBoundingBox()

void SoNode::getBoundingBox ( SoGetBoundingBoxAction * action )

virtual

Action method for the SoGetBoundingBoxAction.

Calculates bounding box and center coordinates for node and modifies the values of the action to encompass the bounding box for this node and to shift the center point for the scene more towards the one for this node.

Nodes influencing how geometry nodes calculate their bounding box also override this method to change the relevant state variables.

Reimplemented in SoProfilerStats, SoCenterballDragger, SoDragger, SoClipPlaneManip, SoDirectionalLightManip, SoPointLightManip, SoSpotLightManip, SoTransformManip, SoBaseKit, SoNodeKitListPart, SoAntiSquish, SoArray, SoBlinker, SoCacheHint, SoCallback, SoCamera, SoComplexity, SoCoordinate3, SoCoordinate4, SoFile, SoFont, SoFontStyle, SoGeoCoordinate, SoGeoLocation, SoGeoOrigin, SoGeoSeparator, SoGroup, SoIndexedLineSet, SoIndexedNurbsCurve, SoIndexedPointSet, SoLevelOfDetail, SoLineSet, SoLOD, SoMatrixTransform, SoMultipleCopy, SoNurbsCurve, SoPathSwitch, SoPointSet, SoProfile, SoProfileCoordinate2, SoProfileCoordinate3, SoResetTransform, SoRotation, SoRotationXYZ, SoScale, SoSeparator, SoShape, SoShapeHints, SoSurroundScale, SoSwitch, SoTextureUnit, SoTransform, SoTransformSeparator, SoTranslation, SoUnits, SoVertexProperty, SoWWWInline, SoVRMLBillboard, SoVRMLCoordinate, SoVRMLFontStyle, SoVRMLGroup, SoVRMLIndexedLineSet, SoVRMLInline, SoVRMLLOD, SoVRMLPointSet, SoVRMLProximitySensor, SoVRMLScript, SoVRMLShape, SoVRMLSwitch, SoVRMLTransform, SoVRMLVertexLine, SoVRMLVertexPoint, and SoVRMLVertexShape.

◆ getBoundingBoxS()

void SoNode::getBoundingBoxS	(	SoAction *	action,
		SoNode *	node )

static

This is a static "helper" method registered with the action, and used for calling the SoNode::getBoundingBox() virtual method which does the real work.

◆ getByName() [1/2]

SoNode * SoNode::getByName ( const SbName & name )

static

Returns the last node that was registered under name.

See also: SoBase::setName()

◆ getByName() [2/2]

int SoNode::getByName	(	const SbName &	name,
		SoNodeList &	l )

static

Finds all nodes with name and appends them to the l node list. Returns the number of nodes with the specified name.

See also: SoBase::setName()

◆ getChildren()

SoChildList * SoNode::getChildren ( void ) const

virtual

Returns list of children for this node.

Reimplemented in SoClipPlaneManip, SoDirectionalLightManip, SoPointLightManip, SoSpotLightManip, SoTransformManip, SoBaseKit, SoNodeKitListPart, SoFile, SoGroup, SoWWWInline, SoVRMLAppearance, SoVRMLGeometry, SoVRMLInline, SoVRMLLOD, SoVRMLParent, SoVRMLShape, SoVRMLSwitch, and SoVRMLText.

◆ getClassTypeId()

SoType SoNode::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

◆ getCompatibilityTypes()

uint32_t SoNode::getCompatibilityTypes ( const SoType & nodetype )

static

Get the node compatibility mask for node type nodetype. The return value will be a bit mask of SoNode::NodeType flags, containing one or several flags.

This function is an extension for Coin, and it is not available in the original SGI Open Inventor v2.1 API.

Since: Coin 2.0

◆ getFieldDataPtr()

const SoFieldData ** SoNode::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getMatrix()

void SoNode::getMatrix ( SoGetMatrixAction * action )

virtual

Action method for SoGetMatrixAction.

Updates action by accumulating with the transformation matrix of this node (if any).

Reimplemented in SoProfilerStats, SoCenterballDragger, SoDragger, SoClipPlaneManip, SoDirectionalLightManip, SoPointLightManip, SoSpotLightManip, SoTransformManip, SoBaseKit, SoNodeKitListPart, SoAntiSquish, SoArray, SoBumpMapTransform, SoCallback, SoCamera, SoFile, SoGeoLocation, SoGeoOrigin, SoGeoSeparator, SoGroup, SoMatrixTransform, SoMultipleCopy, SoPathSwitch, SoResetTransform, SoRotation, SoRotationXYZ, SoScale, SoSeparator, SoSurroundScale, SoSwitch, SoTexture2Transform, SoTexture3Transform, SoTextureMatrixTransform, SoTextureUnit, SoTransform, SoTransformSeparator, SoTranslation, SoUnits, SoWWWInline, SoVRMLBillboard, SoVRMLGroup, SoVRMLInline, SoVRMLSwitch, SoVRMLTextureTransform, and SoVRMLTransform.

◆ getMatrixS()

void SoNode::getMatrixS	(	SoAction *	action,
		SoNode *	node )

static

This is a static "helper" method registered with the action, and used for calling the SoNode::getMatrix() virtual method which does the real work.

◆ getNextActionMethodIndex()

int SoNode::getNextActionMethodIndex ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Only in TGS Inventor on Win32 – to avoid needing to export the nextActionMethodIndex member, see SoNode.h for more information.

◆ getNextNodeId()

SbUniqueId SoNode::getNextNodeId ( void )

static

Return the next unique identification number to be assigned upon node construction or change. It is unlikely that application programmers will ever need use this method from client application code, unless working with extensions to the core library (and probably not even then).

See also: SoNode::getNodeId

◆ getNodeId()

SbUniqueId SoNode::getNodeId ( void ) const

This returns the node's current unique identification number. It is unlikely that application programmers will ever need use this method from client application code, unless working with extensions to the core library (and probably not even then).

The id number is only valid for as long as the node is kept unchanged – upon any kind of change the internal id will be updated (in the notify() method), and the old id number forgotten.

The technique described above plays an important role in the way internal scene graph caches are set up and invalidated.

See also: SoNode::getNextNodeId()

◆ getNodeType()

SoNode::NodeType SoNode::getNodeType ( void ) const

Returns the node type set for this node.

This method is an extension versus the Open Inventor API.

See also: setNodeType()

◆ getPrimitiveCount()

void SoNode::getPrimitiveCount ( SoGetPrimitiveCountAction * action )

virtual

Action method for the SoGetPrimitiveCountAction.

Calculates the number of triangle, line segment and point primitives for the node and adds these to the counters of the action.

Nodes influencing how geometry nodes calculate their primitive count also override this method to change the relevant state variables.

Reimplemented in SoProfilerStats, SoDragger, SoBaseKit, SoNodeKitListPart, SoArray, SoAsciiText, SoCallback, SoCamera, SoComplexity, SoCone, SoCoordinate3, SoCoordinate4, SoCube, SoCylinder, SoFaceSet, SoFile, SoFont, SoFontStyle, SoGeoCoordinate, SoGeoLocation, SoGeoOrigin, SoGeoSeparator, SoGroup, SoImage, SoIndexedFaceSet, SoIndexedLineSet, SoIndexedNurbsCurve, SoIndexedNurbsSurface, SoIndexedPointSet, SoIndexedTriangleStripSet, SoLineSet, SoLOD, SoMarkerSet, SoMaterialBinding, SoMatrixTransform, SoMultipleCopy, SoNormal, SoNormalBinding, SoNurbsCurve, SoNurbsSurface, SoPathSwitch, SoPointSet, SoProfile, SoProfileCoordinate2, SoProfileCoordinate3, SoQuadMesh, SoResetTransform, SoRotation, SoRotationXYZ, SoScale, SoSeparator, SoShape, SoSphere, SoSwitch, SoText2, SoText3, SoTransform, SoTransformSeparator, SoTranslation, SoTriangleStripSet, SoUnits, SoVertexAttributeBinding, SoVertexProperty, SoWWWInline, SoVRMLBox, SoVRMLCone, SoVRMLCylinder, SoVRMLElevationGrid, SoVRMLExtrusion, SoVRMLFontStyle, SoVRMLGroup, SoVRMLIndexedFaceSet, SoVRMLIndexedLineSet, SoVRMLInline, SoVRMLLOD, SoVRMLNormal, SoVRMLParent, SoVRMLShape, SoVRMLSphere, SoVRMLText, SoVRMLTextureCoordinate, SoVRMLTransform, and SoVRMLVertexPoint.

◆ getPrimitiveCountS()

void SoNode::getPrimitiveCountS	(	SoAction *	action,
		SoNode *	node )

static

This is a static "helper" method registered with the action, and used for calling the SoNode::getPrimitiveCount() virtual method which does the real work.

◆ GLRender()

void SoNode::GLRender ( SoGLRenderAction * action )

virtual

Action method for the SoGLRenderAction.

This is called during rendering traversals. Nodes influencing the rendering state in any way or want to throw geometry primitives at OpenGL override this method.

◆ GLRenderBelowPath()

void SoNode::GLRenderBelowPath ( SoGLRenderAction * action )

virtual

Implements the SoAction::BELOW_PATH traversal method for the rendering action.

Reimplemented in SoShadowGroup, SoAnnotation, SoExtSelection, SoGeoSeparator, SoLocateHighlight, SoLOD, SoSeparator, SoVRMLBillboard, SoVRMLGroup, SoVRMLLOD, and SoVRMLTransform.

◆ GLRenderInPath()

void SoNode::GLRenderInPath ( SoGLRenderAction * action )

virtual

Implements the SoAction::IN_PATH traversal method for the rendering action.

Reimplemented in SoShadowGroup, SoAnnotation, SoGeoSeparator, SoLocateHighlight, SoLOD, SoSeparator, SoVRMLBillboard, SoVRMLGroup, SoVRMLLOD, and SoVRMLTransform.

◆ GLRenderOffPath()

void SoNode::GLRenderOffPath ( SoGLRenderAction * action )

virtual

Implements the SoAction::OFF_PATH traversal method for the rendering action.

Reimplemented in SoAnnotation, SoLOD, SoSeparator, SoVRMLBillboard, SoVRMLGroup, and SoVRMLLOD.

◆ GLRenderS()

void SoNode::GLRenderS	(	SoAction *	action,
		SoNode *	node )

static

This is a static "helper" method registered with the action, and used for calling the SoNode::GLRender() virtual method which does the real work.

◆ grabEventsCleanup()

void SoNode::grabEventsCleanup ( void )

virtual

Called from SoHandleEventAction to notify a node when it looses status as the node where events are sent.

Reimplemented in SoDragger.

◆ grabEventsSetup()

void SoNode::grabEventsSetup ( void )

virtual

Called from SoHandleEventAction::setGrabber() to notify a node when it becomes the node where all events are sent.

Reimplemented in SoDragger.

◆ handleEvent()

void SoNode::handleEvent ( SoHandleEventAction * action )

virtual

Action method for SoHandleEventAction.

Inspects the event data from action, and processes it if it is something which this node should react to.

Nodes influencing relevant state variables for how event handling is done also override this method.

Reimplemented in SoNodeVisualize, SoProfilerStats, SoClipPlaneManip, SoDirectionalLightManip, SoPointLightManip, SoSpotLightManip, SoTransformManip, SoBaseKit, SoNodeKitListPart, SoArray, SoCallback, SoCamera, SoEventCallback, SoExtSelection, SoFile, SoGroup, SoLocateHighlight, SoMultipleCopy, SoPathSwitch, SoSelection, SoSeparator, SoSwitch, SoWWWAnchor, SoWWWInline, SoVRMLAnchor, SoVRMLDragSensor, SoVRMLInline, SoVRMLScript, SoVRMLSwitch, SoVRMLTimeSensor, SoVRMLTouchSensor, and SoDragger.

◆ handleEventS()

void SoNode::handleEventS	(	SoAction *	action,
		SoNode *	node )

static

This is a static "helper" method registered with the action, and used for calling the SoNode::handleEvent() virtual method which does the real work.

◆ incNextActionMethodIndex()

void SoNode::incNextActionMethodIndex ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Only in TGS Inventor on Win32 – to avoid needing to export the nextActionMethodIndex member, see SoNode.h for more information.

◆ initClasses()

void SoNode::initClasses ( void )

static

Initialize all the node classes of Coin.

◆ isOverride()

SbBool SoNode::isOverride ( void ) const

Return status of override flag.

See also: setOverride()

◆ notify()

void SoNode::notify ( SoNotList * l )

virtual

Notifies all auditors for this instance when changes are made.

Reimplemented from SoFieldContainer.

Reimplemented in SoProfilerStats, SoVertexAttribute, SoAsciiText, SoBumpMap, SoImage, SoIndexedLineSet, SoIndexedPointSet, SoMaterial, SoPackedColor, SoSceneTexture2, SoSceneTextureCubeMap, SoText3, SoTexture2, SoTexture3, SoTextureCubeMap, SoVertexProperty, SoVRMLAppearance, SoVRMLBillboard, SoVRMLCollision, SoVRMLElevationGrid, SoVRMLExtrusion, SoVRMLGeometry, SoVRMLGroup, SoVRMLIndexedLine, SoVRMLIndexedLineSet, SoVRMLIndexedShape, SoVRMLLOD, SoVRMLParent, SoVRMLPixelTexture, SoVRMLProximitySensor, SoVRMLScript, SoVRMLShape, SoVRMLSwitch, SoVRMLText, SoVRMLTimeSensor, SoVRMLTouchSensor, SoVRMLTransform, SoVRMLVertexLine, SoVRMLVertexPoint, SoVRMLVertexShape, SoShadowGroup, SoNodeEngine, SoBlinker, SoLevelOfDetail, SoLOD, SoSeparator, SoShape, SoSwitch, and SoVertexShape.

◆ pick()

void SoNode::pick ( SoPickAction * action )

virtual

Action method for SoPickAction.

Does common processing for SoPickAction action instances.

◆ pickS()

void SoNode::pickS	(	SoAction *	action,
		SoNode *	node )

static

This is a static "helper" method registered with the action, and used for calling the SoNode::pick() virtual method which does the real work.

◆ rayPick()

void SoNode::rayPick ( SoRayPickAction * action )

virtual

Action method for SoRayPickAction.

Checks the ray specification of the action and tests for intersection with the data of the node.

Nodes influencing relevant state variables for how picking is done also override this method.

Reimplemented in SoProfilerStats, SoDragger, SoBaseKit, SoBumpMap, SoCamera, SoCone, SoCube, SoCylinder, SoGeoSeparator, SoImage, SoIndexedNurbsCurve, SoIndexedNurbsSurface, SoLevelOfDetail, SoLOD, SoNurbsCurve, SoNurbsSurface, SoSceneTexture2, SoSceneTextureCubeMap, SoSeparator, SoShape, SoSphere, SoText2, SoTexture2, SoTextureCubeMap, SoVRMLBox, SoVRMLCone, SoVRMLCylinder, SoVRMLElevationGrid, SoVRMLGroup, SoVRMLImageTexture, SoVRMLLOD, SoVRMLPixelTexture, SoVRMLProximitySensor, SoVRMLShape, SoVRMLSphere, and SoVRMLTransform.

◆ rayPickS()

void SoNode::rayPickS	(	SoAction *	action,
		SoNode *	node )

static

This is a static "helper" method registered with the action, and used for calling the SoNode::rayPick() virtual method which does the real work.

◆ readInstance()

SbBool SoNode::readInstance	(	SoInput *	in,
		unsigned short	flags )

protectedvirtual

This method is mainly intended for internal use during file import operations.

It reads a definition of an instance from the input stream in. The input stream state points to the start of a serialized / persistent representation of an instance of this class type.

TRUE or FALSE is returned, depending on if the instantiation and configuration of the new object of this class type went OK or not. The import process should be robust and handle corrupted input streams by returning FALSE.

flags is used internally during binary import when reading user extension nodes, group nodes or engines.

Reimplemented from SoFieldContainer.

Reimplemented in SoNodeEngine, SoProtoInstance, SoBaseKit, SoInteractionKit, SoNodeKitListPart, SoBumpMap, SoFile, SoGroup, SoImage, SoNormalBinding, SoSeparator, SoShaderObject, SoTexture2, SoTexture3, SoTextureCoordinateBinding, SoTextureCubeMap, SoVertexAttribute, SoWWWInline, SoVRMLBackground, SoVRMLImageTexture, SoVRMLLOD, SoVRMLParent, SoVRMLPixelTexture, SoVRMLSwitch, and SoProto.

◆ search()

void SoNode::search ( SoSearchAction * action )

virtual

Action method for SoSearchAction.

Compares the search criteria from the action to see if this node is a match. Searching is done by matching up all criteria set up in the SoSearchAction – if any of the requested criteria is a miss, the search is not deemed successful for the node.

See also: SoSearchAction

Reimplemented in SoProfilerStats, SoDragger, SoClipPlaneManip, SoDirectionalLightManip, SoPointLightManip, SoSpotLightManip, SoTransformManip, SoBaseKit, SoNodeKitListPart, SoArray, SoCallback, SoFile, SoGroup, SoMultipleCopy, SoPathSwitch, SoSeparator, SoShaderObject, SoShaderProgram, SoSwitch, SoWWWInline, SoVRMLAppearance, SoVRMLBillboard, SoVRMLGeometry, SoVRMLGroup, SoVRMLInline, SoVRMLLOD, SoVRMLParent, SoVRMLShape, and SoVRMLSwitch.

◆ searchS()

void SoNode::searchS	(	SoAction *	action,
		SoNode *	node )

static

This is a static "helper" method registered with the action, and used for calling the SoNode::search() virtual method which does the real work.

◆ setCompatibilityTypes()

void SoNode::setCompatibilityTypes	(	const SoType &	nodetype,
		const uint32_t	bitmask )

staticprotected

Set the node compatibility mask for node type nodetype. The mask specifies for which file formats the node is supported.

This function is an extension for Coin, and it is not available in the original SGI Open Inventor v2.1 API.

See also: getCompatibilityMode()

Since: Coin 2.0

◆ setNextActionMethodIndex()

void SoNode::setNextActionMethodIndex ( int index )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Only in TGS Inventor on Win32 – to avoid needing to export the nextActionMethodIndex member, see SoNode.h for more information.

◆ setNodeType()

void SoNode::setNodeType ( const NodeType type )

Sets the node type for this node to type. Since some nodes should be handled differently in VRML1 vs. Inventor, this should be used to get correct behavior for those cases. The default node type is INVENTOR.

This method is an extension versus the Open Inventor API.

See also: getNodeType()

◆ setOverride()

void SoNode::setOverride ( const SbBool state )

Set the override flag.

If this flag is TRUE, the field values of this node will override the field values of other nodes of the same type during scene graph traversal.

A common application for "override nodes" is to place them at the top of the tree as a convenient way to force e.g. a common draw style on the complete tree.

The override flag does not exist in the Inventor file format. This flag is in other words not persistent, and must be programmatically set. The rationale for this flag is for viewers to be able to control rendering style of the 3D models, so it would look stupid if some parts of certain models suddenly didn't adhere to the viewer mode.

◆ startNotify()

void SoNode::startNotify ( void )

virtual

This is the method which starts the notification sequence after changes.

At the end of a notification sequence, all "immediate" sensors (i.e. sensors set up with a zero priority) are triggered.

Reimplemented from SoBase.

◆ write()

void SoNode::write ( SoWriteAction * action )

virtual

Action method for SoWriteAction.

Writes out a node object, and any connected nodes, engines etc, if necessary.

Reimplemented in SoProfilerStats, SoDragger, SoProto, SoProtoInstance, SoBaseKit, SoBlinker, SoCallback, SoGroup, SoPendulum, SoSceneTexture2, SoShuttle, SoSwitch, SoVertexAttribute, SoVertexShape, SoVRMLGroup, SoVRMLLOD, SoVRMLParent, SoVRMLScript, SoVRMLShape, SoVRMLSwitch, and SoVRMLTimeSensor.

◆ writeInstance()

void SoNode::writeInstance ( SoOutput * out )

virtual

Writes all the fields contained in this instance to the output stream within out.

This method is solely called from the write methods of fields.

Either from SoField if the write is done because of a field-to-field connection, or from one of the fields which may actually write SoFieldContainer instances, i.e. SoSFNode, SoMFNode, SoSFEngine, SoMFEngine, SoSFPath and SoMFPath.

This method, in addition to the ordinary write() method of SoNode, needs to be present since the fields don't have a write action instance in their writeValue() method, and writeInstance() will create a new SoWriteAction and call continueToApply() on it.

Reimplemented from SoFieldContainer.

Reimplemented in SoNodeEngine.

◆ writeS()

void SoNode::writeS	(	SoAction *	action,
		SoNode *	node )

static

This is a static "helper" method registered with the action, and used for calling the SoNode::write() virtual method which does the real work.

Member Data Documentation

◆ nextActionMethodIndex

int SoNode::nextActionMethodIndex = 0

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ nextUniqueId

SbUniqueId SoNode::nextUniqueId = 1

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ uniqueId

SbUniqueId SoNode::uniqueId

protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

The documentation for this class was generated from the following files:

SoNode.h
SoNode.cpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ NodeType

Constructor & Destructor Documentation

◆ SoNode()

◆ ~SoNode()

Member Function Documentation

◆ addToCopyDict()

◆ affectsState()

◆ audioRender()

◆ audioRenderS()

◆ callback()

◆ callbackS()

◆ copy()

◆ copyContents()

◆ copyThroughConnection()

◆ doAction()

◆ getActionMethodIndex()

◆ getBoundingBox()

◆ getBoundingBoxS()

◆ getByName() [1/2]

◆ getByName() [2/2]

◆ getChildren()

◆ getClassTypeId()

◆ getCompatibilityTypes()

◆ getFieldDataPtr()

◆ getMatrix()

◆ getMatrixS()

◆ getNextActionMethodIndex()

◆ getNextNodeId()

◆ getNodeId()

◆ getNodeType()

◆ getPrimitiveCount()

◆ getPrimitiveCountS()

◆ GLRender()

◆ GLRenderBelowPath()

◆ GLRenderInPath()

◆ GLRenderOffPath()

◆ GLRenderS()

◆ grabEventsCleanup()

◆ grabEventsSetup()

◆ handleEvent()

◆ handleEventS()

◆ incNextActionMethodIndex()

◆ initClasses()

◆ isOverride()

◆ notify()

◆ pick()

◆ pickS()

◆ rayPick()

◆ rayPickS()

◆ readInstance()

◆ search()

◆ searchS()

◆ setCompatibilityTypes()

◆ setNextActionMethodIndex()

◆ setNodeType()

◆ setOverride()

◆ startNotify()

◆ write()

◆ writeInstance()

◆ writeS()

Member Data Documentation

◆ nextActionMethodIndex

◆ nextUniqueId

◆ uniqueId
