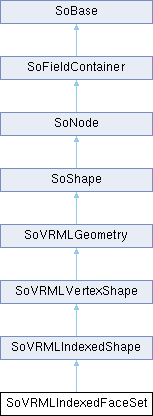

The SoVRMLIndexedFaceSet class is used for representing a generic 3D shape. More...
#include <Inventor/VRMLnodes/SoVRMLIndexedFaceSet.h>
Static Public Member Functions | |
| static SoType | getClassTypeId (void) |
| static void | initClass (void) |
 Static Public Member Functions inherited from SoVRMLIndexedShape | |
| static SoType | getClassTypeId (void) |
| static void | initClass (void) |
| Static Public Member Functions inherited from SoVRMLVertexShape | |
| static SoType | getClassTypeId (void) |
| static void | initClass (void) |
| Static Public Member Functions inherited from SoVRMLGeometry | |
| static SoType | getClassTypeId (void) |
| static void | initClass (void) |
| Static Public Member Functions inherited from SoShape | |
| static SoType | getClassTypeId (void) |
| static float | getDecimatedComplexity (SoState *state, float complexity) |
| static void | getScreenSize (SoState *const state, const SbBox3f &boundingbox, SbVec2s &rectsize) |
| static void | initClass (void) |
| Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system. | |
| Static Public Member Functions inherited from SoNode | |
| static void | audioRenderS (SoAction *action, SoNode *node) |
| static void | callbackS (SoAction *action, SoNode *node) |
| static int | getActionMethodIndex (const SoType type) |
| static void | getBoundingBoxS (SoAction *action, SoNode *node) |
| static SoNode * | getByName (const SbName &name) |
| static int | getByName (const SbName &name, SoNodeList &l) |
| static SoType | getClassTypeId (void) |
| static uint32_t | getCompatibilityTypes (const SoType &nodetype) |
| static void | getMatrixS (SoAction *action, SoNode *node) |
| static SbUniqueId | getNextNodeId (void) |
| static void | getPrimitiveCountS (SoAction *action, SoNode *node) |
| static void | GLRenderS (SoAction *action, SoNode *node) |
| static void | handleEventS (SoAction *action, SoNode *node) |
| static void | initClass (void) |
| Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system. | |
| static void | initClasses (void) |
| static void | pickS (SoAction *action, SoNode *node) |
| static void | rayPickS (SoAction *action, SoNode *node) |
| static void | searchS (SoAction *action, SoNode *node) |
| static void | writeS (SoAction *action, SoNode *node) |
| Static Public Member Functions inherited from SoFieldContainer | |
| static void | addCopy (const SoFieldContainer *orig, const SoFieldContainer *copy) |
| static SoFieldContainer * | checkCopy (const SoFieldContainer *orig) |
| static void | cleanupClass (void) |
| static void | copyDone (void) |
| static SoFieldContainer * | findCopy (const SoFieldContainer *orig, const SbBool copyconnections) |
| static SoType | getClassTypeId (void) |
| This static method returns the SoType object associated with objects of this class. | |
| static void | initClass (void) |
| Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system. | |
| static void | initCopyDict (void) |
| Static Public Member Functions inherited from SoBase | |
| static void | addName (SoBase *const base, const char *const name) |
| static SbBool | connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname) |
| static void | decrementCurrentWriteCounter (void) |
| static SoType | getClassTypeId (void) |
| This static method returns the SoType object associated with objects of this class. | |
| static SoBase * | getNamedBase (const SbName &name, SoType type) |
| static int | getNamedBases (const SbName &name, SoBaseList &baselist, SoType type) |
| static SbBool | getTraceRefs (void) |
| static void | incrementCurrentWriteCounter (void) |
| static void | initClass (void) |
| Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system. | |
| static SbBool | read (SoInput *input, SoBase *&base, SoType expectedtype) |
| static SbBool | readRoute (SoInput *input) |
| static void | removeName (SoBase *const base, const char *const name) |
| static void | setInstancePrefix (const SbString &c) |
| static void | setTraceRefs (SbBool trace) |
Public Attributes | |
| SoSFBool | ccw |
| SoSFBool | convex |
| SoSFFloat | creaseAngle |
| SoSFBool | solid |
| Public Attributes inherited from SoVRMLIndexedShape | |
| SoMFInt32 | colorIndex |
| SoMFInt32 | coordIndex |
| SoMFInt32 | normalIndex |
| SoMFInt32 | texCoordIndex |
| Public Attributes inherited from SoVRMLVertexShape | |
| SoSFNode | color |
| SoSFBool | colorPerVertex |
| SoSFNode | coord |
| SoSFNode | normal |
| SoSFBool | normalPerVertex |
| SoSFNode | texCoord |
Additional Inherited Members | |
| Public Types inherited from SoVRMLVertexShape | |
| enum | Binding { OVERALL = SoMaterialBindingElement::OVERALL , PER_PART = SoMaterialBindingElement::PER_PART , PER_PART_INDEXED = SoMaterialBindingElement::PER_PART_INDEXED , PER_FACE = SoMaterialBindingElement::PER_FACE , PER_FACE_INDEXED = SoMaterialBindingElement::PER_FACE_INDEXED , PER_VERTEX = SoMaterialBindingElement::PER_VERTEX , PER_VERTEX_INDEXED = SoMaterialBindingElement::PER_VERTEX_INDEXED } |
| Public Types inherited from SoShape | |
| enum | TriangleShape { TRIANGLE_STRIP , TRIANGLE_FAN , TRIANGLES , POLYGON , QUADS , QUAD_STRIP , POINTS , LINES , LINE_STRIP } |
| Public Types inherited from SoNode | |
| enum | NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 } |
| Protected Types inherited from SoBase | |
| enum | BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 } |
| Protected Attributes inherited from SoNode | |
| SbUniqueId | uniqueId |
| Protected Attributes inherited from SoFieldContainer | |
| SbBool | isBuiltIn |
| Static Protected Attributes inherited from SoNode | |
| static int | nextActionMethodIndex = 0 |
| static SbUniqueId | nextUniqueId = 1 |
The SoVRMLIndexedFaceSet class is used for representing a generic 3D shape.
The detailed class documentation is taken verbatim from the VRML97 standard (ISO/IEC 14772-1:1997). It is copyright The Web3D Consortium, and is used by permission of the Consortium:
IndexedFaceSet {
eventIn MFInt32 set_colorIndex
eventIn MFInt32 set_coordIndex
eventIn MFInt32 set_normalIndex
eventIn MFInt32 set_texCoordIndex
exposedField SFNode color NULL
exposedField SFNode coord NULL
exposedField SFNode normal NULL
exposedField SFNode texCoord NULL
field SFBool ccw TRUE
field MFInt32 colorIndex [] # [-1,)
field SFBool colorPerVertex TRUE
field SFBool convex TRUE
field MFInt32 coordIndex [] # [-1,)
field SFFloat creaseAngle 0 # [0,)
field MFInt32 normalIndex [] # [-1,)
field SFBool normalPerVertex TRUE
field SFBool solid TRUE
field MFInt32 texCoordIndex [] # [-1,)
}
The IndexedFaceSet node represents a 3D shape formed by constructing faces (polygons) from vertices listed in the coord field. The coord field contains a Coordinate node that defines the 3D vertices referenced by the coordIndex field. IndexedFaceSet uses the indices in its coordIndex field to specify the polygonal faces by indexing into the coordinates in the Coordinate node. An index of "-1" indicates that the current face has ended and the next one begins. The last face may be (but does not have to be) followed by a "-1" index. If the greatest index in the coordIndex field is N, the Coordinate node shall contain N+1 coordinates (indexed as 0 to N). Each face of the IndexedFaceSet shall have:
Otherwise, The results are undefined.
The IndexedFaceSet node is specified in the local coordinate system and is affected by the transformations of its ancestors.
Descriptions of the coord, normal, and texCoord fields are provided in the SoVRMLCoordinate, SoVRMLNormal, and SoVRMLTextureCoordinate nodes, respectively.
Details on lighting equations and the interaction between color field, normal field, textures, materials, and geometries are provided in 4.14, Lighting model.
If the color field is not NULL, it shall contain a Color node whose colours are applied to the vertices or faces of the IndexedFaceSet as follows:
If the color field is NULL, the geometry shall be rendered normally using the Material and texture defined in the Appearance node (see 4.14, Lighting model, for details http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.5).
If the normal field is not NULL, it shall contain a Normal node whose normals are applied to the vertices or faces of the IndexedFaceSet in a manner exactly equivalent to that described above for applying colours to vertices/faces (where normalPerVertex corresponds to colorPerVertex and normalIndex corresponds to colorIndex). If the normal field is NULL, the browser shall automatically generate normals, using creaseAngle to determine if and how normals are smoothed across shared vertices (see 4.6.3.5, Crease angle field).
If the texCoord field is not NULL, it shall contain a TextureCoordinate node. The texture coordinates in that node are applied to the vertices of the IndexedFaceSet as follows: If the texCoordIndex field is not empty, then it is used to choose texture coordinates for each vertex of the IndexedFaceSet in exactly the same manner that the coordIndex field is used to choose coordinates for each vertex from the Coordinate node. The texCoordIndex field shall contain at least as many indices as the coordIndex field, and shall contain end-of-face markers (-1) in exactly the same places as the coordIndex field. If the greatest index in the texCoordIndex field is N, then there shall be N+1 texture coordinates in the TextureCoordinate node.
If the texCoordIndex field is empty, then the coordIndex array is used to choose texture coordinates from the TextureCoordinate node. If the greatest index in the coordIndex field is N, then there shall be N+1 texture coordinates in the TextureCoordinate node. If the texCoord field is NULL, a default texture coordinate mapping is calculated using the local coordinate system bounding box of the shape. The longest dimension of the bounding box defines the S coordinates, and the next longest defines the T coordinates. If two or all three dimensions of the bounding box are equal, ties shall be broken by choosing the X, Y, or Z dimension in that order of preference. The value of the S coordinate ranges from 0 to 1, from one end of the bounding box to the other. The T coordinate ranges between 0 and the ratio of the second greatest dimension of the bounding box to the greatest dimension. Figure 6.10 illustrates the default texture coordinates for a simple box shaped IndexedFaceSet with an X dimension twice as large as the Z dimension and four times as large as the Y dimension. Figure 6.11 illustrates the original texture image used on the IndexedFaceSet used in Figure 6.10.
Figure 6.10
Figure 6.11 Subclause 4.6.3, Shapes and geometry (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.5), provides a description of the ccw, solid, convex, and creaseAngle fields.
| SoVRMLIndexedFaceSet::SoVRMLIndexedFaceSet | ( | void | ) |
Constructor.
|
protectedvirtual |
Destructor.
|
virtual |
This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.
Subclasses should override this method to generate default normals using the SoNormalBundle class. TRUE should be returned if normals were generated, FALSE otherwise.
Default method returns FALSE.
This function is an extension for Coin, and it is not available in the original SGI Open Inventor v2.1 API.
Reimplemented from SoVRMLVertexShape.
|
virtual |
This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.
Subclasses should override this method to generate default normals using the SoNormalCache class. This is more effective than using SoNormalGenerator. Return TRUE if normals were generated, FALSE otherwise.
Default method just returns FALSE.
This function is an extension for Coin, and it is not available in the original SGI Open Inventor v2.1 API.
Reimplemented from SoVRMLVertexShape.
The method implements action behavior for shape nodes for SoCallbackAction. It is invoked from SoShape::callback(). (Subclasses should not override SoNode::callback().)
The subclass implementations uses the convenience methods SoShape::beginShape(), SoShape::shapeVertex(), and SoShape::endShape(), with SoDetail instances, to pass the primitives making up the shape back to the caller.
Implements SoShape.
This static method returns the SoType object associated with objects of this class.
|
protectedvirtual |
Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.
Reimplemented from SoVRMLIndexedShape.
|
staticprotected |
This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.
Returns the SoFieldData class which holds information about fields in this node.
|
virtual |
Action method for the SoGetPrimitiveCountAction.
Calculates the number of triangle, line segment and point primitives for the node and adds these to the counters of the action.
Nodes influencing how geometry nodes calculate their primitive count also override this method to change the relevant state variables.
Reimplemented from SoShape.
Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.
Reimplemented from SoVRMLIndexedShape.
|
virtual |
Action method for the SoGLRenderAction.
This is called during rendering traversals. Nodes influencing the rendering state in any way or want to throw geometry primitives at OpenGL override this method.
Reimplemented from SoVRMLVertexShape.
| SoSFBool SoVRMLIndexedFaceSet::ccw |
Specifies if vertex ordering is counterclockwise. Default value is TRUE.
| SoSFBool SoVRMLIndexedFaceSet::convex |
Specifies if all polygons are convex. Default value is TRUE.
| SoSFFloat SoVRMLIndexedFaceSet::creaseAngle |
Specifies the crease angle for the generated normals. Default value is 0.0.
| SoSFBool SoVRMLIndexedFaceSet::solid |
Can be used to enable backface culling. Default value is TRUE.
