The SoShape class is the superclass for geometry shapes. More...

#include <Inventor/nodes/SoShape.h>

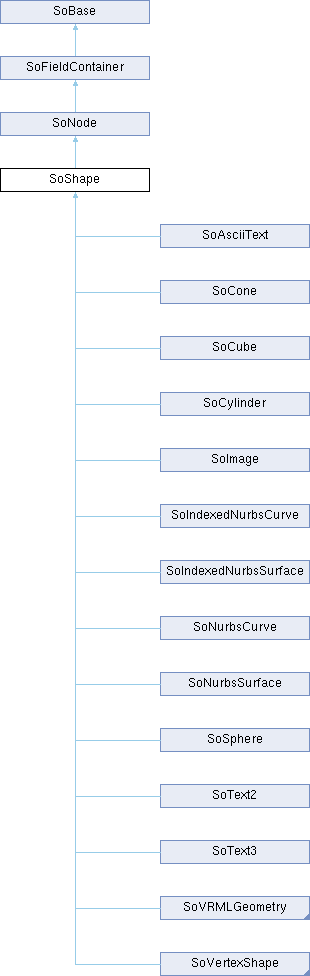

Inheritance diagram for SoShape:

Public Types
enum	TriangleShape { TRIANGLE_STRIP , TRIANGLE_FAN , TRIANGLES , POLYGON , QUADS , QUAD_STRIP , POINTS , LINES , LINE_STRIP }

Public Types inherited from SoNode
enum	NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }

Public Member Functions
virtual SbBool	affectsState (void) const

virtual void	callback (SoCallbackAction *action)

virtual void	computeBBox (SoAction *action, SbBox3f &box, SbVec3f &center)=0

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

const SoBoundingBoxCache *	getBoundingBoxCache (void) const

virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual SoType	getTypeId (void) const

virtual void	GLRender (SoGLRenderAction *action)

virtual void	notify (SoNotList *nl)

virtual void	rayPick (SoRayPickAction *action)

Public Member Functions inherited from SoNode
virtual SoNode *	addToCopyDict (void) const

virtual void	audioRender (SoAudioRenderAction *action)

virtual SoNode *	copy (SbBool copyconnections=FALSE) const

virtual void	copyContents (const SoFieldContainer *from, SbBool copyconnections)

virtual SoFieldContainer *	copyThroughConnection (void) const

virtual void	doAction (SoAction *action)

virtual SoChildList *	getChildren (void) const

virtual void	getMatrix (SoGetMatrixAction *action)

SbUniqueId	getNodeId (void) const

NodeType	getNodeType (void) const

virtual void	GLRenderBelowPath (SoGLRenderAction *action)

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	grabEventsCleanup (void)

virtual void	grabEventsSetup (void)

virtual void	handleEvent (SoHandleEventAction *action)

SbBool	isOverride (void) const

virtual void	pick (SoPickAction *action)

virtual void	search (SoSearchAction *action)

void	setNodeType (const NodeType type)

void	setOverride (const SbBool state)

virtual void	startNotify (void)

virtual void	write (SoWriteAction *action)

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoFieldContainer
virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)

static float	getDecimatedComplexity (SoState *state, float complexity)

static void	getScreenSize (SoState *const state, const SbBox3f &boundingbox, SbVec2s &rectsize)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction action, SoNode node)

static void	callbackS (SoAction action, SoNode node)

static int	getActionMethodIndex (const SoType type)

static void	getBoundingBoxS (SoAction action, SoNode node)

static SoNode *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoNodeList &l)

static SoType	getClassTypeId (void)

static uint32_t	getCompatibilityTypes (const SoType &nodetype)

static void	getMatrixS (SoAction action, SoNode node)

static SbUniqueId	getNextNodeId (void)

static void	getPrimitiveCountS (SoAction action, SoNode node)

static void	GLRenderS (SoAction action, SoNode node)

static void	handleEventS (SoAction action, SoNode node)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

static void	pickS (SoAction action, SoNode node)

static void	rayPickS (SoAction action, SoNode node)

static void	searchS (SoAction action, SoNode node)

static void	writeS (SoAction action, SoNode node)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Protected Member Functions
	SoShape (void)

virtual	~SoShape ()

void	beginShape (SoAction const action, const TriangleShape shapetype, SoDetail const detail=NULL)

void	beginSolidShape (SoGLRenderAction *action)

void	computeObjectSpaceRay (SoRayPickAction *const action)

void	computeObjectSpaceRay (SoRayPickAction *const action, const SbMatrix &matrix)

virtual SoDetail *	createLineSegmentDetail (SoRayPickAction action, const SoPrimitiveVertex v1, const SoPrimitiveVertex v2, SoPickedPoint pp)

virtual SoDetail *	createPointDetail (SoRayPickAction action, const SoPrimitiveVertex v, SoPickedPoint *pp)

virtual SoDetail *	createTriangleDetail (SoRayPickAction action, const SoPrimitiveVertex v1, const SoPrimitiveVertex v2, const SoPrimitiveVertex v3, SoPickedPoint *pp)

void	endShape (void)

void	endSolidShape (SoGLRenderAction *action)

void	finishVertexArray (SoGLRenderAction *action, const SbBool vbo, const SbBool normpervertex, const SbBool texpervertex, const SbBool colorpervertex)

virtual void	generatePrimitives (SoAction *action)=0

void	generateVertex (SoPrimitiveVertex const pv, const SbVec3f &point, const SbBool useTexFunc, const SoMultiTextureCoordinateElement const tce, const float s, const float t, const float r, const SbVec3f &normal)

void	generateVertex (SoPrimitiveVertex const pv, const SbVec3f &point, const SbBool useTexFunc, const SoMultiTextureCoordinateElement const tce, const float s, const float t, const SbVec3f &normal)

float	getComplexityValue (SoAction *action)

virtual const SoFieldData *	getFieldData (void) const

void	GLRenderBoundingBox (SoGLRenderAction *action)

void	invokeLineSegmentCallbacks (SoAction const action, const SoPrimitiveVertex const v1, const SoPrimitiveVertex *const v2)

void	invokePointCallbacks (SoAction const action, const SoPrimitiveVertex const v)

void	invokeTriangleCallbacks (SoAction const action, const SoPrimitiveVertex const v1, const SoPrimitiveVertex const v2, const SoPrimitiveVertex const v3)

void	shapeVertex (const SoPrimitiveVertex *const v)

virtual SbBool	shouldGLRender (SoGLRenderAction *action)

SbBool	shouldPrimitiveCount (SoGetPrimitiveCountAction *action)

SbBool	shouldRayPick (SoRayPickAction *const action)

SbBool	startVertexArray (SoGLRenderAction action, const SoCoordinateElement coords, const SbVec3f *pervertexnormals, const SbBool texpervertex, const SbBool colorpervertex)

Protected Member Functions inherited from SoNode
	SoNode (void)

virtual	~SoNode ()

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual SoNotRec	createNotRec (void)

virtual void	destroy (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)

static int	getNextActionMethodIndex (void)

static void	incNextActionMethodIndex (void)

static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void	setNextActionMethodIndex (int index)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Additional Inherited Members
Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Protected Attributes inherited from SoNode
SbUniqueId	uniqueId

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0

static SbUniqueId	nextUniqueId = 1

Detailed Description

The SoShape class is the superclass for geometry shapes.

The node types which have actual geometry to render inherit this class. For convenience, the SoShape class contains various common code used by the subclasses.

Member Enumeration Documentation

◆ TriangleShape

enum SoShape::TriangleShape

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Constructor & Destructor Documentation

◆ SoShape()

SoShape::SoShape ( void )

protected

Constructor.

◆ ~SoShape()

SoShape::~SoShape ( )

protectedvirtual

Destructor.

Member Function Documentation

◆ affectsState()

SbBool SoShape::affectsState ( void ) const

virtual

Returns TRUE if the node could have any effect on the state during traversal.

If it returns FALSE, no data in the traversal state will change from the pre-traversal state to the post-traversal state. The SoSeparator node will for instance return FALSE, as it pushes and pops the state before and after traversal of its children. All SoShape nodes will also return FALSE, as just pushing out geometry data to the rendering engine won't affect the actual rendering state.

The default method returns TRUE, on a "better safe than sorry" philosophy.

Reimplemented from SoNode.

◆ beginShape()

void SoShape::beginShape	(	SoAction *const	action,
		const TriangleShape	shapetype,
		SoDetail *const	detail = NULL )

protected

This method is used to generate primitives for a shape. It's typically called from a node's generatePrimitives() method. If you have your own shape and want to write a generatePrimitives() method for that shape, it's probably a good idea to take a peek in the generatePrimitives() method for a similar shape in Coin.

generatePrimitives() can contain several beginShape()/endShape() sequences. shapeVertex() is used for each vertex between beginShape() and endShape(). For instance, to generate primitives for a triangle you'd do something like this:

SoPrimitiveVertex vertex;

this->beginShape(action, SoShape::POLYGON);
vertex.setPoint(SbVec3f(0.0f, 0.0f, 0.0f));
this->shapeVertex(&vertex);
vertex.setPoint(SbVec3f(1.0f, 0.0f, 0.0f));
this->shapeVertex(&vertex);
vertex.setPoint(SbVec3f(1.0f, 1.0f, 0.0f));
this->shapeVertex(&vertex);
this->endShape();

Note that the SoPrimitiveVertex instance can simply be placed on the stack and not allocated. SoShape will copy the needed information when you call shapeVertex().

Before calling shapeVertex(), you can set extra information for the SoPrimitiveVertex, including normal, material index, and texture coordinates.

This method is slightly different from its counterpart from the original Open Inventor library, as this method has an SoDetail as the last argument, and not an SoFaceDetail. This is because we accept more TriangleShape types, and the detail might be a SoFaceDetail or a SoLineDetail. There is no use sending in a SoPointDetail, as nothing will be done with it.

◆ beginSolidShape()

void SoShape::beginSolidShape ( SoGLRenderAction * action )

protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ callback()

void SoShape::callback ( SoCallbackAction * action )

virtual

Action method for SoCallbackAction.

Simply updates the state according to how the node behaves for the render action, so the application programmer can use the SoCallbackAction for extracting information about the scene graph.

Reimplemented from SoNode.

Reimplemented in SoVRMLVertexLine, SoVRMLVertexPoint, and SoVRMLVertexShape.

◆ computeBBox()

void SoShape::computeBBox	(	SoAction *	action,
		SbBox3f &	box,
		SbVec3f &	center )

pure virtual

Implemented by SoShape subclasses to let the SoShape superclass know the exact size and weighted center point of the shape's bounding box.

The bounding box and center point should be calculated and returned in the local coordinate system.

The method implements action behavior for shape nodes for SoGetBoundingBoxAction. It is invoked from SoShape::getBoundingBox(). (Subclasses should not override SoNode::getBoundingBox().)

The box parameter sent in is guaranteed to be an empty box, while center is undefined upon function entry.

Implemented in SoVRMLElevationGrid, SoVRMLExtrusion, SoAsciiText, SoCone, SoCube, SoCylinder, SoFaceSet, SoImage, SoIndexedNurbsCurve, SoIndexedNurbsSurface, SoIndexedShape, SoLineSet, SoNurbsCurve, SoNurbsSurface, SoPointSet, SoQuadMesh, SoSphere, SoText2, SoText3, SoTriangleStripSet, SoVRMLBox, SoVRMLCone, SoVRMLCylinder, SoVRMLIndexedLine, SoVRMLIndexedShape, SoVRMLSphere, SoVRMLText, and SoVRMLVertexPoint.

◆ computeObjectSpaceRay() [1/2]

void SoShape::computeObjectSpaceRay ( SoRayPickAction *const action )

protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ computeObjectSpaceRay() [2/2]

void SoShape::computeObjectSpaceRay	(	SoRayPickAction *const	action,
		const SbMatrix &	matrix )

protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ createLineSegmentDetail()

SoDetail * SoShape::createLineSegmentDetail	(	SoRayPickAction *	action,
		const SoPrimitiveVertex *	v1,
		const SoPrimitiveVertex *	v2,
		SoPickedPoint *	pp )

protectedvirtual

Will create line detail for a SoPickedPoint. This method will only be called internally, when generatePrimitives() is used for picking (SoShape::rayPick() is not overridden).

This method returns NULL in Open Inventor, and subclasses will need to override this method to create details for a SoPickedPoint.

This is not necessary with Coin. Of course, if you choose to override it, it will work in the same way as Open Inventor.

For this to work, you must supply a face or line detail when generating primitives. If you supply NULL for the detail argument in SoShape::beginShape(), you'll have to override this method.

Reimplemented in SoIndexedNurbsCurve, and SoNurbsCurve.

◆ createPointDetail()

SoDetail * SoShape::createPointDetail	(	SoRayPickAction *	action,
		const SoPrimitiveVertex *	v,
		SoPickedPoint *	pp )

protectedvirtual

Will create point detail for a SoPickedPoint. This method will only be called internally, when generatePrimitives() is used for picking (SoShape::rayPick() is not overridden).

This method returns NULL in Open Inventor, and subclasses will need to override this method to create details for a SoPickedPoint.

This is not necessary with Coin. Of course, if you choose to override it, it will work in the same way as Open Inventor.

For this to work, you must supply a point detail in the SoPrimitiveVertex in generatePrimitives().

◆ createTriangleDetail()

SoDetail * SoShape::createTriangleDetail	(	SoRayPickAction *	action,
		const SoPrimitiveVertex *	v1,
		const SoPrimitiveVertex *	v2,
		const SoPrimitiveVertex *	v3,
		SoPickedPoint *	pp )

protectedvirtual

Will create triangle detail for a SoPickedPoint. This method will only be called internally, when generatePrimitives() is used for picking (SoShape::rayPick() is not overridden).

This method returns NULL in Open Inventor, and subclasses will need to override this method to create details for a SoPickedPoint.

This is not necessary with Coin. Of course, if you choose to override it, it will work in the same way as Open Inventor.

For this to work, you must supply a face or line detail when generating primitives. If you supply NULL for the detail argument in SoShape::beginShape(), you'll have to override this method.

Reimplemented in SoAsciiText, SoIndexedNurbsSurface, SoNurbsSurface, SoText3, and SoVRMLExtrusion.

◆ endShape()

void SoShape::endShape ( void )

protected

This method is used while generating primitives for a shape. See beginShape() for more details.

See also: beginShape(), shapeVertex()

◆ endSolidShape()

void SoShape::endSolidShape ( SoGLRenderAction * action )

protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ finishVertexArray()

void SoShape::finishVertexArray	(	SoGLRenderAction *	action,
		const SbBool	vbo,
		const SbBool	normpervertex,
		const SbBool	texpervertex,
		const SbBool	colorpervertex )

protected

Should be called after rendering with vertex arrays. This method will disable arrays and VBOs enabled in the startVertexArray() function.

See also: startVertexArray()

Since: Coin 3.0

◆ generatePrimitives()

void SoShape::generatePrimitives ( SoAction * action )

protectedpure virtual

The method implements action behavior for shape nodes for SoCallbackAction. It is invoked from SoShape::callback(). (Subclasses should not override SoNode::callback().)

The subclass implementations uses the convenience methods SoShape::beginShape(), SoShape::shapeVertex(), and SoShape::endShape(), with SoDetail instances, to pass the primitives making up the shape back to the caller.

Implemented in SoAsciiText, SoText3, SoCone, SoCube, SoCylinder, SoFaceSet, SoImage, SoIndexedFaceSet, SoIndexedNurbsCurve, SoIndexedNurbsSurface, SoIndexedPointSet, SoIndexedTriangleStripSet, SoLineSet, SoNurbsCurve, SoNurbsSurface, SoPointSet, SoQuadMesh, SoSphere, SoText2, SoTriangleStripSet, SoVRMLBox, SoVRMLCone, SoVRMLCylinder, SoVRMLElevationGrid, SoVRMLExtrusion, SoVRMLIndexedFaceSet, SoVRMLIndexedLineSet, SoVRMLPointSet, SoVRMLSphere, and SoVRMLText.

◆ generateVertex() [1/2]

void SoShape::generateVertex	(	SoPrimitiveVertex *const	pv,
		const SbVec3f &	point,
		const SbBool	usetexfunc,
		const SoMultiTextureCoordinateElement *const	tce,
		const float	s,
		const float	t,
		const float	r,
		const SbVec3f &	normal )

protected

Convenience function which sets up an SoPrimitiveVertex, and sends it using the SoShape::shapeVertex() function. 3D version.

This function is an extension for Coin, and it is not available in the original SGI Open Inventor v2.1 API.

Since: Coin 2.0

◆ generateVertex() [2/2]

void SoShape::generateVertex	(	SoPrimitiveVertex *const	pv,
		const SbVec3f &	point,
		const SbBool	usetexfunc,
		const SoMultiTextureCoordinateElement *const	tce,
		const float	s,
		const float	t,
		const SbVec3f &	normal )

protected

Convenience function which sets up an SoPrimitiveVertex, and sends it using the SoShape::shapeVertex() function. 2D version

◆ getBoundingBox()

void SoShape::getBoundingBox ( SoGetBoundingBoxAction * action )

virtual

Action method for the SoGetBoundingBoxAction.

Calculates bounding box and center coordinates for node and modifies the values of the action to encompass the bounding box for this node and to shift the center point for the scene more towards the one for this node.

Nodes influencing how geometry nodes calculate their bounding box also override this method to change the relevant state variables.

Reimplemented from SoNode.

Reimplemented in SoIndexedLineSet, SoIndexedNurbsCurve, SoIndexedPointSet, SoLineSet, SoNurbsCurve, SoPointSet, SoVRMLIndexedLineSet, SoVRMLPointSet, SoVRMLVertexLine, SoVRMLVertexPoint, and SoVRMLVertexShape.

◆ getBoundingBoxCache()

const SoBoundingBoxCache * SoShape::getBoundingBoxCache ( void ) const

Return the bounding box cache for this shape. It might return NULL if no bounding box cache has been created. If not NULL, the caller must check if the cache is valid before using it. This can be done using SoCache::isValid().

This function is an extension for Coin, and it is not available in the original SGI Open Inventor v2.1 API.

Since: Coin 2.0

◆ getClassTypeId()

SoType SoShape::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

◆ getComplexityValue()

float SoShape::getComplexityValue ( SoAction * action )

protected

Returns the complexity value to be used by subclasses. Considers complexity type. For OBJECT_SPACE complexity this will be a number between 0 and 1. For SCREEN_SPACE complexity it is a number from 0 and up.

◆ getDecimatedComplexity()

float SoShape::getDecimatedComplexity	(	SoState *	state,
		float	complexity )

static

Not implemented in Coin. Should probably have been private in TGS Inventor API.

◆ getFieldData()

const SoFieldData * SoShape::getFieldData ( void ) const

protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoFieldContainer.

Reimplemented in SoAsciiText, SoCone, SoCube, SoCylinder, SoFaceSet, SoImage, SoIndexedFaceSet, SoIndexedLineSet, SoIndexedMarkerSet, SoIndexedNurbsCurve, SoIndexedNurbsSurface, SoIndexedPointSet, SoIndexedShape, SoIndexedTriangleStripSet, SoLineSet, SoMarkerSet, SoNonIndexedShape, SoNurbsCurve, SoNurbsSurface, SoPointSet, SoQuadMesh, SoSphere, SoText2, SoText3, SoTriangleStripSet, SoVertexShape, SoVRMLBox, SoVRMLCone, SoVRMLCylinder, SoVRMLElevationGrid, SoVRMLExtrusion, SoVRMLGeometry, SoVRMLIndexedFaceSet, SoVRMLIndexedLine, SoVRMLIndexedLineSet, SoVRMLIndexedShape, SoVRMLPointSet, SoVRMLSphere, SoVRMLText, SoVRMLVertexLine, SoVRMLVertexPoint, and SoVRMLVertexShape.

◆ getFieldDataPtr()

const SoFieldData ** SoShape::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getPrimitiveCount()

void SoShape::getPrimitiveCount ( SoGetPrimitiveCountAction * action )

virtual

Action method for the SoGetPrimitiveCountAction.

Calculates the number of triangle, line segment and point primitives for the node and adds these to the counters of the action.

Nodes influencing how geometry nodes calculate their primitive count also override this method to change the relevant state variables.

Reimplemented from SoNode.

Reimplemented in SoAsciiText, SoCone, SoCube, SoCylinder, SoFaceSet, SoImage, SoIndexedFaceSet, SoIndexedLineSet, SoIndexedNurbsCurve, SoIndexedNurbsSurface, SoIndexedPointSet, SoIndexedTriangleStripSet, SoLineSet, SoMarkerSet, SoNurbsCurve, SoNurbsSurface, SoPointSet, SoQuadMesh, SoSphere, SoText2, SoText3, SoTriangleStripSet, SoVRMLBox, SoVRMLCone, SoVRMLCylinder, SoVRMLElevationGrid, SoVRMLExtrusion, SoVRMLIndexedFaceSet, SoVRMLIndexedLineSet, SoVRMLSphere, SoVRMLText, and SoVRMLVertexPoint.

◆ getScreenSize()

void SoShape::getScreenSize	(	SoState *const	state,
		const SbBox3f &	boundingbox,
		SbVec2s &	rectsize )

static

A convenience function that returns the size of a boundingbox projected onto the screen. Useful for SCREEN_SPACE complexity geometry.

◆ getTypeId()

SoType SoShape::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Implements SoBase.

Reimplemented in SoAsciiText, SoCone, SoCube, SoCylinder, SoFaceSet, SoImage, SoIndexedFaceSet, SoIndexedLineSet, SoIndexedMarkerSet, SoIndexedNurbsCurve, SoIndexedNurbsSurface, SoIndexedPointSet, SoIndexedShape, SoIndexedTriangleStripSet, SoLineSet, SoMarkerSet, SoNonIndexedShape, SoNurbsCurve, SoNurbsSurface, SoPointSet, SoQuadMesh, SoSphere, SoText2, SoText3, SoTriangleStripSet, SoVertexShape, SoVRMLBox, SoVRMLCone, SoVRMLCylinder, SoVRMLElevationGrid, SoVRMLExtrusion, SoVRMLGeometry, SoVRMLIndexedFaceSet, SoVRMLIndexedLine, SoVRMLIndexedLineSet, SoVRMLIndexedShape, SoVRMLPointSet, SoVRMLSphere, SoVRMLText, SoVRMLVertexLine, SoVRMLVertexPoint, and SoVRMLVertexShape.

◆ GLRender()

void SoShape::GLRender ( SoGLRenderAction * action )

virtual

Action method for the SoGLRenderAction.

This is called during rendering traversals. Nodes influencing the rendering state in any way or want to throw geometry primitives at OpenGL override this method.

Reimplemented from SoNode.

Reimplemented in SoAsciiText, SoCone, SoCube, SoCylinder, SoFaceSet, SoImage, SoIndexedFaceSet, SoIndexedLineSet, SoIndexedMarkerSet, SoIndexedNurbsCurve, SoIndexedNurbsSurface, SoIndexedPointSet, SoIndexedTriangleStripSet, SoLineSet, SoMarkerSet, SoNurbsCurve, SoNurbsSurface, SoPointSet, SoQuadMesh, SoSphere, SoText2, SoText3, SoTriangleStripSet, SoVRMLBox, SoVRMLCone, SoVRMLCylinder, SoVRMLElevationGrid, SoVRMLExtrusion, SoVRMLIndexedFaceSet, SoVRMLIndexedLineSet, SoVRMLPointSet, SoVRMLSphere, SoVRMLText, SoVRMLVertexLine, SoVRMLVertexPoint, and SoVRMLVertexShape.

◆ GLRenderBoundingBox()

void SoShape::GLRenderBoundingBox ( SoGLRenderAction * action )

protected

Render a bounding box.

◆ invokeLineSegmentCallbacks()

void SoShape::invokeLineSegmentCallbacks	(	SoAction *const	action,
		const SoPrimitiveVertex *const	v1,
		const SoPrimitiveVertex *const	v2 )

protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ invokePointCallbacks()

void SoShape::invokePointCallbacks	(	SoAction *const	action,
		const SoPrimitiveVertex *const	v )

protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ invokeTriangleCallbacks()

void SoShape::invokeTriangleCallbacks	(	SoAction *const	action,
		const SoPrimitiveVertex *const	v1,
		const SoPrimitiveVertex *const	v2,
		const SoPrimitiveVertex *const	v3 )

protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ notify()

void SoShape::notify ( SoNotList * l )

virtual

Notifies all auditors for this instance when changes are made.

Reimplemented from SoNode.

Reimplemented in SoAsciiText, SoImage, SoIndexedLineSet, SoIndexedPointSet, SoText3, SoVRMLElevationGrid, SoVRMLExtrusion, SoVRMLGeometry, SoVRMLIndexedLine, SoVRMLIndexedLineSet, SoVRMLIndexedShape, SoVRMLText, SoVRMLVertexLine, SoVRMLVertexPoint, SoVRMLVertexShape, and SoVertexShape.

◆ rayPick()

void SoShape::rayPick ( SoRayPickAction * action )

virtual

Calculates picked point based on primitives generated by subclasses.

Reimplemented from SoNode.

Reimplemented in SoCone, SoCube, SoCylinder, SoImage, SoIndexedNurbsCurve, SoIndexedNurbsSurface, SoNurbsCurve, SoNurbsSurface, SoSphere, SoText2, SoVRMLBox, SoVRMLCone, SoVRMLCylinder, SoVRMLElevationGrid, and SoVRMLSphere.

◆ shapeVertex()

void SoShape::shapeVertex ( const SoPrimitiveVertex *const v )

protected

This method is used while generating primitives for a shape. See beginShape() for more details.

See also: beginShape(), endShape()

◆ shouldGLRender()

SbBool SoShape::shouldGLRender ( SoGLRenderAction * action )

protectedvirtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Reimplemented in SoVertexShape, SoVRMLGeometry, SoVRMLVertexLine, SoVRMLVertexPoint, and SoVRMLVertexShape.

◆ shouldPrimitiveCount()

SbBool SoShape::shouldPrimitiveCount ( SoGetPrimitiveCountAction * action )

protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ shouldRayPick()

SbBool SoShape::shouldRayPick ( SoRayPickAction *const action )

protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ startVertexArray()

SbBool SoShape::startVertexArray	(	SoGLRenderAction *	action,
		const SoCoordinateElement *	coords,
		const SbVec3f *	pervertexnormals,
		const SbBool	texpervertex,
		const SbBool	colorpervertex )

protected

Convenience method that enables vertex arrays and/or VBOs Returns TRUE if VBO is used.

See also: finishVertexArray()

Since: Coin 3.0

The documentation for this class was generated from the following files:

SoShape.h
SoShape.cpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ TriangleShape

Constructor & Destructor Documentation

◆ SoShape()

◆ ~SoShape()

Member Function Documentation

◆ affectsState()

◆ beginShape()

◆ beginSolidShape()

◆ callback()

◆ computeBBox()

◆ computeObjectSpaceRay() [1/2]

◆ computeObjectSpaceRay() [2/2]

◆ createLineSegmentDetail()

◆ createPointDetail()

◆ createTriangleDetail()

◆ endShape()

◆ endSolidShape()

◆ finishVertexArray()

◆ generatePrimitives()

◆ generateVertex() [1/2]

◆ generateVertex() [2/2]

◆ getBoundingBox()

◆ getBoundingBoxCache()

◆ getClassTypeId()

◆ getComplexityValue()

◆ getDecimatedComplexity()

◆ getFieldData()

◆ getFieldDataPtr()

◆ getPrimitiveCount()

◆ getScreenSize()

◆ getTypeId()

◆ GLRender()

◆ GLRenderBoundingBox()

◆ invokeLineSegmentCallbacks()

◆ invokePointCallbacks()

◆ invokeTriangleCallbacks()

◆ notify()

◆ rayPick()

◆ shapeVertex()

◆ shouldGLRender()

◆ shouldPrimitiveCount()

◆ shouldRayPick()

◆ startVertexArray()
