The SoVRMLVertexShape class is a superclass for vertex based shapes. More...

#include <Inventor/VRMLnodes/SoVRMLVertexShape.h>

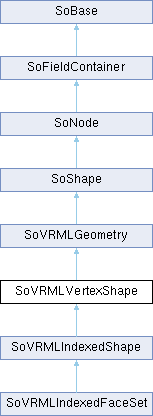

Inheritance diagram for SoVRMLVertexShape:

Public Types
enum	Binding { OVERALL = SoMaterialBindingElement::OVERALL , PER_PART = SoMaterialBindingElement::PER_PART , PER_PART_INDEXED = SoMaterialBindingElement::PER_PART_INDEXED , PER_FACE = SoMaterialBindingElement::PER_FACE , PER_FACE_INDEXED = SoMaterialBindingElement::PER_FACE_INDEXED , PER_VERTEX = SoMaterialBindingElement::PER_VERTEX , PER_VERTEX_INDEXED = SoMaterialBindingElement::PER_VERTEX_INDEXED }

Public Types inherited from SoShape
enum	TriangleShape { TRIANGLE_STRIP , TRIANGLE_FAN , TRIANGLES , POLYGON , QUADS , QUAD_STRIP , POINTS , LINES , LINE_STRIP }

Public Types inherited from SoNode
enum	NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }

Public Member Functions
virtual void	callback (SoCallbackAction *action)

virtual void	doAction (SoAction *action)

virtual SbBool	generateDefaultNormals (SoState s, SoNormalBundle nb)

virtual SbBool	generateDefaultNormals (SoState s, SoNormalCache nc)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual SoType	getTypeId (void) const

virtual void	GLRender (SoGLRenderAction *action)

virtual void	notify (SoNotList *list)

virtual void	pick (SoPickAction *action)

Public Member Functions inherited from SoVRMLGeometry
virtual void	copyContents (const SoFieldContainer *from, SbBool copyConn)

virtual void	search (SoSearchAction *action)

Public Member Functions inherited from SoShape
virtual SbBool	affectsState (void) const

virtual void	computeBBox (SoAction *action, SbBox3f &box, SbVec3f &center)=0

const SoBoundingBoxCache *	getBoundingBoxCache (void) const

virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual void	rayPick (SoRayPickAction *action)

Public Member Functions inherited from SoNode
virtual SoNode *	addToCopyDict (void) const

virtual void	audioRender (SoAudioRenderAction *action)

virtual SoNode *	copy (SbBool copyconnections=FALSE) const

virtual SoFieldContainer *	copyThroughConnection (void) const

virtual void	getMatrix (SoGetMatrixAction *action)

SbUniqueId	getNodeId (void) const

NodeType	getNodeType (void) const

virtual void	GLRenderBelowPath (SoGLRenderAction *action)

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	grabEventsCleanup (void)

virtual void	grabEventsSetup (void)

virtual void	handleEvent (SoHandleEventAction *action)

SbBool	isOverride (void) const

void	setNodeType (const NodeType type)

void	setOverride (const SbBool state)

virtual void	startNotify (void)

virtual void	write (SoWriteAction *action)

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoFieldContainer
virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)

static void	initClass (void)

Static Public Member Functions inherited from SoVRMLGeometry
static SoType	getClassTypeId (void)

static void	initClass (void)

Static Public Member Functions inherited from SoShape
static SoType	getClassTypeId (void)

static float	getDecimatedComplexity (SoState *state, float complexity)

static void	getScreenSize (SoState *const state, const SbBox3f &boundingbox, SbVec2s &rectsize)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction action, SoNode node)

static void	callbackS (SoAction action, SoNode node)

static int	getActionMethodIndex (const SoType type)

static void	getBoundingBoxS (SoAction action, SoNode node)

static SoNode *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoNodeList &l)

static SoType	getClassTypeId (void)

static uint32_t	getCompatibilityTypes (const SoType &nodetype)

static void	getMatrixS (SoAction action, SoNode node)

static SbUniqueId	getNextNodeId (void)

static void	getPrimitiveCountS (SoAction action, SoNode node)

static void	GLRenderS (SoAction action, SoNode node)

static void	handleEventS (SoAction action, SoNode node)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

static void	pickS (SoAction action, SoNode node)

static void	rayPickS (SoAction action, SoNode node)

static void	searchS (SoAction action, SoNode node)

static void	writeS (SoAction action, SoNode node)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Public Attributes
SoSFNode	color

SoSFBool	colorPerVertex

SoSFNode	coord

SoSFNode	normal

SoSFBool	normalPerVertex

SoSFNode	texCoord

Protected Member Functions
	SoVRMLVertexShape (void)

virtual	~SoVRMLVertexShape ()

SoNormalCache *	generateAndReadLockNormalCache (SoState *const state)

virtual const SoFieldData *	getFieldData (void) const

SoNormalCache *	getNormalCache (void) const

void	getVertexData (SoState state, const SoCoordinateElement &coords, const SbVec3f *&normals, const SbBool neednormals)

void	readLockNormalCache (void)

void	readUnlockNormalCache (void)

void	setNormalCache (SoState s, int numNormals, SbVec3f normals)

virtual SbBool	shouldGLRender (SoGLRenderAction *action)

Protected Member Functions inherited from SoVRMLGeometry
	SoVRMLGeometry (void)

virtual	~SoVRMLGeometry ()

virtual SoChildList *	getChildren (void) const

void	setupShapeHints (SoState *state, const SbBool ccw, const SbBool solid)

Protected Member Functions inherited from SoShape
	SoShape (void)

virtual	~SoShape ()

void	beginShape (SoAction const action, const TriangleShape shapetype, SoDetail const detail=NULL)

void	beginSolidShape (SoGLRenderAction *action)

void	computeObjectSpaceRay (SoRayPickAction *const action)

void	computeObjectSpaceRay (SoRayPickAction *const action, const SbMatrix &matrix)

virtual SoDetail *	createLineSegmentDetail (SoRayPickAction action, const SoPrimitiveVertex v1, const SoPrimitiveVertex v2, SoPickedPoint pp)

virtual SoDetail *	createPointDetail (SoRayPickAction action, const SoPrimitiveVertex v, SoPickedPoint *pp)

virtual SoDetail *	createTriangleDetail (SoRayPickAction action, const SoPrimitiveVertex v1, const SoPrimitiveVertex v2, const SoPrimitiveVertex v3, SoPickedPoint *pp)

void	endShape (void)

void	endSolidShape (SoGLRenderAction *action)

void	finishVertexArray (SoGLRenderAction *action, const SbBool vbo, const SbBool normpervertex, const SbBool texpervertex, const SbBool colorpervertex)

virtual void	generatePrimitives (SoAction *action)=0

void	generateVertex (SoPrimitiveVertex const pv, const SbVec3f &point, const SbBool useTexFunc, const SoMultiTextureCoordinateElement const tce, const float s, const float t, const float r, const SbVec3f &normal)

void	generateVertex (SoPrimitiveVertex const pv, const SbVec3f &point, const SbBool useTexFunc, const SoMultiTextureCoordinateElement const tce, const float s, const float t, const SbVec3f &normal)

float	getComplexityValue (SoAction *action)

void	GLRenderBoundingBox (SoGLRenderAction *action)

void	invokeLineSegmentCallbacks (SoAction const action, const SoPrimitiveVertex const v1, const SoPrimitiveVertex *const v2)

void	invokePointCallbacks (SoAction const action, const SoPrimitiveVertex const v)

void	invokeTriangleCallbacks (SoAction const action, const SoPrimitiveVertex const v1, const SoPrimitiveVertex const v2, const SoPrimitiveVertex const v3)

void	shapeVertex (const SoPrimitiveVertex *const v)

SbBool	shouldPrimitiveCount (SoGetPrimitiveCountAction *action)

SbBool	shouldRayPick (SoRayPickAction *const action)

SbBool	startVertexArray (SoGLRenderAction action, const SoCoordinateElement coords, const SbVec3f *pervertexnormals, const SbBool texpervertex, const SbBool colorpervertex)

Protected Member Functions inherited from SoNode
	SoNode (void)

virtual	~SoNode ()

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual SoNotRec	createNotRec (void)

virtual void	destroy (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoVRMLGeometry
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoShape
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)

static int	getNextActionMethodIndex (void)

static void	incNextActionMethodIndex (void)

static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void	setNextActionMethodIndex (int index)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Additional Inherited Members
Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Protected Attributes inherited from SoNode
SbUniqueId	uniqueId

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0

static SbUniqueId	nextUniqueId = 1

Detailed Description

The SoVRMLVertexShape class is a superclass for vertex based shapes.

Constructor & Destructor Documentation

◆ SoVRMLVertexShape()

SoVRMLVertexShape::SoVRMLVertexShape ( void )

protected

Constructor.

◆ ~SoVRMLVertexShape()

SoVRMLVertexShape::~SoVRMLVertexShape ( )

protectedvirtual

Destructor.

Member Function Documentation

◆ callback()

void SoVRMLVertexShape::callback ( SoCallbackAction * action )

virtual

Action method for SoCallbackAction.

Simply updates the state according to how the node behaves for the render action, so the application programmer can use the SoCallbackAction for extracting information about the scene graph.

Reimplemented from SoShape.

◆ doAction()

void SoVRMLVertexShape::doAction ( SoAction * action )

virtual

This function performs the typical operation of a node for any action.

Reimplemented from SoNode.

◆ generateAndReadLockNormalCache()

SoNormalCache * SoVRMLVertexShape::generateAndReadLockNormalCache ( SoState *const state )

protected

Convenience method that can be used by subclasses to return or create a normal cache. If the current cache is not valid, it takes care of unrefing the old cache and pushing and popping the state to create element dependencies when creating the new cache.

When returning from this method, the normal cache will be read locked, and the caller should call readUnlockNormalCache() when the normals in the cache is no longer needed.

This function is an extension for Coin, and it is not available in the original SGI Open Inventor v2.1 API.

Since: Coin 2.0

◆ generateDefaultNormals() [1/2]

SbBool SoVRMLVertexShape::generateDefaultNormals	(	SoState *	s,
		SoNormalBundle *	nb )

virtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Subclasses should override this method to generate default normals using the SoNormalBundle class. TRUE should be returned if normals were generated, FALSE otherwise.

Default method returns FALSE.

This function is an extension for Coin, and it is not available in the original SGI Open Inventor v2.1 API.

Reimplemented in SoVRMLIndexedFaceSet.

◆ generateDefaultNormals() [2/2]

SbBool SoVRMLVertexShape::generateDefaultNormals	(	SoState *	s,
		SoNormalCache *	nc )

virtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Subclasses should override this method to generate default normals using the SoNormalCache class. This is more effective than using SoNormalGenerator. Return TRUE if normals were generated, FALSE otherwise.

Default method just returns FALSE.

This function is an extension for Coin, and it is not available in the original SGI Open Inventor v2.1 API.

Reimplemented in SoVRMLIndexedFaceSet.

◆ getBoundingBox()

void SoVRMLVertexShape::getBoundingBox ( SoGetBoundingBoxAction * action )

virtual

Action method for the SoGetBoundingBoxAction.

Calculates bounding box and center coordinates for node and modifies the values of the action to encompass the bounding box for this node and to shift the center point for the scene more towards the one for this node.

Nodes influencing how geometry nodes calculate their bounding box also override this method to change the relevant state variables.

Reimplemented from SoShape.

◆ getClassTypeId()

SoType SoVRMLVertexShape::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoVRMLVertexShape::getFieldData ( void ) const

protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoVRMLGeometry.

Reimplemented in SoVRMLIndexedFaceSet, and SoVRMLIndexedShape.

◆ getFieldDataPtr()

const SoFieldData ** SoVRMLVertexShape::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getTypeId()

SoType SoVRMLVertexShape::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoVRMLGeometry.

Reimplemented in SoVRMLIndexedFaceSet, and SoVRMLIndexedShape.

◆ getVertexData()

void SoVRMLVertexShape::getVertexData	(	SoState *	state,
		const SoCoordinateElement *&	coords,
		const SbVec3f *&	normals,
		const SbBool	neednormals )

protected

Convenience method that returns the current coordinate and normal element. This method is not part of the OIV API.

◆ GLRender()

void SoVRMLVertexShape::GLRender ( SoGLRenderAction * action )

virtual

Action method for the SoGLRenderAction.

This is called during rendering traversals. Nodes influencing the rendering state in any way or want to throw geometry primitives at OpenGL override this method.

Reimplemented from SoShape.

Reimplemented in SoVRMLIndexedFaceSet.

◆ initClass()

void SoVRMLVertexShape::initClass ( void )

static

◆ notify()

void SoVRMLVertexShape::notify ( SoNotList * l )

virtual

Notifies all auditors for this instance when changes are made.

Reimplemented from SoVRMLGeometry.

Reimplemented in SoVRMLIndexedShape.

◆ pick()

void SoVRMLVertexShape::pick ( SoPickAction * action )

virtual

Action method for SoPickAction.

Does common processing for SoPickAction action instances.

Reimplemented from SoNode.

◆ readLockNormalCache()

void SoVRMLVertexShape::readLockNormalCache ( void )

protected

Read lock the normal cache. This method should be called before fetching the normal cache (using getNormalCache()). When the cached normals are no longer needed, readUnlockNormalCache() must be called.

It is also possible to use generateAndReadLockNormalCache().

This function is an extension for Coin, and it is not available in the original SGI Open Inventor v2.1 API.

See also: readUnlockNormalCache()

Since: Coin 2.0

◆ readUnlockNormalCache()

void SoVRMLVertexShape::readUnlockNormalCache ( void )

protected

Read unlock the normal cache. Should be called when the read-locked cached normals are no longer needed.

This function is an extension for Coin, and it is not available in the original SGI Open Inventor v2.1 API.

See also: readLockNormalCache()

Since: Coin 2.0

◆ shouldGLRender()

SbBool SoVRMLVertexShape::shouldGLRender ( SoGLRenderAction * action )

protectedvirtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Reimplemented from SoVRMLGeometry.

Member Data Documentation

◆ color

SoSFNode SoVRMLVertexShape::color

Can contain an SoVRMLColor node.

◆ colorPerVertex

SoSFBool SoVRMLVertexShape::colorPerVertex

When TRUE, colors are applied per vertex. Default value is TRUE.

◆ coord

SoSFNode SoVRMLVertexShape::coord

Should contain an SoVRMLCoordinate node.

◆ normal

SoSFNode SoVRMLVertexShape::normal

Can contain an SoVRMLNormal node.

◆ normalPerVertex

SoSFBool SoVRMLVertexShape::normalPerVertex

When TRUE, normals are applied per vertex. Default value is TRUE.

◆ texCoord

SoSFNode SoVRMLVertexShape::texCoord

Can contain an SoVRMLTextureCoordinate node.

The documentation for this class was generated from the following files:

SoVRMLVertexShape.h
VertexShape.cpp

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SoVRMLVertexShape()

◆ ~SoVRMLVertexShape()

Member Function Documentation

◆ callback()

◆ doAction()

◆ generateAndReadLockNormalCache()

◆ generateDefaultNormals() [1/2]

◆ generateDefaultNormals() [2/2]

◆ getBoundingBox()

◆ getClassTypeId()

◆ getFieldData()

◆ getFieldDataPtr()

◆ getTypeId()

◆ getVertexData()

◆ GLRender()

◆ initClass()

◆ notify()

◆ pick()

◆ readLockNormalCache()

◆ readUnlockNormalCache()

◆ shouldGLRender()

Member Data Documentation

◆ color

◆ colorPerVertex

◆ coord

◆ normal

◆ normalPerVertex

◆ texCoord
