SoIndexedLineSet Class Reference

The SoIndexedLineSet class is used to render and otherwise represent indexed lines. More...

#include <Inventor/nodes/SoIndexedLineSet.h>

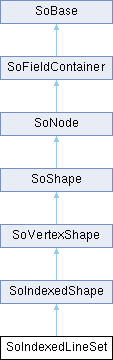

Inheritance diagram for SoIndexedLineSet:

Public Member Functions
	SoIndexedLineSet (void)
virtual void	getBoundingBox (SoGetBoundingBoxAction *action)
virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)
virtual SoType	getTypeId (void) const
virtual void	GLRender (SoGLRenderAction *action)
Public Member Functions inherited from SoVertexShape
virtual void	write (SoWriteAction *action)
Public Member Functions inherited from SoShape
virtual SbBool	affectsState (void) const
virtual void	callback (SoCallbackAction *action)
const SoBoundingBoxCache *	getBoundingBoxCache (void) const
virtual void	rayPick (SoRayPickAction *action)
Public Member Functions inherited from SoNode
virtual SoNode *	addToCopyDict (void) const
virtual void	audioRender (SoAudioRenderAction *action)
virtual SoNode *	copy (SbBool copyconnections=FALSE) const
virtual void	copyContents (const SoFieldContainer *from, SbBool copyconnections)
virtual SoFieldContainer *	copyThroughConnection (void) const
virtual void	doAction (SoAction *action)
virtual SoChildList *	getChildren (void) const
virtual void	getMatrix (SoGetMatrixAction *action)
SbUniqueId	getNodeId (void) const
NodeType	getNodeType (void) const
virtual void	GLRenderBelowPath (SoGLRenderAction *action)
virtual void	GLRenderInPath (SoGLRenderAction *action)
virtual void	GLRenderOffPath (SoGLRenderAction *action)
virtual void	grabEventsCleanup (void)
virtual void	grabEventsSetup (void)
virtual void	handleEvent (SoHandleEventAction *action)
SbBool	isOverride (void) const
virtual void	pick (SoPickAction *action)
virtual void	search (SoSearchAction *action)
void	setNodeType (const NodeType type)
void	setOverride (const SbBool state)
virtual void	startNotify (void)
virtual void	writeInstance (SoOutput *out)
Public Member Functions inherited from SoFieldContainer
virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)
void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)
SbBool	enableNotify (const SbBool flag)
SbBool	fieldsAreEqual (const SoFieldContainer *container) const
void	get (SbString &fielddata)
void	get (SbString &fielddata, SoOutput *out)
virtual int	getAllFields (SoFieldList &l) const
virtual SoField *	getEventIn (const SbName &name) const
virtual SoField *	getEventOut (const SbName &name) const
virtual SoField *	getField (const SbName &name) const
SbBool	getFieldName (const SoField *const field, SbName &name) const
virtual int	getFields (SoFieldList &l) const
virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const
SbBool	getIsBuiltIn (void) const
void *	getUserData (void) const
SbBool	hasDefaultValues (void) const
SbBool	isNotifyEnabled (void) const
SbBool	set (const char *const fielddata)
SbBool	set (const char *fielddata, SoInput *input)
void	setToDefaults (void)
void	setUserData (void *userdata) const
virtual SbBool	validateNewFieldValue (SoField *field, void *newval)
Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)
void	assertAlive (void) const
const SoAuditorList &	getAuditors (void) const
virtual SbName	getName (void) const
int32_t	getRefCount (void) const
SbBool	isOfType (SoType type) const
	Returns TRUE if the type of this object is either of the same type or inherited from type.
void	ref (void) const
void	removeAuditor (void *const auditor, const SoNotRec::Type type)
virtual void	setName (const SbName &newname)
SbBool	shouldWrite (void)
void	touch (void)
void	unref (void) const
void	unrefNoDelete (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)
static void	initClass (void)
Static Public Member Functions inherited from SoIndexedShape
static SoType	getClassTypeId (void)
static void	initClass (void)
Static Public Member Functions inherited from SoVertexShape
static SoType	getClassTypeId (void)
static void	initClass (void)
Static Public Member Functions inherited from SoShape
static SoType	getClassTypeId (void)
static float	getDecimatedComplexity (SoState *state, float complexity)
static void	getScreenSize (SoState *const state, const SbBox3f &boundingbox, SbVec2s &rectsize)
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.
Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction *action, SoNode *node)
static void	callbackS (SoAction *action, SoNode *node)
static int	getActionMethodIndex (const SoType type)
static void	getBoundingBoxS (SoAction *action, SoNode *node)
static SoNode *	getByName (const SbName &name)
static int	getByName (const SbName &name, SoNodeList &l)
static SoType	getClassTypeId (void)
static uint32_t	getCompatibilityTypes (const SoType &nodetype)
static void	getMatrixS (SoAction *action, SoNode *node)
static SbUniqueId	getNextNodeId (void)
static void	getPrimitiveCountS (SoAction *action, SoNode *node)
static void	GLRenderS (SoAction *action, SoNode *node)
static void	handleEventS (SoAction *action, SoNode *node)
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.
static void	initClasses (void)
static void	pickS (SoAction *action, SoNode *node)
static void	rayPickS (SoAction *action, SoNode *node)
static void	searchS (SoAction *action, SoNode *node)
static void	writeS (SoAction *action, SoNode *node)
Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer *orig, const SoFieldContainer *copy)
static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)
static void	cleanupClass (void)
static void	copyDone (void)
static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)
static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.
static void	initCopyDict (void)
Static Public Member Functions inherited from SoBase
static void	addName (SoBase *const base, const char *const name)
static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)
static void	decrementCurrentWriteCounter (void)
static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.
static SoBase *	getNamedBase (const SbName &name, SoType type)
static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)
static SbBool	getTraceRefs (void)
static void	incrementCurrentWriteCounter (void)
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.
static SbBool	read (SoInput *input, SoBase *&base, SoType expectedtype)
static SbBool	readRoute (SoInput *input)
static void	removeName (SoBase *const base, const char *const name)
static void	setInstancePrefix (const SbString &c)
static void	setTraceRefs (SbBool trace)

Protected Member Functions
virtual	~SoIndexedLineSet ()
virtual const SoFieldData *	getFieldData (void) const
virtual void	notify (SoNotList *list)
Protected Member Functions inherited from SoIndexedShape
	SoIndexedShape (void)
virtual	~SoIndexedShape ()
virtual void	computeBBox (SoAction *action, SbBox3f &box, SbVec3f &center)
const int32_t *	getColorIndices (void)
const int32_t *	getNormalIndices (void)
int	getNumVerts (const int startCoord)
const int32_t *	getTexCoordIndices (void)
SbBool	getVertexData (SoState *state, const SoCoordinateElement *&coords, const SbVec3f *&normals, const int32_t *&cindices, const int32_t *&nindices, const int32_t *&tindices, const int32_t *&mindices, int &numcindices, const SbBool needNormals, SbBool &normalCacheUsed)
void	setupIndices (const int numParts, const int numFaces, const SbBool needNormals, const SbBool needTexCoords)
Protected Member Functions inherited from SoVertexShape
	SoVertexShape (void)
virtual	~SoVertexShape ()
SoNormalCache *	generateAndReadLockNormalCache (SoState *const state)
SoNormalCache *	getNormalCache (void) const
void	getVertexData (SoState *state, const SoCoordinateElement *&coords, const SbVec3f *&normals, const SbBool neednormals)
void	readLockNormalCache (void)
void	readUnlockNormalCache (void)
void	setNormalCache (SoState *const state, const int num, const SbVec3f *normals)
virtual SbBool	shouldGLRender (SoGLRenderAction *action)
Protected Member Functions inherited from SoShape
	SoShape (void)
virtual	~SoShape ()
void	beginShape (SoAction *const action, const TriangleShape shapetype, SoDetail *const detail=NULL)
void	beginSolidShape (SoGLRenderAction *action)
void	computeObjectSpaceRay (SoRayPickAction *const action)
void	computeObjectSpaceRay (SoRayPickAction *const action, const SbMatrix &matrix)
virtual SoDetail *	createLineSegmentDetail (SoRayPickAction *action, const SoPrimitiveVertex *v1, const SoPrimitiveVertex *v2, SoPickedPoint *pp)
virtual SoDetail *	createPointDetail (SoRayPickAction *action, const SoPrimitiveVertex *v, SoPickedPoint *pp)
virtual SoDetail *	createTriangleDetail (SoRayPickAction *action, const SoPrimitiveVertex *v1, const SoPrimitiveVertex *v2, const SoPrimitiveVertex *v3, SoPickedPoint *pp)
void	endShape (void)
void	endSolidShape (SoGLRenderAction *action)
void	finishVertexArray (SoGLRenderAction *action, const SbBool vbo, const SbBool normpervertex, const SbBool texpervertex, const SbBool colorpervertex)
void	generateVertex (SoPrimitiveVertex *const pv, const SbVec3f &point, const SbBool useTexFunc, const SoMultiTextureCoordinateElement *const tce, const float s, const float t, const float r, const SbVec3f &normal)
void	generateVertex (SoPrimitiveVertex *const pv, const SbVec3f &point, const SbBool useTexFunc, const SoMultiTextureCoordinateElement *const tce, const float s, const float t, const SbVec3f &normal)
float	getComplexityValue (SoAction *action)
void	GLRenderBoundingBox (SoGLRenderAction *action)
void	invokeLineSegmentCallbacks (SoAction *const action, const SoPrimitiveVertex *const v1, const SoPrimitiveVertex *const v2)
void	invokePointCallbacks (SoAction *const action, const SoPrimitiveVertex *const v)
void	invokeTriangleCallbacks (SoAction *const action, const SoPrimitiveVertex *const v1, const SoPrimitiveVertex *const v2, const SoPrimitiveVertex *const v3)
void	shapeVertex (const SoPrimitiveVertex *const v)
SbBool	shouldPrimitiveCount (SoGetPrimitiveCountAction *action)
SbBool	shouldRayPick (SoRayPickAction *const action)
SbBool	startVertexArray (SoGLRenderAction *action, const SoCoordinateElement *coords, const SbVec3f *pervertexnormals, const SbBool texpervertex, const SbBool colorpervertex)
Protected Member Functions inherited from SoNode
	SoNode (void)
virtual	~SoNode ()
virtual SbBool	readInstance (SoInput *in, unsigned short flags)
Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)
virtual	~SoFieldContainer ()
Protected Member Functions inherited from SoBase
	SoBase (void)
virtual	~SoBase ()
virtual SoNotRec	createNotRec (void)
virtual void	destroy (void)
virtual const char *	getFileFormatName (void) const
SbBool	hasMultipleWriteRefs (void) const
void	writeFooter (SoOutput *out) const
SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr (void)
Static Protected Member Functions inherited from SoIndexedShape
static SbBool	areTexCoordsIndexed (SoAction *action)
static const SoFieldData **	getFieldDataPtr (void)
Static Protected Member Functions inherited from SoVertexShape
static const SoFieldData **	getFieldDataPtr (void)
Static Protected Member Functions inherited from SoShape
static const SoFieldData **	getFieldDataPtr (void)
Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)
static int	getNextActionMethodIndex (void)
static void	incNextActionMethodIndex (void)
static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)
static void	setNextActionMethodIndex (int index)
Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)
static void	staticDataLock (void)
static void	staticDataUnlock (void)

Additional Inherited Members
Public Types inherited from SoShape
enum	TriangleShape {   TRIANGLE_STRIP , TRIANGLE_FAN , TRIANGLES , POLYGON ,   QUADS , QUAD_STRIP , POINTS , LINES ,   LINE_STRIP }
Public Types inherited from SoNode
enum	NodeType {   INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 ,   INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 ,   COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 ,   COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 ,   COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }
Public Attributes inherited from SoIndexedShape
SoMFInt32	coordIndex
SoMFInt32	materialIndex
SoMFInt32	normalIndex
SoMFInt32	textureCoordIndex
Public Attributes inherited from SoVertexShape
SoSFNode	vertexProperty
Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }
Protected Attributes inherited from SoNode
SbUniqueId	uniqueId
Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn
Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0
static SbUniqueId	nextUniqueId = 1

Detailed Description

The SoIndexedLineSet class is used to render and otherwise represent indexed lines.

The indexed counterpart of SoLineSet. Lines can be specified using indices for coordinates, normals, materials and texture coordinates.

If no normals are supplied on the stack (or in the vertexProperty field), the lines will be rendered with lighting disabled.

For more information about line sets, see documentation in SoLineSet. For more information about indexed shapes, see documentation in SoIndexedShape and SoIndexedFaceSet.

FILE FORMAT/DEFAULTS:

IndexedLineSet {
    vertexProperty NULL
    coordIndex 0
    materialIndex -1
    normalIndex -1
    textureCoordIndex -1
}

Constructor & Destructor Documentation

SoIndexedLineSet()

SoIndexedLineSet::SoIndexedLineSet

(

void

)

Constructor.

~SoIndexedLineSet()

SoIndexedLineSet::~SoIndexedLineSet ( )

protectedvirtual

Destructor.

Member Function Documentation

getBoundingBox()

void SoIndexedLineSet::getBoundingBox ( SoGetBoundingBoxAction * action )

virtual

Action method for the SoGetBoundingBoxAction.

Calculates bounding box and center coordinates for node and modifies the values of the action to encompass the bounding box for this node and to shift the center point for the scene more towards the one for this node.

Nodes influencing how geometry nodes calculate their bounding box also override this method to change the relevant state variables.

Reimplemented from SoShape.

getClassTypeId()

SoType SoIndexedLineSet::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

getFieldData()

const SoFieldData * SoIndexedLineSet::getFieldData ( void ) const

protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoIndexedShape.

getFieldDataPtr()

const SoFieldData ** SoIndexedLineSet::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

getPrimitiveCount()

void SoIndexedLineSet::getPrimitiveCount ( SoGetPrimitiveCountAction * action )

virtual

Action method for the SoGetPrimitiveCountAction.

Calculates the number of triangle, line segment and point primitives for the node and adds these to the counters of the action.

Nodes influencing how geometry nodes calculate their primitive count also override this method to change the relevant state variables.

Reimplemented from SoShape.

getTypeId()

SoType SoIndexedLineSet::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoIndexedShape.

GLRender()

void SoIndexedLineSet::GLRender ( SoGLRenderAction * action )

virtual

Action method for the SoGLRenderAction.

This is called during rendering traversals. Nodes influencing the rendering state in any way or want to throw geometry primitives at OpenGL override this method.

Reimplemented from SoShape.

initClass()

void SoIndexedLineSet::initClass ( void )

static

notify()

void SoIndexedLineSet::notify ( SoNotList * l )

protectedvirtual

Notifies all auditors for this instance when changes are made.

Reimplemented from SoVertexShape.

---

The documentation for this class was generated from the following files:

• SoIndexedLineSet.h
• SoIndexedLineSet.cpp
