The SoLineSet class is used to render and organize non-indexed polylines. More...

#include <Inventor/nodes/SoLineSet.h>

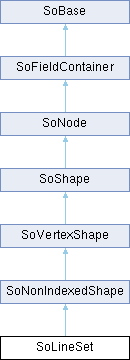

Inheritance diagram for SoLineSet:

Public Member Functions
	SoLineSet (void)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual SoType	getTypeId (void) const

virtual void	GLRender (SoGLRenderAction *action)

Public Member Functions inherited from SoVertexShape
virtual void	notify (SoNotList *nl)

virtual void	write (SoWriteAction *action)

Public Member Functions inherited from SoShape
virtual SbBool	affectsState (void) const

virtual void	callback (SoCallbackAction *action)

const SoBoundingBoxCache *	getBoundingBoxCache (void) const

virtual void	rayPick (SoRayPickAction *action)

Public Member Functions inherited from SoNode
virtual SoNode *	addToCopyDict (void) const

virtual void	audioRender (SoAudioRenderAction *action)

virtual SoNode *	copy (SbBool copyconnections=FALSE) const

virtual void	copyContents (const SoFieldContainer *from, SbBool copyconnections)

virtual SoFieldContainer *	copyThroughConnection (void) const

virtual void	doAction (SoAction *action)

virtual SoChildList *	getChildren (void) const

virtual void	getMatrix (SoGetMatrixAction *action)

SbUniqueId	getNodeId (void) const

NodeType	getNodeType (void) const

virtual void	GLRenderBelowPath (SoGLRenderAction *action)

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	grabEventsCleanup (void)

virtual void	grabEventsSetup (void)

virtual void	handleEvent (SoHandleEventAction *action)

SbBool	isOverride (void) const

virtual void	pick (SoPickAction *action)

virtual void	search (SoSearchAction *action)

void	setNodeType (const NodeType type)

void	setOverride (const SbBool state)

virtual void	startNotify (void)

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoFieldContainer
virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)

static void	initClass (void)

Static Public Member Functions inherited from SoNonIndexedShape
static SoType	getClassTypeId (void)

static void	initClass (void)

Static Public Member Functions inherited from SoVertexShape
static SoType	getClassTypeId (void)

static void	initClass (void)

Static Public Member Functions inherited from SoShape
static SoType	getClassTypeId (void)

static float	getDecimatedComplexity (SoState *state, float complexity)

static void	getScreenSize (SoState *const state, const SbBox3f &boundingbox, SbVec2s &rectsize)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction action, SoNode node)

static void	callbackS (SoAction action, SoNode node)

static int	getActionMethodIndex (const SoType type)

static void	getBoundingBoxS (SoAction action, SoNode node)

static SoNode *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoNodeList &l)

static SoType	getClassTypeId (void)

static uint32_t	getCompatibilityTypes (const SoType &nodetype)

static void	getMatrixS (SoAction action, SoNode node)

static SbUniqueId	getNextNodeId (void)

static void	getPrimitiveCountS (SoAction action, SoNode node)

static void	GLRenderS (SoAction action, SoNode node)

static void	handleEventS (SoAction action, SoNode node)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

static void	pickS (SoAction action, SoNode node)

static void	rayPickS (SoAction action, SoNode node)

static void	searchS (SoAction action, SoNode node)

static void	writeS (SoAction action, SoNode node)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Public Attributes
SoMFInt32	numVertices

Public Attributes inherited from SoNonIndexedShape
SoSFInt32	startIndex

Public Attributes inherited from SoVertexShape
SoSFNode	vertexProperty

Protected Member Functions
virtual	~SoLineSet ()

virtual void	computeBBox (SoAction *action, SbBox3f &box, SbVec3f &center)

virtual void	generatePrimitives (SoAction *action)

virtual const SoFieldData *	getFieldData (void) const

Protected Member Functions inherited from SoNonIndexedShape
	SoNonIndexedShape (void)

virtual	~SoNonIndexedShape ()

void	computeCoordBBox (SoAction *action, int numVertices, SbBox3f &box, SbVec3f &center)

void	fixNumVerticesPointers (SoState state, const int32_t &start, const int32_t &end, int32_t dummyarray) const

Protected Member Functions inherited from SoVertexShape
	SoVertexShape (void)

virtual	~SoVertexShape ()

SoNormalCache *	generateAndReadLockNormalCache (SoState *const state)

SoNormalCache *	getNormalCache (void) const

void	getVertexData (SoState state, const SoCoordinateElement &coords, const SbVec3f *&normals, const SbBool neednormals)

void	readLockNormalCache (void)

void	readUnlockNormalCache (void)

void	setNormalCache (SoState const state, const int num, const SbVec3f normals)

virtual SbBool	shouldGLRender (SoGLRenderAction *action)

Protected Member Functions inherited from SoShape
	SoShape (void)

virtual	~SoShape ()

void	beginShape (SoAction const action, const TriangleShape shapetype, SoDetail const detail=NULL)

void	beginSolidShape (SoGLRenderAction *action)

void	computeObjectSpaceRay (SoRayPickAction *const action)

void	computeObjectSpaceRay (SoRayPickAction *const action, const SbMatrix &matrix)

virtual SoDetail *	createLineSegmentDetail (SoRayPickAction action, const SoPrimitiveVertex v1, const SoPrimitiveVertex v2, SoPickedPoint pp)

virtual SoDetail *	createPointDetail (SoRayPickAction action, const SoPrimitiveVertex v, SoPickedPoint *pp)

virtual SoDetail *	createTriangleDetail (SoRayPickAction action, const SoPrimitiveVertex v1, const SoPrimitiveVertex v2, const SoPrimitiveVertex v3, SoPickedPoint *pp)

void	endShape (void)

void	endSolidShape (SoGLRenderAction *action)

void	finishVertexArray (SoGLRenderAction *action, const SbBool vbo, const SbBool normpervertex, const SbBool texpervertex, const SbBool colorpervertex)

void	generateVertex (SoPrimitiveVertex const pv, const SbVec3f &point, const SbBool useTexFunc, const SoMultiTextureCoordinateElement const tce, const float s, const float t, const float r, const SbVec3f &normal)

void	generateVertex (SoPrimitiveVertex const pv, const SbVec3f &point, const SbBool useTexFunc, const SoMultiTextureCoordinateElement const tce, const float s, const float t, const SbVec3f &normal)

float	getComplexityValue (SoAction *action)

void	GLRenderBoundingBox (SoGLRenderAction *action)

void	invokeLineSegmentCallbacks (SoAction const action, const SoPrimitiveVertex const v1, const SoPrimitiveVertex *const v2)

void	invokePointCallbacks (SoAction const action, const SoPrimitiveVertex const v)

void	invokeTriangleCallbacks (SoAction const action, const SoPrimitiveVertex const v1, const SoPrimitiveVertex const v2, const SoPrimitiveVertex const v3)

void	shapeVertex (const SoPrimitiveVertex *const v)

SbBool	shouldPrimitiveCount (SoGetPrimitiveCountAction *action)

SbBool	shouldRayPick (SoRayPickAction *const action)

SbBool	startVertexArray (SoGLRenderAction action, const SoCoordinateElement coords, const SbVec3f *pervertexnormals, const SbBool texpervertex, const SbBool colorpervertex)

Protected Member Functions inherited from SoNode
	SoNode (void)

virtual	~SoNode ()

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual SoNotRec	createNotRec (void)

virtual void	destroy (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoNonIndexedShape
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoVertexShape
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoShape
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)

static int	getNextActionMethodIndex (void)

static void	incNextActionMethodIndex (void)

static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void	setNextActionMethodIndex (int index)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Additional Inherited Members
Public Types inherited from SoShape
enum	TriangleShape { TRIANGLE_STRIP , TRIANGLE_FAN , TRIANGLES , POLYGON , QUADS , QUAD_STRIP , POINTS , LINES , LINE_STRIP }

Public Types inherited from SoNode
enum	NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }

Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Protected Attributes inherited from SoNode
SbUniqueId	uniqueId

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0

static SbUniqueId	nextUniqueId = 1

Detailed Description

The SoLineSet class is used to render and organize non-indexed polylines.

Polylines are specified using the numVertices field. Coordinates, normals, materials and texture coordinates are fetched in order from the current state or from the vertexProperty node if set. For example, if numVertices is set to [3, 4, 2], this node would specify a line through coordinates 0, 1 and 2, a line through coordinates 3, 4, 5 and 6, and finally a single line segment between coordinates 7 and 8.

Here's a very simple usage example:

#Inventor V2.1 ascii

Separator {
   Coordinate3 {
      point [ 0 0 0, 1 1 1, 2 1 1, 2 2 1, 2 2 2, 2 2 3, 2 3 2, 2 3 3, 3 3 3 ]
   }

   LineSet {
      numVertices [ 3, 4, 2 ]
   }
}

Binding PER_VERTEX, PER_FACE, PER_PART or OVERALL can be set for material, and normals. The default material binding is OVERALL. The default normal binding is PER_VERTEX. If no normals are set, the line set will be rendered with lighting disabled.

The width of the rendered lines can be controlled through the insertion of an SoDrawStyle node in front of SoLineSet node(s) in the scene graph.

FILE FORMAT/DEFAULTS:

LineSet {
    vertexProperty NULL
    startIndex 0
    numVertices -1
}

See also: SoIndexedLineSet

Constructor & Destructor Documentation

◆ SoLineSet()

SoLineSet::SoLineSet ( void )

Constructor.

◆ ~SoLineSet()

SoLineSet::~SoLineSet ( )

protectedvirtual

Destructor.

Member Function Documentation

◆ computeBBox()

void SoLineSet::computeBBox	(	SoAction *	action,
		SbBox3f &	box,
		SbVec3f &	center )

protectedvirtual

Implemented by SoShape subclasses to let the SoShape superclass know the exact size and weighted center point of the shape's bounding box.

The bounding box and center point should be calculated and returned in the local coordinate system.

The method implements action behavior for shape nodes for SoGetBoundingBoxAction. It is invoked from SoShape::getBoundingBox(). (Subclasses should not override SoNode::getBoundingBox().)

The box parameter sent in is guaranteed to be an empty box, while center is undefined upon function entry.

Implements SoShape.

◆ generatePrimitives()

void SoLineSet::generatePrimitives ( SoAction * action )

protectedvirtual

The method implements action behavior for shape nodes for SoCallbackAction. It is invoked from SoShape::callback(). (Subclasses should not override SoNode::callback().)

The subclass implementations uses the convenience methods SoShape::beginShape(), SoShape::shapeVertex(), and SoShape::endShape(), with SoDetail instances, to pass the primitives making up the shape back to the caller.

Implements SoShape.

◆ getBoundingBox()

void SoLineSet::getBoundingBox ( SoGetBoundingBoxAction * action )

virtual

Action method for the SoGetBoundingBoxAction.

Calculates bounding box and center coordinates for node and modifies the values of the action to encompass the bounding box for this node and to shift the center point for the scene more towards the one for this node.

Nodes influencing how geometry nodes calculate their bounding box also override this method to change the relevant state variables.

Reimplemented from SoShape.

◆ getClassTypeId()

SoType SoLineSet::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoLineSet::getFieldData ( void ) const

protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoNonIndexedShape.

◆ getFieldDataPtr()

const SoFieldData ** SoLineSet::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getPrimitiveCount()

void SoLineSet::getPrimitiveCount ( SoGetPrimitiveCountAction * action )

virtual

Action method for the SoGetPrimitiveCountAction.

Calculates the number of triangle, line segment and point primitives for the node and adds these to the counters of the action.

Nodes influencing how geometry nodes calculate their primitive count also override this method to change the relevant state variables.

Reimplemented from SoShape.

◆ getTypeId()

SoType SoLineSet::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoNonIndexedShape.

◆ GLRender()

void SoLineSet::GLRender ( SoGLRenderAction * action )

virtual

Action method for the SoGLRenderAction.

This is called during rendering traversals. Nodes influencing the rendering state in any way or want to throw geometry primitives at OpenGL override this method.

Reimplemented from SoShape.

◆ initClass()

void SoLineSet::initClass ( void )

static

Member Data Documentation

◆ numVertices

SoMFInt32 SoLineSet::numVertices

Used to specify polylines. Each entry specifies the number of coordinates in a line. The coordinates are taken in order from the state or from the vertexProperty node.

The documentation for this class was generated from the following files:

SoLineSet.h
SoLineSet.cpp
