The SoText3 class renders extruded 3D text. More...

#include <Inventor/nodes/SoText3.h>

Inheritance diagram for SoText3:

Public Types
enum	Justification { LEFT = 1 , RIGHT , CENTER }

enum	Part { FRONT = 1 , SIDES = 2 , BACK = 4 , ALL = FRONT\|BACK\|SIDES }

Public Types inherited from SoShape
enum	TriangleShape { TRIANGLE_STRIP , TRIANGLE_FAN , TRIANGLES , POLYGON , QUADS , QUAD_STRIP , POINTS , LINES , LINE_STRIP }

Public Types inherited from SoNode
enum	NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }

Public Member Functions
SbBox3f	getCharacterBounds (SoState *state, int stringindex, int charindex)

virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual SoType	getTypeId (void) const

virtual void	GLRender (SoGLRenderAction *action)

Public Member Functions inherited from SoShape
virtual SbBool	affectsState (void) const

virtual void	callback (SoCallbackAction *action)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

const SoBoundingBoxCache *	getBoundingBoxCache (void) const

virtual void	rayPick (SoRayPickAction *action)

Public Member Functions inherited from SoNode
virtual SoNode *	addToCopyDict (void) const

virtual void	audioRender (SoAudioRenderAction *action)

virtual SoNode *	copy (SbBool copyconnections=FALSE) const

virtual void	copyContents (const SoFieldContainer *from, SbBool copyconnections)

virtual SoFieldContainer *	copyThroughConnection (void) const

virtual void	doAction (SoAction *action)

virtual SoChildList *	getChildren (void) const

virtual void	getMatrix (SoGetMatrixAction *action)

SbUniqueId	getNodeId (void) const

NodeType	getNodeType (void) const

virtual void	GLRenderBelowPath (SoGLRenderAction *action)

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	grabEventsCleanup (void)

virtual void	grabEventsSetup (void)

virtual void	handleEvent (SoHandleEventAction *action)

SbBool	isOverride (void) const

virtual void	pick (SoPickAction *action)

virtual void	search (SoSearchAction *action)

void	setNodeType (const NodeType type)

void	setOverride (const SbBool state)

virtual void	startNotify (void)

virtual void	write (SoWriteAction *action)

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoFieldContainer
virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)

static void	initClass (void)

Static Public Member Functions inherited from SoShape
static SoType	getClassTypeId (void)

static float	getDecimatedComplexity (SoState *state, float complexity)

static void	getScreenSize (SoState *const state, const SbBox3f &boundingbox, SbVec2s &rectsize)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction action, SoNode node)

static void	callbackS (SoAction action, SoNode node)

static int	getActionMethodIndex (const SoType type)

static void	getBoundingBoxS (SoAction action, SoNode node)

static SoNode *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoNodeList &l)

static SoType	getClassTypeId (void)

static uint32_t	getCompatibilityTypes (const SoType &nodetype)

static void	getMatrixS (SoAction action, SoNode node)

static SbUniqueId	getNextNodeId (void)

static void	getPrimitiveCountS (SoAction action, SoNode node)

static void	GLRenderS (SoAction action, SoNode node)

static void	handleEventS (SoAction action, SoNode node)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

static void	pickS (SoAction action, SoNode node)

static void	rayPickS (SoAction action, SoNode node)

static void	searchS (SoAction action, SoNode node)

static void	writeS (SoAction action, SoNode node)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Public Attributes
SoSFEnum	justification

SoSFBitMask	parts

SoSFFloat	spacing

SoMFString	string

Protected Member Functions
virtual void	computeBBox (SoAction *action, SbBox3f &box, SbVec3f &center)

virtual SoDetail *	createTriangleDetail (SoRayPickAction action, const SoPrimitiveVertex v1, const SoPrimitiveVertex v2, const SoPrimitiveVertex v3, SoPickedPoint *pp)

virtual void	generatePrimitives (SoAction *)

virtual const SoFieldData *	getFieldData (void) const

virtual void	notify (SoNotList *list)

Protected Member Functions inherited from SoShape
	SoShape (void)

virtual	~SoShape ()

void	beginShape (SoAction const action, const TriangleShape shapetype, SoDetail const detail=NULL)

void	beginSolidShape (SoGLRenderAction *action)

void	computeObjectSpaceRay (SoRayPickAction *const action)

void	computeObjectSpaceRay (SoRayPickAction *const action, const SbMatrix &matrix)

virtual SoDetail *	createLineSegmentDetail (SoRayPickAction action, const SoPrimitiveVertex v1, const SoPrimitiveVertex v2, SoPickedPoint pp)

virtual SoDetail *	createPointDetail (SoRayPickAction action, const SoPrimitiveVertex v, SoPickedPoint *pp)

void	endShape (void)

void	endSolidShape (SoGLRenderAction *action)

void	finishVertexArray (SoGLRenderAction *action, const SbBool vbo, const SbBool normpervertex, const SbBool texpervertex, const SbBool colorpervertex)

void	generateVertex (SoPrimitiveVertex const pv, const SbVec3f &point, const SbBool useTexFunc, const SoMultiTextureCoordinateElement const tce, const float s, const float t, const float r, const SbVec3f &normal)

void	generateVertex (SoPrimitiveVertex const pv, const SbVec3f &point, const SbBool useTexFunc, const SoMultiTextureCoordinateElement const tce, const float s, const float t, const SbVec3f &normal)

float	getComplexityValue (SoAction *action)

void	GLRenderBoundingBox (SoGLRenderAction *action)

void	invokeLineSegmentCallbacks (SoAction const action, const SoPrimitiveVertex const v1, const SoPrimitiveVertex *const v2)

void	invokePointCallbacks (SoAction const action, const SoPrimitiveVertex const v)

void	invokeTriangleCallbacks (SoAction const action, const SoPrimitiveVertex const v1, const SoPrimitiveVertex const v2, const SoPrimitiveVertex const v3)

void	shapeVertex (const SoPrimitiveVertex *const v)

virtual SbBool	shouldGLRender (SoGLRenderAction *action)

SbBool	shouldPrimitiveCount (SoGetPrimitiveCountAction *action)

SbBool	shouldRayPick (SoRayPickAction *const action)

SbBool	startVertexArray (SoGLRenderAction action, const SoCoordinateElement coords, const SbVec3f *pervertexnormals, const SbBool texpervertex, const SbBool colorpervertex)

Protected Member Functions inherited from SoNode
	SoNode (void)

virtual	~SoNode ()

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual SoNotRec	createNotRec (void)

virtual void	destroy (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoShape
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)

static int	getNextActionMethodIndex (void)

static void	incNextActionMethodIndex (void)

static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void	setNextActionMethodIndex (int index)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Additional Inherited Members
Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Protected Attributes inherited from SoNode
SbUniqueId	uniqueId

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0

static SbUniqueId	nextUniqueId = 1

Detailed Description

The SoText3 class renders extruded 3D text.

Render text as 3D geometry.

The size of the textual geometry representation is decided from the SoFont::size field of a preceding SoFont-node in the scene graph, which specifies the size in unit coordinates. This value sets the approximate vertical size of the letters. The default value if no SoFont-nodes are used, is 10.

This node will create 3D geometry from a specified font defined by a preceding SoFont node. The complexity of the glyphs is controlled by a preceding SoComplexity node with Type set to OBJECT_SPACE. Please note that the default built-in 3D font will not be affected by the SoComplexity node.

This is a simple example of an extruded SoText3 string:

 #Inventor V2.1 ascii

 Separator {
   renderCaching ON
   Font {
      name "Arial"
      size 2
   }
   ProfileCoordinate2 {
     point [ 0 0,
             0.05 0.05,
             0.25 0.05,
             0.3 0 ]
   }
   LinearProfile {
     index [ 0, 1, 2, 3 ]
   }
   Complexity {
     type OBJECT_SPACE
     value 1
   }
   ShapeHints {
     creaseAngle 1.5
     shapeType SOLID
     vertexOrdering COUNTERCLOCKWISE
   }
   Material {
     diffuseColor 0.6 0.6 0.8
     specularColor 1 1 1
   }
   Text3 {
     string ["Coin3D"]
     parts ALL
   }
 }

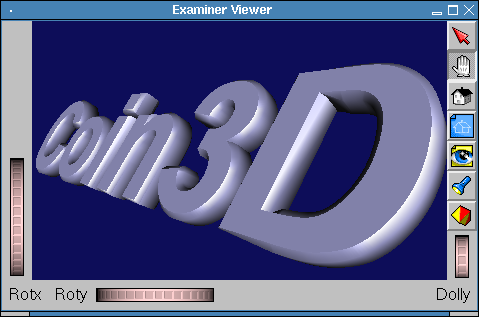

Rendering of Example File

if SoText3::Part is set to SIDES or ALL and no profile is provided, a flat, one unit long profile will be created.

Separate colors can be assigned to the front, sides and back of the glyphs by adding a preceding SoMaterialBinding node. Set the value field to PER_PART (default is OVERALL). The front, side and back of the glyphs will then be colored according to diffuse color 0, 1 and 2 found on the stack.

Beware that using a lot of SoText3 text characters in a scene will usually have severe impact on the rendering performance, as each and every character of the text increases the polygon count a lot. This makes SoText3 nodes most suitable in situations where you just need a few characters to be placed in your scene, rather than to visualize complete sentences.

FILE FORMAT/DEFAULTS:

Text3 {
    string ""
    spacing 1
    justification LEFT
    parts FRONT
}

See also: SoFont, SoFontStyle, SoText2, SoAsciiText, SoProfile

Member Enumeration Documentation

◆ Justification

enum SoText3::Justification

Used to specify horizontal string alignment.

Enumerator
LEFT	Left edges of strings are aligned.
RIGHT	Right edges of strings are aligned.
CENTER	Centers of strings are aligned.

◆ Part

enum SoText3::Part

Used to specify which parts should be rendered/generated.

Enumerator
FRONT	Front of characters.
SIDES	Sides of characters.
BACK	Back of characters.
ALL	All parts.

Member Function Documentation

◆ computeBBox()

void SoText3::computeBBox	(	SoAction *	action,
		SbBox3f &	box,
		SbVec3f &	center )

protectedvirtual

Implemented by SoShape subclasses to let the SoShape superclass know the exact size and weighted center point of the shape's bounding box.

The bounding box and center point should be calculated and returned in the local coordinate system.

The method implements action behavior for shape nodes for SoGetBoundingBoxAction. It is invoked from SoShape::getBoundingBox(). (Subclasses should not override SoNode::getBoundingBox().)

The box parameter sent in is guaranteed to be an empty box, while center is undefined upon function entry.

Implements SoShape.

◆ createTriangleDetail()

SoDetail * SoText3::createTriangleDetail	(	SoRayPickAction *	action,
		const SoPrimitiveVertex *	v1,
		const SoPrimitiveVertex *	v2,
		const SoPrimitiveVertex *	v3,
		SoPickedPoint *	pp )

protectedvirtual

Will create triangle detail for a SoPickedPoint. This method will only be called internally, when generatePrimitives() is used for picking (SoShape::rayPick() is not overridden).

This method returns NULL in Open Inventor, and subclasses will need to override this method to create details for a SoPickedPoint.

This is not necessary with Coin. Of course, if you choose to override it, it will work in the same way as Open Inventor.

For this to work, you must supply a face or line detail when generating primitives. If you supply NULL for the detail argument in SoShape::beginShape(), you'll have to override this method.

Reimplemented from SoShape.

◆ generatePrimitives()

void SoText3::generatePrimitives ( SoAction * action )

protectedvirtual

The method implements action behavior for shape nodes for SoCallbackAction. It is invoked from SoShape::callback(). (Subclasses should not override SoNode::callback().)

The subclass implementations uses the convenience methods SoShape::beginShape(), SoShape::shapeVertex(), and SoShape::endShape(), with SoDetail instances, to pass the primitives making up the shape back to the caller.

Implements SoShape.

◆ getCharacterBounds()

SbBox3f SoText3::getCharacterBounds	(	SoState *	state,
		int	stringindex,
		int	charindex )

Not implemented. Should probably have been private in Open Inventor API. Let us know if you need this method for anything, and we'll implement it.

◆ getClassTypeId()

SoType SoText3::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoText3::getFieldData ( void ) const

protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoShape.

◆ getFieldDataPtr()

const SoFieldData ** SoText3::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getPrimitiveCount()

void SoText3::getPrimitiveCount ( SoGetPrimitiveCountAction * action )

virtual

Action method for the SoGetPrimitiveCountAction.

Calculates the number of triangle, line segment and point primitives for the node and adds these to the counters of the action.

Nodes influencing how geometry nodes calculate their primitive count also override this method to change the relevant state variables.

Reimplemented from SoShape.

◆ getTypeId()

SoType SoText3::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoShape.

◆ GLRender()

void SoText3::GLRender ( SoGLRenderAction * action )

virtual

Action method for the SoGLRenderAction.

This is called during rendering traversals. Nodes influencing the rendering state in any way or want to throw geometry primitives at OpenGL override this method.

Reimplemented from SoShape.

◆ initClass()

void SoText3::initClass ( void )

static

◆ notify()

void SoText3::notify ( SoNotList * l )

protectedvirtual

Notifies all auditors for this instance when changes are made.

Reimplemented from SoShape.

Member Data Documentation

◆ justification

SoSFEnum SoText3::justification

Determines horizontal alignment of text strings.

If justification is set to SoText3::LEFT, the left edge of the first string is at the origin and all strings are aligned with their left edges. If set to SoText3::RIGHT, the right edge of the first string is at the origin and all strings are aligned with their right edges. Otherwise, if set to SoText3::CENTER, the center of the first string is at the origin and all strings are aligned with their centers. The origin is always located at the baseline of the first line of text.

Default value is SoText3::LEFT.

◆ parts

SoSFBitMask SoText3::parts

Character parts. Default is to show only the front facing part.

◆ spacing

SoSFFloat SoText3::spacing

Vertical spacing between the baselines of two consecutive horizontal lines. Default value is 1.0, which means that it is equal to the vertical size of the highest character in the bitmap alphabet.

◆ string

SoMFString SoText3::string

The set of strings to render. Each string in the multiple value field will be rendered on a separate line.

The default value of the field is a single empty string.

The documentation for this class was generated from the following files:

SoText3.h
SoText3.cpp

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Justification

◆ Part

Member Function Documentation

◆ computeBBox()

◆ createTriangleDetail()

◆ generatePrimitives()

◆ getCharacterBounds()

◆ getClassTypeId()

◆ getFieldData()

◆ getFieldDataPtr()

◆ getPrimitiveCount()

◆ getTypeId()

◆ GLRender()

◆ initClass()

◆ notify()

Member Data Documentation

◆ justification

◆ parts

◆ spacing

◆ string
