SoVRMLExtrusion Class Reference

The SoVRMLExtrusion class is a a geometry node for extruding a cross section along a spine. More...

#include <Inventor/VRMLnodes/SoVRMLExtrusion.h>

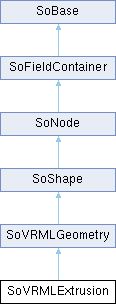

Inheritance diagram for SoVRMLExtrusion:
SoVRMLGeometry SoShape SoNode SoFieldContainer SoBase

Public Member Functions

 SoVRMLExtrusion (void)

virtual void computeBBox (SoAction *action, SbBox3f &bbox, SbVec3f &center)

virtual void getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual SoType getTypeId (void) const

virtual void GLRender (SoGLRenderAction *action)

- Public Member Functions inherited from SoVRMLGeometry
virtual void copyContents (const SoFieldContainer *from, SbBool copyConn)

virtual void search (SoSearchAction *action)

- Public Member Functions inherited from SoShape
virtual SbBool affectsState (void) const

virtual void callback (SoCallbackAction *action)

virtual void getBoundingBox (SoGetBoundingBoxAction *action)

const SoBoundingBoxCachegetBoundingBoxCache (void) const

virtual void rayPick (SoRayPickAction *action)

- Public Member Functions inherited from SoNode
virtual SoNodeaddToCopyDict (void) const

virtual void audioRender (SoAudioRenderAction *action)

virtual SoNodecopy (SbBool copyconnections=FALSE) const

virtual SoFieldContainercopyThroughConnection (void) const

virtual void doAction (SoAction *action)

virtual void getMatrix (SoGetMatrixAction *action)

SbUniqueId getNodeId (void) const

NodeType getNodeType (void) const

virtual void GLRenderBelowPath (SoGLRenderAction *action)

virtual void GLRenderInPath (SoGLRenderAction *action)

virtual void GLRenderOffPath (SoGLRenderAction *action)

virtual void grabEventsCleanup (void)

virtual void grabEventsSetup (void)

virtual void handleEvent (SoHandleEventAction *action)

SbBool isOverride (void) const

virtual void pick (SoPickAction *action)

void setNodeType (const NodeType type)

void setOverride (const SbBool state)

virtual void startNotify (void)

virtual void write (SoWriteAction *action)

virtual void writeInstance (SoOutput *out)

- Public Member Functions inherited from SoFieldContainer
virtual void addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

void copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool enableNotify (const SbBool flag)

SbBool fieldsAreEqual (const SoFieldContainer *container) const

void get (SbString &fielddata)

void get (SbString &fielddata, SoOutput *out)

virtual int getAllFields (SoFieldList &l) const

virtual SoFieldgetEventIn (const SbName &name) const

virtual SoFieldgetEventOut (const SbName &name) const

virtual SoFieldgetField (const SbName &name) const

SbBool getFieldName (const SoField *const field, SbName &name) const

virtual int getFields (SoFieldList &l) const

virtual void getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool getIsBuiltIn (void) const

voidgetUserData (void) const

SbBool hasDefaultValues (void) const

SbBool isNotifyEnabled (void) const

SbBool set (const char *const fielddata)

SbBool set (const char *fielddata, SoInput *input)

void setToDefaults (void)

void setUserData (void *userdata) const

virtual SbBool validateNewFieldValue (SoField *field, void *newval)

- Public Member Functions inherited from SoBase
void addAuditor (void *const auditor, const SoNotRec::Type type)

void assertAlive (void) const

const SoAuditorListgetAuditors (void) const

virtual SbName getName (void) const

int32_t getRefCount (void) const

SbBool isOfType (SoType type) const
 Returns TRUE if the type of this object is either of the same type or inherited from type.

void ref (void) const

void removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void setName (const SbName &newname)

SbBool shouldWrite (void)

void touch (void)

void unref (void) const

void unrefNoDelete (void) const


Static Public Member Functions

static SoType getClassTypeId (void)

static void initClass (void)

- Static Public Member Functions inherited from SoVRMLGeometry
static SoType getClassTypeId (void)

static void initClass (void)

- Static Public Member Functions inherited from SoShape
static SoType getClassTypeId (void)

static float getDecimatedComplexity (SoState *state, float complexity)

static void getScreenSize (SoState *const state, const SbBox3f &boundingbox, SbVec2s &rectsize)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

- Static Public Member Functions inherited from SoNode
static void audioRenderS (SoAction *action, SoNode *node)

static void callbackS (SoAction *action, SoNode *node)

static int getActionMethodIndex (const SoType type)

static void getBoundingBoxS (SoAction *action, SoNode *node)

static SoNodegetByName (const SbName &name)

static int getByName (const SbName &name, SoNodeList &l)

static SoType getClassTypeId (void)

static uint32_t getCompatibilityTypes (const SoType &nodetype)

static void getMatrixS (SoAction *action, SoNode *node)

static SbUniqueId getNextNodeId (void)

static void getPrimitiveCountS (SoAction *action, SoNode *node)

static void GLRenderS (SoAction *action, SoNode *node)

static void handleEventS (SoAction *action, SoNode *node)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void initClasses (void)

static void pickS (SoAction *action, SoNode *node)

static void rayPickS (SoAction *action, SoNode *node)

static void searchS (SoAction *action, SoNode *node)

static void writeS (SoAction *action, SoNode *node)

- Static Public Member Functions inherited from SoFieldContainer
static void addCopy (const SoFieldContainer *orig, const SoFieldContainer *copy)

static SoFieldContainercheckCopy (const SoFieldContainer *orig)

static void cleanupClass (void)

static void copyDone (void)

static SoFieldContainerfindCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType getClassTypeId (void)
 This static method returns the SoType object associated with objects of this class.

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void initCopyDict (void)

- Static Public Member Functions inherited from SoBase
static void addName (SoBase *const base, const char *const name)

static SbBool connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void decrementCurrentWriteCounter (void)

static SoType getClassTypeId (void)
 This static method returns the SoType object associated with objects of this class.

static SoBasegetNamedBase (const SbName &name, SoType type)

static int getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool getTraceRefs (void)

static void incrementCurrentWriteCounter (void)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool read (SoInput *input, SoBase *&base, SoType expectedtype)

static SbBool readRoute (SoInput *input)

static void removeName (SoBase *const base, const char *const name)

static void setInstancePrefix (const SbString &c)

static void setTraceRefs (SbBool trace)


Public Attributes

SoSFBool beginCap

SoSFBool ccw

SoSFBool convex

SoSFFloat creaseAngle

SoMFVec2f crossSection

SoSFBool endCap

SoMFRotation orientation

SoMFVec2f scale

SoSFBool solid

SoMFVec3f spine


Protected Member Functions

virtual ~SoVRMLExtrusion ()

virtual SoDetailcreateTriangleDetail (SoRayPickAction *action, const SoPrimitiveVertex *v1, const SoPrimitiveVertex *v2, const SoPrimitiveVertex *v3, SoPickedPoint *pp)

virtual void generatePrimitives (SoAction *action)

virtual const SoFieldDatagetFieldData (void) const

virtual void notify (SoNotList *list)

- Protected Member Functions inherited from SoVRMLGeometry
 SoVRMLGeometry (void)

virtual ~SoVRMLGeometry ()

virtual SoChildListgetChildren (void) const

void setupShapeHints (SoState *state, const SbBool ccw, const SbBool solid)

virtual SbBool shouldGLRender (SoGLRenderAction *action)

- Protected Member Functions inherited from SoShape
 SoShape (void)

virtual ~SoShape ()

void beginShape (SoAction *const action, const TriangleShape shapetype, SoDetail *const detail=NULL)

void beginSolidShape (SoGLRenderAction *action)

void computeObjectSpaceRay (SoRayPickAction *const action)

void computeObjectSpaceRay (SoRayPickAction *const action, const SbMatrix &matrix)

virtual SoDetailcreateLineSegmentDetail (SoRayPickAction *action, const SoPrimitiveVertex *v1, const SoPrimitiveVertex *v2, SoPickedPoint *pp)

virtual SoDetailcreatePointDetail (SoRayPickAction *action, const SoPrimitiveVertex *v, SoPickedPoint *pp)

void endShape (void)

void endSolidShape (SoGLRenderAction *action)

void finishVertexArray (SoGLRenderAction *action, const SbBool vbo, const SbBool normpervertex, const SbBool texpervertex, const SbBool colorpervertex)

void generateVertex (SoPrimitiveVertex *const pv, const SbVec3f &point, const SbBool useTexFunc, const SoMultiTextureCoordinateElement *const tce, const float s, const float t, const float r, const SbVec3f &normal)

void generateVertex (SoPrimitiveVertex *const pv, const SbVec3f &point, const SbBool useTexFunc, const SoMultiTextureCoordinateElement *const tce, const float s, const float t, const SbVec3f &normal)

float getComplexityValue (SoAction *action)

void GLRenderBoundingBox (SoGLRenderAction *action)

void invokeLineSegmentCallbacks (SoAction *const action, const SoPrimitiveVertex *const v1, const SoPrimitiveVertex *const v2)

void invokePointCallbacks (SoAction *const action, const SoPrimitiveVertex *const v)

void invokeTriangleCallbacks (SoAction *const action, const SoPrimitiveVertex *const v1, const SoPrimitiveVertex *const v2, const SoPrimitiveVertex *const v3)

void shapeVertex (const SoPrimitiveVertex *const v)

SbBool shouldPrimitiveCount (SoGetPrimitiveCountAction *action)

SbBool shouldRayPick (SoRayPickAction *const action)

SbBool startVertexArray (SoGLRenderAction *action, const SoCoordinateElement *coords, const SbVec3f *pervertexnormals, const SbBool texpervertex, const SbBool colorpervertex)

- Protected Member Functions inherited from SoNode
 SoNode (void)

virtual ~SoNode ()

virtual SbBool readInstance (SoInput *in, unsigned short flags)

- Protected Member Functions inherited from SoFieldContainer
 SoFieldContainer (void)

virtual ~SoFieldContainer ()

- Protected Member Functions inherited from SoBase
 SoBase (void)

virtual ~SoBase ()

virtual SoNotRec createNotRec (void)

virtual void destroy (void)

virtual const char * getFileFormatName (void) const

SbBool hasMultipleWriteRefs (void) const

void writeFooter (SoOutput *out) const

SbBool writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const


Static Protected Member Functions

static const SoFieldData ** getFieldDataPtr (void)

- Static Protected Member Functions inherited from SoVRMLGeometry
static const SoFieldData ** getFieldDataPtr (void)

- Static Protected Member Functions inherited from SoShape
static const SoFieldData ** getFieldDataPtr (void)

- Static Protected Member Functions inherited from SoNode
static const SoFieldData ** getFieldDataPtr (void)

static int getNextActionMethodIndex (void)

static void incNextActionMethodIndex (void)

static void setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void setNextActionMethodIndex (int index)

- Static Protected Member Functions inherited from SoBase
static uint32_t getCurrentWriteCounter (void)

static void staticDataLock (void)

static void staticDataUnlock (void)


Additional Inherited Members

- Public Types inherited from SoShape
enum  TriangleShape {
  TRIANGLE_STRIP , TRIANGLE_FAN , TRIANGLES , POLYGON ,
  QUADS , QUAD_STRIP , POINTS , LINES ,
  LINE_STRIP
}

- Public Types inherited from SoNode
enum  NodeType {
  INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 ,
  INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 ,
  COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 ,
  COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 ,
  COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000
}

- Protected Types inherited from SoBase
enum  BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

- Protected Attributes inherited from SoNode
SbUniqueId uniqueId

- Protected Attributes inherited from SoFieldContainer
SbBool isBuiltIn

- Static Protected Attributes inherited from SoNode
static int nextActionMethodIndex = 0

static SbUniqueId nextUniqueId = 1


Detailed Description

The SoVRMLExtrusion class is a a geometry node for extruding a cross section along a spine.

The detailed class documentation is taken verbatim from the VRML97 standard (ISO/IEC 14772-1:1997). It is copyright The Web3D Consortium, and is used by permission of the Consortium:

Extrusion {
  eventIn MFVec2f    set_crossSection
  eventIn MFRotation set_orientation
  eventIn MFVec2f    set_scale
  eventIn MFVec3f    set_spine
  field   SFBool     beginCap         TRUE
  field   SFBool     ccw              TRUE
  field   SFBool     convex           TRUE
  field   SFFloat    creaseAngle      0                # [0,inf)
  field   MFVec2f    crossSection     [ 1 1, 1 -1, -1 -1, -1 1, 1  1 ]    # (-inf,inf)
  field   SFBool     endCap           TRUE
  field   MFRotation orientation      0 0 1 0          # [-1,1],(-inf,inf)
  field   MFVec2f    scale            1 1              # (0,inf)
  field   SFBool     solid            TRUE
  field   MFVec3f    spine            [ 0 0 0, 0 1 0 ] # (-inf,inf)
}

Introduction

The Extrusion node specifies geometric shapes based on a two dimensional cross-section extruded along a three dimensional spine in the local coordinate system. The cross-section can be scaled and rotated at each spine point to produce a wide variety of shapes. An Extrusion node is defined by:

  • a 2D crossSection piecewise linear curve (described as a series of connected vertices);
  • a 3D spine piecewise linear curve (also described as a series of connected vertices);
  • a list of 2D scale parameters;
  • a list of 3D orientation parameters.

Algorithmic description

Shapes are constructed as follows. The cross-section curve, which starts as a curve in the Y=0 plane, is first scaled about the origin by the first scale parameter (first value scales in X, second value scales in Z). It is then translated by the first spine point and oriented using the first orientation parameter (as explained later). The same procedure is followed to place a cross- section at the second spine point, using the second scale and orientation values. Corresponding vertices of the first and second cross-sections are then connected, forming a quadrilateral polygon between each pair of vertices. This same procedure is then repeated for the rest of the spine points, resulting in a surface extrusion along the spine.

The final orientation of each cross-section is computed by first orienting it relative to the spine segments on either side of point at which the cross-section is placed. This is known as the spine-aligned cross-section plane (SCP), and is designed to provide a smooth transition from one spine segment to the next (see Figure 6.6). The SCP is then rotated by the corresponding orientation value. This rotation is performed relative to the SCP. For example, to impart twist in the cross- section, a rotation about the Y-axis (0 1 0) would be used. Other orientations are valid and rotate the cross-section out of the SCP.

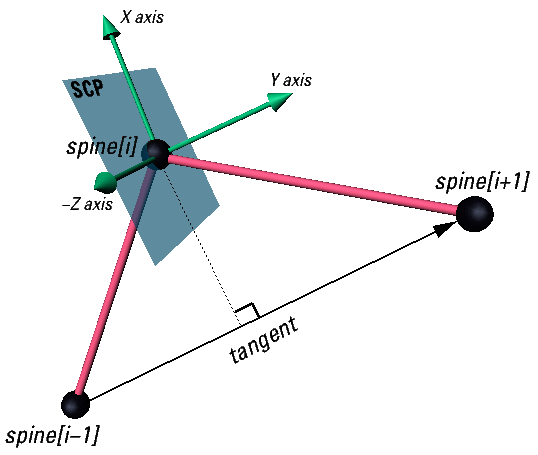

Figure 6.6

The SCP is computed by first computing its Y-axis and Z-axis, then taking the cross product of these to determine the X-axis. These three axes are then used to determine the rotation value needed to rotate the Y=0 plane to the SCP. This results in a plane that is the approximate tangent of the spine at each point, as shown in Figure 6.6. First the Y-axis is determined, as follows:

Let n be the number of spines and let i be the index variable satisfying 0 <= i < n:

  • For all points other than the first or last: The Y-axis for spine[i] is found by normalizing the vector defined by (spine[i+1]
    • spine[i-1]).
  • If the spine curve is closed: The SCP for the first and last points is the same and is found using (spine[1] - spine[n-2]) to compute the Y-axis.
  • If the spine curve is not closed: The Y-axis used for the first point is the vector from spine[0] to spine[1], and for the last it is the vector from spine[n-2] to spine[n-1].

The Z-axis is determined as follows:

  • For all points other than the first or last: Take the following cross-product:
Z = (spine[i+1] - spine[i]) × (spine[i-1] - spine[i])
  • If the spine curve is closed: The SCP for the first and last points is the same and is found by taking the following cross- product:
Z = (spine[1] - spine[0]) × (spine[n-2] - spine[0])
  • If the spine curve is not closed: The Z-axis used for the first spine point is the same as the Z-axis for spine[1]. The Z- axis used for the last spine point is the same as the Z-axis for spine[n-2].
  • After determining the Z-axis, its dot product with the Z-axis of the previous spine point is computed. If this value is negative, the Z-axis is flipped (multiplied by -1). In most cases, this prevents small changes in the spine segment angles from flipping the cross-section 180 degrees.

Once the Y- and Z-axes have been computed, the X-axis can be calculated as their cross-product.

Special Cases

If the number of scale or orientation values is greater than the number of spine points, the excess values are ignored. If they contain one value, it is applied at all spine points. The results are undefined if the number of scale or orientation values is greater than one but less than the number of spine points. The scale values shall be positive.

If the three points used in computing the Z-axis are collinear, the cross-product is zero so the value from the previous point is used instead. If the Z-axis of the first point is undefined (because the spine is not closed and the first two spine segments are collinear) then the Z-axis for the first spine point with a defined Z-axis is used.

If the entire spine is collinear, the SCP is computed by finding the rotation of a vector along the positive Y-axis (v1) to the vector formed by the spine points (v2). The Y=0 plane is then rotated by this value. If two points are coincident, they both have the same SCP. If each point has a different orientation value, then the surface is constructed by connecting edges of the cross-sections as normal. This is useful in creating revolved surfaces.

Note: combining coincident and non-coincident spine segments, as well as other combinations, can lead to interpenetrating surfaces which the extrusion algorithm makes no attempt to avoid.

Common Cases

The following common cases are among the effects which are supported by the Extrusion node:

  • Surfaces of revolution: If the cross-section is an approximation of a circle and the spine is straight, the Extrusion is equivalent to a surface of revolution, where the scale parameters define the size of the cross-section along the spine.
  • Uniform extrusions: If the scale is (1, 1) and the spine is straight, the cross-section is extruded uniformly without twisting or scaling along the spine. The result is a cylindrical shape with a uniform cross section.
  • Bend/twist/taper objects: These shapes are the result of using all fields. The spine curve bends the extruded shape defined by the cross-section, the orientation parameters (given as rotations about the Y-axis) twist it around the spine, and the scale parameters taper it (by scaling about the spine).

Other Fields

Extrusion has three parts: the sides, the beginCap (the surface at the initial end of the spine) and the endCap (the surface at the final end of the spine). The caps have an associated SFBool field that indicates whether each exists (TRUE) or doesn't exist (FALSE).

When the beginCap or endCap fields are specified as TRUE, planar cap surfaces will be generated regardless of whether the crossSection is a closed curve. If crossSection is not a closed curve, the caps are generated by adding a final point to crossSection that is equal to the initial point. An open surface can still have a cap, resulting (for a simple case) in a shape analogous to a soda can sliced in half vertically. These surfaces are generated even if spine is also a closed curve. If a field value is FALSE, the corresponding cap is not generated.

Texture coordinates are automatically generated by Extrusion nodes. Textures are mapped so that the coordinates range in the U direction from 0 to 1 along the crossSection curve (with 0 corresponding to the first point in crossSection and 1 to the last) and in the V direction from 0 to 1 along the spine curve (with 0 corresponding to the first listed spine point and 1 to the last). If either the endCap or beginCap exists, the crossSection curve is uniformly scaled and translated so that the larger dimension of the cross-section (X or Z) produces texture coordinates that range from 0.0 to 1.0. The beginCap and endCap textures' S and T directions correspond to the X and Z directions in which the crossSection coordinates are defined.

The browser shall automatically generate normals for the Extrusion node,using the creaseAngle field to determine if and how normals are smoothed across the surface. Normals for the caps are generated along the Y-axis of the SCP, with the ordering determined by viewing the cross-section from above (looking along the negative Y-axis of the SCP). By default, a beginCap with a counterclockwise ordering shall have a normal along the negative Y-axis. An endCap with a counterclockwise ordering shall have a normal along the positive Y-axis.

Each quadrilateral making up the sides of the extrusion are ordered from the bottom cross-section (the one at the earlier spine point) to the top. So, one quadrilateral has the points:

spine[0](crossSection[0], crossSection[1])
spine[1](crossSection[1], crossSection[0])

in that order. By default, normals for the sides are generated as described in 4.6.3, Shapes and geometry (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.3).

For instance, a circular crossSection with counterclockwise ordering and the default spine form a cylinder. With solid TRUE and ccw TRUE, the cylinder is visible from the outside. Changing ccw to FALSE makes it visible from the inside. The ccw, solid, convex, and creaseAngle fields are described in 4.6.3, Shapes and geometry (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.3).

Constructor & Destructor Documentation

◆ SoVRMLExtrusion()

SoVRMLExtrusion::SoVRMLExtrusion ( void )

Constructor.

◆ ~SoVRMLExtrusion()

SoVRMLExtrusion::~SoVRMLExtrusion ( )
protectedvirtual

Destructor.

Member Function Documentation

◆ computeBBox()

void SoVRMLExtrusion::computeBBox ( SoAction * action,
SbBox3f & box,
SbVec3f & center )
virtual

Implemented by SoShape subclasses to let the SoShape superclass know the exact size and weighted center point of the shape's bounding box.

The bounding box and center point should be calculated and returned in the local coordinate system.

The method implements action behavior for shape nodes for SoGetBoundingBoxAction. It is invoked from SoShape::getBoundingBox(). (Subclasses should not override SoNode::getBoundingBox().)

The box parameter sent in is guaranteed to be an empty box, while center is undefined upon function entry.

Implements SoShape.

◆ createTriangleDetail()

SoDetail * SoVRMLExtrusion::createTriangleDetail ( SoRayPickAction * action,
const SoPrimitiveVertex * v1,
const SoPrimitiveVertex * v2,
const SoPrimitiveVertex * v3,
SoPickedPoint * pp )
protectedvirtual

Will create triangle detail for a SoPickedPoint. This method will only be called internally, when generatePrimitives() is used for picking (SoShape::rayPick() is not overridden).

This method returns NULL in Open Inventor, and subclasses will need to override this method to create details for a SoPickedPoint.

This is not necessary with Coin. Of course, if you choose to override it, it will work in the same way as Open Inventor.

For this to work, you must supply a face or line detail when generating primitives. If you supply NULL for the detail argument in SoShape::beginShape(), you'll have to override this method.

Reimplemented from SoShape.

◆ generatePrimitives()

void SoVRMLExtrusion::generatePrimitives ( SoAction * action)
protectedvirtual

The method implements action behavior for shape nodes for SoCallbackAction. It is invoked from SoShape::callback(). (Subclasses should not override SoNode::callback().)

The subclass implementations uses the convenience methods SoShape::beginShape(), SoShape::shapeVertex(), and SoShape::endShape(), with SoDetail instances, to pass the primitives making up the shape back to the caller.

Implements SoShape.

◆ getClassTypeId()

SoType SoVRMLExtrusion::getClassTypeId ( void )
static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoVRMLExtrusion::getFieldData ( void ) const
protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoVRMLGeometry.

◆ getFieldDataPtr()

const SoFieldData ** SoVRMLExtrusion::getFieldDataPtr ( void )
staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getPrimitiveCount()

void SoVRMLExtrusion::getPrimitiveCount ( SoGetPrimitiveCountAction * action)
virtual

Action method for the SoGetPrimitiveCountAction.

Calculates the number of triangle, line segment and point primitives for the node and adds these to the counters of the action.

Nodes influencing how geometry nodes calculate their primitive count also override this method to change the relevant state variables.

Reimplemented from SoShape.

◆ getTypeId()

SoType SoVRMLExtrusion::getTypeId ( void ) const
virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoVRMLGeometry.

◆ GLRender()

void SoVRMLExtrusion::GLRender ( SoGLRenderAction * action)
virtual

Action method for the SoGLRenderAction.

This is called during rendering traversals. Nodes influencing the rendering state in any way or want to throw geometry primitives at OpenGL override this method.

Reimplemented from SoShape.

◆ initClass()

void SoVRMLExtrusion::initClass ( void )
static

◆ notify()

void SoVRMLExtrusion::notify ( SoNotList * l)
protectedvirtual

Notifies all auditors for this instance when changes are made.

Reimplemented from SoVRMLGeometry.


The documentation for this class was generated from the following files:
