The SoShadowDirectionalLight class is a node for setting up a directional light which casts shadows. More...

#include <Inventor/annex/FXViz/nodes/SoShadowDirectionalLight.h>

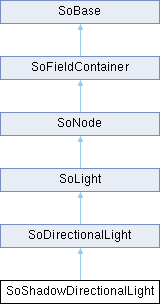

Inheritance diagram for SoShadowDirectionalLight:

Public Member Functions
	SoShadowDirectionalLight (void)

virtual SoType	getTypeId (void) const

virtual void	GLRender (SoGLRenderAction *action)

Public Member Functions inherited from SoDirectionalLight
	SoDirectionalLight (void)

Public Member Functions inherited from SoLight
virtual void	callback (SoCallbackAction *action)

Public Member Functions inherited from SoNode
virtual SoNode *	addToCopyDict (void) const

virtual SbBool	affectsState (void) const

virtual void	audioRender (SoAudioRenderAction *action)

virtual SoNode *	copy (SbBool copyconnections=FALSE) const

virtual void	copyContents (const SoFieldContainer *from, SbBool copyconnections)

virtual SoFieldContainer *	copyThroughConnection (void) const

virtual void	doAction (SoAction *action)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual SoChildList *	getChildren (void) const

virtual void	getMatrix (SoGetMatrixAction *action)

SbUniqueId	getNodeId (void) const

NodeType	getNodeType (void) const

virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual void	GLRenderBelowPath (SoGLRenderAction *action)

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	grabEventsCleanup (void)

virtual void	grabEventsSetup (void)

virtual void	handleEvent (SoHandleEventAction *action)

SbBool	isOverride (void) const

virtual void	notify (SoNotList *l)

virtual void	pick (SoPickAction *action)

virtual void	rayPick (SoRayPickAction *action)

virtual void	search (SoSearchAction *action)

void	setNodeType (const NodeType type)

void	setOverride (const SbBool state)

virtual void	startNotify (void)

virtual void	write (SoWriteAction *action)

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoFieldContainer
virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)

static void	initClass (void)

Static Public Member Functions inherited from SoDirectionalLight
static SoType	getClassTypeId (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Static Public Member Functions inherited from SoLight
static SoType	getClassTypeId (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction action, SoNode node)

static void	callbackS (SoAction action, SoNode node)

static int	getActionMethodIndex (const SoType type)

static void	getBoundingBoxS (SoAction action, SoNode node)

static SoNode *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoNodeList &l)

static SoType	getClassTypeId (void)

static uint32_t	getCompatibilityTypes (const SoType &nodetype)

static void	getMatrixS (SoAction action, SoNode node)

static SbUniqueId	getNextNodeId (void)

static void	getPrimitiveCountS (SoAction action, SoNode node)

static void	GLRenderS (SoAction action, SoNode node)

static void	handleEventS (SoAction action, SoNode node)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

static void	pickS (SoAction action, SoNode node)

static void	rayPickS (SoAction action, SoNode node)

static void	searchS (SoAction action, SoNode node)

static void	writeS (SoAction action, SoNode node)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Public Attributes
SoSFVec3f	bboxCenter

SoSFVec3f	bboxSize

SoSFFloat	maxShadowDistance

SoSFNode	shadowMapScene

Public Attributes inherited from SoDirectionalLight
SoSFVec3f	direction

Public Attributes inherited from SoLight
SoSFColor	color

SoSFFloat	intensity

SoSFBool	on

Protected Member Functions
virtual	~SoShadowDirectionalLight ()

virtual const SoFieldData *	getFieldData (void) const

Protected Member Functions inherited from SoDirectionalLight
virtual	~SoDirectionalLight ()

Protected Member Functions inherited from SoLight
	SoLight (void)

virtual	~SoLight ()

Protected Member Functions inherited from SoNode
	SoNode (void)

virtual	~SoNode ()

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual SoNotRec	createNotRec (void)

virtual void	destroy (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoDirectionalLight
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoLight
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)

static int	getNextActionMethodIndex (void)

static void	incNextActionMethodIndex (void)

static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void	setNextActionMethodIndex (int index)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Additional Inherited Members
Public Types inherited from SoNode
enum	NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }

Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Protected Attributes inherited from SoNode
SbUniqueId	uniqueId

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0

static SbUniqueId	nextUniqueId = 1

Detailed Description

The SoShadowDirectionalLight class is a node for setting up a directional light which casts shadows.

Directional lights usually affect everything, but since it is not always feasible to use one shadow map for the entire scene graph. This node has some extra features to work around this.

It calculates the intersection between the current view volume and either the scene bounding box, or the bounding box provided in this node. The shadows are only calculated for this volume. This means that you'll get more detailed shadows as you zoom in on items in the scene graph.

In addition, you can set the maximum distance from the camera which will be shaded with shadows. Think of this a new far plane for the camera which only affects shadows.

As with SoShadowSpotLight, it's possible to optimize further by setting your own shadow caster scene graph in the shadowMapScene field.

The example scene graph below demonstrates how you can use this node to create shadows on a large number of objects, and still get decent precision when zooming in. To further reduce the volume covered by the shadow map, you can set maxShadowDistance to some number > 0. This is the distance from the camera where shadows will be visible.

DirectionalLight {
   direction 0 0 -1
   intensity 0.2
}

ShadowGroup {
  quality 1 # to get per pixel lighting
  precision 1

  ShadowDirectionalLight {
    direction 1 1 -1
    intensity 0.8
    # enable this to reduce the shadow view distance
    # maxShadowDistance 200
  }

  # 900 cubes spaced out over a fairly large area
  Array {
    origin CENTER
    numElements1 30
    numElements2 30
    numElements3 1
    separation1 20 0 0
    separation2 0 20 0
    separation3 0 0 0

    Material { diffuseColor 1 0 0 specularColor 1 1 1 }
    Cube { width 4 height 4 depth 4 }
  }

  # a chess board
  Coordinate3 { point [ -400 -400 -3, 400 -400 -3, 400 400 -3, -400 400 -3 ] }
  Material { specularColor 1 1 1 shininess 0.9 }
  Complexity { textureQuality 0.1 }
  Texture2 { image 2 2 3 0xffffff 0x225588 0x225588 0xffffff }
  Texture2Transform { scaleFactor 20 20 }
  FaceSet { numVertices 4 }
}

Since: Coin 3.0

Constructor & Destructor Documentation

◆ SoShadowDirectionalLight()

SoShadowDirectionalLight::SoShadowDirectionalLight ( void )

Constructor.

◆ ~SoShadowDirectionalLight()

SoShadowDirectionalLight::~SoShadowDirectionalLight ( )

protectedvirtual

Destructor.

Member Function Documentation

◆ getClassTypeId()

SoType SoShadowDirectionalLight::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoShadowDirectionalLight::getFieldData ( void ) const

protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoDirectionalLight.

◆ getFieldDataPtr()

const SoFieldData ** SoShadowDirectionalLight::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getTypeId()

SoType SoShadowDirectionalLight::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoDirectionalLight.

◆ GLRender()

void SoShadowDirectionalLight::GLRender ( SoGLRenderAction * action )

virtual

Action method for the SoGLRenderAction.

This is called during rendering traversals. Nodes influencing the rendering state in any way or want to throw geometry primitives at OpenGL override this method.

Reimplemented from SoDirectionalLight.

◆ initClass()

void SoShadowDirectionalLight::initClass ( void )

static

Member Data Documentation

◆ bboxCenter

SoSFVec3f SoShadowDirectionalLight::bboxCenter

Can be used to specify the volume that should be used for calculating the resulting shadow volume.

◆ bboxSize

SoSFVec3f SoShadowDirectionalLight::bboxSize

Can be used to specify the volume that should be used for calculating the resulting shadow volume.

◆ maxShadowDistance

SoSFFloat SoShadowDirectionalLight::maxShadowDistance

The maximum distance (from the camera) that we'll see shadows from this light source.

◆ shadowMapScene

SoSFNode SoShadowDirectionalLight::shadowMapScene

The shadow map scene graph. If this is NULL (the default), the node will behave as a normal SoDirectionalLight node.

The documentation for this class was generated from the following files:

SoShadowDirectionalLight.h
SoShadowDirectionalLight.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SoShadowDirectionalLight()

◆ ~SoShadowDirectionalLight()

Member Function Documentation

◆ getClassTypeId()

◆ getFieldData()

◆ getFieldDataPtr()

◆ getTypeId()

◆ GLRender()

◆ initClass()

Member Data Documentation

◆ bboxCenter

◆ bboxSize

◆ maxShadowDistance

◆ shadowMapScene
