SoNodeEngine is the base class for Coin node engines. More...

#include <Inventor/engines/SoNodeEngine.h>

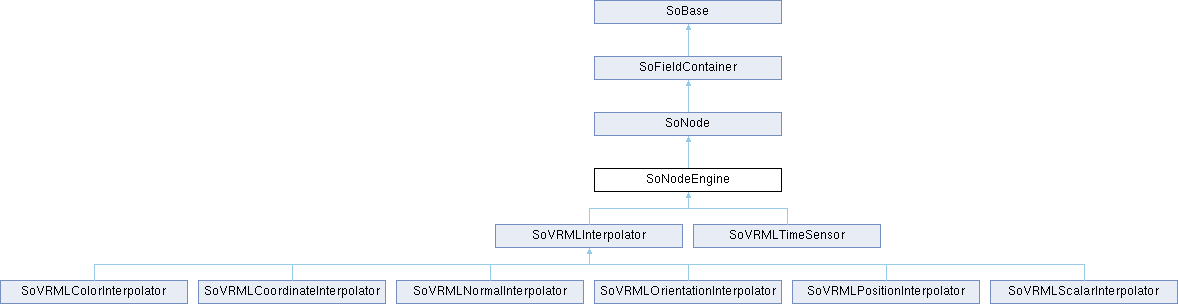

Inheritance diagram for SoNodeEngine:

Public Member Functions
void	evaluateWrapper (void)

SoEngineOutput *	getOutput (const SbName &outputname) const

virtual const SoEngineOutputData *	getOutputData (void) const =0

SbBool	getOutputName (const SoEngineOutput *output, SbName &outputname) const

virtual int	getOutputs (SoEngineOutputList &l) const

SbBool	isNotifying (void) const

virtual void	notify (SoNotList *nl)

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoNode
virtual SoNode *	addToCopyDict (void) const

virtual SbBool	affectsState (void) const

virtual void	audioRender (SoAudioRenderAction *action)

virtual void	callback (SoCallbackAction *action)

virtual SoNode *	copy (SbBool copyconnections=FALSE) const

virtual void	copyContents (const SoFieldContainer *from, SbBool copyconnections)

virtual SoFieldContainer *	copyThroughConnection (void) const

virtual void	doAction (SoAction *action)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual SoChildList *	getChildren (void) const

virtual void	getMatrix (SoGetMatrixAction *action)

SbUniqueId	getNodeId (void) const

NodeType	getNodeType (void) const

virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual void	GLRender (SoGLRenderAction *action)

virtual void	GLRenderBelowPath (SoGLRenderAction *action)

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	grabEventsCleanup (void)

virtual void	grabEventsSetup (void)

virtual void	handleEvent (SoHandleEventAction *action)

SbBool	isOverride (void) const

virtual void	pick (SoPickAction *action)

virtual void	rayPick (SoRayPickAction *action)

virtual void	search (SoSearchAction *action)

void	setNodeType (const NodeType type)

void	setOverride (const SbBool state)

virtual void	startNotify (void)

virtual void	write (SoWriteAction *action)

Public Member Functions inherited from SoFieldContainer
virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

virtual const SoFieldData *	getFieldData (void) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

virtual SoType	getTypeId (void) const =0
	Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction action, SoNode node)

static void	callbackS (SoAction action, SoNode node)

static int	getActionMethodIndex (const SoType type)

static void	getBoundingBoxS (SoAction action, SoNode node)

static SoNode *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoNodeList &l)

static SoType	getClassTypeId (void)

static uint32_t	getCompatibilityTypes (const SoType &nodetype)

static void	getMatrixS (SoAction action, SoNode node)

static SbUniqueId	getNextNodeId (void)

static void	getPrimitiveCountS (SoAction action, SoNode node)

static void	GLRenderS (SoAction action, SoNode node)

static void	handleEventS (SoAction action, SoNode node)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

static void	pickS (SoAction action, SoNode node)

static void	rayPickS (SoAction action, SoNode node)

static void	searchS (SoAction action, SoNode node)

static void	writeS (SoAction action, SoNode node)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Protected Member Functions
	SoNodeEngine (void)

virtual	~SoNodeEngine (void)

virtual void	evaluate (void)=0

virtual void	inputChanged (SoField *which)

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

void	writeOutputTypes (SoOutput *out)

Protected Member Functions inherited from SoNode
	SoNode (void)

virtual	~SoNode ()

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual SoNotRec	createNotRec (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr (void)

static const SoEngineOutputData **	getOutputDataPtr (void)

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)

static int	getNextActionMethodIndex (void)

static void	incNextActionMethodIndex (void)

static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void	setNextActionMethodIndex (int index)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Additional Inherited Members
Public Types inherited from SoNode
enum	NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }

Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Protected Attributes inherited from SoNode
SbUniqueId	uniqueId

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0

static SbUniqueId	nextUniqueId = 1

Detailed Description

SoNodeEngine is the base class for Coin node engines.

Node engines have the same functionality as normal engines, except that they inherit SoNode, which makes it possible to insert node engines in the scene graph.

The main rationale for this class is to simplify the implementation of VRML interpolator nodes, which are in a sense engines embedded in the shape of ordinary nodes.

This abstract superclass will likely be of no interest to the Coin application programmer, and you can safely ignore it.

Be aware that this class is an extension for Coin, and it is not available in the original SGI Open Inventor v2.1 API.

Constructor & Destructor Documentation

◆ SoNodeEngine()

SoNodeEngine::SoNodeEngine ( void )

protected

Default constructor.

◆ ~SoNodeEngine()

SoNodeEngine::~SoNodeEngine ( void )

protectedvirtual

Destructor.

Member Function Documentation

◆ evaluate()

void SoNodeEngine::evaluate ( void )

protectedpure virtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ evaluateWrapper()

void SoNodeEngine::evaluateWrapper ( void )

Triggers an engine evaluation.

◆ getClassTypeId()

SoType SoNodeEngine::getClassTypeId ( void )

static

◆ getFieldDataPtr()

const SoFieldData ** SoNodeEngine::getFieldDataPtr ( void )

staticprotected

Returns the SoFieldData class which holds information about inputs in this engine.

◆ getOutput()

SoEngineOutput * SoNodeEngine::getOutput ( const SbName & outputname ) const

Returns the output with name outputname, or NULL if no such output exists.

◆ getOutputData()

const SoEngineOutputData * SoNodeEngine::getOutputData ( void ) const

pure virtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Implemented in SoVRMLColorInterpolator, SoVRMLCoordinateInterpolator, SoVRMLInterpolator, SoVRMLNormalInterpolator, SoVRMLOrientationInterpolator, SoVRMLPositionInterpolator, SoVRMLScalarInterpolator, and SoVRMLTimeSensor.

◆ getOutputDataPtr()

const SoEngineOutputData ** SoNodeEngine::getOutputDataPtr ( void )

staticprotected

Returns the SoEngineOutputData class which holds information about the outputs in this engine.

◆ getOutputName()

SbBool SoNodeEngine::getOutputName	(	const SoEngineOutput *	output,
		SbName &	outputname ) const

Sets outputname to the name of output. Returns FALSE if no such output is contained within the engine instance.

◆ getOutputs()

int SoNodeEngine::getOutputs ( SoEngineOutputList & l ) const

virtual

Adds all outputs to list. Returns the number of outputs added to the list.

◆ inputChanged()

void SoNodeEngine::inputChanged ( SoField * which )

protectedvirtual

Called when an input is changed. The default method does nothing, but subclasses may override this method to do the The Right Thing when a specific field is changed.

Reimplemented in SoVRMLTimeSensor.

◆ isNotifying()

SbBool SoNodeEngine::isNotifying ( void ) const

Returns whether we're in a notification process. This is needed to avoid double notification when an engine enables outputs during inputChanged().

◆ notify()

void SoNodeEngine::notify ( SoNotList * l )

virtual

Notifies all auditors for this instance when changes are made.

Reimplemented from SoNode.

Reimplemented in SoVRMLTimeSensor.

◆ readInstance()

SbBool SoNodeEngine::readInstance	(	SoInput *	in,
		unsigned short	flags )

protectedvirtual

This method is mainly intended for internal use during file import operations.

It reads a definition of an instance from the input stream in. The input stream state points to the start of a serialized / persistent representation of an instance of this class type.

TRUE or FALSE is returned, depending on if the instantiation and configuration of the new object of this class type went OK or not. The import process should be robust and handle corrupted input streams by returning FALSE.

flags is used internally during binary import when reading user extension nodes, group nodes or engines.

Reimplemented from SoNode.

◆ writeInstance()

void SoNodeEngine::writeInstance ( SoOutput * out )

virtual

Writes all the fields contained in this instance to the output stream within out.

This method is solely called from the write methods of fields.

Either from SoField if the write is done because of a field-to-field connection, or from one of the fields which may actually write SoFieldContainer instances, i.e. SoSFNode, SoMFNode, SoSFEngine, SoMFEngine, SoSFPath and SoMFPath.

This method, in addition to the ordinary write() method of SoNode, needs to be present since the fields don't have a write action instance in their writeValue() method, and writeInstance() will create a new SoWriteAction and call continueToApply() on it.

Reimplemented from SoNode.

◆ writeOutputTypes()

void SoNodeEngine::writeOutputTypes ( SoOutput * out )

protected

Writes the types of engine outputs for extension engines (i.e. engines not built in to Coin).

The documentation for this class was generated from the following files:

SoNodeEngine.h
SoNodeEngine.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SoNodeEngine()

◆ ~SoNodeEngine()

Member Function Documentation

◆ evaluate()

◆ evaluateWrapper()

◆ getClassTypeId()

◆ getFieldDataPtr()

◆ getOutput()

◆ getOutputData()

◆ getOutputDataPtr()

◆ getOutputName()

◆ getOutputs()

◆ inputChanged()

◆ isNotifying()

◆ notify()

◆ readInstance()

◆ writeInstance()

◆ writeOutputTypes()
