The SoVRMLCoordinateInterpolator class is used to interpolate 3D coordinates. More...

#include <Inventor/VRMLnodes/SoVRMLCoorinateInterpolator.h>

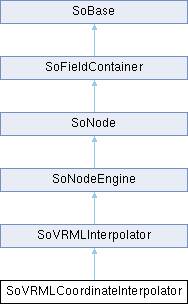

Inheritance diagram for SoVRMLCoordinateInterpolator:

Public Member Functions
virtual const SoEngineOutputData *	getOutputData (void) const

virtual SoType	getTypeId (void) const

Public Member Functions inherited from SoNodeEngine
void	evaluateWrapper (void)

SoEngineOutput *	getOutput (const SbName &outputname) const

SbBool	getOutputName (const SoEngineOutput *output, SbName &outputname) const

virtual int	getOutputs (SoEngineOutputList &l) const

SbBool	isNotifying (void) const

virtual void	notify (SoNotList *nl)

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoNode
virtual SoNode *	addToCopyDict (void) const

virtual SbBool	affectsState (void) const

virtual void	audioRender (SoAudioRenderAction *action)

virtual void	callback (SoCallbackAction *action)

virtual SoNode *	copy (SbBool copyconnections=FALSE) const

virtual void	copyContents (const SoFieldContainer *from, SbBool copyconnections)

virtual SoFieldContainer *	copyThroughConnection (void) const

virtual void	doAction (SoAction *action)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual SoChildList *	getChildren (void) const

virtual void	getMatrix (SoGetMatrixAction *action)

SbUniqueId	getNodeId (void) const

NodeType	getNodeType (void) const

virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual void	GLRender (SoGLRenderAction *action)

virtual void	GLRenderBelowPath (SoGLRenderAction *action)

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	grabEventsCleanup (void)

virtual void	grabEventsSetup (void)

virtual void	handleEvent (SoHandleEventAction *action)

SbBool	isOverride (void) const

virtual void	pick (SoPickAction *action)

virtual void	rayPick (SoRayPickAction *action)

virtual void	search (SoSearchAction *action)

void	setNodeType (const NodeType type)

void	setOverride (const SbBool state)

virtual void	startNotify (void)

virtual void	write (SoWriteAction *action)

Public Member Functions inherited from SoFieldContainer
virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static void *	createInstance (void)

static SoType	getClassTypeId (void)

static void	initClass (void)

Static Public Member Functions inherited from SoVRMLInterpolator
static SoType	getClassTypeId (void)

static void	initClass (void)

Static Public Member Functions inherited from SoNodeEngine
static SoType	getClassTypeId (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction action, SoNode node)

static void	callbackS (SoAction action, SoNode node)

static int	getActionMethodIndex (const SoType type)

static void	getBoundingBoxS (SoAction action, SoNode node)

static SoNode *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoNodeList &l)

static SoType	getClassTypeId (void)

static uint32_t	getCompatibilityTypes (const SoType &nodetype)

static void	getMatrixS (SoAction action, SoNode node)

static SbUniqueId	getNextNodeId (void)

static void	getPrimitiveCountS (SoAction action, SoNode node)

static void	GLRenderS (SoAction action, SoNode node)

static void	handleEventS (SoAction action, SoNode node)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

static void	pickS (SoAction action, SoNode node)

static void	rayPickS (SoAction action, SoNode node)

static void	searchS (SoAction action, SoNode node)

static void	writeS (SoAction action, SoNode node)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Public Attributes
SoMFVec3f	keyValue

SoEngineOutput	value_changed

Public Attributes inherited from SoVRMLInterpolator
SoMFFloat	key

SoSFFloat	set_fraction

Protected Member Functions
virtual const SoFieldData *	getFieldData (void) const

Protected Member Functions inherited from SoVRMLInterpolator
int	getKeyValueIndex (float &interp, int numvalues)

Protected Member Functions inherited from SoNodeEngine
	SoNodeEngine (void)

virtual	~SoNodeEngine (void)

virtual void	inputChanged (SoField *which)

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

void	writeOutputTypes (SoOutput *out)

Protected Member Functions inherited from SoNode
	SoNode (void)

virtual	~SoNode ()

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual SoNotRec	createNotRec (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr (void)

static const SoEngineOutputData **	getOutputDataPtr (void)

Static Protected Member Functions inherited from SoVRMLInterpolator
static const SoFieldData **	getFieldDataPtr (void)

static const SoEngineOutputData **	getOutputDataPtr (void)

Static Protected Member Functions inherited from SoNodeEngine
static const SoFieldData **	getFieldDataPtr (void)

static const SoEngineOutputData **	getOutputDataPtr (void)

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)

static int	getNextActionMethodIndex (void)

static void	incNextActionMethodIndex (void)

static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void	setNextActionMethodIndex (int index)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Additional Inherited Members
Public Types inherited from SoNode
enum	NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }

Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Protected Attributes inherited from SoNode
SbUniqueId	uniqueId

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0

static SbUniqueId	nextUniqueId = 1

Detailed Description

The SoVRMLCoordinateInterpolator class is used to interpolate 3D coordinates.

The detailed class documentation is taken verbatim from the VRML97 standard (ISO/IEC 14772-1:1997). It is copyright The Web3D Consortium, and is used by permission of the Consortium:

CoordinateInterpolator {
  eventIn      SFFloat set_fraction        # (-inf, inf)
  exposedField MFFloat key           []    # (-inf, inf)
  exposedField MFVec3f keyValue      []    # (-inf, inf)
  eventOut     MFVec3f value_changed
}

This node linearly interpolates among a list of MFVec3f values. The number of coordinates in the keyValue field shall be an integer multiple of the number of keyframes in the key field. That integer multiple defines how many coordinates will be contained in the value_changed events. 4.6.8, Interpolator nodes (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.8), contains a more detailed discussion of interpolators.

Member Function Documentation

◆ getClassTypeId()

SoType SoVRMLCoordinateInterpolator::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoVRMLCoordinateInterpolator::getFieldData ( void ) const

protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoVRMLInterpolator.

◆ getFieldDataPtr()

const SoFieldData ** SoVRMLCoordinateInterpolator::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getOutputData()

const SoEngineOutputData * SoVRMLCoordinateInterpolator::getOutputData ( void ) const

virtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Reimplemented from SoVRMLInterpolator.

◆ getTypeId()

SoType SoVRMLCoordinateInterpolator::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoVRMLInterpolator.

◆ initClass()

void SoVRMLCoordinateInterpolator::initClass ( void )

static

The documentation for this class was generated from the following files:

SoVRMLCoordinateInterpolator.h
CoordinateInterpolator.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ getClassTypeId()

◆ getFieldData()

◆ getFieldDataPtr()

◆ getOutputData()

◆ getTypeId()

◆ initClass()
