SoSpotLightManip Class Reference

The SoSpotLightManip class is used to manipulate spot light nodes. More...

#include <Inventor/manips/SoSpotLightManip.h>

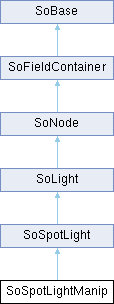

Inheritance diagram for SoSpotLightManip:
SoSpotLight SoLight SoNode SoFieldContainer SoBase

Public Member Functions

 SoSpotLightManip (void)

virtual void callback (SoCallbackAction *action)

virtual void doAction (SoAction *action)

virtual void getBoundingBox (SoGetBoundingBoxAction *action)

virtual SoChildListgetChildren (void) const

SoDraggergetDragger (void)

virtual void getMatrix (SoGetMatrixAction *action)

virtual SoType getTypeId (void) const

virtual void GLRender (SoGLRenderAction *action)

virtual void handleEvent (SoHandleEventAction *action)

virtual void pick (SoPickAction *action)

SbBool replaceManip (SoPath *p, SoSpotLight *newone) const

SbBool replaceNode (SoPath *p)

virtual void search (SoSearchAction *action)

- Public Member Functions inherited from SoSpotLight
 SoSpotLight (void)

- Public Member Functions inherited from SoNode
virtual SoNodeaddToCopyDict (void) const

virtual SbBool affectsState (void) const

virtual void audioRender (SoAudioRenderAction *action)

virtual SoNodecopy (SbBool copyconnections=FALSE) const

virtual SoFieldContainercopyThroughConnection (void) const

SbUniqueId getNodeId (void) const

NodeType getNodeType (void) const

virtual void getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual void GLRenderBelowPath (SoGLRenderAction *action)

virtual void GLRenderInPath (SoGLRenderAction *action)

virtual void GLRenderOffPath (SoGLRenderAction *action)

virtual void grabEventsCleanup (void)

virtual void grabEventsSetup (void)

SbBool isOverride (void) const

virtual void notify (SoNotList *l)

virtual void rayPick (SoRayPickAction *action)

void setNodeType (const NodeType type)

void setOverride (const SbBool state)

virtual void startNotify (void)

virtual void write (SoWriteAction *action)

virtual void writeInstance (SoOutput *out)

- Public Member Functions inherited from SoFieldContainer
virtual void addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

void copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool enableNotify (const SbBool flag)

SbBool fieldsAreEqual (const SoFieldContainer *container) const

void get (SbString &fielddata)

void get (SbString &fielddata, SoOutput *out)

virtual int getAllFields (SoFieldList &l) const

virtual SoFieldgetEventIn (const SbName &name) const

virtual SoFieldgetEventOut (const SbName &name) const

virtual SoFieldgetField (const SbName &name) const

SbBool getFieldName (const SoField *const field, SbName &name) const

virtual int getFields (SoFieldList &l) const

virtual void getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool getIsBuiltIn (void) const

voidgetUserData (void) const

SbBool hasDefaultValues (void) const

SbBool isNotifyEnabled (void) const

SbBool set (const char *const fielddata)

SbBool set (const char *fielddata, SoInput *input)

void setToDefaults (void)

void setUserData (void *userdata) const

virtual SbBool validateNewFieldValue (SoField *field, void *newval)

- Public Member Functions inherited from SoBase
void addAuditor (void *const auditor, const SoNotRec::Type type)

void assertAlive (void) const

const SoAuditorListgetAuditors (void) const

virtual SbName getName (void) const

int32_t getRefCount (void) const

SbBool isOfType (SoType type) const
 Returns TRUE if the type of this object is either of the same type or inherited from type.

void ref (void) const

void removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void setName (const SbName &newname)

SbBool shouldWrite (void)

void touch (void)

void unref (void) const

void unrefNoDelete (void) const


Static Public Member Functions

static SoType getClassTypeId (void)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

- Static Public Member Functions inherited from SoSpotLight
static SoType getClassTypeId (void)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

- Static Public Member Functions inherited from SoLight
static SoType getClassTypeId (void)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

- Static Public Member Functions inherited from SoNode
static void audioRenderS (SoAction *action, SoNode *node)

static void callbackS (SoAction *action, SoNode *node)

static int getActionMethodIndex (const SoType type)

static void getBoundingBoxS (SoAction *action, SoNode *node)

static SoNodegetByName (const SbName &name)

static int getByName (const SbName &name, SoNodeList &l)

static SoType getClassTypeId (void)

static uint32_t getCompatibilityTypes (const SoType &nodetype)

static void getMatrixS (SoAction *action, SoNode *node)

static SbUniqueId getNextNodeId (void)

static void getPrimitiveCountS (SoAction *action, SoNode *node)

static void GLRenderS (SoAction *action, SoNode *node)

static void handleEventS (SoAction *action, SoNode *node)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void initClasses (void)

static void pickS (SoAction *action, SoNode *node)

static void rayPickS (SoAction *action, SoNode *node)

static void searchS (SoAction *action, SoNode *node)

static void writeS (SoAction *action, SoNode *node)

- Static Public Member Functions inherited from SoFieldContainer
static void addCopy (const SoFieldContainer *orig, const SoFieldContainer *copy)

static SoFieldContainercheckCopy (const SoFieldContainer *orig)

static void cleanupClass (void)

static void copyDone (void)

static SoFieldContainerfindCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType getClassTypeId (void)
 This static method returns the SoType object associated with objects of this class.

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void initCopyDict (void)

- Static Public Member Functions inherited from SoBase
static void addName (SoBase *const base, const char *const name)

static SbBool connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void decrementCurrentWriteCounter (void)

static SoType getClassTypeId (void)
 This static method returns the SoType object associated with objects of this class.

static SoBasegetNamedBase (const SbName &name, SoType type)

static int getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool getTraceRefs (void)

static void incrementCurrentWriteCounter (void)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool read (SoInput *input, SoBase *&base, SoType expectedtype)

static SbBool readRoute (SoInput *input)

static void removeName (SoBase *const base, const char *const name)

static void setInstancePrefix (const SbString &c)

static void setTraceRefs (SbBool trace)


Protected Member Functions

virtual ~SoSpotLightManip (void)

virtual void copyContents (const SoFieldContainer *fromfc, SbBool copyconnections)

virtual const SoFieldDatagetFieldData (void) const

void setDragger (SoDragger *newdragger)

- Protected Member Functions inherited from SoSpotLight
virtual ~SoSpotLight ()

- Protected Member Functions inherited from SoLight
 SoLight (void)

virtual ~SoLight ()

- Protected Member Functions inherited from SoNode
 SoNode (void)

virtual ~SoNode ()

virtual SbBool readInstance (SoInput *in, unsigned short flags)

- Protected Member Functions inherited from SoFieldContainer
 SoFieldContainer (void)

virtual ~SoFieldContainer ()

- Protected Member Functions inherited from SoBase
 SoBase (void)

virtual ~SoBase ()

virtual SoNotRec createNotRec (void)

virtual void destroy (void)

virtual const char * getFileFormatName (void) const

SbBool hasMultipleWriteRefs (void) const

void writeFooter (SoOutput *out) const

SbBool writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const


Static Protected Member Functions

static void fieldSensorCB (void *f, SoSensor *d)

static const SoFieldData ** getFieldDataPtr (void)

static void transferFieldValues (const SoSpotLight *from, SoSpotLight *to)

static void valueChangedCB (void *f, SoDragger *d)

- Static Protected Member Functions inherited from SoSpotLight
static const SoFieldData ** getFieldDataPtr (void)

- Static Protected Member Functions inherited from SoLight
static const SoFieldData ** getFieldDataPtr (void)

- Static Protected Member Functions inherited from SoNode
static const SoFieldData ** getFieldDataPtr (void)

static int getNextActionMethodIndex (void)

static void incNextActionMethodIndex (void)

static void setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void setNextActionMethodIndex (int index)

- Static Protected Member Functions inherited from SoBase
static uint32_t getCurrentWriteCounter (void)

static void staticDataLock (void)

static void staticDataUnlock (void)


Protected Attributes

SoFieldSensorangleFieldSensor

SoChildListchildren

SoFieldSensorcolorFieldSensor

SoFieldSensordirectionFieldSensor

SoFieldSensorlocationFieldSensor

- Protected Attributes inherited from SoNode
SbUniqueId uniqueId

- Protected Attributes inherited from SoFieldContainer
SbBool isBuiltIn


Additional Inherited Members

- Public Types inherited from SoNode
enum  NodeType {
  INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 ,
  INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 ,
  COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 ,
  COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 ,
  COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000
}

- Public Attributes inherited from SoSpotLight
SoSFFloat cutOffAngle

SoSFVec3f direction

SoSFFloat dropOffRate

SoSFVec3f location

- Public Attributes inherited from SoLight
SoSFColor color

SoSFFloat intensity

SoSFBool on

- Protected Types inherited from SoBase
enum  BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

- Static Protected Attributes inherited from SoNode
static int nextActionMethodIndex = 0

static SbUniqueId nextUniqueId = 1


Detailed Description

The SoSpotLightManip class is used to manipulate spot light nodes.

A manipulator is used by replacing the node you want to edit in the graph with the manipulator. Draggers are used to manipulate the node. When manipulation is finished, the node is put back into the graph, replacing the manipulator.

Example of SpotLight Manipulator

Constructor & Destructor Documentation

◆ SoSpotLightManip()

SoSpotLightManip::SoSpotLightManip ( void )

The constructor sets up the internal SoSpotLightDragger used for manipulation.

◆ ~SoSpotLightManip()

SoSpotLightManip::~SoSpotLightManip ( void )
protectedvirtual

Destructor.

Member Function Documentation

◆ callback()

void SoSpotLightManip::callback ( SoCallbackAction * action)
virtual

Action method for SoCallbackAction.

Simply updates the state according to how the node behaves for the render action, so the application programmer can use the SoCallbackAction for extracting information about the scene graph.

Reimplemented from SoLight.

◆ copyContents()

void SoSpotLightManip::copyContents ( const SoFieldContainer * from,
SbBool copyconnections )
protectedvirtual

Makes a deep copy of all data of from into this instance, except external scene graph references if copyconnections is FALSE.

This is the method that should be overridden by extension node / engine / dragger / whatever subclasses which need to account for internal data that are not handled automatically.

For copying nodes from application code, you should not invoke this function directly, but rather call the SoNode::copy() function:

The SbList class is a template container class for lists.
Definition SbList.h:70
void copy(const SbList< Type > &l)
Definition SbList.h:92
The SoNode class is the base class for nodes used in scene graphs.
Definition SoNode.h:56

The same also goes for engines.

Make sure that when you override the copyContents() method in your extension class that you also make it call upwards to its parent superclass in the inheritance hierarchy, as copyContents() in for instance SoNode and SoFieldContainer does important work. It should go something like this:

void
MyCoinExtensionNode::copyContents(const SoFieldContainer * from,
{
// let parent superclasses do their thing (copy fields, copy
// instance name, etc.)
// [..then copy internal data..]
}
The SoFieldContainer class is a base class for all classes that contain fields.
Definition SoFieldContainer.h:43
virtual void copyContents(const SoFieldContainer *from, SbBool copyconnections)
Definition SoNode.cpp:1483

Reimplemented from SoNode.

◆ doAction()

void SoSpotLightManip::doAction ( SoAction * action)
virtual

This function performs the typical operation of a node for any action.

Reimplemented from SoNode.

◆ fieldSensorCB()

void SoSpotLightManip::fieldSensorCB ( void * m,
SoSensor * d )
staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Updates the dragger whenever a field is modified.

◆ getBoundingBox()

void SoSpotLightManip::getBoundingBox ( SoGetBoundingBoxAction * action)
virtual

Action method for the SoGetBoundingBoxAction.

Calculates bounding box and center coordinates for node and modifies the values of the action to encompass the bounding box for this node and to shift the center point for the scene more towards the one for this node.

Nodes influencing how geometry nodes calculate their bounding box also override this method to change the relevant state variables.

Reimplemented from SoNode.

◆ getChildren()

SoChildList * SoSpotLightManip::getChildren ( void ) const
virtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the children of this node. This node only has the dragger as a child.

Reimplemented from SoNode.

◆ getClassTypeId()

SoType SoSpotLightManip::getClassTypeId ( void )
static

This static method returns the SoType object associated with objects of this class.

◆ getDragger()

SoDragger * SoSpotLightManip::getDragger ( void )

Returns pointer to internal dragger.

◆ getFieldData()

const SoFieldData * SoSpotLightManip::getFieldData ( void ) const
protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoSpotLight.

◆ getFieldDataPtr()

const SoFieldData ** SoSpotLightManip::getFieldDataPtr ( void )
staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getMatrix()

void SoSpotLightManip::getMatrix ( SoGetMatrixAction * action)
virtual

Action method for SoGetMatrixAction.

Updates action by accumulating with the transformation matrix of this node (if any).

Reimplemented from SoNode.

◆ getTypeId()

SoType SoSpotLightManip::getTypeId ( void ) const
virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoSpotLight.

◆ GLRender()

void SoSpotLightManip::GLRender ( SoGLRenderAction * action)
virtual

Action method for the SoGLRenderAction.

This is called during rendering traversals. Nodes influencing the rendering state in any way or want to throw geometry primitives at OpenGL override this method.

Reimplemented from SoSpotLight.

◆ handleEvent()

void SoSpotLightManip::handleEvent ( SoHandleEventAction * action)
virtual

Action method for SoHandleEventAction.

Inspects the event data from action, and processes it if it is something which this node should react to.

Nodes influencing relevant state variables for how event handling is done also override this method.

Reimplemented from SoNode.

◆ pick()

void SoSpotLightManip::pick ( SoPickAction * action)
virtual

Action method for SoPickAction.

Does common processing for SoPickAction action instances.

Reimplemented from SoNode.

◆ replaceManip()

SbBool SoSpotLightManip::replaceManip ( SoPath * path,
SoSpotLight * newone ) const

Replaces this manipulator from the position specified by path with newnode. If newnode is NULL, an SoSpotLight will be created for you.

◆ replaceNode()

SbBool SoSpotLightManip::replaceNode ( SoPath * path)

Replaces the node specified by path with this manipulator. The manipulator will copy the field data from the node, to make it affect the state in the same way as the node.

◆ search()

void SoSpotLightManip::search ( SoSearchAction * action)
virtual

Action method for SoSearchAction.

Compares the search criteria from the action to see if this node is a match. Searching is done by matching up all criteria set up in the SoSearchAction – if any of the requested criteria is a miss, the search is not deemed successful for the node.

See also
SoSearchAction

Reimplemented from SoNode.

◆ setDragger()

void SoSpotLightManip::setDragger ( SoDragger * newdragger)
protected

Set dragger to use for user interaction.

◆ transferFieldValues()

void SoSpotLightManip::transferFieldValues ( const SoSpotLight * from,
SoSpotLight * to )
staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Copies field values.

◆ valueChangedCB()

void SoSpotLightManip::valueChangedCB ( void * m,
SoDragger * dragger )
staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Updates the fields when the motion matrix changes.

Member Data Documentation

◆ angleFieldSensor

SoFieldSensor * SoSpotLightManip::angleFieldSensor
protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ children

SoChildList * SoSpotLightManip::children
protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ colorFieldSensor

SoFieldSensor * SoSpotLightManip::colorFieldSensor
protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ directionFieldSensor

SoFieldSensor * SoSpotLightManip::directionFieldSensor
protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ locationFieldSensor

SoFieldSensor * SoSpotLightManip::locationFieldSensor
protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.


The documentation for this class was generated from the following files:
