SoAnnotation Class Reference

The SoAnnotation node draws all its child geometry on top of other geometry. More...

#include <Inventor/nodes/SoAnnotation.h>

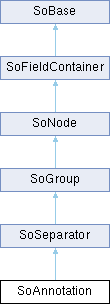

Inheritance diagram for SoAnnotation:

Public Member Functions
	SoAnnotation (void)
virtual SoType	getTypeId (void) const
virtual void	GLRender (SoGLRenderAction *action)
virtual void	GLRenderBelowPath (SoGLRenderAction *action)
virtual void	GLRenderInPath (SoGLRenderAction *action)
virtual void	GLRenderOffPath (SoGLRenderAction *action)
Public Member Functions inherited from SoSeparator
	SoSeparator (const int nchildren)
	SoSeparator (void)
virtual SbBool	affectsState (void) const
virtual void	audioRender (SoAudioRenderAction *action)
virtual void	callback (SoCallbackAction *action)
virtual void	doAction (SoAction *action)
virtual void	getBoundingBox (SoGetBoundingBoxAction *action)
virtual void	getMatrix (SoGetMatrixAction *action)
virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)
virtual void	handleEvent (SoHandleEventAction *action)
virtual void	notify (SoNotList *nl)
virtual void	rayPick (SoRayPickAction *action)
virtual void	search (SoSearchAction *action)
Public Member Functions inherited from SoGroup
	SoGroup (int nchildren)
	SoGroup (void)
virtual void	addChild (SoNode *node)
virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)
virtual int	findChild (const SoNode *node) const
virtual SoNode *	getChild (int index) const
virtual SoChildList *	getChildren (void) const
virtual int	getNumChildren (void) const
virtual void	insertChild (SoNode *child, int newchildindex)
virtual void	pick (SoPickAction *action)
virtual void	removeAllChildren (void)
virtual void	removeChild (int childindex)
virtual void	removeChild (SoNode *child)
virtual void	replaceChild (int index, SoNode *newchild)
virtual void	replaceChild (SoNode *oldchild, SoNode *newchild)
virtual void	write (SoWriteAction *action)
Public Member Functions inherited from SoNode
virtual SoNode *	addToCopyDict (void) const
virtual SoNode *	copy (SbBool copyconnections=FALSE) const
virtual SoFieldContainer *	copyThroughConnection (void) const
SbUniqueId	getNodeId (void) const
NodeType	getNodeType (void) const
virtual void	grabEventsCleanup (void)
virtual void	grabEventsSetup (void)
SbBool	isOverride (void) const
void	setNodeType (const NodeType type)
void	setOverride (const SbBool state)
virtual void	startNotify (void)
virtual void	writeInstance (SoOutput *out)
Public Member Functions inherited from SoFieldContainer
void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)
SbBool	enableNotify (const SbBool flag)
SbBool	fieldsAreEqual (const SoFieldContainer *container) const
void	get (SbString &fielddata)
void	get (SbString &fielddata, SoOutput *out)
virtual int	getAllFields (SoFieldList &l) const
virtual SoField *	getEventIn (const SbName &name) const
virtual SoField *	getEventOut (const SbName &name) const
virtual SoField *	getField (const SbName &name) const
SbBool	getFieldName (const SoField *const field, SbName &name) const
virtual int	getFields (SoFieldList &l) const
virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const
SbBool	getIsBuiltIn (void) const
void *	getUserData (void) const
SbBool	hasDefaultValues (void) const
SbBool	isNotifyEnabled (void) const
SbBool	set (const char *const fielddata)
SbBool	set (const char *fielddata, SoInput *input)
void	setToDefaults (void)
void	setUserData (void *userdata) const
virtual SbBool	validateNewFieldValue (SoField *field, void *newval)
Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)
void	assertAlive (void) const
const SoAuditorList &	getAuditors (void) const
virtual SbName	getName (void) const
int32_t	getRefCount (void) const
SbBool	isOfType (SoType type) const
	Returns TRUE if the type of this object is either of the same type or inherited from type.
void	ref (void) const
void	removeAuditor (void *const auditor, const SoNotRec::Type type)
virtual void	setName (const SbName &newname)
SbBool	shouldWrite (void)
void	touch (void)
void	unref (void) const
void	unrefNoDelete (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.
Static Public Member Functions inherited from SoSeparator
static SoType	getClassTypeId (void)
static int	getNumRenderCaches (void)
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.
static void	setNumRenderCaches (const int howmany)
Static Public Member Functions inherited from SoGroup
static SoType	getClassTypeId (void)
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.
Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction *action, SoNode *node)
static void	callbackS (SoAction *action, SoNode *node)
static int	getActionMethodIndex (const SoType type)
static void	getBoundingBoxS (SoAction *action, SoNode *node)
static SoNode *	getByName (const SbName &name)
static int	getByName (const SbName &name, SoNodeList &l)
static SoType	getClassTypeId (void)
static uint32_t	getCompatibilityTypes (const SoType &nodetype)
static void	getMatrixS (SoAction *action, SoNode *node)
static SbUniqueId	getNextNodeId (void)
static void	getPrimitiveCountS (SoAction *action, SoNode *node)
static void	GLRenderS (SoAction *action, SoNode *node)
static void	handleEventS (SoAction *action, SoNode *node)
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.
static void	initClasses (void)
static void	pickS (SoAction *action, SoNode *node)
static void	rayPickS (SoAction *action, SoNode *node)
static void	searchS (SoAction *action, SoNode *node)
static void	writeS (SoAction *action, SoNode *node)
Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer *orig, const SoFieldContainer *copy)
static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)
static void	cleanupClass (void)
static void	copyDone (void)
static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)
static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.
static void	initCopyDict (void)
Static Public Member Functions inherited from SoBase
static void	addName (SoBase *const base, const char *const name)
static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)
static void	decrementCurrentWriteCounter (void)
static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.
static SoBase *	getNamedBase (const SbName &name, SoType type)
static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)
static SbBool	getTraceRefs (void)
static void	incrementCurrentWriteCounter (void)
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.
static SbBool	read (SoInput *input, SoBase *&base, SoType expectedtype)
static SbBool	readRoute (SoInput *input)
static void	removeName (SoBase *const base, const char *const name)
static void	setInstancePrefix (const SbString &c)
static void	setTraceRefs (SbBool trace)

Protected Member Functions
virtual	~SoAnnotation ()
virtual const SoFieldData *	getFieldData (void) const
Protected Member Functions inherited from SoSeparator
virtual	~SoSeparator ()
virtual SbBool	cullTest (SoGLRenderAction *action, int &cullresults)
virtual SbBool	cullTest (SoState *state)
virtual SbBool	readInstance (SoInput *in, unsigned short flags)
Protected Member Functions inherited from SoGroup
virtual	~SoGroup ()
virtual void	copyContents (const SoFieldContainer *from, SbBool copyconnections)
virtual SoNotRec	createNotRec (void)
virtual SbBool	readChildren (SoInput *in)
void	setOperation (const SoNotRec::OperationType opType=SoNotRec::UNSPECIFIED, const SoNode *cc=NULL, const SoNode *pc=NULL, const int ci=-1)
Protected Member Functions inherited from SoNode
	SoNode (void)
virtual	~SoNode ()
Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)
virtual	~SoFieldContainer ()
Protected Member Functions inherited from SoBase
	SoBase (void)
virtual	~SoBase ()
virtual void	destroy (void)
virtual const char *	getFileFormatName (void) const
SbBool	hasMultipleWriteRefs (void) const
void	writeFooter (SoOutput *out) const
SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr (void)
Static Protected Member Functions inherited from SoSeparator
static const SoFieldData **	getFieldDataPtr (void)
Static Protected Member Functions inherited from SoGroup
static const SoFieldData **	getFieldDataPtr (void)
Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)
static int	getNextActionMethodIndex (void)
static void	incNextActionMethodIndex (void)
static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)
static void	setNextActionMethodIndex (int index)
Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)
static void	staticDataLock (void)
static void	staticDataUnlock (void)

Additional Inherited Members
Public Types inherited from SoSeparator
enum	CacheEnabled { OFF , ON , AUTO }
Public Types inherited from SoNode
enum	NodeType {   INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 ,   INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 ,   COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 ,   COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 ,   COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }
Public Attributes inherited from SoSeparator
SoSFEnum	boundingBoxCaching
SoSFEnum	pickCulling
SoSFEnum	renderCaching
SoSFEnum	renderCulling
Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }
Protected Attributes inherited from SoGroup
SoChildList *	children
Protected Attributes inherited from SoNode
SbUniqueId	uniqueId
Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn
Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0
static SbUniqueId	nextUniqueId = 1

Detailed Description

The SoAnnotation node draws all its child geometry on top of other geometry.

This group-type node uses delayed rendering in combination with z-buffer disabling to let its children transparently render their geometry on top of the other geometry in the scene.

Since the z-buffer needs to be disabled, the children's geometry will not be rendered back-to-front sorted, but rather in the order they are present in the scene graph.

FILE FORMAT/DEFAULTS:

Annotation {
    renderCaching AUTO
    boundingBoxCaching AUTO
    renderCulling AUTO
    pickCulling AUTO
}

Constructor & Destructor Documentation

SoAnnotation()

SoAnnotation::SoAnnotation

(

void

)

Constructor.

~SoAnnotation()

SoAnnotation::~SoAnnotation ( )

protectedvirtual

Destructor.

Member Function Documentation

getClassTypeId()

SoType SoAnnotation::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

getFieldData()

const SoFieldData * SoAnnotation::getFieldData ( void ) const

protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoSeparator.

getFieldDataPtr()

const SoFieldData ** SoAnnotation::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

getTypeId()

SoType SoAnnotation::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoSeparator.

GLRender()

void SoAnnotation::GLRender ( SoGLRenderAction * action )

virtual

Action method for the SoGLRenderAction.

This is called during rendering traversals. Nodes influencing the rendering state in any way or want to throw geometry primitives at OpenGL override this method.

Reimplemented from SoSeparator.

GLRenderBelowPath()

void SoAnnotation::GLRenderBelowPath ( SoGLRenderAction * action )

virtual

SGI Open Inventor v2.1 obsoleted support for SoGLRenderAction::addMethod(). Instead, GLRender() might be called directly, and to optimize traversal, the SoSeparator node calls GLRenderBelowPath whenever the path code is BELOW_PATH or NO_PATH (path code is guaranteed not to change). To be compatible with SGI's Inventor (and thereby also TGS') we have chosen to follow their implementation in this respect.

SoSeparator::GLRenderBelowPath() does not traverse its children using SoChildList::traverse(), but calls GLRenderBelowPath() directly for all its children.

Reimplemented from SoSeparator.

GLRenderInPath()

void SoAnnotation::GLRenderInPath ( SoGLRenderAction * action )

virtual

Implements the SoAction::IN_PATH traversal method for the rendering action.

Reimplemented from SoSeparator.

GLRenderOffPath()

void SoAnnotation::GLRenderOffPath ( SoGLRenderAction * action )

virtual

Implements the SoAction::OFF_PATH traversal method for the rendering action.

Reimplemented from SoSeparator.

---

The documentation for this class was generated from the following files:

• SoAnnotation.h
• SoAnnotation.cpp
