The SoVRMLDragSensor class is a superclass for VRML drag sensors. More...

#include <Inventor/VRMLnodes/SoVRMLDragSensor.h>

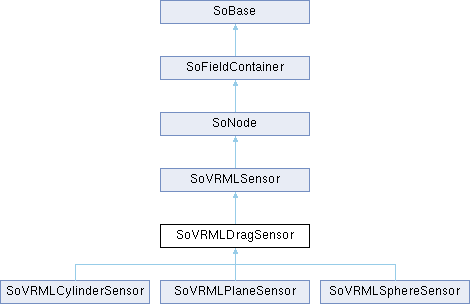

Inheritance diagram for SoVRMLDragSensor:

Public Member Functions
virtual SoType	getTypeId (void) const

virtual void	handleEvent (SoHandleEventAction *action)

Public Member Functions inherited from SoNode
virtual SoNode *	addToCopyDict (void) const

virtual SbBool	affectsState (void) const

virtual void	audioRender (SoAudioRenderAction *action)

virtual void	callback (SoCallbackAction *action)

virtual SoNode *	copy (SbBool copyconnections=FALSE) const

virtual void	copyContents (const SoFieldContainer *from, SbBool copyconnections)

virtual SoFieldContainer *	copyThroughConnection (void) const

virtual void	doAction (SoAction *action)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual SoChildList *	getChildren (void) const

virtual void	getMatrix (SoGetMatrixAction *action)

SbUniqueId	getNodeId (void) const

NodeType	getNodeType (void) const

virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual void	GLRender (SoGLRenderAction *action)

virtual void	GLRenderBelowPath (SoGLRenderAction *action)

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	grabEventsCleanup (void)

virtual void	grabEventsSetup (void)

SbBool	isOverride (void) const

virtual void	notify (SoNotList *l)

virtual void	pick (SoPickAction *action)

virtual void	rayPick (SoRayPickAction *action)

virtual void	search (SoSearchAction *action)

void	setNodeType (const NodeType type)

void	setOverride (const SbBool state)

virtual void	startNotify (void)

virtual void	write (SoWriteAction *action)

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoFieldContainer
virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)

static void	initClass (void)

Static Public Member Functions inherited from SoVRMLSensor
static SoType	getClassTypeId (void)

static void	initClass (void)

Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction action, SoNode node)

static void	callbackS (SoAction action, SoNode node)

static int	getActionMethodIndex (const SoType type)

static void	getBoundingBoxS (SoAction action, SoNode node)

static SoNode *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoNodeList &l)

static SoType	getClassTypeId (void)

static uint32_t	getCompatibilityTypes (const SoType &nodetype)

static void	getMatrixS (SoAction action, SoNode node)

static SbUniqueId	getNextNodeId (void)

static void	getPrimitiveCountS (SoAction action, SoNode node)

static void	GLRenderS (SoAction action, SoNode node)

static void	handleEventS (SoAction action, SoNode node)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

static void	pickS (SoAction action, SoNode node)

static void	rayPickS (SoAction action, SoNode node)

static void	searchS (SoAction action, SoNode node)

static void	writeS (SoAction action, SoNode node)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Public Attributes
SoSFBool	autoOffset

SoSFVec3f	trackPoint_changed

Public Attributes inherited from SoVRMLSensor
SoSFBool	enabled

SoSFBool	isActive

Protected Member Functions
	SoVRMLDragSensor (void)

virtual	~SoVRMLDragSensor ()

virtual void	drag (void)=0

virtual void	dragFinish (void)=0

virtual SbBool	dragStart (void)=0

virtual const SoFieldData *	getFieldData (void) const

const SbVec3f &	getLocalStartingPoint (void) const

const SbMatrix &	getLocalToWorldMatrix (void) const

const SbVec2f &	getNormalizedLocaterPosition (void) const

const SbViewVolume &	getViewVolume (void) const

const SbMatrix &	getWorldToLocalMatrix (void) const

Protected Member Functions inherited from SoNode
	SoNode (void)

virtual	~SoNode ()

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual SoNotRec	createNotRec (void)

virtual void	destroy (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoVRMLSensor
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)

static int	getNextActionMethodIndex (void)

static void	incNextActionMethodIndex (void)

static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void	setNextActionMethodIndex (int index)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Additional Inherited Members
Public Types inherited from SoNode
enum	NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }

Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Protected Attributes inherited from SoNode
SbUniqueId	uniqueId

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0

static SbUniqueId	nextUniqueId = 1

Detailed Description

The SoVRMLDragSensor class is a superclass for VRML drag sensors.

This class collects the two fields that are common for some of the sensor nodes, plus some common functions for these. Since this is an abstract "helper" class, it does not represent an actual node from the VRML97 specification, so don't use it as such.

For more information, a detailed discussion of drag sensors is available in section 4.6.7.4 of the VRML97 specification:

http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.7.4.

Constructor & Destructor Documentation

◆ SoVRMLDragSensor()

SoVRMLDragSensor::SoVRMLDragSensor ( void )

protected

Constructor.

◆ ~SoVRMLDragSensor()

SoVRMLDragSensor::~SoVRMLDragSensor ( )

protectedvirtual

Destructor.

Member Function Documentation

◆ drag()

void SoVRMLDragSensor::drag ( void )

protectedpure virtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Called when user drags the mouse after picking the dragger.

Implemented in SoVRMLCylinderSensor, SoVRMLPlaneSensor, and SoVRMLSphereSensor.

◆ dragFinish()

void SoVRMLDragSensor::dragFinish ( void )

protectedpure virtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Called when mouse button is released after picking and interacting with the dragger.

Implemented in SoVRMLCylinderSensor, SoVRMLPlaneSensor, and SoVRMLSphereSensor.

◆ dragStart()

SbBool SoVRMLDragSensor::dragStart ( void )

protectedpure virtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Called when dragger is selected (picked) by the user.

Implemented in SoVRMLCylinderSensor, SoVRMLPlaneSensor, and SoVRMLSphereSensor.

◆ getClassTypeId()

SoType SoVRMLDragSensor::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoVRMLDragSensor::getFieldData ( void ) const

protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoVRMLSensor.

Reimplemented in SoVRMLCylinderSensor, SoVRMLPlaneSensor, and SoVRMLSphereSensor.

◆ getFieldDataPtr()

const SoFieldData ** SoVRMLDragSensor::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getLocalStartingPoint()

const SbVec3f & SoVRMLDragSensor::getLocalStartingPoint ( void ) const

protected

Returns the interaction starting point.

◆ getLocalToWorldMatrix()

const SbMatrix & SoVRMLDragSensor::getLocalToWorldMatrix ( void ) const

protected

Returns the matrix that transforms to the world coordinate system.

◆ getNormalizedLocaterPosition()

const SbVec2f & SoVRMLDragSensor::getNormalizedLocaterPosition ( void ) const

protected

Returns the current normalized pointer position.

◆ getTypeId()

SoType SoVRMLDragSensor::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoVRMLSensor.

Reimplemented in SoVRMLCylinderSensor, SoVRMLPlaneSensor, and SoVRMLSphereSensor.

◆ getViewVolume()

const SbViewVolume & SoVRMLDragSensor::getViewVolume ( void ) const

protected

Returns the current view volume.

◆ getWorldToLocalMatrix()

const SbMatrix & SoVRMLDragSensor::getWorldToLocalMatrix ( void ) const

protected

Returns the matrix that transforms from the world coordinate system.

◆ handleEvent()

void SoVRMLDragSensor::handleEvent ( SoHandleEventAction * action )

virtual

Action method for SoHandleEventAction.

Inspects the event data from action, and processes it if it is something which this node should react to.

Nodes influencing relevant state variables for how event handling is done also override this method.

Reimplemented from SoNode.

◆ initClass()

void SoVRMLDragSensor::initClass ( void )

static

Member Data Documentation

◆ autoOffset

SoSFBool SoVRMLDragSensor::autoOffset

When TRUE, the offset field is updated when a dragging sequence is finished. Default value is TRUE.

◆ trackPoint_changed

SoSFVec3f SoVRMLDragSensor::trackPoint_changed

An event out that is generated when the trackpoint is changed.

The documentation for this class was generated from the following files:

SoVRMLDragSensor.h
DragSensor.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SoVRMLDragSensor()

◆ ~SoVRMLDragSensor()

Member Function Documentation

◆ drag()

◆ dragFinish()

◆ dragStart()

◆ getClassTypeId()

◆ getFieldData()

◆ getFieldDataPtr()

◆ getLocalStartingPoint()

◆ getLocalToWorldMatrix()

◆ getNormalizedLocaterPosition()

◆ getTypeId()

◆ getViewVolume()

◆ getWorldToLocalMatrix()

◆ handleEvent()

◆ initClass()

Member Data Documentation

◆ autoOffset

◆ trackPoint_changed
