SoVRMLPlaneSensor Class Reference

The SoVRMLPlaneSensor class maps pointer motion into object space translations. More...

#include <Inventor/VRMLnodes/SoVRMLPlaneSensor>

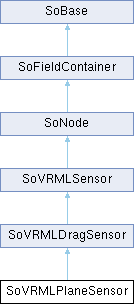

Inheritance diagram for SoVRMLPlaneSensor:
SoVRMLDragSensor SoVRMLSensor SoNode SoFieldContainer SoBase

Public Member Functions

 SoVRMLPlaneSensor (void)

virtual SoType getTypeId (void) const

- Public Member Functions inherited from SoVRMLDragSensor
virtual void handleEvent (SoHandleEventAction *action)

- Public Member Functions inherited from SoNode
virtual SoNodeaddToCopyDict (void) const

virtual SbBool affectsState (void) const

virtual void audioRender (SoAudioRenderAction *action)

virtual void callback (SoCallbackAction *action)

virtual SoNodecopy (SbBool copyconnections=FALSE) const

virtual void copyContents (const SoFieldContainer *from, SbBool copyconnections)

virtual SoFieldContainercopyThroughConnection (void) const

virtual void doAction (SoAction *action)

virtual void getBoundingBox (SoGetBoundingBoxAction *action)

virtual SoChildListgetChildren (void) const

virtual void getMatrix (SoGetMatrixAction *action)

SbUniqueId getNodeId (void) const

NodeType getNodeType (void) const

virtual void getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual void GLRender (SoGLRenderAction *action)

virtual void GLRenderBelowPath (SoGLRenderAction *action)

virtual void GLRenderInPath (SoGLRenderAction *action)

virtual void GLRenderOffPath (SoGLRenderAction *action)

virtual void grabEventsCleanup (void)

virtual void grabEventsSetup (void)

SbBool isOverride (void) const

virtual void notify (SoNotList *l)

virtual void pick (SoPickAction *action)

virtual void rayPick (SoRayPickAction *action)

virtual void search (SoSearchAction *action)

void setNodeType (const NodeType type)

void setOverride (const SbBool state)

virtual void startNotify (void)

virtual void write (SoWriteAction *action)

virtual void writeInstance (SoOutput *out)

- Public Member Functions inherited from SoFieldContainer
virtual void addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

void copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool enableNotify (const SbBool flag)

SbBool fieldsAreEqual (const SoFieldContainer *container) const

void get (SbString &fielddata)

void get (SbString &fielddata, SoOutput *out)

virtual int getAllFields (SoFieldList &l) const

virtual SoFieldgetEventIn (const SbName &name) const

virtual SoFieldgetEventOut (const SbName &name) const

virtual SoFieldgetField (const SbName &name) const

SbBool getFieldName (const SoField *const field, SbName &name) const

virtual int getFields (SoFieldList &l) const

virtual void getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool getIsBuiltIn (void) const

voidgetUserData (void) const

SbBool hasDefaultValues (void) const

SbBool isNotifyEnabled (void) const

SbBool set (const char *const fielddata)

SbBool set (const char *fielddata, SoInput *input)

void setToDefaults (void)

void setUserData (void *userdata) const

virtual SbBool validateNewFieldValue (SoField *field, void *newval)

- Public Member Functions inherited from SoBase
void addAuditor (void *const auditor, const SoNotRec::Type type)

void assertAlive (void) const

const SoAuditorListgetAuditors (void) const

virtual SbName getName (void) const

int32_t getRefCount (void) const

SbBool isOfType (SoType type) const
 Returns TRUE if the type of this object is either of the same type or inherited from type.

void ref (void) const

void removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void setName (const SbName &newname)

SbBool shouldWrite (void)

void touch (void)

void unref (void) const

void unrefNoDelete (void) const


Static Public Member Functions

static SoType getClassTypeId (void)

static void initClass (void)

- Static Public Member Functions inherited from SoVRMLDragSensor
static SoType getClassTypeId (void)

static void initClass (void)

- Static Public Member Functions inherited from SoVRMLSensor
static SoType getClassTypeId (void)

static void initClass (void)

- Static Public Member Functions inherited from SoNode
static void audioRenderS (SoAction *action, SoNode *node)

static void callbackS (SoAction *action, SoNode *node)

static int getActionMethodIndex (const SoType type)

static void getBoundingBoxS (SoAction *action, SoNode *node)

static SoNodegetByName (const SbName &name)

static int getByName (const SbName &name, SoNodeList &l)

static SoType getClassTypeId (void)

static uint32_t getCompatibilityTypes (const SoType &nodetype)

static void getMatrixS (SoAction *action, SoNode *node)

static SbUniqueId getNextNodeId (void)

static void getPrimitiveCountS (SoAction *action, SoNode *node)

static void GLRenderS (SoAction *action, SoNode *node)

static void handleEventS (SoAction *action, SoNode *node)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void initClasses (void)

static void pickS (SoAction *action, SoNode *node)

static void rayPickS (SoAction *action, SoNode *node)

static void searchS (SoAction *action, SoNode *node)

static void writeS (SoAction *action, SoNode *node)

- Static Public Member Functions inherited from SoFieldContainer
static void addCopy (const SoFieldContainer *orig, const SoFieldContainer *copy)

static SoFieldContainercheckCopy (const SoFieldContainer *orig)

static void cleanupClass (void)

static void copyDone (void)

static SoFieldContainerfindCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType getClassTypeId (void)
 This static method returns the SoType object associated with objects of this class.

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void initCopyDict (void)

- Static Public Member Functions inherited from SoBase
static void addName (SoBase *const base, const char *const name)

static SbBool connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void decrementCurrentWriteCounter (void)

static SoType getClassTypeId (void)
 This static method returns the SoType object associated with objects of this class.

static SoBasegetNamedBase (const SbName &name, SoType type)

static int getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool getTraceRefs (void)

static void incrementCurrentWriteCounter (void)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool read (SoInput *input, SoBase *&base, SoType expectedtype)

static SbBool readRoute (SoInput *input)

static void removeName (SoBase *const base, const char *const name)

static void setInstancePrefix (const SbString &c)

static void setTraceRefs (SbBool trace)


Public Attributes

SoSFVec2f maxPosition

SoSFVec2f minPosition

SoSFVec3f offset

SoSFVec3f translation_changed

- Public Attributes inherited from SoVRMLDragSensor
SoSFBool autoOffset

SoSFVec3f trackPoint_changed

- Public Attributes inherited from SoVRMLSensor
SoSFBool enabled

SoSFBool isActive


Protected Member Functions

virtual ~SoVRMLPlaneSensor ()

virtual void drag (void)

virtual void dragFinish (void)

virtual SbBool dragStart (void)

virtual const SoFieldDatagetFieldData (void) const

- Protected Member Functions inherited from SoVRMLDragSensor
 SoVRMLDragSensor (void)

virtual ~SoVRMLDragSensor ()

const SbVec3fgetLocalStartingPoint (void) const

const SbMatrixgetLocalToWorldMatrix (void) const

const SbVec2fgetNormalizedLocaterPosition (void) const

const SbViewVolumegetViewVolume (void) const

const SbMatrixgetWorldToLocalMatrix (void) const

- Protected Member Functions inherited from SoNode
 SoNode (void)

virtual ~SoNode ()

virtual SbBool readInstance (SoInput *in, unsigned short flags)

- Protected Member Functions inherited from SoFieldContainer
 SoFieldContainer (void)

virtual ~SoFieldContainer ()

- Protected Member Functions inherited from SoBase
 SoBase (void)

virtual ~SoBase ()

virtual SoNotRec createNotRec (void)

virtual void destroy (void)

virtual const char * getFileFormatName (void) const

SbBool hasMultipleWriteRefs (void) const

void writeFooter (SoOutput *out) const

SbBool writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const


Static Protected Member Functions

static const SoFieldData ** getFieldDataPtr (void)

- Static Protected Member Functions inherited from SoVRMLDragSensor
static const SoFieldData ** getFieldDataPtr (void)

- Static Protected Member Functions inherited from SoVRMLSensor
static const SoFieldData ** getFieldDataPtr (void)

- Static Protected Member Functions inherited from SoNode
static const SoFieldData ** getFieldDataPtr (void)

static int getNextActionMethodIndex (void)

static void incNextActionMethodIndex (void)

static void setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void setNextActionMethodIndex (int index)

- Static Protected Member Functions inherited from SoBase
static uint32_t getCurrentWriteCounter (void)

static void staticDataLock (void)

static void staticDataUnlock (void)


Additional Inherited Members

- Public Types inherited from SoNode
enum  NodeType {
  INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 ,
  INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 ,
  COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 ,
  COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 ,
  COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000
}

- Protected Types inherited from SoBase
enum  BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

- Protected Attributes inherited from SoNode
SbUniqueId uniqueId

- Protected Attributes inherited from SoFieldContainer
SbBool isBuiltIn

- Static Protected Attributes inherited from SoNode
static int nextActionMethodIndex = 0

static SbUniqueId nextUniqueId = 1


Detailed Description

The SoVRMLPlaneSensor class maps pointer motion into object space translations.

The detailed class documentation is taken verbatim from the VRML97 standard (ISO/IEC 14772-1:1997). It is copyright The Web3D Consortium, and is used by permission of the Consortium:

PlaneSensor {
  exposedField SFBool  autoOffset          TRUE
  exposedField SFBool  enabled             TRUE
  exposedField SFVec2f maxPosition         -1 -1     # (-,)
  exposedField SFVec2f minPosition         0 0       # (-,)
  exposedField SFVec3f offset              0 0 0     # (-,)
  eventOut     SFBool  isActive
  eventOut     SFVec3f trackPoint_changed
  eventOut     SFVec3f translation_changed
}

The PlaneSensor node maps pointing device motion into two-dimensional translation in a plane parallel to the Z=0 plane of the local coordinate system. The PlaneSensor node uses the descendent geometry of its parent node to determine whether it is liable to generate events.

The enabled exposedField enables and disables the PlaneSensor. If enabled is TRUE, the sensor reacts appropriately to user events. If enabled is FALSE, the sensor does not track user input or send events.

If enabled receives a FALSE event and isActive is TRUE, the sensor becomes disabled and deactivated, and outputs an isActive FALSE event.

If enabled receives a TRUE event, the sensor is enabled and made ready for user activation.

The PlaneSensor node generates events when the pointing device is activated while the pointer is indicating any descendent geometry nodes of the sensor's parent group. See 4.6.7.5, Activating and manipulating sensors (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.7.5), for details on using the pointing device to activate the PlaneSensor.

Upon activation of the pointing device (e.g., mouse button down) while indicating the sensor's geometry, an isActive TRUE event is sent. Pointer motion is mapped into relative translation in the tracking plane, (a plane parallel to the sensor's local Z=0 plane and coincident with the initial point of intersection). For each subsequent movement of the bearing, a translation_changed event is output which corresponds to the sum of the relative translation from the original intersection point to the intersection point of the new bearing in the plane plus the offset value. The sign of the translation is defined by the Z=0 plane of the sensor's coordinate system.

trackPoint_changed events reflect the unclamped drag position on the surface of this plane. When the pointing device is deactivated and autoOffset is TRUE, offset is set to the last translation_changed value and an offset_changed event is generated. More details are provided in 4.6.7.4, Drag sensors (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.7.4).

When the sensor generates an isActive TRUE event, it grabs all further motion events from the pointing device until it is deactivated and generates an isActive FALSE event. Other pointing-device sensors shall not generate events during this time. Motion of the pointing device while isActive is TRUE is referred to as a "drag".

If a 2D pointing device is in use, isActive events typically reflect the state of the primary button associated with the device (i.e., isActive is TRUE when the primary button is pressed, and is FALSE when it is released).

If a 3D pointing device (e.g., wand) is in use, isActive events typically reflect whether the pointer is within or in contact with the sensor's geometry.

minPosition and maxPosition may be set to clamp translation_changed events to a range of values as measured from the origin of the Z=0 plane. If the X or Y component of minPosition is greater than the corresponding component of maxPosition, translation_changed events are not clamped in that dimension. If the X or Y component of minPosition is equal to the corresponding component of maxPosition, that component is constrained to the given value. This technique provides a way to implement a line sensor that maps dragging motion into a translation in one dimension.

While the pointing device is activated and moved, trackPoint_changed and translation_changed events are sent. trackPoint_changed events represent the unclamped intersection points on the surface of the tracking plane. If the pointing device is dragged off of the tracking plane while activated (e.g., above horizon line), browsers may interpret this in a variety ways (e.g., clamp all values to the horizon). Each movement of the pointing device, while isActive is TRUE, generates trackPoint_changed and translation_changed events. Further information about this behaviour can be found in 4.6.7.3, Pointing-device sensors (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.7.3), 4.6.7.4, Drag sensors (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.7.4), and 4.6.7.5, Activating and manipulating sensors (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.7.5).

Constructor & Destructor Documentation

◆ SoVRMLPlaneSensor()

SoVRMLPlaneSensor::SoVRMLPlaneSensor ( void )

Constructor.

◆ ~SoVRMLPlaneSensor()

SoVRMLPlaneSensor::~SoVRMLPlaneSensor ( )
protectedvirtual

Destructor.

Member Function Documentation

◆ drag()

void SoVRMLPlaneSensor::drag ( void )
protectedvirtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Called when user drags the mouse after picking the dragger.

Implements SoVRMLDragSensor.

◆ dragFinish()

void SoVRMLPlaneSensor::dragFinish ( void )
protectedvirtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Called when mouse button is released after picking and interacting with the dragger.

Implements SoVRMLDragSensor.

◆ dragStart()

SbBool SoVRMLPlaneSensor::dragStart ( void )
protectedvirtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Called when dragger is selected (picked) by the user.

Implements SoVRMLDragSensor.

◆ getClassTypeId()

SoType SoVRMLPlaneSensor::getClassTypeId ( void )
static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoVRMLPlaneSensor::getFieldData ( void ) const
protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoVRMLDragSensor.

◆ getFieldDataPtr()

const SoFieldData ** SoVRMLPlaneSensor::getFieldDataPtr ( void )
staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getTypeId()

SoType SoVRMLPlaneSensor::getTypeId ( void ) const
virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoVRMLDragSensor.

◆ initClass()

void SoVRMLPlaneSensor::initClass ( void )
static

Member Data Documentation

◆ maxPosition

SoSFVec2f SoVRMLPlaneSensor::maxPosition

The maximum position. Initial value is [-1, -1].

◆ minPosition

SoSFVec2f SoVRMLPlaneSensor::minPosition

The minimum position. Initial value is [0, 0].

◆ offset

SoSFVec3f SoVRMLPlaneSensor::offset

Current position. Initial value is [0, 0, 0].

◆ translation_changed

SoSFVec3f SoVRMLPlaneSensor::translation_changed

An eventOut that is sent during interaction.


The documentation for this class was generated from the following files:
