SoVRMLCylinderSensor Class Reference

The SoVRMLCylinderSensor class maps pointer motion into rotations around the Y-axis. More...

#include <Inventor/VRMLnodes/SoVRMLCylinderSensor>

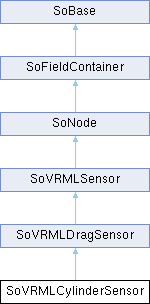

Inheritance diagram for SoVRMLCylinderSensor:
SoVRMLDragSensor SoVRMLSensor SoNode SoFieldContainer SoBase

Public Member Functions

 SoVRMLCylinderSensor (void)

virtual SoType getTypeId (void) const

- Public Member Functions inherited from SoVRMLDragSensor
virtual void handleEvent (SoHandleEventAction *action)

- Public Member Functions inherited from SoNode
virtual SoNodeaddToCopyDict (void) const

virtual SbBool affectsState (void) const

virtual void audioRender (SoAudioRenderAction *action)

virtual void callback (SoCallbackAction *action)

virtual SoNodecopy (SbBool copyconnections=FALSE) const

virtual void copyContents (const SoFieldContainer *from, SbBool copyconnections)

virtual SoFieldContainercopyThroughConnection (void) const

virtual void doAction (SoAction *action)

virtual void getBoundingBox (SoGetBoundingBoxAction *action)

virtual SoChildListgetChildren (void) const

virtual void getMatrix (SoGetMatrixAction *action)

SbUniqueId getNodeId (void) const

NodeType getNodeType (void) const

virtual void getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual void GLRender (SoGLRenderAction *action)

virtual void GLRenderBelowPath (SoGLRenderAction *action)

virtual void GLRenderInPath (SoGLRenderAction *action)

virtual void GLRenderOffPath (SoGLRenderAction *action)

virtual void grabEventsCleanup (void)

virtual void grabEventsSetup (void)

SbBool isOverride (void) const

virtual void notify (SoNotList *l)

virtual void pick (SoPickAction *action)

virtual void rayPick (SoRayPickAction *action)

virtual void search (SoSearchAction *action)

void setNodeType (const NodeType type)

void setOverride (const SbBool state)

virtual void startNotify (void)

virtual void write (SoWriteAction *action)

virtual void writeInstance (SoOutput *out)

- Public Member Functions inherited from SoFieldContainer
virtual void addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

void copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool enableNotify (const SbBool flag)

SbBool fieldsAreEqual (const SoFieldContainer *container) const

void get (SbString &fielddata)

void get (SbString &fielddata, SoOutput *out)

virtual int getAllFields (SoFieldList &l) const

virtual SoFieldgetEventIn (const SbName &name) const

virtual SoFieldgetEventOut (const SbName &name) const

virtual SoFieldgetField (const SbName &name) const

SbBool getFieldName (const SoField *const field, SbName &name) const

virtual int getFields (SoFieldList &l) const

virtual void getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool getIsBuiltIn (void) const

voidgetUserData (void) const

SbBool hasDefaultValues (void) const

SbBool isNotifyEnabled (void) const

SbBool set (const char *const fielddata)

SbBool set (const char *fielddata, SoInput *input)

void setToDefaults (void)

void setUserData (void *userdata) const

virtual SbBool validateNewFieldValue (SoField *field, void *newval)

- Public Member Functions inherited from SoBase
void addAuditor (void *const auditor, const SoNotRec::Type type)

void assertAlive (void) const

const SoAuditorListgetAuditors (void) const

virtual SbName getName (void) const

int32_t getRefCount (void) const

SbBool isOfType (SoType type) const
 Returns TRUE if the type of this object is either of the same type or inherited from type.

void ref (void) const

void removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void setName (const SbName &newname)

SbBool shouldWrite (void)

void touch (void)

void unref (void) const

void unrefNoDelete (void) const


Static Public Member Functions

static SoType getClassTypeId (void)

static void initClass (void)

- Static Public Member Functions inherited from SoVRMLDragSensor
static SoType getClassTypeId (void)

static void initClass (void)

- Static Public Member Functions inherited from SoVRMLSensor
static SoType getClassTypeId (void)

static void initClass (void)

- Static Public Member Functions inherited from SoNode
static void audioRenderS (SoAction *action, SoNode *node)

static void callbackS (SoAction *action, SoNode *node)

static int getActionMethodIndex (const SoType type)

static void getBoundingBoxS (SoAction *action, SoNode *node)

static SoNodegetByName (const SbName &name)

static int getByName (const SbName &name, SoNodeList &l)

static SoType getClassTypeId (void)

static uint32_t getCompatibilityTypes (const SoType &nodetype)

static void getMatrixS (SoAction *action, SoNode *node)

static SbUniqueId getNextNodeId (void)

static void getPrimitiveCountS (SoAction *action, SoNode *node)

static void GLRenderS (SoAction *action, SoNode *node)

static void handleEventS (SoAction *action, SoNode *node)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void initClasses (void)

static void pickS (SoAction *action, SoNode *node)

static void rayPickS (SoAction *action, SoNode *node)

static void searchS (SoAction *action, SoNode *node)

static void writeS (SoAction *action, SoNode *node)

- Static Public Member Functions inherited from SoFieldContainer
static void addCopy (const SoFieldContainer *orig, const SoFieldContainer *copy)

static SoFieldContainercheckCopy (const SoFieldContainer *orig)

static void cleanupClass (void)

static void copyDone (void)

static SoFieldContainerfindCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType getClassTypeId (void)
 This static method returns the SoType object associated with objects of this class.

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void initCopyDict (void)

- Static Public Member Functions inherited from SoBase
static void addName (SoBase *const base, const char *const name)

static SbBool connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void decrementCurrentWriteCounter (void)

static SoType getClassTypeId (void)
 This static method returns the SoType object associated with objects of this class.

static SoBasegetNamedBase (const SbName &name, SoType type)

static int getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool getTraceRefs (void)

static void incrementCurrentWriteCounter (void)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool read (SoInput *input, SoBase *&base, SoType expectedtype)

static SbBool readRoute (SoInput *input)

static void removeName (SoBase *const base, const char *const name)

static void setInstancePrefix (const SbString &c)

static void setTraceRefs (SbBool trace)


Public Attributes

SoSFFloat diskAngle

SoSFFloat maxAngle

SoSFFloat minAngle

SoSFFloat offset

SoSFRotation rotation_changed

- Public Attributes inherited from SoVRMLDragSensor
SoSFBool autoOffset

SoSFVec3f trackPoint_changed

- Public Attributes inherited from SoVRMLSensor
SoSFBool enabled

SoSFBool isActive


Protected Member Functions

virtual ~SoVRMLCylinderSensor ()

virtual void drag (void)

virtual void dragFinish (void)

virtual SbBool dragStart (void)

virtual const SoFieldDatagetFieldData (void) const

- Protected Member Functions inherited from SoVRMLDragSensor
 SoVRMLDragSensor (void)

virtual ~SoVRMLDragSensor ()

const SbVec3fgetLocalStartingPoint (void) const

const SbMatrixgetLocalToWorldMatrix (void) const

const SbVec2fgetNormalizedLocaterPosition (void) const

const SbViewVolumegetViewVolume (void) const

const SbMatrixgetWorldToLocalMatrix (void) const

- Protected Member Functions inherited from SoNode
 SoNode (void)

virtual ~SoNode ()

virtual SbBool readInstance (SoInput *in, unsigned short flags)

- Protected Member Functions inherited from SoFieldContainer
 SoFieldContainer (void)

virtual ~SoFieldContainer ()

- Protected Member Functions inherited from SoBase
 SoBase (void)

virtual ~SoBase ()

virtual SoNotRec createNotRec (void)

virtual void destroy (void)

virtual const char * getFileFormatName (void) const

SbBool hasMultipleWriteRefs (void) const

void writeFooter (SoOutput *out) const

SbBool writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const


Static Protected Member Functions

static const SoFieldData ** getFieldDataPtr (void)

- Static Protected Member Functions inherited from SoVRMLDragSensor
static const SoFieldData ** getFieldDataPtr (void)

- Static Protected Member Functions inherited from SoVRMLSensor
static const SoFieldData ** getFieldDataPtr (void)

- Static Protected Member Functions inherited from SoNode
static const SoFieldData ** getFieldDataPtr (void)

static int getNextActionMethodIndex (void)

static void incNextActionMethodIndex (void)

static void setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void setNextActionMethodIndex (int index)

- Static Protected Member Functions inherited from SoBase
static uint32_t getCurrentWriteCounter (void)

static void staticDataLock (void)

static void staticDataUnlock (void)


Additional Inherited Members

- Public Types inherited from SoNode
enum  NodeType {
  INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 ,
  INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 ,
  COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 ,
  COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 ,
  COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000
}

- Protected Types inherited from SoBase
enum  BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

- Protected Attributes inherited from SoNode
SbUniqueId uniqueId

- Protected Attributes inherited from SoFieldContainer
SbBool isBuiltIn

- Static Protected Attributes inherited from SoNode
static int nextActionMethodIndex = 0

static SbUniqueId nextUniqueId = 1


Detailed Description

The SoVRMLCylinderSensor class maps pointer motion into rotations around the Y-axis.

The detailed class documentation is taken verbatim from the VRML97 standard (ISO/IEC 14772-1:1997). It is copyright The Web3D Consortium, and is used by permission of the Consortium:

CylinderSensor {
  exposedField SFBool     autoOffset TRUE
  exposedField SFFloat    diskAngle  0.262       # (0,/2)
  exposedField SFBool     enabled    TRUE
  exposedField SFFloat    maxAngle   -1          # [-2,2]
  exposedField SFFloat    minAngle   0           # [-2,2]
  exposedField SFFloat    offset     0           # (-inf, inf)
  eventOut     SFBool     isActive
  eventOut     SFRotation rotation_changed
  eventOut     SFVec3f    trackPoint_changed
}

The CylinderSensor node maps pointer motion (e.g., a mouse or wand) into a rotation on an invisible cylinder that is aligned with the Y-axis of the local coordinate system. The CylinderSensor uses the descendent geometry of its parent node to determine whether it is liable to generate events.

The enabled exposed field enables and disables the CylinderSensor node. If TRUE, the sensor reacts appropriately to user events. If FALSE, the sensor does not track user input or send events. If enabled receives a FALSE event and isActive is TRUE, the sensor becomes disabled and deactivated, and outputs an isActive FALSE event. If enabled receives a TRUE event the sensor is enabled and ready for user activation.

A CylinderSensor node generates events when the pointing device is activated while the pointer is indicating any descendent geometry nodes of the sensor's parent group. See 4.6.7.5, Activating and manipulating sensors (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.7.5), for more details on using the pointing device to activate the CylinderSensor.

Upon activation of the pointing device while indicating the sensor's geometry, an isActive TRUE event is sent. The initial acute angle between the bearing vector and the local Y-axis of the CylinderSensor node determines whether the sides of the invisible cylinder or the caps (disks) are used for manipulation. If the initial angle is less than the diskAngle, the geometry is treated as an infinitely large disk lying in the local Y=0 plane and coincident with the initial intersection point. Dragging motion is mapped into a rotation around the local +Y-axis vector of the sensor's coordinate system. The perpendicular vector from the initial intersection point to the Y-axis defines zero rotation about the Y-axis. For each subsequent position of the bearing, a rotation_changed event is sent that equals the sum of the rotation about the +Y-axis vector (from the initial intersection to the new intersection) plus the offset value. trackPoint_changed events reflect the unclamped drag position on the surface of this disk. When the pointing device is deactivated and autoOffset is TRUE, offset is set to the last value of rotation_changed and an offset_changed event is generated. See 4.6.7.4, Drag sensors (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.7.4), for a more general description of autoOffset and offset fields.

If the initial acute angle between the bearing vector and the local Y-axis of the CylinderSensor node is greater than or equal to diskAngle, then the sensor behaves like a cylinder. The shortest distance between the point of intersection (between the bearing and the sensor's geometry) and the Y-axis of the parent group's local coordinate system determines the radius of an invisible cylinder used to map pointing device motion and marks the zero rotation value. For each subsequent position of the bearing, a rotation_changed event is sent that equals the sum of the right-handed rotation from the original intersection about the +Y-axis vector plus the offset value. trackPoint_changed events reflect the unclamped drag position on the surface of the invisible cylinder. When the pointing device is deactivated and autoOffset is TRUE, offset is set to the last rotation angle and an offset_changed event is generated. More details are available in 4.6.7.4, Drag sensors (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.7.4).

When the sensor generates an isActive TRUE event, it grabs all further motion events from the pointing device until it is released and generates an isActive FALSE event (other pointing-device sensors shall not generate events during this time). Motion of the pointing device while isActive is TRUE is referred to as a "drag." If a 2D pointing device is in use, isActive events will typically reflect the state of the primary button associated with the device (i.e., isActive is TRUE when the primary button is pressed and FALSE when it is released). If a 3D pointing device (e.g., a wand) is in use, isActive events will typically reflect whether the pointer is within or in contact with the sensor's geometry.

While the pointing device is activated, trackPoint_changed and rotation_changed events are output and are interpreted from pointing device motion based on the sensor's local coordinate system at the time of activation. trackPoint_changed events represent the unclamped intersection points on the surface of the invisible cylinder or disk. If the initial angle results in cylinder rotation (as opposed to disk behaviour) and if the pointing device is dragged off the cylinder while activated, browsers may interpret this in a variety of ways (e.g., clamp all values to the cylinder and continuing to rotate as the point is dragged away from the cylinder). Each movement of the pointing device while isActive is TRUE generates trackPoint_changed and rotation_changed events. The minAngle and maxAngle fields clamp rotation_changed events to a range of values. If minAngle is greater than maxAngle, rotation_changed events are not clamped.

The minAngle and maxAngle fields are restricted to the range [-2, 2]. More information about this behaviour is described in 4.6.7.3, Pointing-device sensors, 4.6.7.4, Drag sensors (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.7.4), and 4.6.7.5 (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.7.5), Activating and manipulating sensors.

Constructor & Destructor Documentation

◆ SoVRMLCylinderSensor()

SoVRMLCylinderSensor::SoVRMLCylinderSensor ( void )

Constructor.

◆ ~SoVRMLCylinderSensor()

SoVRMLCylinderSensor::~SoVRMLCylinderSensor ( )
protectedvirtual

Destructor.

Member Function Documentation

◆ drag()

void SoVRMLCylinderSensor::drag ( void )
protectedvirtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Called when user drags the mouse after picking the dragger.

Implements SoVRMLDragSensor.

◆ dragFinish()

void SoVRMLCylinderSensor::dragFinish ( void )
protectedvirtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Called when mouse button is released after picking and interacting with the dragger.

Implements SoVRMLDragSensor.

◆ dragStart()

SbBool SoVRMLCylinderSensor::dragStart ( void )
protectedvirtual

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Called when dragger is selected (picked) by the user.

Implements SoVRMLDragSensor.

◆ getClassTypeId()

SoType SoVRMLCylinderSensor::getClassTypeId ( void )
static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoVRMLCylinderSensor::getFieldData ( void ) const
protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoVRMLDragSensor.

◆ getFieldDataPtr()

const SoFieldData ** SoVRMLCylinderSensor::getFieldDataPtr ( void )
staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getTypeId()

SoType SoVRMLCylinderSensor::getTypeId ( void ) const
virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoVRMLDragSensor.

◆ initClass()

void SoVRMLCylinderSensor::initClass ( void )
static

Member Data Documentation

◆ diskAngle

SoSFFloat SoVRMLCylinderSensor::diskAngle

Angle where sensor starts to behave like a disk.

◆ maxAngle

SoSFFloat SoVRMLCylinderSensor::maxAngle

Maximum angle around Y-axis.

◆ minAngle

SoSFFloat SoVRMLCylinderSensor::minAngle

Minimum angle around Y-axis.

◆ offset

SoSFFloat SoVRMLCylinderSensor::offset

Current rotation value. Initial value is 0.0.

◆ rotation_changed

SoSFRotation SoVRMLCylinderSensor::rotation_changed

This eventOut is signaled during sensor interaction.


The documentation for this class was generated from the following files:
