The SoVRMLSpotLight class defines a spot light source. More...

#include <Inventor/VRMLnodes/SoVRMLSpotLight.h>

Inheritance diagram for SoVRMLSpotLight:

Public Member Functions
	SoVRMLSpotLight (void)

virtual SoType	getTypeId (void) const

virtual void	GLRender (SoGLRenderAction *action)

Public Member Functions inherited from SoNode
virtual SoNode *	addToCopyDict (void) const

virtual SbBool	affectsState (void) const

virtual void	audioRender (SoAudioRenderAction *action)

virtual void	callback (SoCallbackAction *action)

virtual SoNode *	copy (SbBool copyconnections=FALSE) const

virtual void	copyContents (const SoFieldContainer *from, SbBool copyconnections)

virtual SoFieldContainer *	copyThroughConnection (void) const

virtual void	doAction (SoAction *action)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual SoChildList *	getChildren (void) const

virtual void	getMatrix (SoGetMatrixAction *action)

SbUniqueId	getNodeId (void) const

NodeType	getNodeType (void) const

virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual void	GLRenderBelowPath (SoGLRenderAction *action)

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	grabEventsCleanup (void)

virtual void	grabEventsSetup (void)

virtual void	handleEvent (SoHandleEventAction *action)

SbBool	isOverride (void) const

virtual void	notify (SoNotList *l)

virtual void	pick (SoPickAction *action)

virtual void	rayPick (SoRayPickAction *action)

virtual void	search (SoSearchAction *action)

void	setNodeType (const NodeType type)

void	setOverride (const SbBool state)

virtual void	startNotify (void)

virtual void	write (SoWriteAction *action)

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoFieldContainer
virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)

static void	initClass (void)

Static Public Member Functions inherited from SoVRMLLight
static SoType	getClassTypeId (void)

static void	initClass (void)

Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction action, SoNode node)

static void	callbackS (SoAction action, SoNode node)

static int	getActionMethodIndex (const SoType type)

static void	getBoundingBoxS (SoAction action, SoNode node)

static SoNode *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoNodeList &l)

static SoType	getClassTypeId (void)

static uint32_t	getCompatibilityTypes (const SoType &nodetype)

static void	getMatrixS (SoAction action, SoNode node)

static SbUniqueId	getNextNodeId (void)

static void	getPrimitiveCountS (SoAction action, SoNode node)

static void	GLRenderS (SoAction action, SoNode node)

static void	handleEventS (SoAction action, SoNode node)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

static void	pickS (SoAction action, SoNode node)

static void	rayPickS (SoAction action, SoNode node)

static void	searchS (SoAction action, SoNode node)

static void	writeS (SoAction action, SoNode node)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Public Attributes
SoSFVec3f	attenuation

SoSFFloat	beamWidth

SoSFFloat	cutOffAngle

SoSFVec3f	direction

SoSFVec3f	location

SoSFFloat	radius

Public Attributes inherited from SoVRMLLight
SoSFFloat	ambientIntensity

SoSFColor	color

SoSFFloat	intensity

SoSFBool	on

Protected Member Functions
virtual	~SoVRMLSpotLight ()

virtual const SoFieldData *	getFieldData (void) const

Protected Member Functions inherited from SoVRMLLight
	SoVRMLLight (void)

virtual	~SoVRMLLight ()

Protected Member Functions inherited from SoNode
	SoNode (void)

virtual	~SoNode ()

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual SoNotRec	createNotRec (void)

virtual void	destroy (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoVRMLLight
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)

static int	getNextActionMethodIndex (void)

static void	incNextActionMethodIndex (void)

static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void	setNextActionMethodIndex (int index)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Additional Inherited Members
Public Types inherited from SoNode
enum	NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }

Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Protected Attributes inherited from SoNode
SbUniqueId	uniqueId

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0

static SbUniqueId	nextUniqueId = 1

Detailed Description

The SoVRMLSpotLight class defines a spot light source.

The detailed class documentation is taken verbatim from the VRML97 standard (ISO/IEC 14772-1:1997). It is copyright The Web3D Consortium, and is used by permission of the Consortium:

SpotLight {
  exposedField SFFloat ambientIntensity  0         # [0,1]
  exposedField SFVec3f attenuation       1 0 0     # [0,inf)
  exposedField SFFloat beamWidth         1.570796  # (0,pi/2]
  exposedField SFColor color             1 1 1     # [0,1]
  exposedField SFFloat cutOffAngle       0.785398  # (0,pi/2]
  exposedField SFVec3f direction         0 0 -1    # (-inf, inf)
  exposedField SFFloat intensity         1         # [0,1]
  exposedField SFVec3f location          0 0 0     # (-inf, inf)
  exposedField SFBool  on                TRUE
  exposedField SFFloat radius            100       # [0, inf)
}

The SpotLight node defines a light source that emits light from a specific point along a specific direction vector and constrained within a solid angle. Spotlights may illuminate geometry nodes that respond to light sources and intersect the solid angle defined by the SpotLight. Spotlight nodes are specified in the local coordinate system and are affected by ancestors' transformations.

A detailed description of ambientIntensity, color, intensity, and VRML's lighting equations is provided in 4.6.6, Light sources (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.6). More information on lighting concepts can be found in 4.14, Lighting model (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.14), including a detailed description of the VRML lighting equations.

The location field specifies a translation offset of the centre point of the light source from the light's local coordinate system origin. This point is the apex of the solid angle which bounds light emission from the given light source.

The direction field specifies the direction vector of the light's central axis defined in the local coordinate system.

The on field specifies whether the light source emits light. If on is TRUE, the light source is emitting light and may illuminate geometry in the scene. If on is FALSE, the light source does not emit light and does not illuminate any geometry.

The radius field specifies the radial extent of the solid angle and the maximum distance from location that may be illuminated by the light source. The light source does not emit light outside this radius. The radius shall be greater than or equal to zero.

Both radius and location are affected by ancestors' transformations (scales affect radius and transformations affect location).

The cutOffAngle field specifies the outer bound of the solid angle. The light source does not emit light outside of this solid angle.

The beamWidth field specifies an inner solid angle in which the light source emits light at uniform full intensity. The light source's emission intensity drops off from the inner solid angle (beamWidth) to the outer solid angle (cutOffAngle) as described in the following equations:

angle = the angle between the Spotlight's direction vector
        and the vector from the Spotlight location to the point
        to be illuminated

if (angle >= cutOffAngle):
  multiplier = 0
else if (angle <= beamWidth):
  multiplier = 1
else:
  multiplier = (angle - cutOffAngle) / (beamWidth - cutOffAngle)

intensity(angle) = SpotLight.intensity � multiplier

If the beamWidth is greater than the cutOffAngle, beamWidth is defined to be equal to the cutOffAngle and the light source emits full intensity within the entire solid angle defined by cutOffAngle. Both beamWidth and cutOffAngle shall be greater than 0.0 and less than or equal to pi/2.

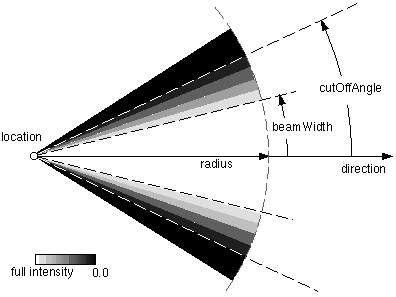

Figure 6.16 depicts the beamWidth, cutOffAngle, direction, location, and radius fields of the SpotLight node.

Figure 6.16 – SpotLight node

SpotLight illumination falls off with distance as specified by three attenuation coefficients. The attenuation factor is

1/max(attenuation[0] + attenuation[1]�r + attenuation[2]�r^2 , 1),

where r is the distance from the light to the surface being illuminated. The default is no attenuation. An attenuation value of (0, 0, 0) is identical to (1, 0, 0). Attenuation values shall be greater than or equal to zero. A detailed description of VRML's lighting equations is contained in 4.14, Lighting model (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.14).

Constructor & Destructor Documentation

◆ SoVRMLSpotLight()

SoVRMLSpotLight::SoVRMLSpotLight ( void )

Constructor.

◆ ~SoVRMLSpotLight()

SoVRMLSpotLight::~SoVRMLSpotLight ( )

protectedvirtual

Destructor.

Member Function Documentation

◆ getClassTypeId()

SoType SoVRMLSpotLight::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoVRMLSpotLight::getFieldData ( void ) const

protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoVRMLLight.

◆ getFieldDataPtr()

const SoFieldData ** SoVRMLSpotLight::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getTypeId()

SoType SoVRMLSpotLight::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoVRMLLight.

◆ GLRender()

void SoVRMLSpotLight::GLRender ( SoGLRenderAction * action )

virtual

Action method for the SoGLRenderAction.

This is called during rendering traversals. Nodes influencing the rendering state in any way or want to throw geometry primitives at OpenGL override this method.

Reimplemented from SoVRMLLight.

◆ initClass()

void SoVRMLSpotLight::initClass ( void )

static

Member Data Documentation

◆ attenuation

SoSFVec3f SoVRMLSpotLight::attenuation

The attenuiation vector. Default value is (1, 0, 0).

◆ beamWidth

SoSFFloat SoVRMLSpotLight::beamWidth

The spot beam width. Default value is PI/2.

◆ cutOffAngle

SoSFFloat SoVRMLSpotLight::cutOffAngle

The spot light cut off angle. Default value is PI/4.

◆ direction

SoSFVec3f SoVRMLSpotLight::direction

The light direction. Default value is (0, 0, 1).

◆ location

SoSFVec3f SoVRMLSpotLight::location

The light position. Default value is (0, 0, 0).

◆ radius

SoSFFloat SoVRMLSpotLight::radius

The light radius. Light is not emitted past it. Default value is 100.

The documentation for this class was generated from the following files:

SoVRMLSpotLight.h
SpotLight.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SoVRMLSpotLight()

◆ ~SoVRMLSpotLight()

Member Function Documentation

◆ getClassTypeId()

◆ getFieldData()

◆ getFieldDataPtr()

◆ getTypeId()

◆ GLRender()

◆ initClass()

Member Data Documentation

◆ attenuation

◆ beamWidth

◆ cutOffAngle

◆ direction

◆ location

◆ radius
