The SoGeoSeparator class is used to georeference a scene graph. More...

#include <Inventor/nodes/SoGeoSeparator.h>

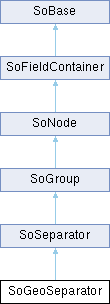

Inheritance diagram for SoGeoSeparator:

Public Member Functions
	SoGeoSeparator (void)

virtual void	callback (SoCallbackAction *action)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual void	getMatrix (SoGetMatrixAction *action)

virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual SoType	getTypeId (void) const

virtual void	GLRenderBelowPath (SoGLRenderAction *action)

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	rayPick (SoRayPickAction *action)

Public Member Functions inherited from SoSeparator
	SoSeparator (const int nchildren)

	SoSeparator (void)

virtual SbBool	affectsState (void) const

virtual void	audioRender (SoAudioRenderAction *action)

virtual void	doAction (SoAction *action)

virtual void	GLRender (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	handleEvent (SoHandleEventAction *action)

virtual void	notify (SoNotList *nl)

virtual void	search (SoSearchAction *action)

Public Member Functions inherited from SoGroup
	SoGroup (int nchildren)

	SoGroup (void)

virtual void	addChild (SoNode *node)

virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

virtual int	findChild (const SoNode *node) const

virtual SoNode *	getChild (int index) const

virtual SoChildList *	getChildren (void) const

virtual int	getNumChildren (void) const

virtual void	insertChild (SoNode *child, int newchildindex)

virtual void	pick (SoPickAction *action)

virtual void	removeAllChildren (void)

virtual void	removeChild (int childindex)

virtual void	removeChild (SoNode *child)

virtual void	replaceChild (int index, SoNode *newchild)

virtual void	replaceChild (SoNode oldchild, SoNode newchild)

virtual void	write (SoWriteAction *action)

Public Member Functions inherited from SoNode
virtual SoNode *	addToCopyDict (void) const

virtual SoNode *	copy (SbBool copyconnections=FALSE) const

virtual SoFieldContainer *	copyThroughConnection (void) const

SbUniqueId	getNodeId (void) const

NodeType	getNodeType (void) const

virtual void	grabEventsCleanup (void)

virtual void	grabEventsSetup (void)

SbBool	isOverride (void) const

void	setNodeType (const NodeType type)

void	setOverride (const SbBool state)

virtual void	startNotify (void)

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoFieldContainer
void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)

static void	initClass (void)

Static Public Member Functions inherited from SoSeparator
static SoType	getClassTypeId (void)

static int	getNumRenderCaches (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	setNumRenderCaches (const int howmany)

Static Public Member Functions inherited from SoGroup
static SoType	getClassTypeId (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction action, SoNode node)

static void	callbackS (SoAction action, SoNode node)

static int	getActionMethodIndex (const SoType type)

static void	getBoundingBoxS (SoAction action, SoNode node)

static SoNode *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoNodeList &l)

static SoType	getClassTypeId (void)

static uint32_t	getCompatibilityTypes (const SoType &nodetype)

static void	getMatrixS (SoAction action, SoNode node)

static SbUniqueId	getNextNodeId (void)

static void	getPrimitiveCountS (SoAction action, SoNode node)

static void	GLRenderS (SoAction action, SoNode node)

static void	handleEventS (SoAction action, SoNode node)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

static void	pickS (SoAction action, SoNode node)

static void	rayPickS (SoAction action, SoNode node)

static void	searchS (SoAction action, SoNode node)

static void	writeS (SoAction action, SoNode node)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Public Attributes
SoSFVec3d	geoCoords

SoMFString	geoSystem

Public Attributes inherited from SoSeparator
SoSFEnum	boundingBoxCaching

SoSFEnum	pickCulling

SoSFEnum	renderCaching

SoSFEnum	renderCulling

Protected Member Functions
virtual	~SoGeoSeparator (void)

virtual const SoFieldData *	getFieldData (void) const

Protected Member Functions inherited from SoSeparator
virtual	~SoSeparator ()

virtual SbBool	cullTest (SoGLRenderAction *action, int &cullresults)

virtual SbBool	cullTest (SoState *state)

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

Protected Member Functions inherited from SoGroup
virtual	~SoGroup ()

virtual void	copyContents (const SoFieldContainer *from, SbBool copyconnections)

virtual SoNotRec	createNotRec (void)

virtual SbBool	readChildren (SoInput *in)

void	setOperation (const SoNotRec::OperationType opType=SoNotRec::UNSPECIFIED, const SoNode cc=NULL, const SoNode pc=NULL, const int ci=-1)

Protected Member Functions inherited from SoNode
	SoNode (void)

virtual	~SoNode ()

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual void	destroy (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoSeparator
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoGroup
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)

static int	getNextActionMethodIndex (void)

static void	incNextActionMethodIndex (void)

static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void	setNextActionMethodIndex (int index)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Additional Inherited Members
Public Types inherited from SoSeparator
enum	CacheEnabled { OFF , ON , AUTO }

Public Types inherited from SoNode
enum	NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }

Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Protected Attributes inherited from SoGroup
SoChildList *	children

Protected Attributes inherited from SoNode
SbUniqueId	uniqueId

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0

static SbUniqueId	nextUniqueId = 1

Detailed Description

The SoGeoSeparator class is used to georeference a scene graph.

FILE FORMAT/DEFAULTS:

GeoSeparator {
  geoSystem ["GD", "WE"]
  geoCoords 0 0 0
}

This node specifies an absolute geographic coordinate system for the children. When rendering (or applying other actions), Coin will add a transformation which transforms the geometry into the SoGeoOrigin coordinate system. All objects will be rotated to make the local Z-axis point up from the ground (at the specified geo-location), the Y-axis will point towards the north pole, and the X-axis is found using the right hand rule.

See also: SoGeoOrigin

Since: Coin 2.5

Constructor & Destructor Documentation

◆ SoGeoSeparator()

SoGeoSeparator::SoGeoSeparator ( void )

Constructor.

◆ ~SoGeoSeparator()

SoGeoSeparator::~SoGeoSeparator ( void )

protectedvirtual

Destructor.

Member Function Documentation

◆ callback()

void SoGeoSeparator::callback ( SoCallbackAction * action )

virtual

Action method for SoCallbackAction.

Simply updates the state according to how the node behaves for the render action, so the application programmer can use the SoCallbackAction for extracting information about the scene graph.

Reimplemented from SoSeparator.

◆ getBoundingBox()

void SoGeoSeparator::getBoundingBox ( SoGetBoundingBoxAction * action )

virtual

Action method for the SoGetBoundingBoxAction.

Calculates bounding box and center coordinates for node and modifies the values of the action to encompass the bounding box for this node and to shift the center point for the scene more towards the one for this node.

Nodes influencing how geometry nodes calculate their bounding box also override this method to change the relevant state variables.

Reimplemented from SoSeparator.

◆ getClassTypeId()

SoType SoGeoSeparator::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoGeoSeparator::getFieldData ( void ) const

protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoSeparator.

◆ getFieldDataPtr()

const SoFieldData ** SoGeoSeparator::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getMatrix()

void SoGeoSeparator::getMatrix ( SoGetMatrixAction * action )

virtual

Action method for SoGetMatrixAction.

Updates action by accumulating with the transformation matrix of this node (if any).

Reimplemented from SoSeparator.

◆ getPrimitiveCount()

void SoGeoSeparator::getPrimitiveCount ( SoGetPrimitiveCountAction * action )

virtual

Action method for the SoGetPrimitiveCountAction.

Calculates the number of triangle, line segment and point primitives for the node and adds these to the counters of the action.

Nodes influencing how geometry nodes calculate their primitive count also override this method to change the relevant state variables.

Reimplemented from SoSeparator.

◆ getTypeId()

SoType SoGeoSeparator::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoSeparator.

◆ GLRenderBelowPath()

void SoGeoSeparator::GLRenderBelowPath ( SoGLRenderAction * action )

virtual

SGI Open Inventor v2.1 obsoleted support for SoGLRenderAction::addMethod(). Instead, GLRender() might be called directly, and to optimize traversal, the SoSeparator node calls GLRenderBelowPath whenever the path code is BELOW_PATH or NO_PATH (path code is guaranteed not to change). To be compatible with SGI's Inventor (and thereby also TGS') we have chosen to follow their implementation in this respect.

SoSeparator::GLRenderBelowPath() does not traverse its children using SoChildList::traverse(), but calls GLRenderBelowPath() directly for all its children.

Reimplemented from SoSeparator.

◆ GLRenderInPath()

void SoGeoSeparator::GLRenderInPath ( SoGLRenderAction * action )

virtual

Implements the SoAction::IN_PATH traversal method for the rendering action.

Reimplemented from SoSeparator.

◆ initClass()

void SoGeoSeparator::initClass ( void )

static

◆ rayPick()

void SoGeoSeparator::rayPick ( SoRayPickAction * action )

virtual

Action method for SoRayPickAction.

Checks the ray specification of the action and tests for intersection with the data of the node.

Nodes influencing relevant state variables for how picking is done also override this method.

Reimplemented from SoSeparator.

Member Data Documentation

◆ geoCoords

SoSFVec3d SoGeoSeparator::geoCoords

Used for specifying the geographic coordinates.

See also: SoGeoOrigin::geoCoords

◆ geoSystem

SoMFString SoGeoSeparator::geoSystem

Used to specify a spatial reference frame.

See also: SoGeoOrigin::geoSystem

The documentation for this class was generated from the following files:

SoGeoSeparator.h
SoGeoSeparator.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SoGeoSeparator()

◆ ~SoGeoSeparator()

Member Function Documentation

◆ callback()

◆ getBoundingBox()

◆ getClassTypeId()

◆ getFieldData()

◆ getFieldDataPtr()

◆ getMatrix()

◆ getPrimitiveCount()

◆ getTypeId()

◆ GLRenderBelowPath()

◆ GLRenderInPath()

◆ initClass()

◆ rayPick()

Member Data Documentation

◆ geoCoords

◆ geoSystem
