The SoShaderObject class is the superclass for all shader classes in Coin. More...

#include <Inventor/nodes/SoShaderObject.h>

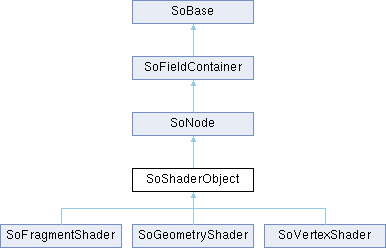

Inheritance diagram for SoShaderObject:

Public Types
enum	SourceType { ARB_PROGRAM , CG_PROGRAM , GLSL_PROGRAM , FILENAME }

Public Types inherited from SoNode
enum	NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }

Public Member Functions
SbString	getSourceProgram (void) const

SourceType	getSourceType (void) const

virtual SoType	getTypeId (void) const

virtual void	GLRender (SoGLRenderAction *action)

virtual void	search (SoSearchAction *action)

void	updateParameters (SoState *state)

Public Member Functions inherited from SoNode
virtual SoNode *	addToCopyDict (void) const

virtual SbBool	affectsState (void) const

virtual void	audioRender (SoAudioRenderAction *action)

virtual void	callback (SoCallbackAction *action)

virtual SoNode *	copy (SbBool copyconnections=FALSE) const

virtual void	copyContents (const SoFieldContainer *from, SbBool copyconnections)

virtual SoFieldContainer *	copyThroughConnection (void) const

virtual void	doAction (SoAction *action)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual SoChildList *	getChildren (void) const

virtual void	getMatrix (SoGetMatrixAction *action)

SbUniqueId	getNodeId (void) const

NodeType	getNodeType (void) const

virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual void	GLRenderBelowPath (SoGLRenderAction *action)

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	grabEventsCleanup (void)

virtual void	grabEventsSetup (void)

virtual void	handleEvent (SoHandleEventAction *action)

SbBool	isOverride (void) const

virtual void	notify (SoNotList *l)

virtual void	pick (SoPickAction *action)

virtual void	rayPick (SoRayPickAction *action)

void	setNodeType (const NodeType type)

void	setOverride (const SbBool state)

virtual void	startNotify (void)

virtual void	write (SoWriteAction *action)

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoFieldContainer
virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction action, SoNode node)

static void	callbackS (SoAction action, SoNode node)

static int	getActionMethodIndex (const SoType type)

static void	getBoundingBoxS (SoAction action, SoNode node)

static SoNode *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoNodeList &l)

static SoType	getClassTypeId (void)

static uint32_t	getCompatibilityTypes (const SoType &nodetype)

static void	getMatrixS (SoAction action, SoNode node)

static SbUniqueId	getNextNodeId (void)

static void	getPrimitiveCountS (SoAction action, SoNode node)

static void	GLRenderS (SoAction action, SoNode node)

static void	handleEventS (SoAction action, SoNode node)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

static void	pickS (SoAction action, SoNode node)

static void	rayPickS (SoAction action, SoNode node)

static void	searchS (SoAction action, SoNode node)

static void	writeS (SoAction action, SoNode node)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Public Attributes
SoSFBool	isActive

SoMFNode	parameter

SoSFString	sourceProgram

SoSFEnum	sourceType

Protected Member Functions
	SoShaderObject (void)

virtual	~SoShaderObject ()

virtual const SoFieldData *	getFieldData (void) const

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

Protected Member Functions inherited from SoNode
	SoNode (void)

virtual	~SoNode ()

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual SoNotRec	createNotRec (void)

virtual void	destroy (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)

static int	getNextActionMethodIndex (void)

static void	incNextActionMethodIndex (void)

static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void	setNextActionMethodIndex (int index)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Additional Inherited Members
Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Protected Attributes inherited from SoNode
SbUniqueId	uniqueId

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0

static SbUniqueId	nextUniqueId = 1

Detailed Description

The SoShaderObject class is the superclass for all shader classes in Coin.

See Shaders in Coin for more information on how to set up a scene graph with shaders.

See also: SoShaderProgram

Member Enumeration Documentation

◆ SourceType

enum SoShaderObject::SourceType

Used for enumerating the shader types in sourceProgram.

Enumerator
ARB_PROGRAM	Specifies an ARB shader.
CG_PROGRAM	Specifies a Cg shader program.
GLSL_PROGRAM	Specifies a GLSL program.
FILENAME	Shader should be loaded from the file in sourceProgram.

Constructor & Destructor Documentation

◆ SoShaderObject()

SoShaderObject::SoShaderObject ( void )

protected

Constructor.

◆ ~SoShaderObject()

SoShaderObject::~SoShaderObject ( )

protectedvirtual

Destructor

Member Function Documentation

◆ getClassTypeId()

SoType SoShaderObject::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoShaderObject::getFieldData ( void ) const

protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoFieldContainer.

Reimplemented in SoFragmentShader, SoGeometryShader, and SoVertexShader.

◆ getFieldDataPtr()

const SoFieldData ** SoShaderObject::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getSourceProgram()

SbString SoShaderObject::getSourceProgram ( void ) const

Returns the actual shader program.

◆ getSourceType()

SoShaderObject::SourceType SoShaderObject::getSourceType ( void ) const

Returns the shader type detected in source program.

◆ getTypeId()

SoType SoShaderObject::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Implements SoBase.

Reimplemented in SoFragmentShader, SoGeometryShader, and SoVertexShader.

◆ GLRender()

void SoShaderObject::GLRender ( SoGLRenderAction * action )

virtual

Action method for the SoGLRenderAction.

This is called during rendering traversals. Nodes influencing the rendering state in any way or want to throw geometry primitives at OpenGL override this method.

Reimplemented from SoNode.

Reimplemented in SoGeometryShader.

◆ readInstance()

SbBool SoShaderObject::readInstance	(	SoInput *	in,
		unsigned short	flags )

protectedvirtual

This method is mainly intended for internal use during file import operations.

It reads a definition of an instance from the input stream in. The input stream state points to the start of a serialized / persistent representation of an instance of this class type.

TRUE or FALSE is returned, depending on if the instantiation and configuration of the new object of this class type went OK or not. The import process should be robust and handle corrupted input streams by returning FALSE.

flags is used internally during binary import when reading user extension nodes, group nodes or engines.

Reimplemented from SoNode.

◆ search()

void SoShaderObject::search ( SoSearchAction * action )

virtual

Action method for SoSearchAction.

Compares the search criteria from the action to see if this node is a match. Searching is done by matching up all criteria set up in the SoSearchAction – if any of the requested criteria is a miss, the search is not deemed successful for the node.

See also: SoSearchAction

Reimplemented from SoNode.

◆ updateParameters()

void SoShaderObject::updateParameters ( SoState * state )

Used internally to update shader parameters.

Member Data Documentation

◆ isActive

SoSFBool SoShaderObject::isActive

Enabled/disables the shader. Default value is TRUE.

◆ parameter

SoMFNode SoShaderObject::parameter

The shader program parameters.

◆ sourceProgram

SoSFString SoShaderObject::sourceProgram

The shader program, or a file name if the shader should be loaded from a file. If the shader is loaded from a file, the shader type is identified by the file extension. .glsl for GLSL shaders, .cg for Cg shaders, and .vp and .fp for ARB shaders.

◆ sourceType

SoSFEnum SoShaderObject::sourceType

The type of shader.

The documentation for this class was generated from the following files:

SoShaderObject.h
SoShaderObject.cpp

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ SourceType

Constructor & Destructor Documentation

◆ SoShaderObject()

◆ ~SoShaderObject()

Member Function Documentation

◆ getClassTypeId()

◆ getFieldData()

◆ getFieldDataPtr()

◆ getSourceProgram()

◆ getSourceType()

◆ getTypeId()

◆ GLRender()

◆ readInstance()

◆ search()

◆ updateParameters()

Member Data Documentation

◆ isActive

◆ parameter

◆ sourceProgram

◆ sourceType
