The SoDirectionalLightManip class is used to manipulate SoDirectionalLight nodes. More...

#include <Inventor/manips/SoDirectionalLightManip.h>

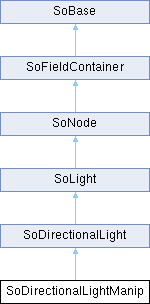

Inheritance diagram for SoDirectionalLightManip:

Public Member Functions
	SoDirectionalLightManip (void)

virtual void	callback (SoCallbackAction *action)

virtual void	doAction (SoAction *action)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual SoChildList *	getChildren (void) const

SoDragger *	getDragger (void)

virtual void	getMatrix (SoGetMatrixAction *action)

virtual SoType	getTypeId (void) const

virtual void	GLRender (SoGLRenderAction *action)

virtual void	handleEvent (SoHandleEventAction *action)

virtual void	pick (SoPickAction *action)

SbBool	replaceManip (SoPath path, SoDirectionalLight newone) const

SbBool	replaceNode (SoPath *path)

virtual void	search (SoSearchAction *action)

Public Member Functions inherited from SoDirectionalLight
	SoDirectionalLight (void)

Public Member Functions inherited from SoNode
virtual SoNode *	addToCopyDict (void) const

virtual SbBool	affectsState (void) const

virtual void	audioRender (SoAudioRenderAction *action)

virtual SoNode *	copy (SbBool copyconnections=FALSE) const

virtual SoFieldContainer *	copyThroughConnection (void) const

SbUniqueId	getNodeId (void) const

NodeType	getNodeType (void) const

virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual void	GLRenderBelowPath (SoGLRenderAction *action)

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	grabEventsCleanup (void)

virtual void	grabEventsSetup (void)

SbBool	isOverride (void) const

virtual void	notify (SoNotList *l)

virtual void	rayPick (SoRayPickAction *action)

void	setNodeType (const NodeType type)

void	setOverride (const SbBool state)

virtual void	startNotify (void)

virtual void	write (SoWriteAction *action)

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoFieldContainer
virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Static Public Member Functions inherited from SoDirectionalLight
static SoType	getClassTypeId (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Static Public Member Functions inherited from SoLight
static SoType	getClassTypeId (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction action, SoNode node)

static void	callbackS (SoAction action, SoNode node)

static int	getActionMethodIndex (const SoType type)

static void	getBoundingBoxS (SoAction action, SoNode node)

static SoNode *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoNodeList &l)

static SoType	getClassTypeId (void)

static uint32_t	getCompatibilityTypes (const SoType &nodetype)

static void	getMatrixS (SoAction action, SoNode node)

static SbUniqueId	getNextNodeId (void)

static void	getPrimitiveCountS (SoAction action, SoNode node)

static void	GLRenderS (SoAction action, SoNode node)

static void	handleEventS (SoAction action, SoNode node)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

static void	pickS (SoAction action, SoNode node)

static void	rayPickS (SoAction action, SoNode node)

static void	searchS (SoAction action, SoNode node)

static void	writeS (SoAction action, SoNode node)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Protected Member Functions
virtual	~SoDirectionalLightManip (void)

virtual void	copyContents (const SoFieldContainer *fromfc, SbBool copyconnections)

virtual const SoFieldData *	getFieldData (void) const

void	setDragger (SoDragger *newdragger)

Protected Member Functions inherited from SoDirectionalLight
virtual	~SoDirectionalLight ()

Protected Member Functions inherited from SoLight
	SoLight (void)

virtual	~SoLight ()

Protected Member Functions inherited from SoNode
	SoNode (void)

virtual	~SoNode ()

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual SoNotRec	createNotRec (void)

virtual void	destroy (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static void	fieldSensorCB (void f, SoSensor d)

static const SoFieldData **	getFieldDataPtr (void)

static void	transferFieldValues (const SoDirectionalLight from, SoDirectionalLight to)

static void	valueChangedCB (void f, SoDragger d)

Static Protected Member Functions inherited from SoDirectionalLight
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoLight
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)

static int	getNextActionMethodIndex (void)

static void	incNextActionMethodIndex (void)

static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void	setNextActionMethodIndex (int index)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Protected Attributes
SoChildList *	children

SoFieldSensor *	colorFieldSensor

SoFieldSensor *	directionFieldSensor

Protected Attributes inherited from SoNode
SbUniqueId	uniqueId

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Additional Inherited Members
Public Types inherited from SoNode
enum	NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }

Public Attributes inherited from SoDirectionalLight
SoSFVec3f	direction

Public Attributes inherited from SoLight
SoSFColor	color

SoSFFloat	intensity

SoSFBool	on

Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0

static SbUniqueId	nextUniqueId = 1

Detailed Description

The SoDirectionalLightManip class is used to manipulate SoDirectionalLight nodes.

A manipulator is used by replacing the node you want to edit in the graph with the manipulator. Draggers are used to manipulate the node. When manipulation is finished, the node is put back into the graph, replacing the manipulator.

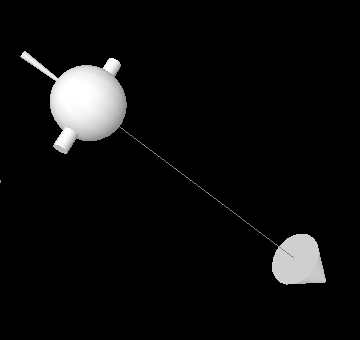

Example of DirectionalLight Manipulator

Constructor & Destructor Documentation

◆ SoDirectionalLightManip()

SoDirectionalLightManip::SoDirectionalLightManip ( void )

The constructor sets up the internal SoDirectionalLightDragger used by the manipulator.

◆ ~SoDirectionalLightManip()

SoDirectionalLightManip::~SoDirectionalLightManip ( void )

protectedvirtual

Destructor. Clean up resources used by manipulator.

Member Function Documentation

◆ callback()

void SoDirectionalLightManip::callback ( SoCallbackAction * action )

virtual

Action method for SoCallbackAction.

Simply updates the state according to how the node behaves for the render action, so the application programmer can use the SoCallbackAction for extracting information about the scene graph.

Reimplemented from SoLight.

◆ copyContents()

void SoDirectionalLightManip::copyContents	(	const SoFieldContainer *	from,
		SbBool	copyconnections )

protectedvirtual

Makes a deep copy of all data of from into this instance, except external scene graph references if copyconnections is FALSE.

This is the method that should be overridden by extension node / engine / dragger / whatever subclasses which need to account for internal data that are not handled automatically.

For copying nodes from application code, you should not invoke this function directly, but rather call the SoNode::copy() function:

SoNode * mynewnode = templatenode->copy();

SbList

The SbList class is a template container class for lists.

Definition SbList.h:70

SbList::copy

void copy(const SbList< Type > &l)

Definition SbList.h:92

SoNode

The SoNode class is the base class for nodes used in scene graphs.

Definition SoNode.h:56

The same also goes for engines.

Make sure that when you override the copyContents() method in your extension class that you also make it call upwards to its parent superclass in the inheritance hierarchy, as copyContents() in for instance SoNode and SoFieldContainer does important work. It should go something like this:

void
MyCoinExtensionNode::copyContents(const SoFieldContainer * from,
                                  SbBool copyconnections)
{
  // let parent superclasses do their thing (copy fields, copy
  // instance name, etc.)
  SoNode::copyContents(from, copyconnections);

  // [..then copy internal data..]
}

Reimplemented from SoNode.

◆ doAction()

void SoDirectionalLightManip::doAction ( SoAction * action )

virtual

This function performs the typical operation of a node for any action.

Reimplemented from SoNode.

◆ fieldSensorCB()

void SoDirectionalLightManip::fieldSensorCB	(	void *	m,
		SoSensor *	d )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ getBoundingBox()

void SoDirectionalLightManip::getBoundingBox ( SoGetBoundingBoxAction * action )

virtual

Action method for the SoGetBoundingBoxAction.

Calculates bounding box and center coordinates for node and modifies the values of the action to encompass the bounding box for this node and to shift the center point for the scene more towards the one for this node.

Nodes influencing how geometry nodes calculate their bounding box also override this method to change the relevant state variables.

Reimplemented from SoNode.

◆ getChildren()

SoChildList * SoDirectionalLightManip::getChildren ( void ) const

virtual

Returns the children of this node. This node only has the dragger as a child.

Reimplemented from SoNode.

◆ getClassTypeId()

SoType SoDirectionalLightManip::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

◆ getDragger()

SoDragger * SoDirectionalLightManip::getDragger ( void )

Return pointer to internal SoDirectionalLightDragger dragger.

◆ getFieldData()

const SoFieldData * SoDirectionalLightManip::getFieldData ( void ) const

protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoDirectionalLight.

◆ getFieldDataPtr()

const SoFieldData ** SoDirectionalLightManip::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getMatrix()

void SoDirectionalLightManip::getMatrix ( SoGetMatrixAction * action )

virtual

Action method for SoGetMatrixAction.

Updates action by accumulating with the transformation matrix of this node (if any).

Reimplemented from SoNode.

◆ getTypeId()

SoType SoDirectionalLightManip::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoDirectionalLight.

◆ GLRender()

void SoDirectionalLightManip::GLRender ( SoGLRenderAction * action )

virtual

Action method for the SoGLRenderAction.

This is called during rendering traversals. Nodes influencing the rendering state in any way or want to throw geometry primitives at OpenGL override this method.

Reimplemented from SoDirectionalLight.

◆ handleEvent()

void SoDirectionalLightManip::handleEvent ( SoHandleEventAction * action )

virtual

Action method for SoHandleEventAction.

Inspects the event data from action, and processes it if it is something which this node should react to.

Nodes influencing relevant state variables for how event handling is done also override this method.

Reimplemented from SoNode.

◆ pick()

void SoDirectionalLightManip::pick ( SoPickAction * action )

virtual

Action method for SoPickAction.

Does common processing for SoPickAction action instances.

Reimplemented from SoNode.

◆ replaceManip()

SbBool SoDirectionalLightManip::replaceManip	(	SoPath *	path,
		SoDirectionalLight *	newone ) const

Replaces this manipulator from the position specified by path with newnode. If newnode is NULL, an SoDirectionalLight will be created for you.

◆ replaceNode()

SbBool SoDirectionalLightManip::replaceNode ( SoPath * path )

Replaces the node specified by path with this manipulator. The manipulator will copy the field data from the node, to make it affect the state in the same way as the node.

◆ search()

void SoDirectionalLightManip::search ( SoSearchAction * action )

virtual

Action method for SoSearchAction.

Compares the search criteria from the action to see if this node is a match. Searching is done by matching up all criteria set up in the SoSearchAction – if any of the requested criteria is a miss, the search is not deemed successful for the node.

See also: SoSearchAction

Reimplemented from SoNode.

◆ setDragger()

void SoDirectionalLightManip::setDragger ( SoDragger * newdragger )

protected

Set dragger to be used by this manipulator.

◆ transferFieldValues()

void SoDirectionalLightManip::transferFieldValues	(	const SoDirectionalLight *	from,
		SoDirectionalLight *	to )

staticprotected

Copies field values.

◆ valueChangedCB()

void SoDirectionalLightManip::valueChangedCB	(	void *	m,
		SoDragger *	dragger )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Convert from matrix to direction.

Member Data Documentation

◆ children

SoChildList * SoDirectionalLightManip::children

protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ colorFieldSensor

SoFieldSensor * SoDirectionalLightManip::colorFieldSensor

protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

◆ directionFieldSensor

SoFieldSensor * SoDirectionalLightManip::directionFieldSensor

protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

The documentation for this class was generated from the following files:

SoDirectionalLightManip.h
SoDirectionalLightManip.cpp
commoncode.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SoDirectionalLightManip()

◆ ~SoDirectionalLightManip()

Member Function Documentation

◆ callback()

◆ copyContents()

◆ doAction()

◆ fieldSensorCB()

◆ getBoundingBox()

◆ getChildren()

◆ getClassTypeId()

◆ getDragger()

◆ getFieldData()

◆ getFieldDataPtr()

◆ getMatrix()

◆ getTypeId()

◆ GLRender()

◆ handleEvent()

◆ pick()

◆ replaceManip()

◆ replaceNode()

◆ search()

◆ setDragger()

◆ transferFieldValues()

◆ valueChangedCB()

Member Data Documentation

◆ children

◆ colorFieldSensor

◆ directionFieldSensor
