SoLocateHighlight Class Reference

The SoLocateHighlight class highlights geometry under the cursor. More...

#include <Inventor/nodes/SoLocateHighlight.h>

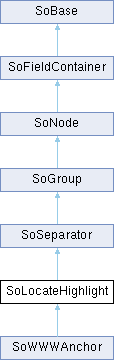

Inheritance diagram for SoLocateHighlight:
SoSeparator SoGroup SoNode SoFieldContainer SoBase SoWWWAnchor

Public Types

enum  Modes { AUTO , ON , OFF }

enum  Styles { EMISSIVE , EMISSIVE_DIFFUSE }

- Public Types inherited from SoSeparator
enum  CacheEnabled { OFF , ON , AUTO }

- Public Types inherited from SoNode
enum  NodeType {
  INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 ,
  INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 ,
  COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 ,
  COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 ,
  COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000
}


Public Member Functions

 SoLocateHighlight (void)

virtual SoType getTypeId (void) const

virtual void GLRenderBelowPath (SoGLRenderAction *action)

virtual void GLRenderInPath (SoGLRenderAction *action)

virtual void handleEvent (SoHandleEventAction *action)

- Public Member Functions inherited from SoSeparator
 SoSeparator (const int nchildren)

 SoSeparator (void)

virtual SbBool affectsState (void) const

virtual void audioRender (SoAudioRenderAction *action)

virtual void callback (SoCallbackAction *action)

virtual void doAction (SoAction *action)

virtual void getBoundingBox (SoGetBoundingBoxAction *action)

virtual void getMatrix (SoGetMatrixAction *action)

virtual void getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual void GLRender (SoGLRenderAction *action)

virtual void GLRenderOffPath (SoGLRenderAction *action)

virtual void notify (SoNotList *nl)

virtual void rayPick (SoRayPickAction *action)

virtual void search (SoSearchAction *action)

- Public Member Functions inherited from SoGroup
 SoGroup (int nchildren)

 SoGroup (void)

virtual void addChild (SoNode *node)

virtual void addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

virtual int findChild (const SoNode *node) const

virtual SoNodegetChild (int index) const

virtual SoChildListgetChildren (void) const

virtual int getNumChildren (void) const

virtual void insertChild (SoNode *child, int newchildindex)

virtual void pick (SoPickAction *action)

virtual void removeAllChildren (void)

virtual void removeChild (int childindex)

virtual void removeChild (SoNode *child)

virtual void replaceChild (int index, SoNode *newchild)

virtual void replaceChild (SoNode *oldchild, SoNode *newchild)

virtual void write (SoWriteAction *action)

- Public Member Functions inherited from SoNode
virtual SoNodeaddToCopyDict (void) const

virtual SoNodecopy (SbBool copyconnections=FALSE) const

virtual SoFieldContainercopyThroughConnection (void) const

SbUniqueId getNodeId (void) const

NodeType getNodeType (void) const

virtual void grabEventsCleanup (void)

virtual void grabEventsSetup (void)

SbBool isOverride (void) const

void setNodeType (const NodeType type)

void setOverride (const SbBool state)

virtual void startNotify (void)

virtual void writeInstance (SoOutput *out)

- Public Member Functions inherited from SoFieldContainer
void copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool enableNotify (const SbBool flag)

SbBool fieldsAreEqual (const SoFieldContainer *container) const

void get (SbString &fielddata)

void get (SbString &fielddata, SoOutput *out)

virtual int getAllFields (SoFieldList &l) const

virtual SoFieldgetEventIn (const SbName &name) const

virtual SoFieldgetEventOut (const SbName &name) const

virtual SoFieldgetField (const SbName &name) const

SbBool getFieldName (const SoField *const field, SbName &name) const

virtual int getFields (SoFieldList &l) const

virtual void getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool getIsBuiltIn (void) const

voidgetUserData (void) const

SbBool hasDefaultValues (void) const

SbBool isNotifyEnabled (void) const

SbBool set (const char *const fielddata)

SbBool set (const char *fielddata, SoInput *input)

void setToDefaults (void)

void setUserData (void *userdata) const

virtual SbBool validateNewFieldValue (SoField *field, void *newval)

- Public Member Functions inherited from SoBase
void addAuditor (void *const auditor, const SoNotRec::Type type)

void assertAlive (void) const

const SoAuditorListgetAuditors (void) const

virtual SbName getName (void) const

int32_t getRefCount (void) const

SbBool isOfType (SoType type) const
 Returns TRUE if the type of this object is either of the same type or inherited from type.

void ref (void) const

void removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void setName (const SbName &newname)

SbBool shouldWrite (void)

void touch (void)

void unref (void) const

void unrefNoDelete (void) const


Static Public Member Functions

static SoType getClassTypeId (void)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void turnOffCurrentHighlight (SoGLRenderAction *action)

- Static Public Member Functions inherited from SoSeparator
static SoType getClassTypeId (void)

static int getNumRenderCaches (void)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void setNumRenderCaches (const int howmany)

- Static Public Member Functions inherited from SoGroup
static SoType getClassTypeId (void)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

- Static Public Member Functions inherited from SoNode
static void audioRenderS (SoAction *action, SoNode *node)

static void callbackS (SoAction *action, SoNode *node)

static int getActionMethodIndex (const SoType type)

static void getBoundingBoxS (SoAction *action, SoNode *node)

static SoNodegetByName (const SbName &name)

static int getByName (const SbName &name, SoNodeList &l)

static SoType getClassTypeId (void)

static uint32_t getCompatibilityTypes (const SoType &nodetype)

static void getMatrixS (SoAction *action, SoNode *node)

static SbUniqueId getNextNodeId (void)

static void getPrimitiveCountS (SoAction *action, SoNode *node)

static void GLRenderS (SoAction *action, SoNode *node)

static void handleEventS (SoAction *action, SoNode *node)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void initClasses (void)

static void pickS (SoAction *action, SoNode *node)

static void rayPickS (SoAction *action, SoNode *node)

static void searchS (SoAction *action, SoNode *node)

static void writeS (SoAction *action, SoNode *node)

- Static Public Member Functions inherited from SoFieldContainer
static void addCopy (const SoFieldContainer *orig, const SoFieldContainer *copy)

static SoFieldContainercheckCopy (const SoFieldContainer *orig)

static void cleanupClass (void)

static void copyDone (void)

static SoFieldContainerfindCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType getClassTypeId (void)
 This static method returns the SoType object associated with objects of this class.

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void initCopyDict (void)

- Static Public Member Functions inherited from SoBase
static void addName (SoBase *const base, const char *const name)

static SbBool connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void decrementCurrentWriteCounter (void)

static SoType getClassTypeId (void)
 This static method returns the SoType object associated with objects of this class.

static SoBasegetNamedBase (const SbName &name, SoType type)

static int getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool getTraceRefs (void)

static void incrementCurrentWriteCounter (void)

static void initClass (void)
 Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool read (SoInput *input, SoBase *&base, SoType expectedtype)

static SbBool readRoute (SoInput *input)

static void removeName (SoBase *const base, const char *const name)

static void setInstancePrefix (const SbString &c)

static void setTraceRefs (SbBool trace)


Public Attributes

SoSFColor color

SoSFEnum mode

SoSFEnum style

- Public Attributes inherited from SoSeparator
SoSFEnum boundingBoxCaching

SoSFEnum pickCulling

SoSFEnum renderCaching

SoSFEnum renderCulling


Protected Member Functions

virtual ~SoLocateHighlight ()

virtual const SoFieldDatagetFieldData (void) const

virtual void redrawHighlighted (SoAction *act, SbBool flag)

- Protected Member Functions inherited from SoSeparator
virtual ~SoSeparator ()

virtual SbBool cullTest (SoGLRenderAction *action, int &cullresults)

virtual SbBool cullTest (SoState *state)

virtual SbBool readInstance (SoInput *in, unsigned short flags)

- Protected Member Functions inherited from SoGroup
virtual ~SoGroup ()

virtual void copyContents (const SoFieldContainer *from, SbBool copyconnections)

virtual SoNotRec createNotRec (void)

virtual SbBool readChildren (SoInput *in)

void setOperation (const SoNotRec::OperationType opType=SoNotRec::UNSPECIFIED, const SoNode *cc=NULL, const SoNode *pc=NULL, const int ci=-1)

- Protected Member Functions inherited from SoNode
 SoNode (void)

virtual ~SoNode ()

- Protected Member Functions inherited from SoFieldContainer
 SoFieldContainer (void)

virtual ~SoFieldContainer ()

- Protected Member Functions inherited from SoBase
 SoBase (void)

virtual ~SoBase ()

virtual void destroy (void)

virtual const char * getFileFormatName (void) const

SbBool hasMultipleWriteRefs (void) const

void writeFooter (SoOutput *out) const

SbBool writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const


Static Protected Member Functions

static const SoFieldData ** getFieldDataPtr (void)

- Static Protected Member Functions inherited from SoSeparator
static const SoFieldData ** getFieldDataPtr (void)

- Static Protected Member Functions inherited from SoGroup
static const SoFieldData ** getFieldDataPtr (void)

- Static Protected Member Functions inherited from SoNode
static const SoFieldData ** getFieldDataPtr (void)

static int getNextActionMethodIndex (void)

static void incNextActionMethodIndex (void)

static void setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void setNextActionMethodIndex (int index)

- Static Protected Member Functions inherited from SoBase
static uint32_t getCurrentWriteCounter (void)

static void staticDataLock (void)

static void staticDataUnlock (void)


Additional Inherited Members

- Protected Types inherited from SoBase
enum  BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

- Protected Attributes inherited from SoGroup
SoChildListchildren

- Protected Attributes inherited from SoNode
SbUniqueId uniqueId

- Protected Attributes inherited from SoFieldContainer
SbBool isBuiltIn

- Static Protected Attributes inherited from SoNode
static int nextActionMethodIndex = 0

static SbUniqueId nextUniqueId = 1


Detailed Description

The SoLocateHighlight class highlights geometry under the cursor.

Note: this node is supposed to draw to the front buffer. However, in Coin we always draw to the back buffer, forcing a scene redraw whenever a highlight state changes.

FILE FORMAT/DEFAULTS:

color 0.3 0.3 0.3
}
The SbList class is a template container class for lists.
Definition SbList.h:70
SoSFColor color
Definition SoLocateHighlight.h:61
@ AUTO
Definition SoLocateHighlight.h:54
SoSFEnum style
Definition SoLocateHighlight.h:62
SoSFEnum mode
Definition SoLocateHighlight.h:63
@ EMISSIVE
Definition SoLocateHighlight.h:58
SoSFEnum boundingBoxCaching
Definition SoSeparator.h:59
SoSFEnum renderCaching
Definition SoSeparator.h:58
SoSFEnum renderCulling
Definition SoSeparator.h:60
SoSFEnum pickCulling
Definition SoSeparator.h:61

Member Enumeration Documentation

◆ Modes

Enum type for behaviour modes.

Enumerator
AUTO

Highlight when mouse cursor is over the contents of the node.

ON

Always highlight.

OFF

Never highlight.

◆ Styles

Enum type for highlight styles.

Enumerator
EMISSIVE

Highlight using emissive color override.

EMISSIVE_DIFFUSE

Highlight using emissive and diffuse color override.

Constructor & Destructor Documentation

◆ SoLocateHighlight()

SoLocateHighlight::SoLocateHighlight ( void )

Constructor.

◆ ~SoLocateHighlight()

SoLocateHighlight::~SoLocateHighlight ( )
protectedvirtual

Destructor.

Member Function Documentation

◆ getClassTypeId()

SoType SoLocateHighlight::getClassTypeId ( void )
static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoLocateHighlight::getFieldData ( void ) const
protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoSeparator.

Reimplemented in SoWWWAnchor.

◆ getFieldDataPtr()

const SoFieldData ** SoLocateHighlight::getFieldDataPtr ( void )
staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getTypeId()

SoType SoLocateHighlight::getTypeId ( void ) const
virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoSeparator.

Reimplemented in SoWWWAnchor.

◆ GLRenderBelowPath()

void SoLocateHighlight::GLRenderBelowPath ( SoGLRenderAction * action)
virtual

SGI Open Inventor v2.1 obsoleted support for SoGLRenderAction::addMethod(). Instead, GLRender() might be called directly, and to optimize traversal, the SoSeparator node calls GLRenderBelowPath whenever the path code is BELOW_PATH or NO_PATH (path code is guaranteed not to change). To be compatible with SGI's Inventor (and thereby also TGS') we have chosen to follow their implementation in this respect.

SoSeparator::GLRenderBelowPath() does not traverse its children using SoChildList::traverse(), but calls GLRenderBelowPath() directly for all its children.

Reimplemented from SoSeparator.

◆ GLRenderInPath()

void SoLocateHighlight::GLRenderInPath ( SoGLRenderAction * action)
virtual

Implements the SoAction::IN_PATH traversal method for the rendering action.

Reimplemented from SoSeparator.

◆ handleEvent()

void SoLocateHighlight::handleEvent ( SoHandleEventAction * action)
virtual

Action method for SoHandleEventAction.

Inspects the event data from action, and processes it if it is something which this node should react to.

Nodes influencing relevant state variables for how event handling is done also override this method.

Reimplemented from SoSeparator.

Reimplemented in SoWWWAnchor.

◆ redrawHighlighted()

void SoLocateHighlight::redrawHighlighted ( SoAction * act,
SbBool flag )
protectedvirtual

Empty method in Coin. Can be used by subclasses to be told when status change.

Reimplemented in SoWWWAnchor.

◆ turnOffCurrentHighlight()

void SoLocateHighlight::turnOffCurrentHighlight ( SoGLRenderAction * action)
static

Static method that can be used to turn off the current highlight.

Member Data Documentation

◆ color

SoSFColor SoLocateHighlight::color

The color used for highlighting. Default is [0.3, 0.3, 0.3], a dark gray.

◆ mode

SoSFEnum SoLocateHighlight::mode

The highlight mode. Default is SoLocateHighlight::AUTO.

◆ style

SoSFEnum SoLocateHighlight::style

The highlight style. Default is SoLocateHighlight::EMISSIVE.


The documentation for this class was generated from the following files:
