The SoVRMLTransform class is a grouping node that defines a transformation for its children. More...

#include <Inventor/VRMLnodes/SoVRMLTransform.h>

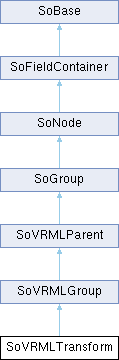

Inheritance diagram for SoVRMLTransform:

Public Member Functions
	SoVRMLTransform (int children)

	SoVRMLTransform (void)

virtual void	audioRender (SoAudioRenderAction *action)

virtual void	callback (SoCallbackAction *action)

void	combineLeft (SoVRMLTransform *leftnode)

void	combineRight (SoVRMLTransform *rightnode)

virtual void	doAction (SoAction *action)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual void	getMatrix (SoGetMatrixAction *action)

virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)

void	getRotationSpaceMatrix (SbMatrix &matrix, SbMatrix &inverse) const

void	getScaleSpaceMatrix (SbMatrix &matrix, SbMatrix &inverse) const

void	getTranslationSpaceMatrix (SbMatrix &matrix, SbMatrix &inverse) const

virtual SoType	getTypeId (void) const

virtual void	GLRenderBelowPath (SoGLRenderAction *action)

virtual void	GLRenderInPath (SoGLRenderAction *action)

void	multLeft (const SbMatrix &matrix)

void	multRight (const SbMatrix &matrix)

virtual void	notify (SoNotList *list)

void	pointAt (const SbVec3f &from, const SbVec3f &to)

virtual void	rayPick (SoRayPickAction *action)

void	recenter (const SbVec3f &newcenter)

void	setMatrix (const SbMatrix &matrix)

Public Member Functions inherited from SoVRMLGroup
	SoVRMLGroup (int numChildren)

	SoVRMLGroup (void)

virtual void	GLRender (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	search (SoSearchAction *action)

virtual void	write (SoWriteAction *action)

Public Member Functions inherited from SoVRMLParent
virtual void	addChild (SoNode *child)

virtual SbBool	affectsState (void) const

virtual int	findChild (const SoNode *child) const

virtual SoNode *	getChild (int idx) const

virtual SoChildList *	getChildren (void) const

virtual int	getNumChildren (void) const

virtual void	insertChild (SoNode *child, int idx)

virtual void	removeAllChildren (void)

virtual void	removeChild (int idx)

virtual void	removeChild (SoNode *child)

virtual void	replaceChild (int idx, SoNode *child)

virtual void	replaceChild (SoNode old, SoNode child)

Public Member Functions inherited from SoGroup
	SoGroup (int nchildren)

	SoGroup (void)

virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

virtual void	handleEvent (SoHandleEventAction *action)

virtual void	pick (SoPickAction *action)

Public Member Functions inherited from SoNode
virtual SoNode *	addToCopyDict (void) const

virtual SoNode *	copy (SbBool copyconnections=FALSE) const

virtual SoFieldContainer *	copyThroughConnection (void) const

SbUniqueId	getNodeId (void) const

NodeType	getNodeType (void) const

virtual void	grabEventsCleanup (void)

virtual void	grabEventsSetup (void)

SbBool	isOverride (void) const

void	setNodeType (const NodeType type)

void	setOverride (const SbBool state)

virtual void	startNotify (void)

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoFieldContainer
void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)

static void	initClass (void)

Static Public Member Functions inherited from SoVRMLGroup
static SoType	getClassTypeId (void)

static int	getNumRenderCaches (void)

static void	initClass (void)

static void	setNumRenderCaches (int num)

Static Public Member Functions inherited from SoVRMLParent
static SoType	getClassTypeId (void)

static void	initClass (void)

static void	updateChildList (const SoNode const nodes, const int numnodes, SoChildList &cl)

static void	updateChildList (SoNode *nodewithsfnode, SoChildList &cl)

Static Public Member Functions inherited from SoGroup
static SoType	getClassTypeId (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction action, SoNode node)

static void	callbackS (SoAction action, SoNode node)

static int	getActionMethodIndex (const SoType type)

static void	getBoundingBoxS (SoAction action, SoNode node)

static SoNode *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoNodeList &l)

static SoType	getClassTypeId (void)

static uint32_t	getCompatibilityTypes (const SoType &nodetype)

static void	getMatrixS (SoAction action, SoNode node)

static SbUniqueId	getNextNodeId (void)

static void	getPrimitiveCountS (SoAction action, SoNode node)

static void	GLRenderS (SoAction action, SoNode node)

static void	handleEventS (SoAction action, SoNode node)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

static void	pickS (SoAction action, SoNode node)

static void	rayPickS (SoAction action, SoNode node)

static void	searchS (SoAction action, SoNode node)

static void	writeS (SoAction action, SoNode node)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Public Attributes
SoSFVec3f	center

SoSFRotation	rotation

SoSFVec3f	scale

SoSFRotation	scaleOrientation

SoSFVec3f	translation

Public Attributes inherited from SoVRMLGroup
SoSFVec3f	bboxCenter

SoSFVec3f	bboxSize

SoSFEnum	boundingBoxCaching

SoSFEnum	pickCulling

SoSFEnum	renderCaching

SoSFEnum	renderCulling

Public Attributes inherited from SoVRMLParent
SoMFNode	children

Protected Member Functions
virtual	~SoVRMLTransform ()

virtual const SoFieldData *	getFieldData (void) const

Protected Member Functions inherited from SoVRMLGroup
virtual	~SoVRMLGroup ()

virtual SbBool	cullTest (SoState *state)

Protected Member Functions inherited from SoVRMLParent
	SoVRMLParent (int approxchildren)

	SoVRMLParent (void)

virtual	~SoVRMLParent ()

virtual void	copyContents (const SoFieldContainer *from, SbBool copyConn)

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

Protected Member Functions inherited from SoGroup
virtual	~SoGroup ()

virtual SoNotRec	createNotRec (void)

virtual SbBool	readChildren (SoInput *in)

void	setOperation (const SoNotRec::OperationType opType=SoNotRec::UNSPECIFIED, const SoNode cc=NULL, const SoNode pc=NULL, const int ci=-1)

Protected Member Functions inherited from SoNode
	SoNode (void)

virtual	~SoNode ()

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual void	destroy (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoVRMLGroup
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoVRMLParent
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoGroup
static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)

static int	getNextActionMethodIndex (void)

static void	incNextActionMethodIndex (void)

static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void	setNextActionMethodIndex (int index)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Additional Inherited Members
Public Types inherited from SoVRMLGroup
enum	CacheEnabled { OFF , ON , AUTO }

Public Types inherited from SoNode
enum	NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }

Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Protected Attributes inherited from SoVRMLParent
SoMFNode	addChildren

SoMFNode	removeChildren

Protected Attributes inherited from SoGroup
SoChildList *	children

Protected Attributes inherited from SoNode
SbUniqueId	uniqueId

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Static Protected Attributes inherited from SoVRMLGroup
static int	numRenderCaches = 2

Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0

static SbUniqueId	nextUniqueId = 1

Detailed Description

The SoVRMLTransform class is a grouping node that defines a transformation for its children.

The detailed class documentation is taken verbatim from the VRML97 standard (ISO/IEC 14772-1:1997). It is copyright The Web3D Consortium, and is used by permission of the Consortium:

Transform {
  eventIn      MFNode      addChildren
  eventIn      MFNode      removeChildren
  exposedField SFVec3f     center           0 0 0    # (-inf,inf)
  exposedField MFNode      children         []
  exposedField SFRotation  rotation         0 0 1 0  # [-1,1],(-inf,inf)
  exposedField SFVec3f     scale            1 1 1    # (0,inf)
  exposedField SFRotation  scaleOrientation 0 0 1 0  # [-1,1],(-inf,inf)
  exposedField SFVec3f     translation      0 0 0    # (-inf,inf)
  field        SFVec3f     bboxCenter       0 0 0    # (-inf,inf)
  field        SFVec3f     bboxSize         -1 -1 -1 # (0,inf) or -1,-1,-1
}

The Transform node is a grouping node that defines a coordinate system for its children that is relative to the coordinate systems of its ancestors. See 4.4.4, Transformation hierarchy (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.4.4), and 4.4.5, Standard units and coordinate system (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.4.5), for a description of coordinate systems and transformations.

4.6.5, Grouping and children nodes (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.5), provides a description of the children, addChildren, and removeChildren fields and eventIns.

The bboxCenter and bboxSize fields specify a bounding box that encloses the children of the Transform node. This is a hint that may be used for optimization purposes. The results are undefined if the specified bounding box is smaller than the actual bounding box of the children at any time. A default bboxSize value, (-1, -1, -1), implies that the bounding box is not specified and, if needed, shall be calculated by the browser. The bounding box shall be large enough at all times to enclose the union of the group's children's bounding boxes; it shall not include any transformations performed by the group itself (i.e., the bounding box is defined in the local coordinate system of the children). The results are undefined if the specified bounding box is smaller than the true bounding box of the group. A description of the bboxCenter and bboxSize fields is provided in 4.6.4, Bounding boxes (http://www.web3d.org/documents/specifications/14772/V2.0/part1/concepts.html#4.6.4).

The translation, rotation, scale, scaleOrientation and center fields define a geometric 3D transformation consisting of (in order):

a (possibly) non-uniform scale about an arbitrary point;
a rotation about an arbitrary point and axis;
a translation.

The center field specifies a translation offset from the origin of the local coordinate system (0,0,0). The rotation field specifies a rotation of the coordinate system. The scale field specifies a non-uniform scale of the coordinate system. scale values shall be greater than zero. The scaleOrientation specifies a rotation of the coordinate system before the scale (to specify scales in arbitrary orientations). The scaleOrientation applies only to the scale operation. The translation field specifies a translation to the coordinate system.

Given a 3-dimensional point P and Transform node, P is transformed into point P' in its parent's coordinate system by a series of intermediate transformations. In matrix transformation notation, where C (center), SR (scaleOrientation), T (translation), R (rotation), and S (scale) are the equivalent transformation matrices,

P' = T � C � R � SR � S � -SR � -C � P

The following Transform node:

Transform {
  center           C
  rotation         R
  scale            S
  scaleOrientation SR
  translation      T
  children         [...]
}

is equivalent to the nested sequence of:

Transform {
  translation T
  children Transform {
    translation C
    children Transform {
      rotation R
      children Transform {
        rotation SR
        children Transform {
          scale S
          children Transform {
            rotation -SR
            children Transform {
              translation -C
              children [...]
            }
          }
        }
      }
    }
  }
}

Constructor & Destructor Documentation

◆ SoVRMLTransform() [1/2]

SoVRMLTransform::SoVRMLTransform ( void )

Constructor.

◆ SoVRMLTransform() [2/2]

SoVRMLTransform::SoVRMLTransform ( int numchildren )

Constructor. numchildren is the expected number of children.

◆ ~SoVRMLTransform()

SoVRMLTransform::~SoVRMLTransform ( )

protectedvirtual

Destructor

Member Function Documentation

◆ audioRender()

void SoVRMLTransform::audioRender ( SoAudioRenderAction * action )

virtual

Action method for SoAudioRenderAction.

Does common processing for SoAudioRenderAction action instances.

Reimplemented from SoVRMLGroup.

◆ callback()

void SoVRMLTransform::callback ( SoCallbackAction * action )

virtual

Action method for SoCallbackAction.

Simply updates the state according to how the node behaves for the render action, so the application programmer can use the SoCallbackAction for extracting information about the scene graph.

Reimplemented from SoVRMLGroup.

◆ combineLeft()

void SoVRMLTransform::combineLeft ( SoVRMLTransform * leftnode )

Premultiplies this transformation by the transformation in leftnode.

◆ combineRight()

void SoVRMLTransform::combineRight ( SoVRMLTransform * rightnode )

Postmultiplies this transformation by the transformation in rightnode.

◆ doAction()

void SoVRMLTransform::doAction ( SoAction * action )

virtual

This function performs the typical operation of a node for any action.

Reimplemented from SoVRMLGroup.

◆ getBoundingBox()

void SoVRMLTransform::getBoundingBox ( SoGetBoundingBoxAction * action )

virtual

Action method for the SoGetBoundingBoxAction.

Calculates bounding box and center coordinates for node and modifies the values of the action to encompass the bounding box for this node and to shift the center point for the scene more towards the one for this node.

Nodes influencing how geometry nodes calculate their bounding box also override this method to change the relevant state variables.

Reimplemented from SoVRMLGroup.

◆ getClassTypeId()

SoType SoVRMLTransform::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoVRMLTransform::getFieldData ( void ) const

protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoVRMLGroup.

◆ getFieldDataPtr()

const SoFieldData ** SoVRMLTransform::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getMatrix()

void SoVRMLTransform::getMatrix ( SoGetMatrixAction * action )

virtual

Action method for SoGetMatrixAction.

Updates action by accumulating with the transformation matrix of this node (if any).

Reimplemented from SoVRMLGroup.

◆ getPrimitiveCount()

void SoVRMLTransform::getPrimitiveCount ( SoGetPrimitiveCountAction * action )

virtual

Action method for the SoGetPrimitiveCountAction.

Calculates the number of triangle, line segment and point primitives for the node and adds these to the counters of the action.

Nodes influencing how geometry nodes calculate their primitive count also override this method to change the relevant state variables.

Reimplemented from SoVRMLGroup.

◆ getRotationSpaceMatrix()

void SoVRMLTransform::getRotationSpaceMatrix	(	SbMatrix &	matrix,
		SbMatrix &	inverse ) const

Calculates the matrices to/from rotation space.

◆ getScaleSpaceMatrix()

void SoVRMLTransform::getScaleSpaceMatrix	(	SbMatrix &	matrix,
		SbMatrix &	inverse ) const

Calculates the matrices to/from scale space.

◆ getTranslationSpaceMatrix()

void SoVRMLTransform::getTranslationSpaceMatrix	(	SbMatrix &	matrix,
		SbMatrix &	inverse ) const

Calculates the matrices to/from translation space.

◆ getTypeId()

SoType SoVRMLTransform::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoVRMLGroup.

◆ GLRenderBelowPath()

void SoVRMLTransform::GLRenderBelowPath ( SoGLRenderAction * action )

virtual

Implements the SoAction::BELOW_PATH traversal method for the rendering action.

Reimplemented from SoVRMLGroup.

◆ GLRenderInPath()

void SoVRMLTransform::GLRenderInPath ( SoGLRenderAction * action )

virtual

Implements the SoAction::IN_PATH traversal method for the rendering action.

Reimplemented from SoVRMLGroup.

◆ initClass()

void SoVRMLTransform::initClass ( void )

static

◆ multLeft()

void SoVRMLTransform::multLeft ( const SbMatrix & matrix )

Premultiplies this transformation by mat.

◆ multRight()

void SoVRMLTransform::multRight ( const SbMatrix & matrix )

Postmultiplies this transformation by mat.

◆ notify()

void SoVRMLTransform::notify ( SoNotList * l )

virtual

Notifies all auditors for this instance when changes are made.

Reimplemented from SoVRMLGroup.

◆ pointAt()

void SoVRMLTransform::pointAt	(	const SbVec3f &	from,
		const SbVec3f &	to )

Sets the transformation to translate to frompoint, with a rotation so that the (0,0,-1) vector is rotated into the vector from frompoint to topoint.

◆ rayPick()

void SoVRMLTransform::rayPick ( SoRayPickAction * action )

virtual

Action method for SoRayPickAction.

Checks the ray specification of the action and tests for intersection with the data of the node.

Nodes influencing relevant state variables for how picking is done also override this method.

Reimplemented from SoVRMLGroup.

◆ recenter()

void SoVRMLTransform::recenter ( const SbVec3f & newcenter )

Sets the center field to newcenter. This might affect one or more of the other fields.

◆ setMatrix()

void SoVRMLTransform::setMatrix ( const SbMatrix & matrix )

Sets the fields to create a transformation equal to mat.

Member Data Documentation

◆ center

SoSFVec3f SoVRMLTransform::center

The center point. Default value is (0, 0, 0).

◆ rotation

SoSFRotation SoVRMLTransform::rotation

The rotation around the center point. Default value is null-rotation.

◆ scale

SoSFVec3f SoVRMLTransform::scale

The scale vector about the center point. Default value is (1, 1, 1).

◆ scaleOrientation

SoSFRotation SoVRMLTransform::scaleOrientation

The scale orientation. Default value is a null-rotation.

◆ translation

SoSFVec3f SoVRMLTransform::translation

The translation vector. Default value is (0, 0, 0).

The documentation for this class was generated from the following files:

SoVRMLTransform.h
Transform.cpp
