The SoInterpolate class is the base class for all interpolator engines. More...

#include <Inventor/engines/SoInterpolate.h>

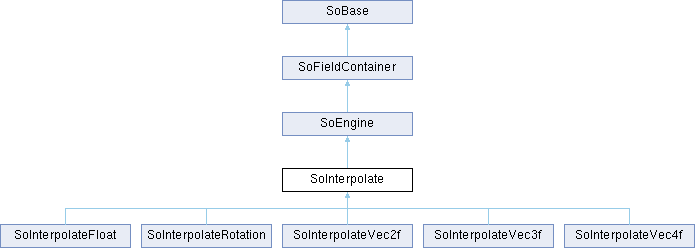

Inheritance diagram for SoInterpolate:

Public Member Functions
virtual const SoFieldData *	getFieldData (void) const

virtual const SoEngineOutputData *	getOutputData (void) const

virtual SoType	getTypeId (void) const

Public Member Functions inherited from SoEngine
SoEngine *	copy (void) const

virtual SoFieldContainer *	copyThroughConnection (void) const

void	evaluateWrapper (void)

SoEngineOutput *	getOutput (const SbName &outputname) const

SbBool	getOutputName (const SoEngineOutput *output, SbName &outputname) const

virtual int	getOutputs (SoEngineOutputList &l) const

SbBool	isNotifying (void) const

virtual void	notify (SoNotList *nl)

SbBool	shouldCopy (void) const

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoFieldContainer
virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

virtual void	copyContents (const SoFieldContainer *from, SbBool copyconnections)

void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

virtual void	startNotify (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

Static Public Member Functions inherited from SoEngine
static SoEngine *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoEngineList &el)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Public Attributes
SoSFFloat	alpha

SoEngineOutput	output

Protected Member Functions
	SoInterpolate ()

virtual	~SoInterpolate (void)

Protected Member Functions inherited from SoEngine
	SoEngine (void)

virtual	~SoEngine (void)

virtual void	evaluate (void)=0

virtual void	inputChanged (SoField *which)

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

void	writeOutputTypes (SoOutput *out)

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual SoNotRec	createNotRec (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getInputDataPtr (void)

static const SoEngineOutputData **	getOutputDataPtr (void)

Static Protected Member Functions inherited from SoEngine
static const SoFieldData **	getInputDataPtr (void)

static const SoEngineOutputData **	getOutputDataPtr (void)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Additional Inherited Members
Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Detailed Description

The SoInterpolate class is the base class for all interpolator engines.

Interpolators are used to linearly interpolate between two values.

In Coin, we've chosen to implement all interpolators in separate files. If you want to be OIV compatible when programming, you should include the SoInterpolate.h, and not the interpolator file(s) you need.

Constructor & Destructor Documentation

◆ SoInterpolate()

SoInterpolate::SoInterpolate ( void )

protected

Default constructor.

◆ ~SoInterpolate()

SoInterpolate::~SoInterpolate ( void )

protectedvirtual

Destructor.

Member Function Documentation

◆ getClassTypeId()

SoType SoInterpolate::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoInterpolate::getFieldData ( void ) const

virtual

Returns the SoFieldData class which holds information about inputs in this engine.

Reimplemented from SoFieldContainer.

Reimplemented in SoInterpolateFloat, SoInterpolateRotation, SoInterpolateVec2f, SoInterpolateVec3f, and SoInterpolateVec4f.

◆ getInputDataPtr()

const SoFieldData ** SoInterpolate::getInputDataPtr ( void )

staticprotected

Returns the SoFieldData class which holds information about inputs in this engine.

◆ getOutputData()

const SoEngineOutputData * SoInterpolate::getOutputData ( void ) const

virtual

Returns the SoEngineOutputData class which holds information about the outputs in this engine.

Implements SoEngine.

Reimplemented in SoInterpolateFloat, SoInterpolateRotation, SoInterpolateVec2f, SoInterpolateVec3f, and SoInterpolateVec4f.

◆ getOutputDataPtr()

const SoEngineOutputData ** SoInterpolate::getOutputDataPtr ( void )

staticprotected

Returns the SoEngineOutputData class which holds information about the outputs in this engine.

◆ getTypeId()

SoType SoInterpolate::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Implements SoBase.

Reimplemented in SoInterpolateFloat, SoInterpolateRotation, SoInterpolateVec2f, SoInterpolateVec3f, and SoInterpolateVec4f.

◆ initClasses()

void SoInterpolate::initClasses ( void )

static

This method is provided only for API compatibility, and does nothing in Coin.

Member Data Documentation

◆ alpha

SoSFFloat SoInterpolate::alpha

The value which says how much we've should interpolate from first value to second value. A value equal to 0 will give an output equal to the first value, alpha equal to 1 gives the second value, any value in between gives a "weighted" interpolation between the two values.

◆ output

SoEngineOutput SoInterpolate::output

Interpolated values from the input fields. The type of the output will of course be the same as the type of the input fields of each non-abstract subclass inheriting SoInterpolate.

The documentation for this class was generated from the following files:

SoInterpolate.h
SoInterpolate.cpp
