dimeRecord Class Reference

The dimeRecord class is the superclass of all record classes. More...

#include <dime/records/Record.h>

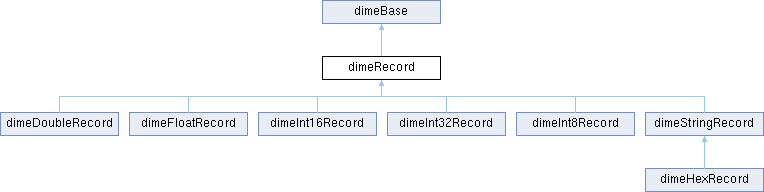

Inheritance diagram for dimeRecord:

Public Member Functions
	dimeRecord (const int group_code)
virtual	~dimeRecord ()
virtual dimeRecord *	copy (dimeMemHandler *const memhandler) const =0
int	getGroupCode () const
virtual void	getValue (dimeParam &param) const =0
virtual bool	isEndOfFileRecord () const
virtual bool	isEndOfSectionRecord () const
virtual void	print () const
virtual bool	read (dimeInput *const in)=0
void	setGroupCode (const int group_code)
virtual void	setValue (const dimeParam &param, dimeMemHandler *const memhandler=NULL)=0
virtual int	typeId () const =0
virtual bool	write (dimeOutput *const out)
Public Member Functions inherited from dimeBase
	dimeBase (void)
virtual	~dimeBase ()
virtual bool	isOfType (const int thetypeid) const
void	operator delete (void *ptr)
void *	operator new (size_t size, dimeMemHandler *memhandler=NULL, const int alignment=4)

Static Public Member Functions
static dimeRecord *	createRecord (const int group_code, const dimeParam &param, dimeMemHandler *const memhandler)
static dimeRecord *	createRecord (const int group_code, dimeMemHandler *const memhandler)
static int	getRecordType (const int group_code)
static dimeRecord *	readRecord (dimeInput *const in)
static bool	readRecordData (dimeInput *const in, const int group_code, dimeParam &param)

Protected Attributes
int	groupCode

Additional Inherited Members
Public Types inherited from dimeBase
enum	{   dimeBaseType = 1 , dimeRecordType , dimeStringRecordType , dimeFloatRecordType ,   dimeDoubleRecordType , dimeInt8RecordType , dimeInt16RecordType , dimeInt32RecordType ,   dimeHexRecordType , dimeRecordHolderType , dimeClassType , dimeUnknownClassType ,   dimeObjectType , dimeUnknownObjectType , dimeEntityType , dimeUnknownEntityType ,   dimePolylineType , dimeVertexType , dimeFaceEntityType , dimeExtrusionEntityType ,   dime3DFaceType , dimeSolidType , dimeTraceType , dimeLineType ,   dimeTextType , dimePointType , dimeBlockType , dimeInsertType ,   dimeCircleType , dimeArcType , dimeLWPolylineType , dimeEllipseType ,   dimeSplineType , dimeSectionType , dimeUnknownSectionType , dimeEntitiesSectionType ,   dimeBlocksSectionType , dimeTablesSectionType , dimeHeaderSectionType , dimeClassesSectionType ,   dimeObjectsSectionType , dimeTableType , dimeTableEntryType , dimeUnknownTableType ,   dimeUCSTableType , dimeLayerTableType , dimeLastTypeTag }

Detailed Description

The dimeRecord class is the superclass of all record classes.

Constructor & Destructor Documentation

dimeRecord()

dimeRecord::dimeRecord

(

const int

group_code

)

Constructor which sets the group code.

~dimeRecord()

dimeRecord::~dimeRecord ( )

virtual

Destructor.

Member Function Documentation

copy()

dimeRecord * dimeRecord::copy ( dimeMemHandler *const memhandler ) const

pure virtual

Returns a copy of this record.

Implemented in dimeDoubleRecord, dimeFloatRecord, dimeInt16Record, dimeInt32Record, dimeInt8Record, and dimeStringRecord.

createRecord()

dimeRecord * dimeRecord::createRecord ( const int group_code, dimeMemHandler *const memhandler )

static

Static function that creates a record based on the group code. if memhandler != NULL, it will be used to allocate the other, otherwise the default memory handler will be used.

getGroupCode()

int dimeRecord::getGroupCode

(

)

const

Returns the group code for this record.

getRecordType()

int dimeRecord::getRecordType ( const int group_code )

static

Static function that returns the record type based on the group code.

getValue()

void dimeRecord::getValue ( dimeParam & param ) const

pure virtual

Returns the value of this record.

Implemented in dimeDoubleRecord, dimeFloatRecord, dimeInt16Record, dimeInt32Record, dimeInt8Record, and dimeStringRecord.

isEndOfFileRecord()

bool dimeRecord::isEndOfFileRecord ( ) const

virtual

Returns true if this record is an end of file record.

Reimplemented in dimeStringRecord.

isEndOfSectionRecord()

bool dimeRecord::isEndOfSectionRecord ( ) const

virtual

Returns true if this record is an end of section record.

Reimplemented in dimeStringRecord.

print()

dimeRecord::print ( ) const

inlinevirtual

Prints information about this record to stderr.

read()

bool dimeRecord::read ( dimeInput *const in )

pure virtual

This function will read the record from the dimeInput file.

Implemented in dimeDoubleRecord, dimeFloatRecord, dimeInt16Record, dimeInt32Record, dimeInt8Record, and dimeStringRecord.

readRecord()

dimeRecord * dimeRecord::readRecord ( dimeInput *const in )

static

Reads and returns the next record int file in.

readRecordData()

bool dimeRecord::readRecordData ( dimeInput *const in, const int group_code, dimeParam & param )

static

Will read the next item from in, and store result in param, based on the group_code.

setGroupCode()

void dimeRecord::setGroupCode

(

const int

group_code

)

Sets the group code of this record.

setValue()

void dimeRecord::setValue ( const dimeParam & param, dimeMemHandler *const memhandler = NULL )

pure virtual

Sets the value of this record. The memory handler is needed by dimeStringRecord.

Implemented in dimeDoubleRecord, dimeFloatRecord, dimeInt16Record, dimeInt32Record, dimeInt8Record, and dimeStringRecord.

typeId()

int dimeRecord::typeId ( ) const

pure virtual

This virtual function will return the type of the record.

Implements dimeBase.

Implemented in dimeDoubleRecord, dimeFloatRecord, dimeHexRecord, dimeInt16Record, dimeInt32Record, dimeInt8Record, and dimeStringRecord.

write()

bool dimeRecord::write ( dimeOutput *const out )

virtual

This function will write the record to the dimeOutput file.

Reimplemented in dimeDoubleRecord, dimeFloatRecord, dimeInt16Record, dimeInt32Record, dimeInt8Record, and dimeStringRecord.

---

The documentation for this class was generated from the following files:

• Record.h
• Record.cpp
