dimeSection Class Reference

The dimeSection class is the superclass for all section classes. More...

#include <dime/sections/Section.h>

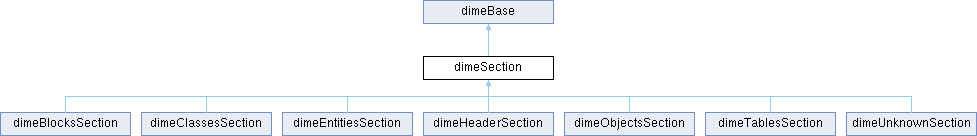

Inheritance diagram for dimeSection:

Public Member Functions
	dimeSection (dimeMemHandler *const memhandler)
virtual	~dimeSection ()
virtual dimeSection *	copy (dimeModel *const model) const =0
virtual int	countRecords () const =0
virtual const char *	getSectionName () const =0
virtual bool	isOfType (const int thetypeid) const
virtual bool	read (dimeInput *const file)=0
virtual int	typeId () const =0
virtual bool	write (dimeOutput *const file)=0
Public Member Functions inherited from dimeBase
	dimeBase (void)
virtual	~dimeBase ()
void	operator delete (void *ptr)
void *	operator new (size_t size, dimeMemHandler *memhandler=NULL, const int alignment=4)

Static Public Member Functions
static dimeSection *	createSection (const char *const sectionname, dimeMemHandler *memhandler)

Protected Attributes
dimeMemHandler *	memHandler

Additional Inherited Members
Public Types inherited from dimeBase
enum	{   dimeBaseType = 1 , dimeRecordType , dimeStringRecordType , dimeFloatRecordType ,   dimeDoubleRecordType , dimeInt8RecordType , dimeInt16RecordType , dimeInt32RecordType ,   dimeHexRecordType , dimeRecordHolderType , dimeClassType , dimeUnknownClassType ,   dimeObjectType , dimeUnknownObjectType , dimeEntityType , dimeUnknownEntityType ,   dimePolylineType , dimeVertexType , dimeFaceEntityType , dimeExtrusionEntityType ,   dime3DFaceType , dimeSolidType , dimeTraceType , dimeLineType ,   dimeTextType , dimePointType , dimeBlockType , dimeInsertType ,   dimeCircleType , dimeArcType , dimeLWPolylineType , dimeEllipseType ,   dimeSplineType , dimeSectionType , dimeUnknownSectionType , dimeEntitiesSectionType ,   dimeBlocksSectionType , dimeTablesSectionType , dimeHeaderSectionType , dimeClassesSectionType ,   dimeObjectsSectionType , dimeTableType , dimeTableEntryType , dimeUnknownTableType ,   dimeUCSTableType , dimeLayerTableType , dimeLastTypeTag }

Detailed Description

The dimeSection class is the superclass for all section classes.

Currently supported sections are:

• Header (dimeHeaderSection)
• Classes (dimeClassSection)
• Tables (dimeTableSection)
• Blocks (dimeBlockSection)
• Entities (dimeEntititySection)
• Objects (dimeObjectSection)

Constructor & Destructor Documentation

dimeSection()

dimeSection::dimeSection

(

dimeMemHandler *const

memhandler

)

Constructor

~dimeSection()

dimeSection::~dimeSection ( )

virtual

Empty virtual destructor.

Member Function Documentation

countRecords()

int dimeSection::countRecords ( ) const

pure virtual

Returns the number of records in this section.

Implemented in dimeBlocksSection, dimeClassesSection, dimeEntitiesSection, dimeHeaderSection, dimeObjectsSection, dimeTablesSection, and dimeUnknownSection.

createSection()

dimeSection * dimeSection::createSection ( const char *const sectionname, dimeMemHandler * memhandler )

static

Static function used to create the correct section object from a text string.

isOfType()

bool dimeSection::isOfType ( const int thetypeid ) const

virtual

Returns true if the object is of type typeid or is inherited from it. Function in base class checks whether thetypeid equals the virtual dimeBase::typeId() value or equals dimeBaseType. Must be implemented by all subclasses that are superclasses of other classes, and should check if thetypeid equals its typeId, and then call its parent's isOfType function. Leaf-classes do not have to implement this method.

Reimplemented from dimeBase.

read()

bool dimeSection::read ( dimeInput *const file )

pure virtual

Implemented in dimeBlocksSection, and dimeTablesSection.

typeId()

int dimeSection::typeId ( ) const

pure virtual

Must be implemented by all subclasses, and should return an unique id for that class.

Implements dimeBase.

Implemented in dimeBlocksSection, dimeClassesSection, dimeEntitiesSection, dimeHeaderSection, dimeObjectsSection, dimeTablesSection, and dimeUnknownSection.

write()

bool dimeSection::write ( dimeOutput *const file )

pure virtual

Implemented in dimeBlocksSection.

---

The documentation for this class was generated from the following files:

• Section.h
• Section.cpp
