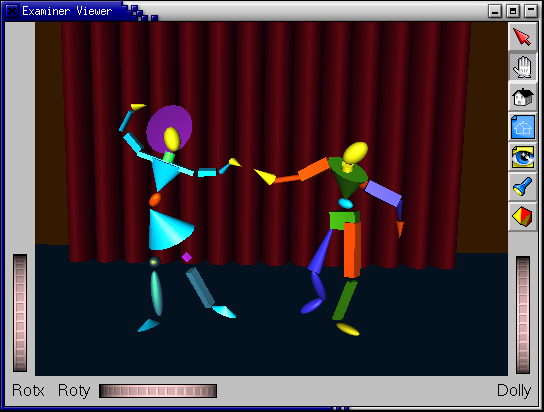

The SoQtExaminerViewer class is a 3D-model examination viewer. More...

#include <Inventor/Qt/viewers/SoQtExaminerViewer.h>

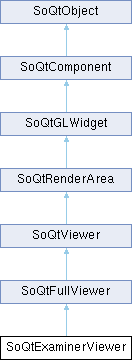

Inheritance diagram for SoQtExaminerViewer:

Public Member Functions
	SoQtExaminerViewer (QWidget parent=NULL, const char name=NULL, SbBool embed=TRUE, SoQtFullViewer::BuildFlag flag=BUILD_ALL, SoQtViewer::Type type=BROWSER)

int	getFeedbackSize (void) const

SbBool	isAnimating (void) const

SbBool	isAnimationEnabled (void) const

SbBool	isFeedbackVisible (void) const

void	setAnimationEnabled (const SbBool enable)

virtual void	setCamera (SoCamera *camera)

virtual void	setCursorEnabled (SbBool enable)

void	setFeedbackSize (const int size)

void	setFeedbackVisibility (const SbBool enable)

virtual void	setViewing (SbBool enable)

void	stopAnimating (void)

Public Member Functions inherited from SoQtFullViewer
void	addAppPushButton (QWidget *newButton)

int	findAppPushButton (QWidget *oldButton) const

QWidget *	getAppPushButtonParent (void) const

QWidget *	getRenderAreaWidget (void) const

void	insertAppPushButton (QWidget *newButton, int index)

SbBool	isDecoration (void) const

SbBool	isPopupMenuEnabled (void) const

int	lengthAppPushButton (void) const

void	removeAppPushButton (QWidget *oldButton)

virtual void	setComponentCursor (const SoQtCursor &cursor)

void	setDecoration (const SbBool on)

void	setPopupMenuEnabled (const SbBool on)

Public Member Functions inherited from SoQtViewer
void	addFinishCallback (SoQtViewerCB func, void data=NULL)

void	addStartCallback (SoQtViewerCB func, void data=NULL)

void	getAnaglyphStereoColorMasks (SbBool left[3], SbBool right[3])

SoQtViewer::BufferType	getBufferingType (void) const

SoCamera *	getCamera (void) const

SoType	getCameraType (void) const

SoQtViewer::DrawStyle	getDrawStyle (const SoQtViewer::DrawType type) const

SoDirectionalLight *	getHeadlight (void) const

virtual SoNode *	getSceneGraph (void)

float	getSeekTime (void) const

float	getStereoOffset (void) const

SoQtViewer::StereoType	getStereoType (void) const

const SbColor &	getWireframeOverlayColor (void) const

SbBool	isAutoClipping (void) const

SbBool	isCursorEnabled (void) const

SbBool	isDetailSeek (void) const

SbBool	isHeadlight (void) const

SbBool	isStereoViewing (void) const

SbBool	isViewing (void) const

void	removeFinishCallback (SoQtViewerCB func, void data=NULL)

void	removeStartCallback (SoQtViewerCB func, void data=NULL)

virtual void	resetToHomePosition (void)

virtual void	saveHomePosition (void)

void	setAnaglyphStereoColorMasks (const SbBool left[3], const SbBool right[3])

void	setAutoClipping (SbBool enable)

void	setAutoClippingStrategy (const AutoClippingStrategy strategy, const float value=0.6f, SoQtAutoClippingCB cb=NULL, void cbuserdata=NULL)

virtual void	setBufferingType (SoQtViewer::BufferType type)

virtual void	setCameraType (SoType type)

void	setDetailSeek (const SbBool enable)

virtual void	setDoubleBuffer (const SbBool enable)

virtual void	setDrawStyle (SoQtViewer::DrawType type, SoQtViewer::DrawStyle style)

virtual void	setHeadlight (SbBool enable)

virtual void	setSceneGraph (SoNode *root)

void	setSeekTime (const float seconds)

virtual void	setStereoOffset (const float dist)

SbBool	setStereoType (SoQtViewer::StereoType s)

virtual void	setStereoViewing (SbBool enable)

void	setWireframeOverlayColor (const SbColor &color)

virtual void	toggleCameraType (void)

virtual void	viewAll (void)

Public Member Functions inherited from SoQtRenderArea
	SoQtRenderArea (QWidget parent=NULL, const char name=NULL, SbBool embed=TRUE, SbBool mouseInput=TRUE, SbBool keyboardInput=TRUE)

	~SoQtRenderArea ()

void	getAntialiasing (SbBool &smoothing, int &numPasses) const

const SbColor &	getBackgroundColor (void) const

int	getBackgroundIndex (void) const

SoGLRenderAction *	getGLRenderAction (void) const

int	getOverlayBackgroundIndex (void) const

SoGLRenderAction *	getOverlayGLRenderAction (void) const

SoNode *	getOverlaySceneGraph (void)

SoSceneManager *	getOverlaySceneManager (void) const

uint32_t	getRedrawPriority (void) const

SoSceneManager *	getSceneManager (void) const

SoGLRenderAction::TransparencyType	getTransparencyType (void) const

const SbViewportRegion &	getViewportRegion (void) const

SbBool	isAutoRedraw (void) const

SbBool	isClearBeforeOverlayRender (void) const

SbBool	isClearBeforeRender (void) const

SbBool	isClearZBufferBeforeRender (void) const

void	redrawOnSelectionChange (SoSelection *selection)

void	redrawOverlayOnSelectionChange (SoSelection *selection)

void	registerDevice (SoQtDevice *device)

void	render (void)

void	renderOverlay (void)

void	scheduleOverlayRedraw (void)

void	scheduleRedraw (void)

SbBool	sendSoEvent (const SoEvent *event)

void	setAntialiasing (SbBool smoothing, int numPasses)

void	setAutoRedraw (SbBool enable)

void	setBackgroundColor (const SbColor &color)

void	setBackgroundIndex (int idx)

void	setClearBeforeOverlayRender (SbBool enable)

void	setClearBeforeRender (SbBool enable, SbBool zbEnable=TRUE)

void	setColorMap (int start, int num, const SbColor *colors)

void	setEventCallback (SoQtRenderAreaEventCB func, void user=NULL)

void	setGLRenderAction (SoGLRenderAction *action)

void	setOverlayBackgroundIndex (int idx)

void	setOverlayColorMap (int start, int num, const SbColor *colors)

void	setOverlayGLRenderAction (SoGLRenderAction *action)

void	setOverlaySceneGraph (SoNode *scene)

void	setOverlaySceneManager (SoSceneManager *manager)

void	setRedrawPriority (uint32_t priority)

void	setSceneManager (SoSceneManager *manager)

void	setTransparencyType (SoGLRenderAction::TransparencyType type)

void	setViewportRegion (const SbViewportRegion &newRegion)

void	unregisterDevice (SoQtDevice *device)

Public Member Functions inherited from SoQtGLWidget
SbBool	getAccumulationBuffer (void) const

SbBool	getAlphaChannel (void) const

QWidget *	getGLWidget (void) const

void	getLineWidthLimits (SbVec2f &range, float &granularity)

QWidget *	getNormalWidget (void) const

unsigned long	getOverlayTransparentPixel (void)

QWidget *	getOverlayWidget (void) const

void	getPointSizeLimits (SbVec2f &range, float &granularity)

int	getSampleBuffers (void) const

SbBool	getStencilBuffer (void) const

SbBool	hasNormalGLArea (void) const

SbBool	hasOverlayGLArea (void) const

SbBool	isBorder (void) const

SbBool	isDoubleBuffer (void) const

SbBool	isDrawToFrontBufferEnable (void) const

SbBool	isOverlayRender (void) const

SbBool	isQuadBufferStereo (void) const

SbBool	isStealFocus (void) const

void	setAccumulationBuffer (const SbBool enable)

void	setAlphaChannel (const SbBool enable)

void	setBorder (const SbBool enable)

void	setDrawToFrontBufferEnable (const SbBool enable)

void	setOverlayRender (const SbBool onoff)

void	setQuadBufferStereo (const SbBool enable)

void	setSampleBuffers (const int numsamples)

void	setStealFocus (SbBool enable)

void	setStencilBuffer (const SbBool enable)

Public Member Functions inherited from SoQtComponent
virtual	~SoQtComponent ()

QWidget *	getBaseWidget (void) const

const char *	getClassName (void) const

const char *	getIconTitle (void) const

QWidget *	getParentWidget (void) const

QWidget *	getShellWidget (void) const

SbVec2s	getSize (void) const

const char *	getTitle (void) const

QWidget *	getWidget (void) const

const char *	getWidgetName (void) const

virtual void	hide (void)

SbBool	isFullScreen (void) const

SbBool	isTopLevelShell (void) const

SbBool	isVisible (void)

SbBool	setFullScreen (const SbBool onoff)

void	setIconTitle (const char *const title)

void	setSize (const SbVec2s size)

void	setTitle (const char *const title)

void	setWindowCloseCallback (SoQtComponentCB const func, void const user=NULL)

virtual void	show (void)

Public Member Functions inherited from SoQtObject
virtual SoType	getTypeId (void) const =0

SbBool	isOfType (SoType type) const

Protected Member Functions
	SoQtExaminerViewer (QWidget parent, const char name, SbBool embed, SoQtFullViewer::BuildFlag flag, SoQtViewer::Type type, SbBool build)

virtual void	actualRedraw (void)

virtual void	afterRealizeHook (void)

virtual void	bottomWheelMotion (float val)

virtual void	createViewerButtons (QWidget parent, SbPList buttonlist)

virtual const char *	getDefaultIconTitle (void) const

virtual const char *	getDefaultTitle (void) const

virtual const char *	getDefaultWidgetName (void) const

virtual void	leftWheelMotion (float val)

virtual SbBool	processSoEvent (const SoEvent *const event)

virtual void	rightWheelMotion (float val)

virtual void	setSeekMode (SbBool enable)

Protected Member Functions inherited from SoQtFullViewer
	SoQtFullViewer (QWidget parent, const char name, SbBool embed, BuildFlag flag, Type type, SbBool build)

	~SoQtFullViewer ()

virtual void	bottomWheelFinish (void)

virtual void	bottomWheelStart (void)

QWidget *	buildAppButtons (QWidget *parent)

virtual QWidget *	buildBottomTrim (QWidget *parent)

virtual void	buildDecoration (QWidget *parent)

virtual QWidget *	buildLeftTrim (QWidget *parent)

virtual void	buildPopupMenu (void)

virtual QWidget *	buildRightTrim (QWidget *parent)

QWidget *	buildViewerButtons (QWidget *parent)

QWidget *	buildWidget (QWidget *parent)

QWidget *	getBottomWheelLabelWidget (void) const

float	getBottomWheelValue (void) const

QWidget *	getLeftWheelLabelWidget (void) const

float	getLeftWheelValue (void) const

QWidget *	getRightWheelLabelWidget (void) const

const char *	getRightWheelString () const

float	getRightWheelValue (void) const

virtual void	leftWheelFinish (void)

virtual void	leftWheelStart (void)

virtual void	openPopupMenu (const SbVec2s position)

virtual void	rightWheelFinish (void)

virtual void	rightWheelStart (void)

void	setBottomWheelString (const char *const name)

void	setBottomWheelValue (const float value)

void	setLeftWheelString (const char *const name)

void	setLeftWheelValue (const float value)

virtual void	setPopupMenuString (const char *title)

void	setRightWheelString (const char *const name)

void	setRightWheelValue (const float value)

virtual void	sizeChanged (const SbVec2s &size)

Protected Member Functions inherited from SoQtViewer
	SoQtViewer (QWidget parent, const char name, SbBool embed, Type type, SbBool build)

	~SoQtViewer ()

void	addSuperimposition (SoNode *scene)

virtual void	changeCameraValues (SoCamera *camera)

virtual void	computeSeekFinalOrientation (void)

int	getInteractiveCount (void) const

float	getSeekDistance (void) const

SbBool	getSuperimpositionEnabled (SoNode *scene) const

void	interactiveCountDec (void)

void	interactiveCountInc (void)

SbBool	isSeekMode (void) const

SbBool	isSeekValuePercentage (void) const

void	removeSuperimposition (SoNode *scene)

SbBool	seekToPoint (const SbVec2s screenpos)

void	seekToPoint (const SbVec3f &scenepos)

void	setSeekDistance (const float distance)

void	setSeekValueAsPercentage (const SbBool on)

void	setSuperimpositionEnabled (SoNode *scene, const SbBool enable)

Protected Member Functions inherited from SoQtRenderArea
	SoQtRenderArea (QWidget parent, const char name, SbBool embed, SbBool mouseInput, SbBool keyboardInput, SbBool build)

virtual void	actualOverlayRedraw (void)

QWidget *	buildWidget (QWidget *parent)

virtual SbBool	glScheduleRedraw (void)

virtual void	initGraphic (void)

virtual void	initOverlayGraphic (void)

virtual void	processEvent (QEvent *event)

virtual void	redraw (void)

virtual void	redrawOverlay (void)

virtual void	widgetChanged (QWidget *widget)

Protected Member Functions inherited from SoQtGLWidget
	SoQtGLWidget (QWidget const parent=NULL, const char const name=NULL, const SbBool embed=TRUE, const int glmodes=SO_GL_RGB, const SbBool build=TRUE)

	~SoQtGLWidget ()

QWidget *	buildWidget (QWidget *parent)

float	getGLAspectRatio (void) const

SbVec2s	getGLSize (void) const

float	getGlxAspectRatio (void) const

SbVec2s	getGlxSize (void) const

void	glFlushBuffer (void)

void	glLockNormal (void)

void	glLockOverlay (void)

void	glSwapBuffers (void)

void	glUnlockNormal (void)

void	glUnlockOverlay (void)

SbBool	isRGBMode (void)

SbBool	isStereoBuffer (void) const

void	setGLSize (const SbVec2s size)

void	setGlxSize (const SbVec2s size)

void	setStereoBuffer (SbBool flag)

Protected Member Functions inherited from SoQtComponent
	SoQtComponent (QWidget const parent=NULL, const char const name=NULL, const SbBool embed=TRUE)

void	addVisibilityChangeCallback (SoQtComponentVisibilityCB const func, void const user=NULL)

void	registerWidget (QWidget *widget)

void	removeVisibilityChangeCallback (SoQtComponentVisibilityCB const func, void const user=NULL)

void	setBaseWidget (QWidget *widget)

void	setClassName (const char *const name)

void	unregisterWidget (QWidget *widget)

Additional Inherited Members
Public Types inherited from SoQtFullViewer
enum	BuildFlag { BUILD_NONE = 0x00 , BUILD_DECORATION = 0x01 , BUILD_POPUP = 0x02 , BUILD_ALL = (BUILD_DECORATION \| BUILD_POPUP) }

Public Types inherited from SoQtViewer
enum	AutoClippingStrategy { VARIABLE_NEAR_PLANE , CONSTANT_NEAR_PLANE }

enum	BufferType { BUFFER_SINGLE , BUFFER_DOUBLE , BUFFER_INTERACTIVE }

enum	DrawStyle { VIEW_AS_IS , VIEW_HIDDEN_LINE , VIEW_NO_TEXTURE , VIEW_LOW_COMPLEXITY , VIEW_LINE , VIEW_POINT , VIEW_BBOX , VIEW_LOW_RES_LINE , VIEW_LOW_RES_POINT , VIEW_SAME_AS_STILL , VIEW_WIREFRAME_OVERLAY }

enum	DrawType { STILL = 0 , INTERACTIVE }

enum	StereoType { STEREO_NONE , STEREO_ANAGLYPH , STEREO_QUADBUFFER , STEREO_INTERLEAVED_ROWS , STEREO_INTERLEAVED_COLUMNS }

enum	Type { BROWSER , EDITOR }

Static Public Member Functions inherited from SoQtRenderArea
static uint32_t	getDefaultRedrawPriority (void)

Static Public Member Functions inherited from SoQtComponent
static SoQtComponent *	getComponent (QWidget *widget)

static void	initClasses (void)

static void	setWidgetCursor (QWidget *w, const SoQtCursor &cursor)

Static Public Member Functions inherited from SoQtObject
static SoType	getClassTypeId (void)

static void	init (void)

static void	initClass (void)

Protected Attributes inherited from SoQtFullViewer
QWidget *	bottomDecoration

QWidget *	bottomWheel

QWidget *	bottomWheelLabel

char *	bottomWheelStr

float	bottomWheelVal

QWidget *	leftDecoration

QWidget *	leftWheel

QWidget *	leftWheelLabel

char *	leftWheelStr

float	leftWheelVal

SoQtPopupMenu *	prefmenu

QWidget *	rightDecoration

QWidget *	rightWheel

QWidget *	rightWheelLabel

char *	rightWheelStr

float	rightWheelVal

Protected Attributes inherited from SoQtGLWidget
SbBool	drawToFrontBuffer

SbBool	waitForExpose

Detailed Description

The SoQtExaminerViewer class is a 3D-model examination viewer.

This class is the viewer considered to be the most "general purpose" viewer, and it is often used in rapid prototyping to examine simple models as well as complete scenes (although for the latter, you might be better off with one of the other viewer classes).

Here is a complete, stand-alone example that shows how to set up an SoQtExaminerViewer as a model viewer that loads Inventor and VRML files from disk and places them inside the viewer for the end-user to examine:

#include <Inventor/Qt/SoQt.h>
#include <Inventor/Qt/viewers/SoQtExaminerViewer.h>
#include <Inventor/nodes/SoBaseColor.h>
#include <Inventor/nodes/SoCone.h>
#include <Inventor/nodes/SoSeparator.h>

int
main(int argc, char ** argv)
{
  if (argc < 2) {
    (void)fprintf(stderr, "\n\n\tUsage: %s <modelfilename>\n\n",
                  argc > 0 ? argv[0] : "viewerapp");
    exit(1);
  }

  // Initialize SoQt and Inventor API libraries. This returns a main
  // window to use.
  QWidget* mainwin = SoQt::init(argc, argv, argv[0]);

  // Open the argument file..
  SoInput in;
  SbBool ok = in.openFile(argv[1]);
  if (!ok) { exit(1); }

  // ..and import it.
  SoSeparator * root = SoDB::readAll(&in);
  if (root == NULL) { exit(1); }
  root->ref();

  // Use the ExaminerViewer, for a nice interface for 3D model
  // inspection.
  SoQtExaminerViewer * viewer = new SoQtExaminerViewer(mainwin);
  viewer->setSceneGraph(root);
  viewer->show();

  // Pop up the main window.
  SoQt::show(mainwin);
  // Loop until exit.
  SoQt::mainLoop();

  // Clean up resources.
  delete viewer;
  root->unref();

  return 0;
}

SoQtExaminerViewer has a convenient interface for repositioning and reorientation of the camera, by panning, rotating and zooming its position. The following controls can be used:

hold down left mouse button and move mouse pointer to rotate the camera around its current focal point (the focal point can be changed by doing a seek operation)
hold middle mouse button to pan (or a CTRL-key plus left mouse button, or a SHIFT-key plus left mouse button)
hold down left + middle mouse button to zoom / dolly, or CTRL + middle mouse button, or CTRL + SHIFT + the left mouse button
click 's', then pick with the left mouse button to seek
right mouse button opens the pop-up menu
click 'ESC' key to switch to and from 'camera interaction' mode and 'scene graph interaction' mode (see setViewing() documentation)
hold down the 'ALT' key to temporary toggle from camera-interaction mode to scene graph-interaction mode

The SoQtExaminerViewer provides a user decoration's button for toggling between orthographic or perspective camera view volumes and projection methods. This is the bottom-most click button on the right decoration border.

It also inherits the decoration buttons from the SoQtFullViewer: the arrow for switching to "scene graph interaction" mode, the hand for setting back to "camera interaction" mode, the house for "reset camera to home position", the blueprint house for "set new camera home position", the eye for "zoom camera out to view full scene" and the flashlight for setting "click to seek" mode.

Note that a common faulty assumption about all the viewer-classes is that user interaction (in the "examine"-mode, not the scene graph-interaction mode) influences the model or 3D-scene in the view. This is not correct, as it is always the viewer's camera that is translated and rotated.

The initial position of the camera is placed such that all of the scene graph's geometry fits within its view.

See also: SoQtFlyViewer, SoQtPlaneViewer

Constructor & Destructor Documentation

◆ SoQtExaminerViewer() [1/2]

SoQtExaminerViewer::SoQtExaminerViewer	(	QWidget *	parent = NULL,
		const char *	name = NULL,
		SbBool	embed = TRUE,
		SoQtFullViewer::BuildFlag	flag = BUILD_ALL,
		SoQtViewer::Type	type = BROWSER )

Constructor. See parent class for explanation of arguments. Calling this constructor will make sure the examiner viewer widget will be built immediately.

◆ SoQtExaminerViewer() [2/2]

SoQtExaminerViewer::SoQtExaminerViewer	(	QWidget *	parent,
		const char *	name,
		SbBool	embed,
		SoQtFullViewer::BuildFlag	flag,
		SoQtViewer::Type	type,
		SbBool	build )

protected

Constructor. See parent class for explanation of arguments.

Member Function Documentation

◆ actualRedraw()

void SoQtExaminerViewer::actualRedraw ( void )

protectedvirtual

This method instantly redraws the normal (non-overlay) scene graph by calling SoSceneManager::render().

Subclasses may override this method to add their own rendering before or after Coin renders its scene graph.

The following is a complete example that demonstrates one way of adding both a background image and foreground (overlay) geometry to the "normal" rendering:

// This example shows how to put a permanent background image on
// your viewer canvas, below the 3D graphics, plus overlay
// foreground geometry.  Written by mortene.
// Copyright Kongsberg Oil & Gas Technologies 2002.

// *************************************************************************

#include <Inventor/Qt/SoQt.h>
#include <Inventor/Qt/viewers/SoQtExaminerViewer.h>
#include <Inventor/nodes/SoBaseColor.h>
#include <Inventor/nodes/SoCone.h>
#include <Inventor/nodes/SoCube.h>
#include <Inventor/nodes/SoImage.h>
#include <Inventor/nodes/SoLightModel.h>
#include <Inventor/nodes/SoOrthographicCamera.h>
#include <Inventor/nodes/SoRotationXYZ.h>
#include <Inventor/nodes/SoSeparator.h>
#include <Inventor/nodes/SoTranslation.h>

#include <GL/gl.h>

// *************************************************************************

class MyExaminerViewer : public SoQtExaminerViewer {

public:
  MyExaminerViewer(QWidget* parent, const char * filename);
  ~MyExaminerViewer();

protected:
  virtual void actualRedraw(void);

private:
  SoSeparator * bckgroundroot;
  SoSeparator * foregroundroot;
  SoRotationXYZ * arrowrotation;
};

MyExaminerViewer::MyExaminerViewer(QWidget* parent, const char * filename)
  : SoQtExaminerViewer(parent)
{
  // Coin should not clear the pixel-buffer, so the background image
  // is not removed.
  this->setClearBeforeRender(FALSE, TRUE);


  // Set up background scene graph with image in it.

  this->bckgroundroot = new SoSeparator;
  this->bckgroundroot->ref();

  SoOrthographicCamera * cam = new SoOrthographicCamera;
  cam->position = SbVec3f(0, 0, 1);
  cam->height = 1;
  // SoImage will be at z==0.0.
  cam->nearDistance = 0.5;
  cam->farDistance = 1.5;

  SoImage * img = new SoImage;
  img->vertAlignment = SoImage::HALF;
  img->horAlignment = SoImage::CENTER;
  img->filename = filename;

  this->bckgroundroot->addChild(cam);
  this->bckgroundroot->addChild(img);

  // Set up foreground, overlaid scene graph.

  this->foregroundroot = new SoSeparator;
  this->foregroundroot->ref();

  SoLightModel * lm = new SoLightModel;
  lm->model = SoLightModel::BASE_COLOR;

  SoBaseColor * bc = new SoBaseColor;
  bc->rgb = SbColor(1, 1, 0);

  cam = new SoOrthographicCamera;
  cam->position = SbVec3f(0, 0, 5);
  cam->height = 10;
  cam->nearDistance = 0;
  cam->farDistance = 10;

  const double ARROWSIZE = 2.0;

  SoTranslation * posit = new SoTranslation;
  posit->translation = SbVec3f(-2.5 * ARROWSIZE, 1.5 * ARROWSIZE, 0);

  arrowrotation = new SoRotationXYZ;
  arrowrotation->axis = SoRotationXYZ::Z;

  SoTranslation * offset = new SoTranslation;
  offset->translation = SbVec3f(ARROWSIZE/2.0, 0, 0);

  SoCube * cube = new SoCube;
  cube->width = ARROWSIZE;
  cube->height = ARROWSIZE/15.0;

  this->foregroundroot->addChild(cam);
  this->foregroundroot->addChild(lm);
  this->foregroundroot->addChild(bc);
  this->foregroundroot->addChild(posit);
  this->foregroundroot->addChild(arrowrotation);
  this->foregroundroot->addChild(offset);
  this->foregroundroot->addChild(cube);
}

MyExaminerViewer::~MyExaminerViewer()
{
  this->bckgroundroot->unref();
  this->foregroundroot->unref();
}

void
MyExaminerViewer::actualRedraw(void)
{
  // Must set up the OpenGL viewport manually, as upon resize
  // operations, Coin won't set it up until the SoGLRenderAction is
  // applied again. And since we need to do glClear() before applying
  // the action..
  const SbViewportRegion vp = this->getViewportRegion();
  SbVec2s origin = vp.getViewportOriginPixels();
  SbVec2s size = vp.getViewportSizePixels();
  glViewport(origin[0], origin[1], size[0], size[1]);

  const SbColor col = this->getBackgroundColor();
  glClearColor(col[0], col[1], col[2], 0.0f);
  glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

  // Render our scene graph with the image.
  SoGLRenderAction * glra = this->getGLRenderAction();
  glra->apply(this->bckgroundroot);


  // Render normal scene graph.
  SoQtExaminerViewer::actualRedraw();


  // Increase arrow angle with 1/1000 degrees every frame.
  arrowrotation->angle = arrowrotation->angle.getValue() + (0.001 / M_PI * 180);
  // Render overlay front scene graph.
  glClear(GL_DEPTH_BUFFER_BIT);
  glra->apply(this->foregroundroot);
}

// *************************************************************************

int
main(int argc, char ** argv)
{
  if (argc != 2) {
    (void)fprintf(stderr, "\n\n\tUsage: %s <image-filename>\n\n", argv[0]);
    exit(1);
  }

  QWidget* window = SoQt::init(argv[0]);

  MyExaminerViewer * viewer = new MyExaminerViewer(window, argv[1]);

  viewer->setSceneGraph(new SoCone);
  viewer->show();

  SoQt::show(window);
  SoQt::mainLoop();

  delete viewer;
  return 0;
}

// *************************************************************************

Reimplemented from SoQtViewer.

◆ afterRealizeHook()

void SoQtExaminerViewer::afterRealizeHook ( void )

protectedvirtual

A function "hook" / callback invoked just after the window for the component has been realized.

Override this if you need specific initialization for your own component or viewer class to happen right after it has been made visible, but remember to call upwards in the inheritance hierarchy:

void
MyLittleViewer::afterRealizeHook(void)
{
  <superclass>::afterRealizeHook();
  // [own initialization here]
}

Reimplemented from SoQtRenderArea.

◆ bottomWheelMotion()

void SoQtExaminerViewer::bottomWheelMotion ( float value )

protectedvirtual

Called repeatedly as the user drags the thumbwheel in the bottom frame. Override this method in subclassed viewers to provide your own functionality on the thumbwheel.

See also: bottomWheelStart(), bottomWheelFinish(); leftWheelStart(), rightWheelStart()

Reimplemented from SoQtFullViewer.

◆ createViewerButtons()

void SoQtExaminerViewer::createViewerButtons	(	QWidget *	parent,
		SbPList *	buttonlist )

protectedvirtual

Set up the viewer buttons with pixmaps and event connections.

One important note if you want to override this method to add your own buttons to the list (in the explanation below, it is assumed that you know how virtual function table pointers are handled by C++):

createViewerButtons() is called (indirectly) from the constructors of the viewer classes. This means that you need to delay its invocation until your own subclass's constructor is run, because otherwise your re-implementation won't have been added to the internal virtual function table yet.

Delaying a superclass viewer from building its decorations is done by passing build==FALSE as the last argument of the protected constructors. You will then have to explicitly trigger the building in your own constructor.

Here's a minimal example that shows the steps needed to be able to override createViewerButtons() from SoQtExaminerViewer:

class MyExaminerViewer : public SoQtExaminerViewer {

public:
  MyExaminerViewer(QWidget* parent);

protected:
  virtual void createViewerButtons(QWidget* parent, SbPList * buttonlist);
};

MyExaminerViewer::MyExaminerViewer(QWidget* parent)
  : SoQtExaminerViewer(parent, NULL, TRUE,
                          SoQtFullViewer::BUILD_ALL, SoQtFullViewer::BROWSER,
                          // build == FALSE, to delay creation of decorations
                          FALSE)
{
  // Explicitly trigger the construction of viewer decorations.
  QWidget* widget = this->buildWidget(this->getParentWidget());
  this->setBaseWidget(widget);
}

void
MyExaminerViewer::createViewerButtons(QWidget* parent, SbPList * buttonlist)
{
  SoQtExaminerViewer::createViewerButtons(parent, buttonlist);
  // [now add your own button(s) to the buttonlist]
}

Reimplemented from SoQtFullViewer.

◆ getDefaultIconTitle()

const char * SoQtExaminerViewer::getDefaultIconTitle ( void ) const

protectedvirtual

This method returns the default icon title of the component.

It should be overridden by derived non-abstract classes so icons will get proper titles.

Reimplemented from SoQtRenderArea.

◆ getDefaultTitle()

const char * SoQtExaminerViewer::getDefaultTitle ( void ) const

protectedvirtual

This method returns the default window caption string of the component.

It should be overridden by derived non-abstract classes so the window and pop-up menu will get a proper title.

Reimplemented from SoQtRenderArea.

◆ getDefaultWidgetName()

const char * SoQtExaminerViewer::getDefaultWidgetName ( void ) const

protectedvirtual

This method returns the default name of a component widget class.

It should be overridden by derived non-abstract classes for the topmost widget in the component to have a proper name.

Reimplemented from SoQtRenderArea.

◆ getFeedbackSize()

int SoQtExaminerViewer::getFeedbackSize ( void ) const

Return the size of the feedback axis cross. Default is 25.

See also: setFeedbackSize, isFeedbackVisible, setFeedbackVisibility

◆ isAnimating()

SbBool SoQtExaminerViewer::isAnimating ( void ) const

Query if the model in the viewer is currently in spinning mode after a user drag.

◆ isAnimationEnabled()

SbBool SoQtExaminerViewer::isAnimationEnabled ( void ) const

Query whether or not it is possible to start a spinning animation by releasing the left mouse button while dragging the mouse.

See also: setAnimationEnabled

◆ isFeedbackVisible()

SbBool SoQtExaminerViewer::isFeedbackVisible ( void ) const

Check if the feedback axis cross is visible.

See also: setFeedbackVisibility, getFeedbackSize, setFeedbackSize

◆ leftWheelMotion()

void SoQtExaminerViewer::leftWheelMotion ( float value )

protectedvirtual

Called repeatedly as the user drags the thumbwheel in the left frame. Override this method in subclassed viewers to provide your own functionality on the thumbwheel.

See also: leftWheelStart(), leftWheelFinish(); bottomWheelStart(), rightWheelStart()

Reimplemented from SoQtFullViewer.

◆ processSoEvent()

SbBool SoQtExaminerViewer::processSoEvent ( const SoEvent *const event )

protectedvirtual

Toolkit-native events are tried to convert to Coin-generic events in the SoQtRenderArea::processEvent() method. If this succeeds, they are forwarded to this method.

This is a virtual method, and is overridden in its subclasses to catch events of particular interest to the viewer classes, for instance.

Return TRUE if the event was processed. If not it should be passed on further up in the inheritance hierarchy by the caller. This last point is extremely important to take note of if you are expanding the toolkit with your own viewer class.

This method is not part of the original SGI InventorXt API. Note that you can still override the toolkit-native processEvent() method instead of this "generic" method.

Reimplemented from SoQtFullViewer.

◆ rightWheelMotion()

void SoQtExaminerViewer::rightWheelMotion ( float value )

protectedvirtual

Called repeatedly as the user drags the thumbwheel in the right frame. Override this method in subclassed viewers to provide your own functionality on the thumbwheel.

See also: rightWheelStart(), rightWheelFinish(); leftWheelStart(), bottomWheelStart()

Reimplemented from SoQtFullViewer.

◆ setAnimationEnabled()

void SoQtExaminerViewer::setAnimationEnabled ( const SbBool enable )

Decide if it should be possible to start a spin animation of the model in the viewer by releasing the mouse button while dragging.

If the enable flag is FALSE and we're currently animating, the spin will be stopped.

See also: isAnimationEnabled

◆ setCamera()

void SoQtExaminerViewer::setCamera ( SoCamera * cam )

virtual

Set the camera we want the viewer to manipulate when interacting with the viewer controls.

The camera passed in as an argument to this method must already be part of the viewer's scene graph. You do not inject viewpoint cameras to the viewer with this method.

You should rather insert a camera into the scene graph first (if necessary, often one will be present already), then register it as the camera used by the viewer controls with this method.

If the application code doesn't explicitly set up a camera through this method, the viewer will automatically scan through the scene graph to find a camera to use. If no camera is available in the scene graph at all, it will set up its own camera.

See also: getCamera()

Reimplemented from SoQtViewer.

◆ setCursorEnabled()

void SoQtExaminerViewer::setCursorEnabled ( SbBool enable )

virtual

Decide whether or not the mouse pointer cursor should be visible in the rendering canvas.

Reimplemented from SoQtViewer.

◆ setFeedbackSize()

void SoQtExaminerViewer::setFeedbackSize ( const int size )

Set the size of the feedback axis cross. The value is interpreted as an approximate percentage chunk of the dimensions of the total canvas.

See also: getFeedbackSize, isFeedbackVisible, setFeedbackVisibility

◆ setFeedbackVisibility()

void SoQtExaminerViewer::setFeedbackVisibility ( const SbBool enable )

Set the flag deciding whether or not to show the axis cross.

See also: isFeedbackVisible, getFeedbackSize, setFeedbackSize

◆ setSeekMode()

void SoQtExaminerViewer::setSeekMode ( SbBool enable )

protectedvirtual

Put the viewer in or out of "waiting-to-seek" mode.

If the user performs a mouse button click when the viewer is in "waiting-to-seek" mode, the camera will be repositioned so the camera focal point lies on the point of the geometry under the mouse cursor.

See also: isSeekMode(), setDetailSeek()

Reimplemented from SoQtViewer.

◆ setViewing()

void SoQtExaminerViewer::setViewing ( SbBool enable )

virtual

Set view mode.

If the view mode is on, user events will be caught and used to influence the camera position / orientation. If view mode is off, all events in the viewer canvas (like for instance keypresses or mouse clicks and -movements) will be passed along to the scene graph.

Default is to have the view mode active.

See also: isViewing()

Reimplemented from SoQtFullViewer.

◆ stopAnimating()

void SoQtExaminerViewer::stopAnimating ( void )

Stop the model from spinning.

The documentation for this class was generated from the following files:

SoQtExaminerViewer.h
SoQtExaminerViewer.cpp
ExaminerViewer.cpp

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SoQtExaminerViewer() [1/2]

◆ SoQtExaminerViewer() [2/2]

Member Function Documentation

◆ actualRedraw()

◆ afterRealizeHook()

◆ bottomWheelMotion()

◆ createViewerButtons()

◆ getDefaultIconTitle()

◆ getDefaultTitle()

◆ getDefaultWidgetName()

◆ getFeedbackSize()

◆ isAnimating()

◆ isAnimationEnabled()

◆ isFeedbackVisible()

◆ leftWheelMotion()

◆ processSoEvent()

◆ rightWheelMotion()

◆ setAnimationEnabled()

◆ setCamera()

◆ setCursorEnabled()

◆ setFeedbackSize()

◆ setFeedbackVisibility()

◆ setSeekMode()

◆ setViewing()

◆ stopAnimating()
