SoQtFlyViewer Class Reference

The SoQtFlyViewer class implements controls for moving the camera in a "flying" motion. More...

#include <Inventor/Qt/viewers/SoQtFlyViewer.h>

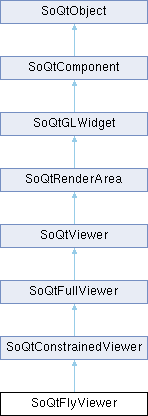

Inheritance diagram for SoQtFlyViewer:
SoQtConstrainedViewer SoQtFullViewer SoQtViewer SoQtRenderArea SoQtGLWidget SoQtComponent SoQtObject

Public Member Functions

 SoQtFlyViewer (QWidget *parent=NULL, const char *name=NULL, SbBool embed=TRUE, SoQtFullViewer::BuildFlag flag=BUILD_ALL, SoQtViewer::Type type=BROWSER)

 ~SoQtFlyViewer ()

virtual void resetToHomePosition (void)

virtual void setCamera (SoCamera *camera)

virtual void setCameraType (SoType type)

virtual void setCursorEnabled (SbBool enable)

virtual void setViewing (SbBool enable)

virtual void viewAll (void)

- Public Member Functions inherited from SoQtConstrainedViewer
const SbVec3f & getUpDirection (void) const

virtual void saveHomePosition (void)

void setUpDirection (const SbVec3f &dir)

- Public Member Functions inherited from SoQtFullViewer
void addAppPushButton (QWidget *newButton)

int findAppPushButton (QWidget *oldButton) const

QWidget * getAppPushButtonParent (void) const

QWidget * getRenderAreaWidget (void) const

void insertAppPushButton (QWidget *newButton, int index)

SbBool isDecoration (void) const

SbBool isPopupMenuEnabled (void) const

int lengthAppPushButton (void) const

void removeAppPushButton (QWidget *oldButton)

virtual void setComponentCursor (const SoQtCursor &cursor)

void setDecoration (const SbBool on)

void setPopupMenuEnabled (const SbBool on)

- Public Member Functions inherited from SoQtViewer
void addFinishCallback (SoQtViewerCB *func, void *data=NULL)

void addStartCallback (SoQtViewerCB *func, void *data=NULL)

void getAnaglyphStereoColorMasks (SbBool left[3], SbBool right[3])

SoQtViewer::BufferType getBufferingType (void) const

SoCamera * getCamera (void) const

SoType getCameraType (void) const

SoQtViewer::DrawStyle getDrawStyle (const SoQtViewer::DrawType type) const

SoDirectionalLight * getHeadlight (void) const

virtual SoNode * getSceneGraph (void)

float getSeekTime (void) const

float getStereoOffset (void) const

SoQtViewer::StereoType getStereoType (void) const

const SbColor & getWireframeOverlayColor (void) const

SbBool isAutoClipping (void) const

SbBool isCursorEnabled (void) const

SbBool isDetailSeek (void) const

SbBool isHeadlight (void) const

SbBool isStereoViewing (void) const

SbBool isViewing (void) const

void removeFinishCallback (SoQtViewerCB *func, void *data=NULL)

void removeStartCallback (SoQtViewerCB *func, void *data=NULL)

void setAnaglyphStereoColorMasks (const SbBool left[3], const SbBool right[3])

void setAutoClipping (SbBool enable)

void setAutoClippingStrategy (const AutoClippingStrategy strategy, const float value=0.6f, SoQtAutoClippingCB *cb=NULL, void *cbuserdata=NULL)

virtual void setBufferingType (SoQtViewer::BufferType type)

void setDetailSeek (const SbBool enable)

virtual void setDoubleBuffer (const SbBool enable)

virtual void setDrawStyle (SoQtViewer::DrawType type, SoQtViewer::DrawStyle style)

virtual void setHeadlight (SbBool enable)

virtual void setSceneGraph (SoNode *root)

void setSeekTime (const float seconds)

virtual void setStereoOffset (const float dist)

SbBool setStereoType (SoQtViewer::StereoType s)

virtual void setStereoViewing (SbBool enable)

void setWireframeOverlayColor (const SbColor &color)

virtual void toggleCameraType (void)

- Public Member Functions inherited from SoQtRenderArea
 SoQtRenderArea (QWidget *parent=NULL, const char *name=NULL, SbBool embed=TRUE, SbBool mouseInput=TRUE, SbBool keyboardInput=TRUE)

 ~SoQtRenderArea ()

void getAntialiasing (SbBool &smoothing, int &numPasses) const

const SbColor & getBackgroundColor (void) const

int getBackgroundIndex (void) const

SoGLRenderAction * getGLRenderAction (void) const

int getOverlayBackgroundIndex (void) const

SoGLRenderAction * getOverlayGLRenderAction (void) const

SoNode * getOverlaySceneGraph (void)

SoSceneManager * getOverlaySceneManager (void) const

uint32_t getRedrawPriority (void) const

SoSceneManager * getSceneManager (void) const

SoGLRenderAction::TransparencyType getTransparencyType (void) const

const SbViewportRegion & getViewportRegion (void) const

SbBool isAutoRedraw (void) const

SbBool isClearBeforeOverlayRender (void) const

SbBool isClearBeforeRender (void) const

SbBool isClearZBufferBeforeRender (void) const

void redrawOnSelectionChange (SoSelection *selection)

void redrawOverlayOnSelectionChange (SoSelection *selection)

void registerDevice (SoQtDevice *device)

void render (void)

void renderOverlay (void)

void scheduleOverlayRedraw (void)

void scheduleRedraw (void)

SbBool sendSoEvent (const SoEvent *event)

void setAntialiasing (SbBool smoothing, int numPasses)

void setAutoRedraw (SbBool enable)

void setBackgroundColor (const SbColor &color)

void setBackgroundIndex (int idx)

void setClearBeforeOverlayRender (SbBool enable)

void setClearBeforeRender (SbBool enable, SbBool zbEnable=TRUE)

void setColorMap (int start, int num, const SbColor *colors)

void setEventCallback (SoQtRenderAreaEventCB *func, void *user=NULL)

void setGLRenderAction (SoGLRenderAction *action)

void setOverlayBackgroundIndex (int idx)

void setOverlayColorMap (int start, int num, const SbColor *colors)

void setOverlayGLRenderAction (SoGLRenderAction *action)

void setOverlaySceneGraph (SoNode *scene)

void setOverlaySceneManager (SoSceneManager *manager)

void setRedrawPriority (uint32_t priority)

void setSceneManager (SoSceneManager *manager)

void setTransparencyType (SoGLRenderAction::TransparencyType type)

void setViewportRegion (const SbViewportRegion &newRegion)

void unregisterDevice (SoQtDevice *device)

- Public Member Functions inherited from SoQtGLWidget
SbBool getAccumulationBuffer (void) const

SbBool getAlphaChannel (void) const

QWidget * getGLWidget (void) const

void getLineWidthLimits (SbVec2f &range, float &granularity)

QWidget * getNormalWidget (void) const

unsigned long getOverlayTransparentPixel (void)

QWidget * getOverlayWidget (void) const

void getPointSizeLimits (SbVec2f &range, float &granularity)

int getSampleBuffers (void) const

SbBool getStencilBuffer (void) const

SbBool hasNormalGLArea (void) const

SbBool hasOverlayGLArea (void) const

SbBool isBorder (void) const

SbBool isDoubleBuffer (void) const

SbBool isDrawToFrontBufferEnable (void) const

SbBool isOverlayRender (void) const

SbBool isQuadBufferStereo (void) const

SbBool isStealFocus (void) const

void setAccumulationBuffer (const SbBool enable)

void setAlphaChannel (const SbBool enable)

void setBorder (const SbBool enable)

void setDrawToFrontBufferEnable (const SbBool enable)

void setOverlayRender (const SbBool onoff)

void setQuadBufferStereo (const SbBool enable)

void setSampleBuffers (const int numsamples)

void setStealFocus (SbBool enable)

void setStencilBuffer (const SbBool enable)

- Public Member Functions inherited from SoQtComponent
virtual ~SoQtComponent ()

QWidget * getBaseWidget (void) const

const char * getClassName (void) const

const char * getIconTitle (void) const

QWidget * getParentWidget (void) const

QWidget * getShellWidget (void) const

SbVec2s getSize (void) const

const char * getTitle (void) const

QWidget * getWidget (void) const

const char * getWidgetName (void) const

virtual void hide (void)

SbBool isFullScreen (void) const

SbBool isTopLevelShell (void) const

SbBool isVisible (void)

SbBool setFullScreen (const SbBool onoff)

void setIconTitle (const char *const title)

void setSize (const SbVec2s size)

void setTitle (const char *const title)

void setWindowCloseCallback (SoQtComponentCB *const func, void *const user=NULL)

virtual void show (void)

- Public Member Functions inherited from SoQtObject
virtual SoType getTypeId (void) const =0

SbBool isOfType (SoType type) const


Protected Member Functions

 SoQtFlyViewer (QWidget *parent, const char *const name, SbBool embed, SoQtFullViewer::BuildFlag flag, SoQtViewer::Type type, SbBool build)

virtual void actualRedraw (void)

virtual void afterRealizeHook (void)

virtual const char * getDefaultIconTitle (void) const

virtual const char * getDefaultTitle (void) const

virtual const char * getDefaultWidgetName (void) const

virtual SbBool processSoEvent (const SoEvent *const event)

virtual void rightWheelMotion (float value)

virtual void setSeekMode (SbBool enable)

- Protected Member Functions inherited from SoQtConstrainedViewer
 SoQtConstrainedViewer (QWidget *parent, const char *const name, SbBool embed, SoQtFullViewer::BuildFlag flag, SoQtViewer::Type type, SbBool build)

 ~SoQtConstrainedViewer ()

virtual void bottomWheelMotion (float value)

virtual void changeCameraValues (SoCamera *camera)

void checkForCameraUpConstrain (void)

void findUpDirection (SbVec2s mouselocation)

virtual void leftWheelMotion (float value)

virtual void tiltCamera (float delta)

- Protected Member Functions inherited from SoQtFullViewer
 SoQtFullViewer (QWidget *parent, const char *name, SbBool embed, BuildFlag flag, Type type, SbBool build)

 ~SoQtFullViewer ()

virtual void bottomWheelFinish (void)

virtual void bottomWheelStart (void)

QWidget * buildAppButtons (QWidget *parent)

virtual QWidget * buildBottomTrim (QWidget *parent)

virtual void buildDecoration (QWidget *parent)

virtual QWidget * buildLeftTrim (QWidget *parent)

virtual void buildPopupMenu (void)

virtual QWidget * buildRightTrim (QWidget *parent)

QWidget * buildViewerButtons (QWidget *parent)

QWidget * buildWidget (QWidget *parent)

virtual void createViewerButtons (QWidget *parent, SbPList *buttonlist)

QWidget * getBottomWheelLabelWidget (void) const

float getBottomWheelValue (void) const

QWidget * getLeftWheelLabelWidget (void) const

float getLeftWheelValue (void) const

QWidget * getRightWheelLabelWidget (void) const

const char * getRightWheelString () const

float getRightWheelValue (void) const

virtual void leftWheelFinish (void)

virtual void leftWheelStart (void)

virtual void openPopupMenu (const SbVec2s position)

virtual void rightWheelFinish (void)

virtual void rightWheelStart (void)

void setBottomWheelString (const char *const name)

void setBottomWheelValue (const float value)

void setLeftWheelString (const char *const name)

void setLeftWheelValue (const float value)

virtual void setPopupMenuString (const char *title)

void setRightWheelString (const char *const name)

void setRightWheelValue (const float value)

virtual void sizeChanged (const SbVec2s &size)

- Protected Member Functions inherited from SoQtViewer
 SoQtViewer (QWidget *parent, const char *name, SbBool embed, Type type, SbBool build)

 ~SoQtViewer ()

void addSuperimposition (SoNode *scene)

virtual void computeSeekFinalOrientation (void)

int getInteractiveCount (void) const

float getSeekDistance (void) const

SbBool getSuperimpositionEnabled (SoNode *scene) const

void interactiveCountDec (void)

void interactiveCountInc (void)

SbBool isSeekMode (void) const

SbBool isSeekValuePercentage (void) const

void removeSuperimposition (SoNode *scene)

SbBool seekToPoint (const SbVec2s screenpos)

void seekToPoint (const SbVec3f &scenepos)

void setSeekDistance (const float distance)

void setSeekValueAsPercentage (const SbBool on)

void setSuperimpositionEnabled (SoNode *scene, const SbBool enable)

- Protected Member Functions inherited from SoQtRenderArea
 SoQtRenderArea (QWidget *parent, const char *name, SbBool embed, SbBool mouseInput, SbBool keyboardInput, SbBool build)

virtual void actualOverlayRedraw (void)

QWidget * buildWidget (QWidget *parent)

virtual SbBool glScheduleRedraw (void)

virtual void initGraphic (void)

virtual void initOverlayGraphic (void)

virtual void processEvent (QEvent *event)

virtual void redraw (void)

virtual void redrawOverlay (void)

virtual void widgetChanged (QWidget *widget)

- Protected Member Functions inherited from SoQtGLWidget
 SoQtGLWidget (QWidget *const parent=NULL, const char *const name=NULL, const SbBool embed=TRUE, const int glmodes=SO_GL_RGB, const SbBool build=TRUE)

 ~SoQtGLWidget ()

QWidget * buildWidget (QWidget *parent)

float getGLAspectRatio (void) const

SbVec2s getGLSize (void) const

float getGlxAspectRatio (void) const

SbVec2s getGlxSize (void) const

void glFlushBuffer (void)

void glLockNormal (void)

void glLockOverlay (void)

void glSwapBuffers (void)

void glUnlockNormal (void)

void glUnlockOverlay (void)

SbBool isRGBMode (void)

SbBool isStereoBuffer (void) const

void setGLSize (const SbVec2s size)

void setGlxSize (const SbVec2s size)

void setStereoBuffer (SbBool flag)

- Protected Member Functions inherited from SoQtComponent
 SoQtComponent (QWidget *const parent=NULL, const char *const name=NULL, const SbBool embed=TRUE)

void addVisibilityChangeCallback (SoQtComponentVisibilityCB *const func, void *const user=NULL)

void registerWidget (QWidget *widget)

void removeVisibilityChangeCallback (SoQtComponentVisibilityCB *const func, void *const user=NULL)

void setBaseWidget (QWidget *widget)

void setClassName (const char *const name)

void unregisterWidget (QWidget *widget)


Additional Inherited Members

- Public Types inherited from SoQtFullViewer
enum  BuildFlag { BUILD_NONE = 0x00 , BUILD_DECORATION = 0x01 , BUILD_POPUP = 0x02 , BUILD_ALL = (BUILD_DECORATION | BUILD_POPUP) }

- Public Types inherited from SoQtViewer
enum  AutoClippingStrategy { VARIABLE_NEAR_PLANE , CONSTANT_NEAR_PLANE }

enum  BufferType { BUFFER_SINGLE , BUFFER_DOUBLE , BUFFER_INTERACTIVE }

enum  DrawStyle {
  VIEW_AS_IS , VIEW_HIDDEN_LINE , VIEW_NO_TEXTURE , VIEW_LOW_COMPLEXITY ,
  VIEW_LINE , VIEW_POINT , VIEW_BBOX , VIEW_LOW_RES_LINE ,
  VIEW_LOW_RES_POINT , VIEW_SAME_AS_STILL , VIEW_WIREFRAME_OVERLAY
}

enum  DrawType { STILL = 0 , INTERACTIVE }

enum  StereoType {
  STEREO_NONE , STEREO_ANAGLYPH , STEREO_QUADBUFFER , STEREO_INTERLEAVED_ROWS ,
  STEREO_INTERLEAVED_COLUMNS
}

enum  Type { BROWSER , EDITOR }

- Static Public Member Functions inherited from SoQtRenderArea
static uint32_t getDefaultRedrawPriority (void)

- Static Public Member Functions inherited from SoQtComponent
static SoQtComponentgetComponent (QWidget *widget)

static void initClasses (void)

static void setWidgetCursor (QWidget *w, const SoQtCursor &cursor)

- Static Public Member Functions inherited from SoQtObject
static SoType getClassTypeId (void)

static void init (void)

static void initClass (void)

- Protected Attributes inherited from SoQtFullViewer
QWidget * bottomDecoration

QWidget * bottomWheel

QWidget * bottomWheelLabel

char * bottomWheelStr

float bottomWheelVal

QWidget * leftDecoration

QWidget * leftWheel

QWidget * leftWheelLabel

char * leftWheelStr

float leftWheelVal

SoQtPopupMenu * prefmenu

QWidget * rightDecoration

QWidget * rightWheel

QWidget * rightWheelLabel

char * rightWheelStr

float rightWheelVal

- Protected Attributes inherited from SoQtGLWidget
SbBool drawToFrontBuffer

SbBool waitForExpose


Detailed Description

The SoQtFlyViewer class implements controls for moving the camera in a "flying" motion.

Controls:

  • Left mouse button increases the speed.

  • Middle mouse button decreases the speed.

  • Left and middle mouse button together sets the speed to zero.

  • "s" puts the viewer in seek mode. Click some geometry with the left mouse button to start the seek zoom animation. (Hitting "s" again before clicking will cancel the seek operation.)

  • "u" puts the viewer in up-vector pick mode. Click some geometry with the left mouse button to set the camera's up-vector to the normal vector of the face you pick. (Hitting "u" again before clicking will cancel the pick operation.)

  • The control key stops the flying and lets you tilt the camera by moving the pointer.

Constructor & Destructor Documentation

◆ SoQtFlyViewer() [1/2]

SoQtFlyViewer::SoQtFlyViewer ( QWidget * parent = NULL,
const char * name = NULL,
SbBool embed = TRUE,
SoQtFullViewer::BuildFlag flag = BUILD_ALL,
SoQtViewer::Type type = BROWSER )

Public constructor.

◆ ~SoQtFlyViewer()

SoQtFlyViewer::~SoQtFlyViewer ( )

Virtual constructor.

◆ SoQtFlyViewer() [2/2]

SoQtFlyViewer::SoQtFlyViewer ( QWidget * parent,
const char *const name,
SbBool embed,
SoQtFullViewer::BuildFlag flag,
SoQtViewer::Type type,
SbBool build )
protected

Protected constructor, used by viewer components derived from the SoQtFlyViewer.

Member Function Documentation

◆ actualRedraw()

void SoQtFlyViewer::actualRedraw ( void )
protectedvirtual

This method instantly redraws the normal (non-overlay) scene graph by calling SoSceneManager::render().

Subclasses may override this method to add their own rendering before or after Coin renders its scene graph.

The following is a complete example that demonstrates one way of adding both a background image and foreground (overlay) geometry to the "normal" rendering:

// This example shows how to put a permanent background image on
// your viewer canvas, below the 3D graphics, plus overlay
// foreground geometry. Written by mortene.
// Copyright Kongsberg Oil & Gas Technologies 2002.
// *************************************************************************
#include <Inventor/Qt/SoQt.h>
#include <Inventor/Qt/viewers/SoQtExaminerViewer.h>
#include <Inventor/nodes/SoBaseColor.h>
#include <Inventor/nodes/SoCone.h>
#include <Inventor/nodes/SoCube.h>
#include <Inventor/nodes/SoImage.h>
#include <Inventor/nodes/SoLightModel.h>
#include <Inventor/nodes/SoOrthographicCamera.h>
#include <Inventor/nodes/SoRotationXYZ.h>
#include <Inventor/nodes/SoSeparator.h>
#include <Inventor/nodes/SoTranslation.h>
#include <GL/gl.h>
// *************************************************************************
class MyExaminerViewer : public SoQtExaminerViewer {
public:
MyExaminerViewer(QWidget* parent, const char * filename);
~MyExaminerViewer();
protected:
virtual void actualRedraw(void);
private:
SoSeparator * bckgroundroot;
SoSeparator * foregroundroot;
SoRotationXYZ * arrowrotation;
};
MyExaminerViewer::MyExaminerViewer(QWidget* parent, const char * filename)
{
// Coin should not clear the pixel-buffer, so the background image
// is not removed.
this->setClearBeforeRender(FALSE, TRUE);
// Set up background scene graph with image in it.
this->bckgroundroot = new SoSeparator;
this->bckgroundroot->ref();
SoOrthographicCamera * cam = new SoOrthographicCamera;
cam->position = SbVec3f(0, 0, 1);
cam->height = 1;
// SoImage will be at z==0.0.
cam->nearDistance = 0.5;
cam->farDistance = 1.5;
SoImage * img = new SoImage;
img->vertAlignment = SoImage::HALF;
img->horAlignment = SoImage::CENTER;
img->filename = filename;
this->bckgroundroot->addChild(cam);
this->bckgroundroot->addChild(img);
// Set up foreground, overlaid scene graph.
this->foregroundroot = new SoSeparator;
this->foregroundroot->ref();
SoLightModel * lm = new SoLightModel;
lm->model = SoLightModel::BASE_COLOR;
SoBaseColor * bc = new SoBaseColor;
bc->rgb = SbColor(1, 1, 0);
cam = new SoOrthographicCamera;
cam->position = SbVec3f(0, 0, 5);
cam->height = 10;
cam->nearDistance = 0;
cam->farDistance = 10;
const double ARROWSIZE = 2.0;
SoTranslation * posit = new SoTranslation;
posit->translation = SbVec3f(-2.5 * ARROWSIZE, 1.5 * ARROWSIZE, 0);
arrowrotation = new SoRotationXYZ;
arrowrotation->axis = SoRotationXYZ::Z;
SoTranslation * offset = new SoTranslation;
offset->translation = SbVec3f(ARROWSIZE/2.0, 0, 0);
SoCube * cube = new SoCube;
cube->width = ARROWSIZE;
cube->height = ARROWSIZE/15.0;
this->foregroundroot->addChild(cam);
this->foregroundroot->addChild(lm);
this->foregroundroot->addChild(bc);
this->foregroundroot->addChild(posit);
this->foregroundroot->addChild(arrowrotation);
this->foregroundroot->addChild(offset);
this->foregroundroot->addChild(cube);
}
MyExaminerViewer::~MyExaminerViewer()
{
this->bckgroundroot->unref();
this->foregroundroot->unref();
}
void
MyExaminerViewer::actualRedraw(void)
{
// Must set up the OpenGL viewport manually, as upon resize
// operations, Coin won't set it up until the SoGLRenderAction is
// applied again. And since we need to do glClear() before applying
// the action..
const SbViewportRegion vp = this->getViewportRegion();
SbVec2s origin = vp.getViewportOriginPixels();
SbVec2s size = vp.getViewportSizePixels();
glViewport(origin[0], origin[1], size[0], size[1]);
const SbColor col = this->getBackgroundColor();
glClearColor(col[0], col[1], col[2], 0.0f);
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
// Render our scene graph with the image.
SoGLRenderAction * glra = this->getGLRenderAction();
glra->apply(this->bckgroundroot);
// Render normal scene graph.
// Increase arrow angle with 1/1000 degrees every frame.
arrowrotation->angle = arrowrotation->angle.getValue() + (0.001 / M_PI * 180);
// Render overlay front scene graph.
glClear(GL_DEPTH_BUFFER_BIT);
glra->apply(this->foregroundroot);
}
// *************************************************************************
int
main(int argc, char ** argv)
{
if (argc != 2) {
(void)fprintf(stderr, "\n\n\tUsage: %s <image-filename>\n\n", argv[0]);
exit(1);
}
QWidget* window = SoQt::init(argv[0]);
MyExaminerViewer * viewer = new MyExaminerViewer(window, argv[1]);
viewer->setSceneGraph(new SoCone);
viewer->show();
SoQt::show(window);
delete viewer;
return 0;
}
// *************************************************************************
The SoQtExaminerViewer class is a 3D-model examination viewer.
Definition SoQtExaminerViewer.h:50
virtual void actualRedraw(void)
Definition SoQtExaminerViewer.cpp:663
static QWidget * init(const char *appname, const char *classname="SoQt")
Definition SoQtCommon.cpp:173
static void show(QWidget *const widget)
Definition SoQt.cpp:971
static void mainLoop(void)
Definition SoQt.cpp:854

Reimplemented from SoQtViewer.

◆ afterRealizeHook()

void SoQtFlyViewer::afterRealizeHook ( void )
protectedvirtual

A function "hook" / callback invoked just after the window for the component has been realized.

Override this if you need specific initialization for your own component or viewer class to happen right after it has been made visible, but remember to call upwards in the inheritance hierarchy:

void
MyLittleViewer::afterRealizeHook(void)
{
<superclass>::afterRealizeHook();
// [own initialization here]
}
virtual void afterRealizeHook(void)
Definition SoQtFlyViewer.cpp:1280

Reimplemented from SoQtRenderArea.

◆ getDefaultIconTitle()

const char * SoQtFlyViewer::getDefaultIconTitle ( void ) const
protectedvirtual

This method returns the default icon title of the component.

It should be overridden by derived non-abstract classes so icons will get proper titles.

Reimplemented from SoQtRenderArea.

◆ getDefaultTitle()

const char * SoQtFlyViewer::getDefaultTitle ( void ) const
protectedvirtual

This method returns the default window caption string of the component.

It should be overridden by derived non-abstract classes so the window and pop-up menu will get a proper title.

Reimplemented from SoQtRenderArea.

◆ getDefaultWidgetName()

const char * SoQtFlyViewer::getDefaultWidgetName ( void ) const
protectedvirtual

This method returns the default name of a component widget class.

It should be overridden by derived non-abstract classes for the topmost widget in the component to have a proper name.

Reimplemented from SoQtRenderArea.

◆ processSoEvent()

SbBool SoQtFlyViewer::processSoEvent ( const SoEvent *const event)
protectedvirtual

Toolkit-native events are tried to convert to Coin-generic events in the SoQtRenderArea::processEvent() method. If this succeeds, they are forwarded to this method.

This is a virtual method, and is overridden in its subclasses to catch events of particular interest to the viewer classes, for instance.

Return TRUE if the event was processed. If not it should be passed on further up in the inheritance hierarchy by the caller. This last point is extremely important to take note of if you are expanding the toolkit with your own viewer class.

This method is not part of the original SGI InventorXt API. Note that you can still override the toolkit-native processEvent() method instead of this "generic" method.

Reimplemented from SoQtFullViewer.

◆ resetToHomePosition()

void SoQtFlyViewer::resetToHomePosition ( void )
virtual

Restore the saved camera settings.

See also
saveHomePosition()

Reimplemented from SoQtConstrainedViewer.

◆ rightWheelMotion()

void SoQtFlyViewer::rightWheelMotion ( float value)
protectedvirtual

Called repeatedly as the user drags the thumbwheel in the right frame. Override this method in subclassed viewers to provide your own functionality on the thumbwheel.

See also
rightWheelStart(), rightWheelFinish()
leftWheelStart(), bottomWheelStart()

Reimplemented from SoQtFullViewer.

◆ setCamera()

void SoQtFlyViewer::setCamera ( SoCamera * cam)
virtual

Set the camera we want the viewer to manipulate when interacting with the viewer controls.

The camera passed in as an argument to this method must already be part of the viewer's scene graph. You do not inject viewpoint cameras to the viewer with this method.

You should rather insert a camera into the scene graph first (if necessary, often one will be present already), then register it as the camera used by the viewer controls with this method.

If the application code doesn't explicitly set up a camera through this method, the viewer will automatically scan through the scene graph to find a camera to use. If no camera is available in the scene graph at all, it will set up its own camera.

See also
getCamera()

Reimplemented from SoQtConstrainedViewer.

◆ setCameraType()

void SoQtFlyViewer::setCameraType ( SoType t)
virtual

When the viewer has to make its own camera as a result of the graph passed to setSceneGraph() not containing any camera nodes, this call can be made in advance to decide which type the camera will be of.

Default is to use an SoPerspectiveCamera.

If this method is called when there is a scene graph and a camera already set up, it will delete the old camera and set up a camera with the new type if the t type is different from that of the current camera.

See also
getCameraType()

Reimplemented from SoQtViewer.

◆ setCursorEnabled()

void SoQtFlyViewer::setCursorEnabled ( SbBool on)
virtual

Set whether or not the mouse cursor representation should be visible in the viewer canvas.

Default value is on.

See also
isCursorEnabled()

Reimplemented from SoQtViewer.

◆ setSeekMode()

void SoQtFlyViewer::setSeekMode ( SbBool enable)
protectedvirtual

Put the viewer in or out of "waiting-to-seek" mode.

If the user performs a mouse button click when the viewer is in "waiting-to-seek" mode, the camera will be repositioned so the camera focal point lies on the point of the geometry under the mouse cursor.

See also
isSeekMode(), setDetailSeek()

Reimplemented from SoQtViewer.

◆ setViewing()

void SoQtFlyViewer::setViewing ( SbBool enable)
virtual

Set view mode.

If the view mode is on, user events will be caught and used to influence the camera position / orientation. If view mode is off, all events in the viewer canvas (like for instance keypresses or mouse clicks and -movements) will be passed along to the scene graph.

Default is to have the view mode active.

See also
isViewing()

Reimplemented from SoQtFullViewer.

◆ viewAll()

void SoQtFlyViewer::viewAll ( void )
virtual

Reposition the current camera so we can see the complete scene.

Reimplemented from SoQtViewer.


The documentation for this class was generated from the following files:
