ScXMLEventTarget Class Reference

base class for event targets for inter-system event communication More...

#include <Inventor/scxml/ScXMLEventTarget.h>

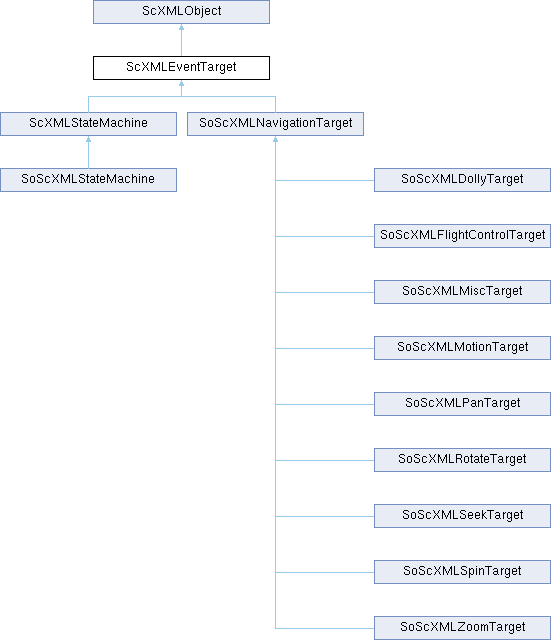

Inheritance diagram for ScXMLEventTarget:

Public Member Functions
virtual const ScXMLEvent *	getCurrentEvent (void) const
const char *	getEventTargetName (void) const
const char *	getEventTargetType (void) const
virtual SoType	getTypeId (void) const =0
	Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.
virtual SbBool	processEventQueue (void)
virtual void	queueEvent (const SbName &eventid)
virtual void	queueEvent (const ScXMLEvent *event)
virtual void	queueInternalEvent (const SbName &eventid)
virtual void	queueInternalEvent (const ScXMLEvent *event)
virtual SbBool	sendExternalEvent (const ScXMLSendElt *sendelt)
virtual SbBool	sendInternalEvent (const ScXMLEventElt *sendelt)
virtual void	setEventTargetName (const char *targetname)
virtual void	setEventTargetType (const char *targettype)
Public Member Functions inherited from ScXMLObject
SbBool	isOfType (SoType type) const
	Returns TRUE if the type of this object is either of the same type or inherited from type.

Static Public Member Functions
static void	cleanClass (void)
static SoType	getClassTypeId (void)
static void	initClass (void)
Static Public Member Functions inherited from ScXMLObject
static void	cleanClass (void)
	Does the opposite of initClass, deallocates any class specific resources and resets the class to an uninitialized state with respect to the Coin type system.
static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Protected Member Functions
virtual const ScXMLEvent *	getNextEvent (void)
virtual const ScXMLEvent *	getNextExternalEvent (void)
virtual const ScXMLEvent *	getNextInternalEvent (void)
virtual SbBool	processOneEvent (const ScXMLEvent *event)
virtual void	setCurrentEvent (const ScXMLEvent *event)

Static Protected Member Functions
static ScXMLEventTarget *	getEventTarget (const char *targettype, const char *targetname, const char *sessionid=NULL)
static void	registerEventTarget (ScXMLEventTarget *target, const char *sessionid=NULL)
static void	unregisterEventTarget (ScXMLEventTarget *target, const char *sessionid=NULL)
Static Protected Member Functions inherited from ScXMLObject
static void	registerClassType (const char *xmlns, const char *classname, SoType type)
static void	registerInvokeClassType (const char *xmlns, const char *targettype, const char *source, SoType type)

Protected Attributes
const ScXMLEvent *	currentevent
SbBool	isprocessingqueue
char *	targetname
char *	targettype

Detailed Description

base class for event targets for inter-system event communication

This class manages inter-communication between SCXML systems and systems intended for communicating with such systems. It also manages the external event queue for such systems (systems may also have internal event queues).

Since

Coin 3.1

Member Function Documentation

getCurrentEvent()

const ScXMLEvent * ScXMLEventTarget::getCurrentEvent ( void ) const

inlinevirtual

This method returns the current event during event processing, and NULL when not processing events.

Event processing is in special cases done with NULL as the current event, as for instance during state machine initialization.

getTypeId()

virtual SoType ScXMLEventTarget::getTypeId ( void ) const

pure virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

See also

SoBase::getTypeId() const

Implements ScXMLObject.

Implemented in SoScXMLDollyTarget, SoScXMLFlightControlTarget, SoScXMLMiscTarget, SoScXMLMotionTarget, SoScXMLPanTarget, SoScXMLRotateTarget, SoScXMLSeekTarget, SoScXMLSpinTarget, SoScXMLZoomTarget, ScXMLStateMachine, SoScXMLStateMachine, and SoScXMLNavigationTarget.

processOneEvent()

SbBool ScXMLEventTarget::processOneEvent ( const ScXMLEvent * event )

protectedvirtual

This function processes one event. The base class implementation does nothing.

Reimplemented in SoScXMLDollyTarget, SoScXMLFlightControlTarget, SoScXMLMiscTarget, SoScXMLMotionTarget, SoScXMLPanTarget, SoScXMLRotateTarget, SoScXMLSeekTarget, SoScXMLSpinTarget, SoScXMLZoomTarget, and ScXMLStateMachine.

queueEvent() [1/2]

void ScXMLEventTarget::queueEvent ( const SbName & eventid )

virtual

Queues an ScXMLEvent event that has the given eventid as its event name.

queueEvent() [2/2]

void ScXMLEventTarget::queueEvent ( const ScXMLEvent * event )

virtual

Queues an ScXMLEvent event. The event is copied, and can be deleted as soon as the function returns.

setCurrentEvent()

void ScXMLEventTarget::setCurrentEvent ( const ScXMLEvent * event )

protectedvirtual

Sets a pointer for the event that is 'current' during event processing. This is an internal method, and the updating of the current event should be handled automatically.

---

The documentation for this class was generated from the following files:

• ScXMLEventTarget.h
• ScXMLEventTarget.cpp
