SoScXMLNavigationTarget Class Reference

base class for navigation system SCXML event target services More...

#include <Inventor/navigation/SoScXMLNavigationTarget.h>

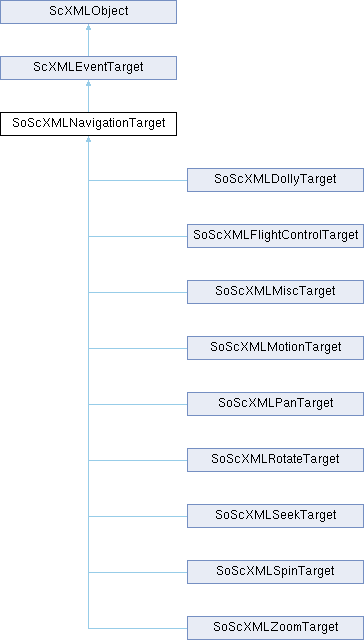

Inheritance diagram for SoScXMLNavigationTarget:

Classes
class	Data

Public Member Functions
virtual SoType	getTypeId (void) const =0
	Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.
Public Member Functions inherited from ScXMLEventTarget
virtual const ScXMLEvent *	getCurrentEvent (void) const
const char *	getEventTargetName (void) const
const char *	getEventTargetType (void) const
virtual SbBool	processEventQueue (void)
virtual void	queueEvent (const SbName &eventid)
virtual void	queueEvent (const ScXMLEvent *event)
virtual void	queueInternalEvent (const SbName &eventid)
virtual void	queueInternalEvent (const ScXMLEvent *event)
virtual SbBool	sendExternalEvent (const ScXMLSendElt *sendelt)
virtual SbBool	sendInternalEvent (const ScXMLEventElt *sendelt)
virtual void	setEventTargetName (const char *targetname)
virtual void	setEventTargetType (const char *targettype)
Public Member Functions inherited from ScXMLObject
SbBool	isOfType (SoType type) const
	Returns TRUE if the type of this object is either of the same type or inherited from type.

Static Public Member Functions
static void	cleanClass (void)
static SoType	getClassTypeId (void)
static void	initClass (void)
Static Public Member Functions inherited from ScXMLEventTarget
static void	cleanClass (void)
static SoType	getClassTypeId (void)
static void	initClass (void)
Static Public Member Functions inherited from ScXMLObject
static void	cleanClass (void)
	Does the opposite of initClass, deallocates any class specific resources and resets the class to an uninitialized state with respect to the Coin type system.
static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

Protected Types
typedef Data *	NewDataFunc(void)

Protected Member Functions
void	freeSessionData (SbName sessionid)
Data *	getSessionData (SbName sessionid, NewDataFunc *constructor)
Protected Member Functions inherited from ScXMLEventTarget
virtual const ScXMLEvent *	getNextEvent (void)
virtual const ScXMLEvent *	getNextExternalEvent (void)
virtual const ScXMLEvent *	getNextInternalEvent (void)
virtual SbBool	processOneEvent (const ScXMLEvent *event)
virtual void	setCurrentEvent (const ScXMLEvent *event)

Static Protected Member Functions
static SoCamera *	getActiveCamera (const ScXMLEvent *event, SbName sessionid)
static SbBool	getEventDouble (const ScXMLEvent *event, const char *label, double &dbl_out, SbBool required=TRUE)
static SbBool	getEventSbBool (const ScXMLEvent *event, const char *label, SbBool &bool_out, SbBool required=TRUE)
static SbBool	getEventSbRotation (const ScXMLEvent *event, const char *label, SbRotation &rot_out, SbBool required=TRUE)
static SbBool	getEventSbVec2f (const ScXMLEvent *event, const char *label, SbVec2f &vec_out, SbBool required=TRUE)
static SbBool	getEventSbVec3f (const ScXMLEvent *event, const char *label, SbVec3f &vec_out, SbBool required=TRUE)
static SbBool	getEventString (const ScXMLEvent *event, const char *label, SbString &str_out, SbBool required=TRUE)
static SbName	getSessionId (const ScXMLEvent *event)
static SoScXMLStateMachine *	getSoStateMachine (const ScXMLEvent *event, SbName sessionid)
static ScXMLStateMachine *	getStateMachine (const ScXMLEvent *event, SbName sessionid)
Static Protected Member Functions inherited from ScXMLEventTarget
static ScXMLEventTarget *	getEventTarget (const char *targettype, const char *targetname, const char *sessionid=NULL)
static void	registerEventTarget (ScXMLEventTarget *target, const char *sessionid=NULL)
static void	unregisterEventTarget (ScXMLEventTarget *target, const char *sessionid=NULL)
Static Protected Member Functions inherited from ScXMLObject
static void	registerClassType (const char *xmlns, const char *classname, SoType type)
static void	registerInvokeClassType (const char *xmlns, const char *targettype, const char *source, SoType type)

Additional Inherited Members
Protected Attributes inherited from ScXMLEventTarget
const ScXMLEvent *	currentevent
SbBool	isprocessingqueue
char *	targetname
char *	targettype

Detailed Description

base class for navigation system SCXML event target services

This class contains some common, useful, utility functions for implementing navigation system event targets.

Since

Coin 3.1

Member Function Documentation

freeSessionData()

void SoScXMLNavigationTarget::freeSessionData ( SbName sessionid )

protected

Cleans out the data structure that is mapped to the given sessionid.

getActiveCamera()

SoCamera * SoScXMLNavigationTarget::getActiveCamera ( const ScXMLEvent * event, SbName sessionid )

staticprotected

Returns the current active camera, or NULL if there is no active camera set. If NULL is returned, error messages have been posted.

getEventDouble()

SbBool SoScXMLNavigationTarget::getEventDouble ( const ScXMLEvent * event, const char * label, double & dbl_out, SbBool required = TRUE )

staticprotected

Returns TRUE if a double was delivered with the event under the label label, and FALSE otherwise. If required is TRUE, then errors will be given, otherwise this function will remain quiet.

getEventSbBool()

SbBool SoScXMLNavigationTarget::getEventSbBool ( const ScXMLEvent * event, const char * label, SbBool & bool_out, SbBool required = TRUE )

staticprotected

Returns TRUE if a boolean value was delivered with the event under the label label, and FALSE otherwise. If required is TRUE, then errors will be given, otherwise this function will remain quiet.

getEventSbRotation()

SbBool SoScXMLNavigationTarget::getEventSbRotation ( const ScXMLEvent * event, const char * label, SbRotation & rot_out, SbBool required = TRUE )

staticprotected

Returns TRUE if an SbRotation was delivered with the event under the label label, and FALSE otherwise. If required is TRUE, then errors will be given, otherwise this function will remain quiet.

getEventSbVec2f()

SbBool SoScXMLNavigationTarget::getEventSbVec2f ( const ScXMLEvent * event, const char * label, SbVec2f & vec_out, SbBool required = TRUE )

staticprotected

Returns TRUE if an SbVec2f was delivered with the event under the label label, and FALSE otherwise. If required is TRUE, then errors will be given, otherwise this function will remain quiet.

getEventSbVec3f()

SbBool SoScXMLNavigationTarget::getEventSbVec3f ( const ScXMLEvent * event, const char * label, SbVec3f & vec_out, SbBool required = TRUE )

staticprotected

Returns TRUE if an SbVec3f was delivered with the event under the label label, and FALSE otherwise. If required is TRUE, then errors will be given, otherwise this function will remain quiet.

getEventString()

SbBool SoScXMLNavigationTarget::getEventString ( const ScXMLEvent * event, const char * label, SbString & str_out, SbBool required = TRUE )

staticprotected

Returns TRUE if a string was delivered with the event under the label label, and FALSE otherwise. If required is TRUE, then errors will be given, otherwise this function will remain quiet.

getSessionData()

SoScXMLNavigationTarget::Data * SoScXMLNavigationTarget::getSessionData ( SbName sessionid, NewDataFunc * constructor )

protected

Returns the Data* base handle for the data structure that corresponds to the given sessionid. The constructor argument is the function responsible for creating the Data-derived object if the session is new (or have been cleaned up earlier).

getSessionId()

SbName SoScXMLNavigationTarget::getSessionId ( const ScXMLEvent * event )

staticprotected

Returns the session id that is associated with the event. If no session id is found, SbName::empty() is returned.

getSoStateMachine()

SoScXMLStateMachine * SoScXMLNavigationTarget::getSoStateMachine ( const ScXMLEvent * event, SbName sessionid )

staticprotected

Returns the So- state machine that is associated with the given sessionid, or NULL if there are no state machines registered for the session id or if the state machine is not of SoScXMLStateMachine type.

getStateMachine()

ScXMLStateMachine * SoScXMLNavigationTarget::getStateMachine ( const ScXMLEvent * event, SbName sessionid )

staticprotected

Returns the state machine that is associated with the given sessionid, or NULL if there are no state machines registered for the session id.

getTypeId()

virtual SoType SoScXMLNavigationTarget::getTypeId ( void ) const

pure virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

See also

SoBase::getTypeId() const

Implements ScXMLEventTarget.

Implemented in SoScXMLDollyTarget, SoScXMLFlightControlTarget, SoScXMLMiscTarget, SoScXMLMotionTarget, SoScXMLPanTarget, SoScXMLRotateTarget, SoScXMLSeekTarget, SoScXMLSpinTarget, and SoScXMLZoomTarget.

---

The documentation for this class was generated from the following files:

• SoScXMLNavigationTarget.h
• SoScXMLNavigationTarget.cpp
