SoEvent Class Reference

The SoEvent class is the base class for all Coin events. More...

#include <Inventor/events/SoEvent.h>

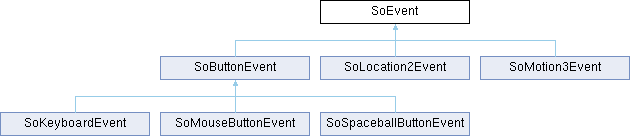

Inheritance diagram for SoEvent:

Public Member Functions
	SoEvent (void)
virtual	~SoEvent ()
const SbVec2f &	getNormalizedPosition (const SbViewportRegion &vpRgn) const
const SbVec2s &	getPosition (const SbViewportRegion &vpRgn) const
const SbVec2s &	getPosition (void) const
SbTime	getTime (void) const
virtual SoType	getTypeId (void) const
SbBool	isOfType (SoType type) const
void	setAltDown (SbBool isDown)
void	setCtrlDown (SbBool isDown)
void	setPosition (const SbVec2s &p)
void	setShiftDown (SbBool isDown)
void	setTime (const SbTime t)
SbBool	wasAltDown (void) const
SbBool	wasCtrlDown (void) const
SbBool	wasShiftDown (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)
static void	initClass (void)

Detailed Description

The SoEvent class is the base class for all Coin events.

Coin contains its own set of event classes, independent of the underlying window system.

Upon system specific events, a translation is done by the window specific device classes into one of the Coin event object classes listed below. The event is then typically sent by the render area to an SoSceneManager which will apply it to the scene graph through an SoHandleEventAction.

Events may be caught by the user by attaching an SoEventCallback node to the scene graph, or they can automatically be handled by a dragger or manipulator in the graph.

See also

SoButtonEvent, SoKeyboardEvent, SoLocation2Event, SoMotion3Event

SoMouseButtonEvent, SoSpaceballButtonEvent

SoEventCallback, SoHandleEventAction

Constructor & Destructor Documentation

SoEvent()

SoEvent::SoEvent

(

void

)

Constructor, will set all modifiers to "off" state.

~SoEvent()

SoEvent::~SoEvent ( )

virtual

Destructor.

Member Function Documentation

getClassTypeId()

SoType SoEvent::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

This static method returns the SoType object associated with objects of this class.

getNormalizedPosition()

const SbVec2f & SoEvent::getNormalizedPosition

(

const SbViewportRegion &

vpRgn

)

const

Returns the mouse pointer position when the event occurred. The coordinates are given relative to the viewport coordinates, normalized according to the size of the viewport.

See also

getPosition(), getTime(), wasShiftDown(), wasCtrlDown(), wasAltDown()

getPosition() [1/2]

const SbVec2s & SoEvent::getPosition

(

const SbViewportRegion &

vpRgn

)

const

Returns the mouse pointer position when the event occurred. The coordinates are given relative to the viewport coordinates.

See also

getNormalizedPosition(), getTime(), wasShiftDown(), wasCtrlDown(),

wasAltDown()

getPosition() [2/2]

const SbVec2s & SoEvent::getPosition

(

void

)

const

Returns the mouse pointer position when the event occurred. The coordinates are given relative to the window coordinates.

See also

getNormalizedPosition(), getTime(), wasShiftDown(), wasCtrlDown(),

wasAltDown()

getTime()

SbTime SoEvent::getTime

(

void

)

const

Returns the time the event occurred.

See also

getPosition(), wasShiftDown(), wasCtrlDown(), wasAltDown()

getTypeId()

SoType SoEvent::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoEvent. This is used for runtime type checking and "downward" casting.

Returns the actual type id of an instantiated object.

Reimplemented in SoButtonEvent, SoKeyboardEvent, SoLocation2Event, SoMotion3Event, SoMouseButtonEvent, and SoSpaceballButtonEvent.

initClass()

void SoEvent::initClass ( void )

static

Initialize SoEvent and all its known subclasses (i.e. all subclasses which are part of the standard classes in the Coin library).

This method is called from SoDB::init(), so it is very unlikely that you will have to call it explicitly.

isOfType()

SbBool SoEvent::isOfType

(

SoType

type

)

const

Returns TRUE if this object either has the same type as the given type parameter, or if type belongs to a superclass of ourselves.

setAltDown()

void SoEvent::setAltDown

(

SbBool

isDown

)

From a system specific device object, set the state of the Alt key(s) when the event occurred.

See also

wasAltDown(), setCtrlDown(), setShiftDown()

setCtrlDown()

void SoEvent::setCtrlDown

(

SbBool

isDown

)

From a system specific device object, set the state of the Ctrl key(s) when the event occurred.

See also

wasCtrlDown(), setShiftDown(), setAltDown()

setPosition()

void SoEvent::setPosition

(

const SbVec2s &

p

)

From a system specific device object, set the mouse pointer position when the event occurred.

See also

getPosition(), getNormalizedPosition()

setShiftDown()

void SoEvent::setShiftDown

(

SbBool

isDown

)

From a system specific device object, set the state of the Shift key(s) when the event occurred.

See also

wasShiftDown(), setCtrlDown(), setAltDown()

setTime()

void SoEvent::setTime

(

const SbTime

t

)

From a system specific device object, set the time the event occurred.

See also

getTime()

wasAltDown()

SbBool SoEvent::wasAltDown

(

void

)

const

Returns state of Alt key(s) when the event occurred.

See also

wasShiftDown(), wasCtrlDown(), getPosition(), getTime()

wasCtrlDown()

SbBool SoEvent::wasCtrlDown

(

void

)

const

Returns state of Ctrl key(s) when the event occurred.

See also

wasShiftDown(), wasAltDown(), getPosition(), getTime()

wasShiftDown()

SbBool SoEvent::wasShiftDown

(

void

)

const

Returns state of Shift key(s) when the event occurred.

See also

wasCtrlDown(), wasAltDown(), getPosition(), getTime()

---

The documentation for this class was generated from the following files:

• SoEvent.h
• SoEvent.cpp
