The dimeFaceEntity class is an abstract class that handles one-face entity classes. More...

#include <dime/entities/FaceEntity.h>

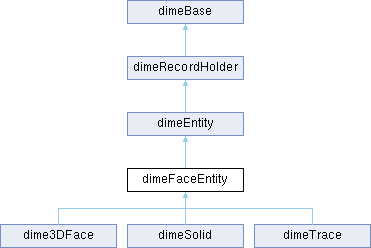

Inheritance diagram for dimeFaceEntity:

Public Member Functions
virtual int	countRecords () const

GeometryType	extractGeometry (dimeArray< dimeVec3f > &verts, dimeArray< int > &indices, dimeVec3f &extrusionDir, dxfdouble &thickness)

virtual void	getExtrusionDir (dimeVec3f &ed) const

virtual bool	getRecord (const int groupcode, dimeParam &param, const int index=0) const

virtual dxfdouble	getThickness () const

const dimeVec3f &	getVertex (const int idx) const

void	getVertices (dimeVec3f &v0, dimeVec3f &v1, dimeVec3f &v2, dimeVec3f &v3) const

virtual bool	isOfType (const int thetypeid) const

bool	isQuad () const

void	setQuad (const dimeVec3f &v0, const dimeVec3f &v1, const dimeVec3f &v2, const dimeVec3f &v3)

void	setTriangle (const dimeVec3f &v0, const dimeVec3f &v1, const dimeVec3f &v2)

void	setVertex (const int idx, const dimeVec3f &v)

virtual int	typeId () const

Public Member Functions inherited from dimeEntity
	dimeEntity ()

virtual	~dimeEntity ()

virtual dimeEntity *	copy (dimeModel *const model) const =0

int16	getColorNumber () const

int16	getEntityFlags () const

virtual const char *	getEntityName () const =0

const dimeLayer *	getLayer () const

const char *	getLayerName () const

bool	isDeleted () const

bool	isTagged () const

virtual void	print () const

virtual bool	read (dimeInput *const in)

void	setColorNumber (const int16 c)

void	setDeleted (const bool onOff=true)

void	setEntityFlags (const int16 flags)

virtual void	setLayer (const dimeLayer *const layer)

void	setTagged (const bool onOff=true)

virtual bool	write (dimeOutput *const out)

Public Member Functions inherited from dimeRecordHolder
	dimeRecordHolder (const int separator)

virtual	~dimeRecordHolder ()

dimeRecord *	findRecord (const int groupcode, const int index=0)

int	getNumRecordsInRecordHolder (void) const

dimeRecord *	getRecordInRecordHolder (const int idx) const

void	setIndexedRecord (const int groupcode, const dimeParam &value, const int index, dimeMemHandler *const memhandler=NULL)

void	setRecord (const int groupcode, const dimeParam &value, dimeMemHandler *const memhandler=NULL)

void	setRecords (const int const groupcodes, const dimeParam const params, const int numrecords, dimeMemHandler *const memhandler=NULL)

Public Member Functions inherited from dimeBase
	dimeBase (void)

virtual	~dimeBase ()

void	operator delete (void *ptr)

void *	operator new (size_t size, dimeMemHandler *memhandler=NULL, const int alignment=4)

Protected Member Functions
void	copyCoords (const dimeFaceEntity *const entity)

virtual bool	handleRecord (const int groupcode, const dimeParam &param, dimeMemHandler *const memhandler)

virtual bool	swapQuadCoords () const

bool	writeCoords (dimeOutput *const file)

Protected Member Functions inherited from dimeEntity
bool	copyRecords (dimeEntity const entity, dimeModel const model) const

virtual void	fixReferences (dimeModel *const model)

bool	preWrite (dimeOutput *const file)

virtual bool	shouldWriteRecord (const int groupcode) const

virtual bool	traverse (const dimeState const state, dimeCallback callback, void userdata)

Protected Member Functions inherited from dimeRecordHolder
bool	copyRecords (dimeRecordHolder const rh, dimeMemHandler const memhandler) const

Protected Attributes
dimeVec3f	coords [4]

Protected Attributes inherited from dimeRecordHolder
int	numRecords

dimeRecord **	records

Additional Inherited Members
Public Types inherited from dimeEntity
enum	GeometryType { NONE , POLYGONS , LINES , POINTS }

Public Types inherited from dimeBase
enum	{ dimeBaseType = 1 , dimeRecordType , dimeStringRecordType , dimeFloatRecordType , dimeDoubleRecordType , dimeInt8RecordType , dimeInt16RecordType , dimeInt32RecordType , dimeHexRecordType , dimeRecordHolderType , dimeClassType , dimeUnknownClassType , dimeObjectType , dimeUnknownObjectType , dimeEntityType , dimeUnknownEntityType , dimePolylineType , dimeVertexType , dimeFaceEntityType , dimeExtrusionEntityType , dime3DFaceType , dimeSolidType , dimeTraceType , dimeLineType , dimeTextType , dimePointType , dimeBlockType , dimeInsertType , dimeCircleType , dimeArcType , dimeLWPolylineType , dimeEllipseType , dimeSplineType , dimeSectionType , dimeUnknownSectionType , dimeEntitiesSectionType , dimeBlocksSectionType , dimeTablesSectionType , dimeHeaderSectionType , dimeClassesSectionType , dimeObjectsSectionType , dimeTableType , dimeTableEntryType , dimeUnknownTableType , dimeUCSTableType , dimeLayerTableType , dimeLastTypeTag }

Static Public Member Functions inherited from dimeEntity
static void	arbitraryAxis (const dimeVec3f &givenaxis, dimeVec3f &newaxis)

static bool	copyEntityArray (const dimeEntity const const array, const int nument, dimeModel const model, dimeArray< dimeEntity > &destarray)

static dimeEntity **	copyEntityArray (const dimeEntity const const array, int &nument, dimeModel *const model)

static dimeEntity *	createEntity (const char const name, dimeMemHandler const memhandler=NULL)

static void	generateUCS (const dimeVec3f &givenaxis, dimeMatrix &m)

static bool	readEntities (dimeInput const file, dimeArray< dimeEntity > &array, const char *const stopat)

Detailed Description

The dimeFaceEntity class is an abstract class that handles one-face entity classes.

Member Function Documentation

◆ copyCoords()

void dimeFaceEntity::copyCoords ( const dimeFaceEntity *const entity )

protected

Copies the coordinates from entity.

◆ countRecords()

int dimeFaceEntity::countRecords ( ) const

virtual

Returns the number of records in the record holder. Should be overloaded by subclasses which should count their records, and then call the parent's method. This method is used to precalculate the number of records to be written. Very useful when progress information is needed during write().

Reimplemented from dimeEntity.

Reimplemented in dime3DFace, dimeSolid, and dimeTrace.

◆ extractGeometry()

dimeEntity::GeometryType dimeFaceEntity::extractGeometry	(	dimeArray< dimeVec3f > &	verts,
		dimeArray< int > &	indices,
		dimeVec3f &	extrusionDir,
		dxfdouble &	thickness )

virtual

A special convenience function, included for your pleasure. Enables the user to ignore the type of entity, and just call this method when extracting geometry. Very useful for 3D viewers that need DXF support. Check out the dxf2vrml directory for an example on how to convert a DXF file to VRML.

Should be overloaded by all subclasses that have geometry, default function returns no geometry. Don't forget to transform vertices by the current transformation matrix if used in a callback from dimeEntity::traverse().

If there are coordinates, but no indices, this means running indices for the entire vertex array.

Different faces and/or line segments are separated by a -1 in the indices array, just as in VRML files.

If thickness != 0.0, the data should, before transformation, be extruded by that length along the extrusion direction. Hence, a point becomes a line, a line becomes a quad, and a polygon becomes an object with a volume.

If thickness == 0.0 and extrusionDir != (0,0,1) all the vertices should be transformed by a matrix that can be created using dimeEntity::generateUCS(). If you are using dimeModel::traverseEntities() to extract the geometry, simply right-multiply the UCS matrix with the matrix found in dimeState to get the correct transformation.

Reimplemented from dimeEntity.

◆ getExtrusionDir()

void dimeFaceEntity::getExtrusionDir ( dimeVec3f & ed ) const

virtual

Default method returns (0,0,1). Should be overloaded if this is not correct for all cases.

Reimplemented in dimeSolid, and dimeTrace.

◆ getRecord()

bool dimeFaceEntity::getRecord	(	const int	groupcode,
		dimeParam &	param,
		const int	index = 0 ) const

virtual

Will return the value of the record with group code groupcode. false is returned if the record could not be found. Subclasses should overload this method if one or several records are stored in the class. If the group code queried is not stored internally, the subclass should call its parent's method.

Reimplemented from dimeEntity.

Reimplemented in dime3DFace, dimeSolid, and dimeTrace.

◆ getThickness()

dxfdouble dimeFaceEntity::getThickness ( ) const

virtual

Default method return 0.0. Should be overloaded if this is not correct for all cases.

Reimplemented in dimeSolid, and dimeTrace.

◆ getVertex()

const dimeVec3f & dimeFaceEntity::getVertex ( const int idx ) const

inline

Returns vertex nr idx.

◆ getVertices()

void dimeFaceEntity::getVertices	(	dimeVec3f &	v0,
		dimeVec3f &	v1,
		dimeVec3f &	v2,
		dimeVec3f &	v3 ) const

Returns all four vertices.

◆ handleRecord()

bool dimeFaceEntity::handleRecord	(	const int	groupcode,
		const dimeParam &	param,
		dimeMemHandler *const	memhandler )

protectedvirtual

Must be overloaded by entities that directly support a record type. During dimeRecordHolder::read(), dimeRecordHolder::setRecord and dimeRecordHolder::setRecords, this function is called for every record found, and it is up to the subclass if the record should be stored internally, or if a generic record should be created and stored in this superclass. A subclass should return true when it will handle the record, false otherwise. Default function does nothing, and returns false.

For entities, records with group codes 8 (layer name) and 62 (color number) are automatically handled by the dimeEntity class.

See also: dimeRecordHolder::read(); dimeRecordHolder::setRecord()

Reimplemented from dimeEntity.

Reimplemented in dime3DFace, dimeSolid, and dimeTrace.

◆ isOfType()

bool dimeFaceEntity::isOfType ( const int thetypeid ) const

virtual

Returns true if the object is of type typeid or is inherited from it. Function in base class checks whether thetypeid equals the virtual dimeBase::typeId() value or equals dimeBaseType. Must be implemented by all subclasses that are superclasses of other classes, and should check if thetypeid equals its typeId, and then call its parent's isOfType function. Leaf-classes do not have to implement this method.

Reimplemented from dimeEntity.

◆ setQuad()

void dimeFaceEntity::setQuad	(	const dimeVec3f &	v0,
		const dimeVec3f &	v1,
		const dimeVec3f &	v2,
		const dimeVec3f &	v3 )

Sets vertices to create a quad.

◆ setTriangle()

void dimeFaceEntity::setTriangle	(	const dimeVec3f &	v0,
		const dimeVec3f &	v1,
		const dimeVec3f &	v2 )

Sets vertices to create a triangle.

◆ swapQuadCoords()

bool dimeFaceEntity::swapQuadCoords ( ) const

protectedvirtual

Default function returns false. If true is returned, the last two vertices will be swapped before returning geometry in extractGeometry().

Reimplemented in dimeSolid, and dimeTrace.

◆ typeId()

int dimeFaceEntity::typeId ( ) const

virtual

Must be implemented by all subclasses, and should return an unique id for that class.

Implements dimeBase.

Reimplemented in dime3DFace, dimeSolid, and dimeTrace.

◆ writeCoords()

bool dimeFaceEntity::writeCoords ( dimeOutput *const file )

protected

Will write the coordinate data to out. Should be called by subclasses at some time during write.

The documentation for this class was generated from the following files:

FaceEntity.h
FaceEntity.cpp
