SoReplacedElement Class Reference

The SoReplacedElement class is an abstract element superclass. More...

#include <Inventor/elements/SoReplacedElement.h>

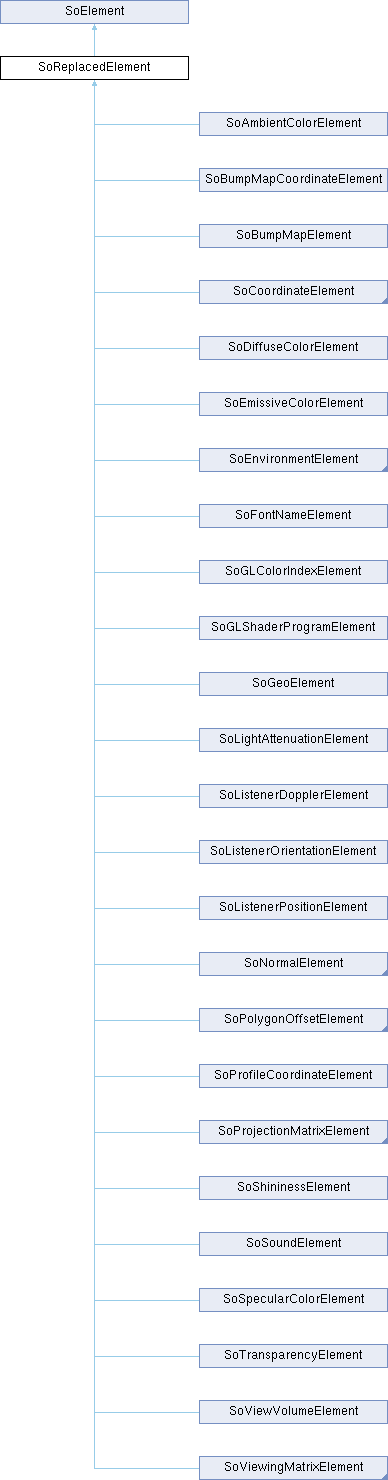

Inheritance diagram for SoReplacedElement:

Public Member Functions
virtual SoElement *	copyMatchInfo () const
SbUniqueId	getNodeId () const
virtual void	init (SoState *state)
virtual SbBool	matches (const SoElement *element) const
virtual void	print (FILE *file) const
Public Member Functions inherited from SoElement
virtual	~SoElement ()
int	getDepth (void) const
int	getStackIndex (void) const
const SoType	getTypeId (void) const
virtual void	pop (SoState *state, const SoElement *prevTopElement)
virtual void	push (SoState *state)
void	setDepth (const int depth)

Static Public Member Functions
static int	getClassStackIndex (void)
static SoType	getClassTypeId (void)
static void	initClass (void)
Static Public Member Functions inherited from SoElement
static int	getClassStackIndex (void)
static SoType	getClassTypeId (void)
static SoType	getIdFromStackIndex (const int stackIndex)
static int	getNumStackIndices (void)
static void	initClass (void)
static void	initElements (void)

Protected Member Functions
virtual	~SoReplacedElement ()
Protected Member Functions inherited from SoElement
	SoElement (void)
void	capture (SoState *const state) const
virtual void	captureThis (SoState *state) const
SoElement *	getNextFree (void) const
SoElement *	getNextInStack (void) const
void	setStackIndex (const int index)
void	setTypeId (const SoType typeId)

Static Protected Member Functions
static SoElement *	getElement (SoState *const state, const int stackIndex, SoNode *const node)
Static Protected Member Functions inherited from SoElement
static int	createStackIndex (const SoType id)
static const SoElement *	getConstElement (SoState *const state, const int stackIndex)
static SoElement *	getElement (SoState *const state, const int stackIndex)

Protected Attributes
SbUniqueId	nodeId
Protected Attributes inherited from SoElement
int	depth
int	stackIndex
SoType	typeId

Additional Inherited Members
Static Protected Attributes inherited from SoElement
static int	classStackIndex
static SoTypeList *	stackToType

Detailed Description

The SoReplacedElement class is an abstract element superclass.

This is the superclass of all elements where the new element data replaces the old data, and where the data the element stores is not just a simple float or integer value.

Apart from this conceptual difference from its superclass, the SoReplacedElement class also overloads the default getElement() method to include a node reference. This reference is used to fetch the unique node identification number of the node that last changed the element.

The identifier values of nodes in the scene graph is updated upon any kind of change to a node, so this technique plays an important role in the construction, validation and destruction of internal scene graph caches.

See also

SoAccumulatedElement

Constructor & Destructor Documentation

~SoReplacedElement()

SoReplacedElement::~SoReplacedElement ( void )

protectedvirtual

Destructor.

Member Function Documentation

copyMatchInfo()

SoElement * SoReplacedElement::copyMatchInfo ( void ) const

virtual

This function creates a copy of the element that contains enough information to enable the matches() function to work.

Used to help with scene graph traversal caching operations.

Implements SoElement.

Reimplemented in SoGLShaderProgramElement, SoFontNameElement, and SoLightAttenuationElement.

getClassStackIndex()

int SoReplacedElement::getClassStackIndex ( void )

static

This static method returns the state stack index for the class.

getClassTypeId()

SoType SoReplacedElement::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

getElement()

SoElement * SoReplacedElement::getElement ( SoState *const state, const int stackIndex, SoNode *const node )

staticprotected

This function overloads SoElement::getElement() with an extra node parameter, to let us set the SoReplacedElement::nodeId in the element instance before returning.

SoReplacedElement subclasses should use this method to get writable instances.

The identifier values of nodes in the scene graph is updated upon any kind of change to a node, so this technique plays an important role in the construction, validation and destruction of internal scene graph caches.

See also

SoElement::getElement()

getNodeId()

SbUniqueId SoReplacedElement::getNodeId

(

void

)

const

Returns the node identifier for the node that previously updated the SoReplacedElement.

init()

void SoReplacedElement::init ( SoState * state )

virtual

This function initializes the element type in the given SoState. It is called for the first element of each enabled element type in SoState objects.

Reimplemented from SoElement.

Reimplemented in SoAmbientColorElement, SoBumpMapCoordinateElement, SoBumpMapElement, SoCoordinateElement, SoDiffuseColorElement, SoEmissiveColorElement, SoEnvironmentElement, SoFontNameElement, SoGeoElement, SoGLColorIndexElement, SoGLEnvironmentElement, SoGLNormalElement, SoGLPolygonOffsetElement, SoGLShaderProgramElement, SoGLViewingMatrixElement, SoLightAttenuationElement, SoListenerDopplerElement, SoListenerOrientationElement, SoListenerPositionElement, SoNormalElement, SoPolygonOffsetElement, SoProfileCoordinateElement, SoProjectionMatrixElement, SoShininessElement, SoSoundElement, SoSpecularColorElement, SoTransparencyElement, SoViewingMatrixElement, and SoViewVolumeElement.

initClass()

void SoReplacedElement::initClass ( void )

static

Initialize relevant common data for all instances, like the type system.

matches()

SbBool SoReplacedElement::matches ( const SoElement * element ) const

virtual

This function returns TRUE is the element matches another element (of the same class), with respect to cache validity.

If the application programmer's extension element has a matches() function, it should also have a copyMatchInfo() function.

Implements SoElement.

Reimplemented in SoFontNameElement, SoGLShaderProgramElement, and SoLightAttenuationElement.

print()

void SoReplacedElement::print ( FILE * file ) const

virtual

This function is for printing element information, and is used mostly for debugging purposes.

Reimplemented from SoElement.

Reimplemented in SoCoordinateElement, SoEnvironmentElement, SoFontNameElement, SoLightAttenuationElement, SoListenerDopplerElement, SoListenerOrientationElement, SoListenerPositionElement, and SoSoundElement.

Member Data Documentation

nodeId

uint32_t SoReplacedElement::nodeId

protected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

---

The documentation for this class was generated from the following files:

• SoReplacedElement.h
• SoReplacedElement.cpp
