SoElement Class Reference

SoElement is the abstract base class for all elements. More...

#include <Inventor/elements/SoElement.h>

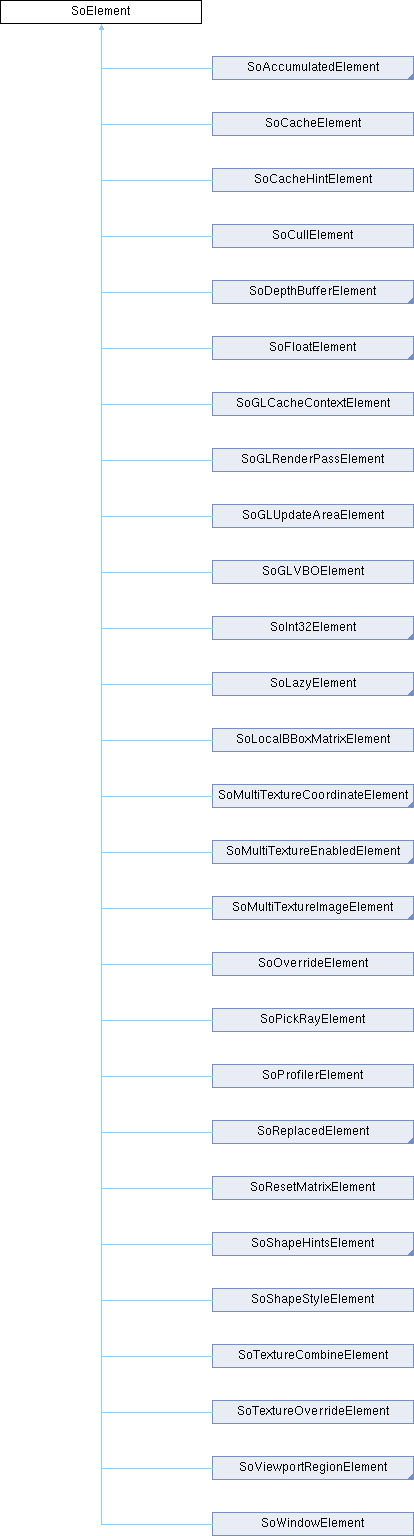

Inheritance diagram for SoElement:

Public Member Functions
virtual	~SoElement ()
virtual SoElement *	copyMatchInfo (void) const =0
int	getDepth (void) const
int	getStackIndex (void) const
const SoType	getTypeId (void) const
virtual void	init (SoState *state)
virtual SbBool	matches (const SoElement *element) const =0
virtual void	pop (SoState *state, const SoElement *prevTopElement)
virtual void	print (FILE *file=stdout) const
virtual void	push (SoState *state)
void	setDepth (const int depth)

Static Public Member Functions
static int	getClassStackIndex (void)
static SoType	getClassTypeId (void)
static SoType	getIdFromStackIndex (const int stackIndex)
static int	getNumStackIndices (void)
static void	initClass (void)
static void	initElements (void)

Protected Member Functions
	SoElement (void)
void	capture (SoState *const state) const
virtual void	captureThis (SoState *state) const
SoElement *	getNextFree (void) const
SoElement *	getNextInStack (void) const
void	setStackIndex (const int index)
void	setTypeId (const SoType typeId)

Static Protected Member Functions
static int	createStackIndex (const SoType id)
static const SoElement *	getConstElement (SoState *const state, const int stackIndex)
static SoElement *	getElement (SoState *const state, const int stackIndex)

Protected Attributes
int	depth
int	stackIndex
SoType	typeId

Static Protected Attributes
static int	classStackIndex
static SoTypeList *	stackToType

Detailed Description

SoElement is the abstract base class for all elements.

This is the base class for all the element classes in Coin.

Constructor & Destructor Documentation

~SoElement()

SoElement::~SoElement ( )

virtual

The destructor.

SoElement()

SoElement::SoElement ( void )

protected

The constructor. To create element instances, use SoType::createInstance() for the elements type identifier.

Member Function Documentation

capture()

void SoElement::capture ( SoState *const state ) const

inlineprotected

This function does whatever is necessary in the state for caching purposes. If should be called by subclasses of SoElement whenever any value in the element is accessed.

captureThis()

void SoElement::captureThis ( SoState * state ) const

protectedvirtual

Adds the element to the cache.

Reimplemented in SoAccumulatedElement.

copyMatchInfo()

SoElement * SoElement::copyMatchInfo ( void ) const

pure virtual

This function creates a copy of the element that contains enough information to enable the matches() function to work.

Used to help with scene graph traversal caching operations.

Implemented in SoGLShaderProgramElement, SoGLUpdateAreaElement, SoPickRayElement, SoReplacedElement, SoTextureOverrideElement, SoViewportRegionElement, SoProfilerElement, SoAccumulatedElement, SoCacheElement, SoCacheHintElement, SoCullElement, SoDepthBufferElement, SoFloatElement, SoFontNameElement, SoGLCacheContextElement, SoGLRenderPassElement, SoGLVBOElement, SoInt32Element, SoLazyElement, SoLightAttenuationElement, SoLocalBBoxMatrixElement, SoMultiTextureCoordinateElement, SoMultiTextureEnabledElement, SoMultiTextureImageElement, SoOverrideElement, SoShapeHintsElement, SoShapeStyleElement, SoTextureCombineElement, SoWindowElement, and SoResetMatrixElement.

createStackIndex()

int SoElement::createStackIndex ( const SoType typeId )

staticprotected

Returns the value of a new available stack index.

getClassStackIndex()

int SoElement::getClassStackIndex ( void )

static

This static method returns the state stack index for the class.

getClassTypeId()

SoType SoElement::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

getConstElement()

void const SoElement * SoElement::getConstElement ( SoState *const state, const int stackIndex )

inlinestaticprotected

This method returns a reference to the top element of the class with stack index stackIndex. The returned element is non-mutable.

(Don't try to be clever and cast away the constness – if the returned instance is modified, strange, hard to find and generally wonderful bugs will most likely start to happen.)

If no instance can be returned, NULL is returned.

See also

SoElement * SoElement::getElement(SoState * const state, const int stackIndex)

getDepth()

int SoElement::getDepth

(

void

)

const

Returns the state stack depth value of the element instance.

getElement()

SoElement * SoElement::getElement ( SoState *const state, const int stackIndex )

inlinestaticprotected

This method returns the top instance (in the state stack) of the element class with stack index stackIndex.

The returned instance is writable. To make this instance, some lazy evaluation may have to be performed, so use getConstElement() instead if the instance shouldn't be modified.

If no instance is available and cannot be made, NULL is returned.

See also

const SoElement * SoElement::getConstElement(SoState * const state, const int stackIndex)

getIdFromStackIndex()

SoType SoElement::getIdFromStackIndex ( const int stackIndex )

static

Returns the SoType identifier for the element class with element state stack index stackIndex.

getNextFree()

SoElement * SoElement::getNextFree ( void ) const

protected

Returns the next free element, i.e. the next element up in the stack.

getNextInStack()

SoElement * SoElement::getNextInStack ( void ) const

protected

Returns the next element down in the stack. Should be used in push() to get the previous element.

This method has a slightly misleading name, but we didn't change it to stay compatible with the original SGI Inventor API.

getNumStackIndices()

int SoElement::getNumStackIndices ( void )

static

Returns the number of allocated element stack index slots.

getStackIndex()

int SoElement::getStackIndex

(

void

)

const

Returns the stack index for an element instance.

getTypeId()

const SoType SoElement::getTypeId

(

void

)

const

Returns the type identification of an object derived from a class inheriting SoElement. This is used for runtime type checking and "downward" casting.

For a more thorough explanation of the runtime type identification functionality, see the documentation of SoBase::getTypeId().

init()

void SoElement::init ( SoState * state )

virtual

This function initializes the element type in the given SoState. It is called for the first element of each enabled element type in SoState objects.

Reimplemented in SoGLShadowCullingElement, SoShadowStyleElement, SoAccumulatedElement, SoAmbientColorElement, SoAnnoText3CharOrientElement, SoAnnoText3FontSizeHintElement, SoAnnoText3RenderPrintElement, SoBBoxModelMatrixElement, SoBumpMapCoordinateElement, SoBumpMapElement, SoBumpMapMatrixElement, SoCacheElement, SoCacheHintElement, SoClipPlaneElement, SoComplexityElement, SoComplexityTypeElement, SoCoordinateElement, SoCreaseAngleElement, SoCullElement, SoDecimationPercentageElement, SoDecimationTypeElement, SoDepthBufferElement, SoDiffuseColorElement, SoDrawStyleElement, SoEmissiveColorElement, SoEnvironmentElement, SoFloatElement, SoFocalDistanceElement, SoFontNameElement, SoFontSizeElement, SoGeoElement, SoGLCacheContextElement, SoGLClipPlaneElement, SoGLColorIndexElement, SoGLDepthBufferElement, SoGLDrawStyleElement, SoGLEnvironmentElement, SoGLLazyElement, SoGLLightIdElement, SoGLLinePatternElement, SoGLLineWidthElement, SoGLModelMatrixElement, SoGLMultiTextureCoordinateElement, SoGLMultiTextureEnabledElement, SoGLMultiTextureImageElement, SoGLMultiTextureMatrixElement, SoGLNormalElement, SoGLPointSizeElement, SoGLPolygonOffsetElement, SoGLRenderPassElement, SoGLShaderProgramElement, SoGLShapeHintsElement, SoGLUpdateAreaElement, SoGLVBOElement, SoGLVertexAttributeElement, SoGLViewingMatrixElement, SoGLViewportRegionElement, SoInt32Element, SoLazyElement, SoLightAttenuationElement, SoLightElement, SoLightModelElement, SoLinePatternElement, SoLineWidthElement, SoListenerDopplerElement, SoListenerGainElement, SoListenerOrientationElement, SoListenerPositionElement, SoLocalBBoxMatrixElement, SoMaterialBindingElement, SoModelMatrixElement, SoMultiTextureCoordinateElement, SoMultiTextureEnabledElement, SoMultiTextureImageElement, SoMultiTextureMatrixElement, SoNormalBindingElement, SoNormalElement, SoOverrideElement, SoPickRayElement, SoPickStyleElement, SoPointSizeElement, SoPolygonOffsetElement, SoProfileCoordinateElement, SoProfileElement, SoProjectionMatrixElement, SoReplacedElement, SoShapeHintsElement, SoShapeStyleElement, SoShininessElement, SoSoundElement, SoSpecularColorElement, SoSwitchElement, SoTextOutlineEnabledElement, SoTextureCombineElement, SoTextureCoordinateBindingElement, SoTextureOverrideElement, SoTextureQualityElement, SoTextureUnitElement, SoTransparencyElement, SoUnitsElement, SoVertexAttributeBindingElement, SoVertexAttributeElement, SoViewingMatrixElement, SoViewportRegionElement, SoViewVolumeElement, SoWindowElement, and SoResetMatrixElement.

initClass()

void SoElement::initClass ( void )

static

Initialize relevant common data for all instances, like the type system.

initElements()

void SoElement::initElements ( void )

static

This function initializes all the built-in Coin element classes.

matches()

SbBool SoElement::matches ( const SoElement * element ) const

pure virtual

This function returns TRUE is the element matches another element (of the same class), with respect to cache validity.

If the application programmer's extension element has a matches() function, it should also have a copyMatchInfo() function.

Implemented in SoLazyElement, SoMultiTextureCoordinateElement, SoMultiTextureEnabledElement, SoMultiTextureImageElement, SoTextureCombineElement, SoProfilerElement, SoAccumulatedElement, SoCacheElement, SoCacheHintElement, SoDepthBufferElement, SoFloatElement, SoFontNameElement, SoGLRenderPassElement, SoGLShaderProgramElement, SoGLUpdateAreaElement, SoInt32Element, SoLightAttenuationElement, SoLocalBBoxMatrixElement, SoModelMatrixElement, SoOverrideElement, SoPickRayElement, SoReplacedElement, SoShapeHintsElement, SoShapeStyleElement, SoTextureOverrideElement, SoViewportRegionElement, SoWindowElement, SoResetMatrixElement, SoCullElement, SoGLCacheContextElement, and SoGLVBOElement.

pop()

void SoElement::pop ( SoState * state, const SoElement * prevTopElement )

virtual

This method is called when the state is popped, and the depth of the element is bigger than the current state depth. pop() is called on the new top of stack, and a pointer to the previous top of stack is passed in prevTopElement.

Override this method if you need to copy some state information from the previous top of stack.

Reimplemented in SoGLShadowCullingElement, SoCacheElement, SoCacheHintElement, SoDepthBufferElement, SoGLClipPlaneElement, SoGLDepthBufferElement, SoGLDrawStyleElement, SoGLEnvironmentElement, SoGLLazyElement, SoGLLightIdElement, SoGLLinePatternElement, SoGLLineWidthElement, SoGLModelMatrixElement, SoGLMultiTextureCoordinateElement, SoGLMultiTextureEnabledElement, SoGLMultiTextureImageElement, SoGLMultiTextureMatrixElement, SoGLPointSizeElement, SoGLPolygonOffsetElement, SoGLProjectionMatrixElement, SoGLShaderProgramElement, SoGLShapeHintsElement, SoGLUpdateAreaElement, SoGLVBOElement, SoGLViewingMatrixElement, SoGLViewportRegionElement, SoShapeHintsElement, SoShapeStyleElement, SoSoundElement, SoTextOutlineEnabledElement, and SoWindowElement.

print()

void SoElement::print ( FILE * file = stdout ) const

virtual

This function is for printing element information, and is used mostly for debugging purposes.

Reimplemented in SoCoordinateElement, SoEnvironmentElement, SoFloatElement, SoFontNameElement, SoInt32Element, SoLightAttenuationElement, SoListenerDopplerElement, SoListenerOrientationElement, SoListenerPositionElement, SoOverrideElement, SoReplacedElement, SoShapeHintsElement, SoSoundElement, SoViewportRegionElement, and SoTextureOverrideElement.

push()

void SoElement::push ( SoState * state )

virtual

This method is called every time a new element is required in one of the stacks. This happens when a writable element is requested, using SoState::getElement() or indirectly SoElement::getElement(), and the depth of the current element is less than the state depth.

Override this method if your element needs to copy data from the previous top of stack. The push() method is called on the new element, and the previous element can be found using SoElement::getNextInStack().

Reimplemented in SoGLShaderProgramElement, SoGLShadowCullingElement, SoAccumulatedElement, SoBBoxModelMatrixElement, SoBumpMapMatrixElement, SoCacheElement, SoCacheHintElement, SoClipPlaneElement, SoCullElement, SoDepthBufferElement, SoGLDepthBufferElement, SoGLDrawStyleElement, SoGLLazyElement, SoGLLightIdElement, SoGLLinePatternElement, SoGLLineWidthElement, SoGLModelMatrixElement, SoGLMultiTextureCoordinateElement, SoGLMultiTextureEnabledElement, SoGLMultiTextureImageElement, SoGLMultiTextureMatrixElement, SoGLPointSizeElement, SoGLPolygonOffsetElement, SoGLShapeHintsElement, SoGLUpdateAreaElement, SoGLVBOElement, SoGLViewingMatrixElement, SoGLViewportRegionElement, SoLazyElement, SoLightElement, SoLocalBBoxMatrixElement, SoModelMatrixElement, SoMultiTextureCoordinateElement, SoMultiTextureEnabledElement, SoMultiTextureImageElement, SoMultiTextureMatrixElement, SoOverrideElement, SoProfileElement, SoShapeHintsElement, SoShapeStyleElement, SoSoundElement, SoTextOutlineEnabledElement, SoTextureCombineElement, SoTextureOverrideElement, SoVertexAttributeElement, and SoWindowElement.

setDepth()

void SoElement::setDepth

(

const int

depth

)

Sets the depth value of the element instance in the state stack.

setStackIndex()

void SoElement::setStackIndex ( const int stackIndex )

protected

Sets the stack index in an instance. Used in constructors of derived elements.

setTypeId()

void SoElement::setTypeId ( const SoType typeId )

protected

Sets the type identifier of an instance.

Note that this is fundamentally different from the SoNode runtime type system.

Member Data Documentation

classStackIndex

int SoElement::classStackIndex

staticprotected

This is the static state stack index for the class.

depth

int SoElement::depth

protected

The depth of the element instance in the state stack.

stackIndex

int SoElement::stackIndex

protected

The index in the state stack for this particular element instance.

stackToType

SoTypeList * SoElement::stackToType

staticprotected

Provides mapping from state stack indices to element types.

typeId

SoType SoElement::typeId

protected

The element's unique SoType type identification.

---

The documentation for this class was generated from the following files:

• SoElement.h
• SoElement.cpp
