SoSTLFileKit is a class for using STL files with Coin. More...

#include <ForeignFiles/SoSTLFileKit.h>

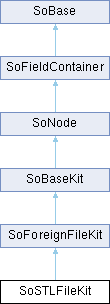

Inheritance diagram for SoSTLFileKit:

Public Types
enum	Colorization { GREY , MATERIALISE , TNO_VISICAM }

Public Types inherited from SoNode
enum	NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }

Public Member Functions
	SoSTLFileKit (void)

virtual SbBool	canReadFile (const char *filename=NULL) const

SbBool	canReadScene (void) const

virtual SbBool	canWriteFile (const char *filename=NULL) const

virtual SoSeparator *	convert ()

virtual const SoNodekitCatalog *	getNodekitCatalog (void) const

virtual SoType	getTypeId (void) const

virtual SbBool	readFile (const char *filename)

SbBool	readScene (SoNode *scene)

virtual SbBool	writeFile (const char *filename)

Public Member Functions inherited from SoBaseKit
	SoBaseKit (void)

virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

virtual void	callback (SoCallbackAction *action)

virtual SoNodeKitPath *	createPathToPart (const SbName &partname, SbBool makeifneeded, const SoPath *pathtoextend=NULL)

virtual void	doAction (SoAction *action)

SbBool	forceChildDrivenWriteRefs (SoOutput *out)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual SoChildList *	getChildren (void) const

virtual void	getMatrix (SoGetMatrixAction *action)

virtual SoNode *	getPart (const SbName &partname, SbBool makeifneeded)

SbString	getPartString (const SoBase *part)

virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual void	GLRender (SoGLRenderAction *action)

virtual void	handleEvent (SoHandleEventAction *action)

void	printDiagram (void)

void	printSubDiagram (const SbName &rootname, int level)

void	printTable (void)

virtual void	rayPick (SoRayPickAction *action)

virtual void	search (SoSearchAction *action)

SbBool	set (const char *namevaluepairliststring)

SbBool	set (const char partnamestring, const char parameterstring)

virtual SbBool	setPart (const SbName &partname, SoNode *from)

virtual void	write (SoWriteAction *action)

Public Member Functions inherited from SoNode
virtual SbBool	affectsState (void) const

virtual void	audioRender (SoAudioRenderAction *action)

virtual SoNode *	copy (SbBool copyconnections=FALSE) const

virtual SoFieldContainer *	copyThroughConnection (void) const

SbUniqueId	getNodeId (void) const

NodeType	getNodeType (void) const

virtual void	GLRenderBelowPath (SoGLRenderAction *action)

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	grabEventsCleanup (void)

virtual void	grabEventsSetup (void)

SbBool	isOverride (void) const

virtual void	notify (SoNotList *l)

virtual void	pick (SoPickAction *action)

void	setNodeType (const NodeType type)

void	setOverride (const SbBool state)

virtual void	startNotify (void)

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoFieldContainer
void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static const SoNodekitCatalog *	getClassNodekitCatalog (void)

static SoType	getClassTypeId (void)

static SbBool	identify (const char *filename)

static void	initClass (void)

Static Public Member Functions inherited from SoForeignFileKit
static SoForeignFileKit *	createForeignFileKit (const char *filename, SbBool exhaust=FALSE)

static SoForeignFileKit *	createForeignFileKit (SoInput *in, SbBool exhaust=FALSE)

static const SoNodekitCatalog *	getClassNodekitCatalog (void)

static SoType	getClassTypeId (void)

static void	initClass (void)

static SbBool	isFileSupported (const char *filename, SbBool exhaust=FALSE)

static SbBool	isFileSupported (SoInput *in, SbBool exhaust=FALSE)

Static Public Member Functions inherited from SoBaseKit
static const SoNodekitCatalog *	getClassNodekitCatalog (void)

static SoType	getClassTypeId (void)

static void	initClass (void)

static SbBool	isSearchingChildren (void)

static void	setSearchingChildren (const SbBool newval)

Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction action, SoNode node)

static void	callbackS (SoAction action, SoNode node)

static int	getActionMethodIndex (const SoType type)

static void	getBoundingBoxS (SoAction action, SoNode node)

static SoNode *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoNodeList &l)

static SoType	getClassTypeId (void)

static uint32_t	getCompatibilityTypes (const SoType &nodetype)

static void	getMatrixS (SoAction action, SoNode node)

static SbUniqueId	getNextNodeId (void)

static void	getPrimitiveCountS (SoAction action, SoNode node)

static void	GLRenderS (SoAction action, SoNode node)

static void	handleEventS (SoAction action, SoNode node)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

static void	pickS (SoAction action, SoNode node)

static void	rayPickS (SoAction action, SoNode node)

static void	searchS (SoAction action, SoNode node)

static void	writeS (SoAction action, SoNode node)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Public Attributes
SoSFBool	binary

SoSFEnum	colorization

SoSFString	info

Protected Member Functions
virtual	~SoSTLFileKit (void)

SbBool	addFacet (const SbVec3f &v1, const SbVec3f &v2, const SbVec3f &v3, const SbVec3f &normal)

virtual const SoFieldData *	getFieldData (void) const

void	organizeModel (void)

void	reset (void)

Protected Member Functions inherited from SoBaseKit
virtual	~SoBaseKit ()

virtual SoNode *	addToCopyDict (void) const

void	catalogError (void)

virtual void	copyContents (const SoFieldContainer *fromfc, SbBool copyconnections)

void	countMyFields (SoOutput *out)

virtual void	createDefaultParts (void)

void	createFieldList (void)

void	createNodekitPartsList (void)

virtual SoNodeKitPath *	createPathToAnyPart (const SbName &partname, SbBool makeifneeded, SbBool leafcheck=FALSE, SbBool publiccheck=FALSE, const SoPath *pathtoextend=NULL)

virtual SoNode *	getAnyPart (const SbName &partname, SbBool makeifneeded, SbBool leafcheck=FALSE, SbBool publiccheck=FALSE)

const SbList< SoSFNode * > &	getCatalogInstances (void) const

SoGroup *	getContainerNode (const SbName &listname, SbBool makeifneeded=TRUE)

const SoNodekitParts *	getNodekitPartsList (void) const

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

virtual SbBool	setAnyPart (const SbName &partname, SoNode *from, SbBool anypart=TRUE)

virtual void	setDefaultOnNonWritingFields (void)

virtual SbBool	setPart (const int partNum, SoNode *node)

virtual SbBool	setUpConnections (SbBool onoff, SbBool doitalways=FALSE)

Protected Member Functions inherited from SoNode
	SoNode (void)

virtual	~SoNode ()

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual SoNotRec	createNotRec (void)

virtual void	destroy (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoNodekitCatalog **	getClassNodekitCatalogPtr (void)

static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoForeignFileKit
static const SoNodekitCatalog **	getClassNodekitCatalogPtr (void)

static const SoFieldData **	getFieldDataPtr (void)

static void	initClasses (void)

static SbBool	registerFileExtension (SoType handler, SbName extension, SoForeignFileIdentifyFunc *identify)

Static Protected Member Functions inherited from SoBaseKit
static const SoNodekitCatalog **	getClassNodekitCatalogPtr (void)

static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)

static int	getNextActionMethodIndex (void)

static void	incNextActionMethodIndex (void)

static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void	setNextActionMethodIndex (int index)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Protected Attributes
SoSFNode	coordinates

SoSFNode	facets

SoSFNode	material

SoSFNode	materialbinding

SoSFNode	normalbinding

SoSFNode	normals

SoSFNode	shapehints

SoSFNode	texture

Protected Attributes inherited from SoForeignFileKit
SoSFNode	topSeparator

Protected Attributes inherited from SoBaseKit
SoSFNode	callbackList

SoChildList *	children

SbBool	connectionsSetUp

Protected Attributes inherited from SoNode
SbUniqueId	uniqueId

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Additional Inherited Members
Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0

static SbUniqueId	nextUniqueId = 1

Detailed Description

SoSTLFileKit is a class for using STL files with Coin.

Class for using STL files with Coin. You can use it to read and write STL files, and convert back and forth between Open Inventor scene graphs and SoSTLFileKits.

STL files are 3D models intended for 3D printers, and is a format supported by a wide variety of computer-aided design programs. STL models are, because of their intended purpose, always representations of solid objects. STL is short for stereolithography, the process used for 3D printing.

Ordinary STL models do not contain color information. There are, however, two extensions to the binary file format for specifying color. Currently neither extension is supported. This is caused by lack of sample models using the extensions and will be added as soon as such models are found. We have the specs on the extensions, and it should be pretty straight-forwards to implement, but we want to get it right at once since we have write support (we don't want to inadvertently create a third color extension ;).

When writing STL files, certain STL model criteria are not enforced by SoSTLFileKit. These are:

STL models should represent complete solids - it is the user's responsibility to give models of solid data to readScene(), and not readScene()'s responsibility to check the incoming data.
STL models should have all triangles in counterclockwise order. This is not enforced either.
STL models should reside in the positive octant of the coordinate space. This is also the user's responsibility to ensure, although adding functionality for translating the model should be easy, so it might get implemented.

Since the color extensions are not supported yet, color information is not collected either when converting Open Inventor scene graphs to SoSTLFileKits.

Be aware that this class is an extension for Coin, and it is not available in the original SGI Open Inventor v2.1 API.

Since: Coin 3.0

Constructor & Destructor Documentation

◆ SoSTLFileKit()

SoSTLFileKit::SoSTLFileKit ( void )

Constructor.

◆ ~SoSTLFileKit()

SoSTLFileKit::~SoSTLFileKit ( void )

protectedvirtual

Destructor.

Member Function Documentation

◆ addFacet()

SbBool SoSTLFileKit::addFacet	(	const SbVec3f &	v1,
		const SbVec3f &	v2,
		const SbVec3f &	v3,
		const SbVec3f &	n )

protected

Adds one triangle to the STL model.

See also: reset, organizeModel

◆ canReadFile()

SbBool SoSTLFileKit::canReadFile ( const char * filename = NULL ) const

virtual

Checks if this concrete class can read the given file.

Reimplemented from SoForeignFileKit.

◆ canWriteFile()

SbBool SoSTLFileKit::canWriteFile ( const char * filename = NULL ) const

virtual

Checks if this concrete class can write to the given file.

Reimplemented from SoForeignFileKit.

◆ convert()

SoSeparator * SoSTLFileKit::convert ( )

virtual

Converts (if necessary) the internal representation of the foreign file to a pure Coin scenegraph. Returns the root node with a refcount of 0.

Implements SoForeignFileKit.

◆ getClassNodekitCatalog()

const SoNodekitCatalog * SoSTLFileKit::getClassNodekitCatalog ( void )

static

Returns the nodekit catalog which defines the layout of this class' kit.

◆ getClassNodekitCatalogPtr()

const SoNodekitCatalog ** SoSTLFileKit::getClassNodekitCatalogPtr ( void )

staticprotected

Returns the pointer to the pointer of the nodekit catalog for this class.

◆ getClassTypeId()

SoType SoSTLFileKit::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoSTLFileKit::getFieldData ( void ) const

protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoForeignFileKit.

◆ getFieldDataPtr()

const SoFieldData ** SoSTLFileKit::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getNodekitCatalog()

const SoNodekitCatalog * SoSTLFileKit::getNodekitCatalog ( void ) const

virtual

Returns the nodekit catalog which defines the layout of this class' kit.

Reimplemented from SoForeignFileKit.

◆ getTypeId()

SoType SoSTLFileKit::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoForeignFileKit.

◆ identify()

SbBool SoSTLFileKit::identify ( const char * filename )

static

Returns whether or not filename is identified as an STL file.

◆ initClass()

void SoSTLFileKit::initClass ( void )

static

◆ organizeModel()

void SoSTLFileKit::organizeModel ( void )

protected

Should be called after the STL model is completely set up in the SoSTLFileKit through import from a file or from a scene graph. The model will then be optimized for fast rendering.

See also: addFacet, reset

◆ readFile()

SbBool SoSTLFileKit::readFile ( const char * filename )

virtual

Reads in an STL file. Both ASCII and binary files are supported. For binary files, the color extensions are not implemented yet.

Returns FALSE if filename could not be opened or parsed correctly.

See also: canReadFile

Reimplemented from SoForeignFileKit.

◆ readScene()

SbBool SoSTLFileKit::readScene ( SoNode * scene )

Converts a scene graph into an SoSTLFileKit. Useful for creating STL files.

See also: canReadScene, canWriteFile, writeFile

◆ reset()

void SoSTLFileKit::reset ( void )

protected

Resets the STL model so it contains nothing.

◆ writeFile()

SbBool SoSTLFileKit::writeFile ( const char * filename )

virtual

Writes the STL model to an STL file.

See also: binary, info, canWriteFile, canReadScene

Reimplemented from SoForeignFileKit.

The documentation for this class was generated from the following files:

SoSTLFileKit.h
SoSTLFileKit.cpp
