The SoSeparatorKit class provides a typical set of nodes to influence a shape subgraph. More...

#include <Inventor/nodekits/SoSeparatorKit.h>

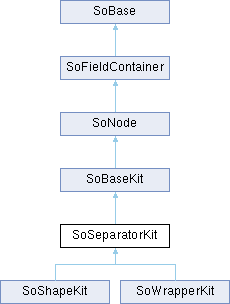

Inheritance diagram for SoSeparatorKit:

Public Types
enum	CacheEnabled { OFF , ON , AUTO }

Public Types inherited from SoNode
enum	NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }

Public Member Functions
	SoSeparatorKit (void)

virtual const SoNodekitCatalog *	getNodekitCatalog (void) const

virtual SoType	getTypeId (void) const

Public Member Functions inherited from SoBaseKit
	SoBaseKit (void)

virtual void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE)

virtual void	callback (SoCallbackAction *action)

virtual SoNodeKitPath *	createPathToPart (const SbName &partname, SbBool makeifneeded, const SoPath *pathtoextend=NULL)

virtual void	doAction (SoAction *action)

SbBool	forceChildDrivenWriteRefs (SoOutput *out)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual SoChildList *	getChildren (void) const

virtual void	getMatrix (SoGetMatrixAction *action)

virtual SoNode *	getPart (const SbName &partname, SbBool makeifneeded)

SbString	getPartString (const SoBase *part)

virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)

virtual void	GLRender (SoGLRenderAction *action)

virtual void	handleEvent (SoHandleEventAction *action)

void	printDiagram (void)

void	printSubDiagram (const SbName &rootname, int level)

void	printTable (void)

virtual void	rayPick (SoRayPickAction *action)

virtual void	search (SoSearchAction *action)

SbBool	set (const char *namevaluepairliststring)

SbBool	set (const char partnamestring, const char parameterstring)

virtual SbBool	setPart (const SbName &partname, SoNode *from)

virtual void	write (SoWriteAction *action)

Public Member Functions inherited from SoNode
virtual SbBool	affectsState (void) const

virtual void	audioRender (SoAudioRenderAction *action)

virtual SoNode *	copy (SbBool copyconnections=FALSE) const

virtual SoFieldContainer *	copyThroughConnection (void) const

SbUniqueId	getNodeId (void) const

NodeType	getNodeType (void) const

virtual void	GLRenderBelowPath (SoGLRenderAction *action)

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	grabEventsCleanup (void)

virtual void	grabEventsSetup (void)

SbBool	isOverride (void) const

virtual void	notify (SoNotList *l)

virtual void	pick (SoPickAction *action)

void	setNodeType (const NodeType type)

void	setOverride (const SbBool state)

virtual void	startNotify (void)

virtual void	writeInstance (SoOutput *out)

Public Member Functions inherited from SoFieldContainer
void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)

SbBool	enableNotify (const SbBool flag)

SbBool	fieldsAreEqual (const SoFieldContainer *container) const

void	get (SbString &fielddata)

void	get (SbString &fielddata, SoOutput *out)

virtual int	getAllFields (SoFieldList &l) const

virtual SoField *	getEventIn (const SbName &name) const

virtual SoField *	getEventOut (const SbName &name) const

virtual SoField *	getField (const SbName &name) const

SbBool	getFieldName (const SoField *const field, SbName &name) const

virtual int	getFields (SoFieldList &l) const

virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const

SbBool	getIsBuiltIn (void) const

void *	getUserData (void) const

SbBool	hasDefaultValues (void) const

SbBool	isNotifyEnabled (void) const

SbBool	set (const char *const fielddata)

SbBool	set (const char fielddata, SoInput input)

void	setToDefaults (void)

void	setUserData (void *userdata) const

virtual SbBool	validateNewFieldValue (SoField field, void newval)

Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)

void	assertAlive (void) const

const SoAuditorList &	getAuditors (void) const

virtual SbName	getName (void) const

int32_t	getRefCount (void) const

SbBool	isOfType (SoType type) const
	Returns `TRUE` if the type of this object is either of the same type or inherited from type.

void	ref (void) const

void	removeAuditor (void *const auditor, const SoNotRec::Type type)

virtual void	setName (const SbName &newname)

SbBool	shouldWrite (void)

void	touch (void)

void	unref (void) const

void	unrefNoDelete (void) const

Static Public Member Functions
static const SoNodekitCatalog *	getClassNodekitCatalog (void)

static SoType	getClassTypeId (void)

static void	initClass (void)

Static Public Member Functions inherited from SoBaseKit
static const SoNodekitCatalog *	getClassNodekitCatalog (void)

static SoType	getClassTypeId (void)

static void	initClass (void)

static SbBool	isSearchingChildren (void)

static void	setSearchingChildren (const SbBool newval)

Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction action, SoNode node)

static void	callbackS (SoAction action, SoNode node)

static int	getActionMethodIndex (const SoType type)

static void	getBoundingBoxS (SoAction action, SoNode node)

static SoNode *	getByName (const SbName &name)

static int	getByName (const SbName &name, SoNodeList &l)

static SoType	getClassTypeId (void)

static uint32_t	getCompatibilityTypes (const SoType &nodetype)

static void	getMatrixS (SoAction action, SoNode node)

static SbUniqueId	getNextNodeId (void)

static void	getPrimitiveCountS (SoAction action, SoNode node)

static void	GLRenderS (SoAction action, SoNode node)

static void	handleEventS (SoAction action, SoNode node)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initClasses (void)

static void	pickS (SoAction action, SoNode node)

static void	rayPickS (SoAction action, SoNode node)

static void	searchS (SoAction action, SoNode node)

static void	writeS (SoAction action, SoNode node)

Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)

static void	cleanupClass (void)

static void	copyDone (void)

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static void	initCopyDict (void)

Static Public Member Functions inherited from SoBase
static void	addName (SoBase const base, const char const name)

static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)

static void	decrementCurrentWriteCounter (void)

static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.

static SoBase *	getNamedBase (const SbName &name, SoType type)

static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)

static SbBool	getTraceRefs (void)

static void	incrementCurrentWriteCounter (void)

static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.

static SbBool	read (SoInput input, SoBase &base, SoType expectedtype)

static SbBool	readRoute (SoInput *input)

static void	removeName (SoBase const base, const char const name)

static void	setInstancePrefix (const SbString &c)

static void	setTraceRefs (SbBool trace)

Public Attributes
SoSFEnum	boundingBoxCaching

SoSFEnum	pickCulling

SoSFEnum	renderCaching

SoSFEnum	renderCulling

Protected Member Functions
virtual	~SoSeparatorKit ()

virtual const SoFieldData *	getFieldData (void) const

virtual void	setDefaultOnNonWritingFields (void)

virtual SbBool	setUpConnections (SbBool onoff, SbBool doitalways=FALSE)

Protected Member Functions inherited from SoBaseKit
virtual	~SoBaseKit ()

virtual SoNode *	addToCopyDict (void) const

void	catalogError (void)

virtual void	copyContents (const SoFieldContainer *fromfc, SbBool copyconnections)

void	countMyFields (SoOutput *out)

virtual void	createDefaultParts (void)

void	createFieldList (void)

void	createNodekitPartsList (void)

virtual SoNodeKitPath *	createPathToAnyPart (const SbName &partname, SbBool makeifneeded, SbBool leafcheck=FALSE, SbBool publiccheck=FALSE, const SoPath *pathtoextend=NULL)

virtual SoNode *	getAnyPart (const SbName &partname, SbBool makeifneeded, SbBool leafcheck=FALSE, SbBool publiccheck=FALSE)

const SbList< SoSFNode * > &	getCatalogInstances (void) const

SoGroup *	getContainerNode (const SbName &listname, SbBool makeifneeded=TRUE)

const SoNodekitParts *	getNodekitPartsList (void) const

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

virtual SbBool	setAnyPart (const SbName &partname, SoNode *from, SbBool anypart=TRUE)

virtual SbBool	setPart (const int partNum, SoNode *node)

Protected Member Functions inherited from SoNode
	SoNode (void)

virtual	~SoNode ()

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)

virtual	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase (void)

virtual	~SoBase ()

virtual SoNotRec	createNotRec (void)

virtual void	destroy (void)

virtual const char *	getFileFormatName (void) const

SbBool	hasMultipleWriteRefs (void) const

void	writeFooter (SoOutput *out) const

SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoNodekitCatalog **	getClassNodekitCatalogPtr (void)

static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoBaseKit
static const SoNodekitCatalog **	getClassNodekitCatalogPtr (void)

static const SoFieldData **	getFieldDataPtr (void)

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)

static int	getNextActionMethodIndex (void)

static void	incNextActionMethodIndex (void)

static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)

static void	setNextActionMethodIndex (int index)

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)

static void	staticDataLock (void)

static void	staticDataUnlock (void)

Protected Attributes
SoSFNode	appearance

SoSFNode	childList

SoSFNode	pickStyle

SoSFNode	texture2Transform

SoSFNode	topSeparator

SoSFNode	transform

SoSFNode	units

Protected Attributes inherited from SoBaseKit
SoSFNode	callbackList

SoChildList *	children

SbBool	connectionsSetUp

Protected Attributes inherited from SoNode
SbUniqueId	uniqueId

Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn

Additional Inherited Members
Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }

Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0

static SbUniqueId	nextUniqueId = 1

Detailed Description

The SoSeparatorKit class provides a typical set of nodes to influence a shape subgraph.

Nodekit structure (new entries versus parent class marked with arrow prefix):

CLASS SoSeparatorKit
-->"this"
      "callbackList"
-->   "topSeparator"
-->      "pickStyle"
-->      "appearance"
-->      "units"
-->      "transform"
-->      "texture2Transform"
-->      "childList"

(See SoBaseKit::printDiagram() for information about the output formatting.)

Detailed information on catalog parts:

CLASS SoSeparatorKit
PVT   "this",  SoSeparatorKit  ---
      "callbackList",  SoNodeKitListPart [ SoCallback, SoEventCallback ]
PVT   "topSeparator",  SoSeparator  ---
      "pickStyle",  SoPickStyle  ---
      "appearance",  SoAppearanceKit  ---
      "units",  SoUnits  ---
      "transform",  SoTransform  ---
      "texture2Transform",  SoTexture2Transform  ---
      "childList",  SoNodeKitListPart [ SoShapeKit, SoSeparatorKit ]

(See SoBaseKit::printTable() for information about the output formatting.)

Member Enumeration Documentation

◆ CacheEnabled

enum SoSeparatorKit::CacheEnabled

Contains the same values with the same semantics as in the enum with the same name in SoSeparator. See documentation of SoSeparator::CacheEnabled.

Constructor & Destructor Documentation

◆ SoSeparatorKit()

SoSeparatorKit::SoSeparatorKit ( void )

Constructor.

◆ ~SoSeparatorKit()

SoSeparatorKit::~SoSeparatorKit ( )

protectedvirtual

Destructor.

Member Function Documentation

◆ getClassNodekitCatalog()

const SoNodekitCatalog * SoSeparatorKit::getClassNodekitCatalog ( void )

static

Returns the nodekit catalog which defines the layout of this class' kit.

◆ getClassNodekitCatalogPtr()

const SoNodekitCatalog ** SoSeparatorKit::getClassNodekitCatalogPtr ( void )

staticprotected

Returns the pointer to the pointer of the nodekit catalog for this class.

◆ getClassTypeId()

SoType SoSeparatorKit::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

◆ getFieldData()

const SoFieldData * SoSeparatorKit::getFieldData ( void ) const

protectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoBaseKit.

Reimplemented in SoShapeKit, and SoWrapperKit.

◆ getFieldDataPtr()

const SoFieldData ** SoSeparatorKit::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

◆ getNodekitCatalog()

const SoNodekitCatalog * SoSeparatorKit::getNodekitCatalog ( void ) const

virtual

Returns the nodekit catalog which defines the layout of this class' kit.

Reimplemented from SoBaseKit.

Reimplemented in SoShapeKit, and SoWrapperKit.

◆ getTypeId()

SoType SoSeparatorKit::getTypeId ( void ) const

virtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoBaseKit.

Reimplemented in SoShapeKit, and SoWrapperKit.

◆ initClass()

void SoSeparatorKit::initClass ( void )

static

Does initialization common for all objects of the SoSeparatorKit class. This includes setting up the type system, among other things.

◆ setDefaultOnNonWritingFields()

void SoSeparatorKit::setDefaultOnNonWritingFields ( void )

protectedvirtual

(Be aware that this method is unlikely to be of interest to the application programmer who does not want to extend the library with new custom nodekits or draggers. If you indeed are writing extensions, see the information in the SoBaseKit class documentation.)

This is a virtual method, and the code in it should call SoField::setDefault() with argument TRUE on part fields that should not be written upon scene graph export operations.

This is typically done when:

field value is NULL and part is NULL by default
it is a leaf SoGroup or SoSeparator node with no children
it is a leaf listpart with no children and an SoGroup or SoSeparator container
it is a non-leaf part and it is of SoGroup type and all fields are at their default values

Subclasses should usually override this to do additional settings for new member fields. From the subclass, do remember to call "upwards" to your superclass' setDefaultOnNonWritingFields() method.

Reimplemented from SoBaseKit.

Reimplemented in SoShapeKit.

◆ setUpConnections()

SbBool SoSeparatorKit::setUpConnections	(	SbBool	onoff,
		SbBool	doitalways = FALSE )

protectedvirtual

Sets up all internal connections for instances of this class.

(This method will usually not be of interest to the application programmer, unless you want to extend the library with new custom nodekits or dragger classes. If so, see the SoBaseKit class documentation.)

Reimplemented from SoBaseKit.

Member Data Documentation

◆ boundingBoxCaching

SoSFEnum SoSeparatorKit::boundingBoxCaching

See documentation for SoSeparator::boundingBoxCaching.

◆ pickCulling

SoSFEnum SoSeparatorKit::pickCulling

See documentation for SoSeparator::pickCulling.

◆ renderCaching

SoSFEnum SoSeparatorKit::renderCaching

See documentation for SoSeparator::renderCaching.

◆ renderCulling

SoSFEnum SoSeparatorKit::renderCulling

See documentation for SoSeparator::renderCulling.

The documentation for this class was generated from the following files:

SoSeparatorKit.h
SoSeparatorKit.cpp

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ CacheEnabled

Constructor & Destructor Documentation

◆ SoSeparatorKit()

◆ ~SoSeparatorKit()

Member Function Documentation

◆ getClassNodekitCatalog()

◆ getClassNodekitCatalogPtr()

◆ getClassTypeId()

◆ getFieldData()

◆ getFieldDataPtr()

◆ getNodekitCatalog()

◆ getTypeId()

◆ initClass()

◆ setDefaultOnNonWritingFields()

◆ setUpConnections()

Member Data Documentation

◆ boundingBoxCaching

◆ pickCulling

◆ renderCaching

◆ renderCulling
