The SoTransformBoxDragger provides a box which can be translated, scaled and rotated. More...
#include <Inventor/draggers/SoTransformBoxDragger.h>

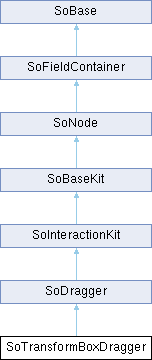

Public Attributes | |
SoSFRotation | rotation |
SoSFVec3f | scaleFactor |
SoSFVec3f | translation |
Public Attributes inherited from SoDragger | |
SoSFBool | isActive |
Public Attributes inherited from SoInteractionKit | |
SoSFEnum | boundingBoxCaching |
SoSFEnum | pickCulling |
SoSFEnum | renderCaching |
SoSFEnum | renderCulling |
Protected Attributes | |
SoSFNode | antiSquish |
SoSFNode | rotator1 |
SoSFNode | rotator1Rot |
SoSFNode | rotator1Sep |
SoSFNode | rotator2 |
SoSFNode | rotator2Rot |
SoSFNode | rotator2Sep |
SoSFNode | rotator3 |
SoSFNode | rotator3Rot |
SoSFNode | rotator3Sep |
SoFieldSensor * | rotFieldSensor |
SoFieldSensor * | scaleFieldSensor |
SoSFNode | scaler |
SoSFNode | surroundScale |
SoSFNode | translator1 |
SoSFNode | translator1Rot |
SoSFNode | translator1Sep |
SoSFNode | translator2 |
SoSFNode | translator2Rot |
SoSFNode | translator2Sep |
SoSFNode | translator3 |
SoSFNode | translator3Rot |
SoSFNode | translator3Sep |
SoSFNode | translator4 |
SoSFNode | translator4Rot |
SoSFNode | translator4Sep |
SoSFNode | translator5 |
SoSFNode | translator5Rot |
SoSFNode | translator5Sep |
SoSFNode | translator6 |
SoSFNode | translator6Rot |
SoSFNode | translator6Sep |
SoFieldSensor * | translFieldSensor |
Protected Attributes inherited from SoDragger | |
SoSFNode | motionMatrix |
Protected Attributes inherited from SoInteractionKit | |
SoFieldSensor * | fieldSensor |
SoSFNode | geomSeparator |
SoSeparator * | oldTopSep |
SoSFNode | topSeparator |
Protected Attributes inherited from SoBaseKit | |
SoSFNode | callbackList |
SoChildList * | children |
SbBool | connectionsSetUp |
Protected Attributes inherited from SoNode | |
SbUniqueId | uniqueId |
Protected Attributes inherited from SoFieldContainer | |
SbBool | isBuiltIn |
Additional Inherited Members | |
Public Types inherited from SoDragger | |
enum | ProjectorFrontSetting { FRONT , BACK , USE_PICK } |
Public Types inherited from SoInteractionKit | |
enum | CacheEnabled { OFF , ON , AUTO } |
Public Types inherited from SoNode | |
enum | NodeType { INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 , INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 , COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 , COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 , COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 } |
Protected Types inherited from SoBase | |
enum | BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 } |
Static Protected Attributes inherited from SoNode | |
static int | nextActionMethodIndex = 0 |
static SbUniqueId | nextUniqueId = 1 |
The SoTransformBoxDragger provides a box which can be translated, scaled and rotated.

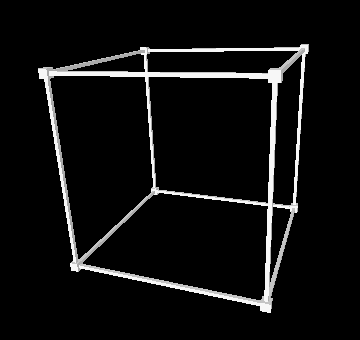

Here's how the dragger looks with its default geometry in the inactive state:
Translate the dragger by clicking and dragging any of the (invisible) sides. Scaling is done by dragging the corner cubes. Only uniform scaling is supported. Rotation is done by dragging any of the 12 beams connecting the corner cubes.
This dragger consists of a rigid framework for doing all the usual interaction operations on scene geometry. The "user interface" of the dragger is very simple, providing little room for the end-user to make mistakes.
For the application programmer's convenience, the Coin library also provides a manipulator class called SoTransformBoxManip, which wraps the SoTransformBoxDragger into the necessary mechanisms for making direct insertion of this dragger into a scene graph possible with very little effort.
SoTransformBoxDragger::SoTransformBoxDragger | ( | void | ) |
Default constructor, sets up the dragger nodekit catalog with the interaction and feedback geometry.
Nodekit structure (new entries versus parent class marked with arrow prefix):
CLASS SoTransformBoxDragger -->"this" "callbackList" "topSeparator" "motionMatrix" --> "surroundScale" --> "antiSquish" --> "scaler" --> "rotator1Sep" --> "rotator1Rot" --> "rotator1" --> "rotator2Sep" --> "rotator2Rot" --> "rotator2" --> "rotator3Sep" --> "rotator3Rot" --> "rotator3" --> "translator1Sep" --> "translator1Rot" --> "translator1" --> "translator2Sep" --> "translator2Rot" --> "translator2" --> "translator3Sep" --> "translator3Rot" --> "translator3" --> "translator4Sep" --> "translator4Rot" --> "translator4" --> "translator5Sep" --> "translator5Rot" --> "translator5" --> "translator6Sep" --> "translator6Rot" --> "translator6" "geomSeparator"
(See SoBaseKit::printDiagram() for information about the output formatting.)
Detailed information on catalog parts:
CLASS SoTransformBoxDragger PVT "this", SoTransformBoxDragger --- "callbackList", SoNodeKitListPart [ SoCallback, SoEventCallback ] PVT "topSeparator", SoSeparator --- PVT "motionMatrix", SoMatrixTransform --- "surroundScale", SoSurroundScale --- "antiSquish", SoAntiSquish --- "scaler", SoScaleUniformDragger --- PVT "rotator1Sep", SoSeparator --- PVT "rotator1Rot", SoRotation --- "rotator1", SoRotateCylindricalDragger --- PVT "rotator2Sep", SoSeparator --- PVT "rotator2Rot", SoRotation --- "rotator2", SoRotateCylindricalDragger --- PVT "rotator3Sep", SoSeparator --- PVT "rotator3Rot", SoRotation --- "rotator3", SoRotateCylindricalDragger --- PVT "translator1Sep", SoSeparator --- PVT "translator1Rot", SoRotation --- "translator1", SoTranslate2Dragger --- PVT "translator2Sep", SoSeparator --- PVT "translator2Rot", SoRotation --- "translator2", SoTranslate2Dragger --- PVT "translator3Sep", SoSeparator --- PVT "translator3Rot", SoRotation --- "translator3", SoTranslate2Dragger --- PVT "translator4Sep", SoSeparator --- PVT "translator4Rot", SoRotation --- "translator4", SoTranslate2Dragger --- PVT "translator5Sep", SoSeparator --- PVT "translator5Rot", SoRotation --- "translator5", SoTranslate2Dragger --- PVT "translator6Sep", SoSeparator --- PVT "translator6Rot", SoRotation --- "translator6", SoTranslate2Dragger --- PVT "geomSeparator", SoSeparator ---
(See SoBaseKit::printTable() for information about the output formatting.)
|
protectedvirtual |
Protected destructor.
(Dragger classes are derived from SoBase, so they are reference counted and automatically destroyed when their reference count goes to 0.)
This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.
|
static |
Returns the nodekit catalog which defines the layout of this class' kit.
|
staticprotected |
Returns the pointer to the pointer of the nodekit catalog for this class.
This static method returns the SoType object associated with objects of this class.
|
protectedvirtual |
Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL
.
Reimplemented from SoDragger.
|
staticprotected |
This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.
Returns the SoFieldData class which holds information about fields in this node.
|
virtual |
Returns the nodekit catalog which defines the layout of this class' kit.
Reimplemented from SoDragger.
Initializes type system for this dragger class.
Application programmers should usually not have to invoke this method, see documentation of SoInteraction::init().
This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.
(Be aware that this method is unlikely to be of interest to the application programmer who does not want to extend the library with new custom nodekits or draggers. If you indeed are writing extensions, see the information in the SoBaseKit class documentation.)
This is a virtual method, and the code in it should call SoField::setDefault() with argument TRUE
on part fields that should not be written upon scene graph export operations.
This is typically done when:
field value is NULL
and part is NULL
by default
it is a leaf SoGroup or SoSeparator node with no children
it is a leaf listpart with no children and an SoGroup or SoSeparator container
it is a non-leaf part and it is of SoGroup type and all fields are at their default values
Subclasses should usually override this to do additional settings for new member fields. From the subclass, do remember to call "upwards" to your superclass' setDefaultOnNonWritingFields() method.
Reimplemented from SoDragger.
|
protectedvirtual |
Sets up all internal connections for instances of this class.
(This method will usually not be of interest to the application programmer, unless you want to extend the library with new custom nodekits or dragger classes. If so, see the SoBaseKit class documentation.)
Reimplemented from SoInteractionKit.
This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.
SoSFRotation SoTransformBoxDragger::rotation |
This field is continuously updated to contain the rotation of the dragger's box.
|
protected |
This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.
SoSFVec3f SoTransformBoxDragger::scaleFactor |
Continuously updated to contain the current vector of scaling along the X, Y and Z axes. The three components will always be equal, as this dragger only supports uniform scale operations.
|
protected |
This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.
SoSFVec3f SoTransformBoxDragger::translation |
The dragger's offset position from the local origo.
|
protected |
This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.
